Draw-Tite Hardware Kit For Class 4 Trailer Hitch, 2 Inch 75607 For 2007-2008 Isuzu i-290 Draw-tite$55.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2004 - 2012 Chevrolet Colorado
Confirmed to Fit
2004 - 2012 GMC Canyon
Confirmed to Fit
2006 Isuzu i-280
Confirmed to Fit
2007 - 2008 Isuzu i-290
Confirmed to Fit
2006 Isuzu i-350
Confirmed to Fit
2007 - 2008 Isuzu i-370
Confirmed to Fit
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Always the correct part
We know our products
Always the correct part
We know our products
Quality Products
Free Shipping!
Quality Products
Free Shipping!
On Sale Today
Original price was $327.50. Current price is $213.10.You save $114.40 (35%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Sat, Sep 26 - Tue, Sep 29
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 600 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 7,500 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75607 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 33 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 600 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 7,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 750 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
6 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2012 | Chevrolet Colorado | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes Without Factory Installed Receiver |
| 2004 - 2012 | GMC Canyon | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes Without Factory Installed Receiver |
| 2006 | Isuzu i-280 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
| 2007 - 2008 | Isuzu i-290 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
| 2006 | Isuzu i-350 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
| 2007 - 2008 | Isuzu i-370 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Colorado, GMC Canyon, Isuzu i-280, Isuzu i-290, Isuzu i-350, Isuzu i-370 75607 (Part #DT75607) fits the following vehicles: 2004-2012 Chevrolet Colorado; 2004-2012 GMC Canyon; 2006 Isuzu i-280; 2007-2008 Isuzu i-290; 2006 Isuzu i-350; 2007-2008 Isuzu i-370. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Colorado, GMC Canyon, Isuzu i-280, Isuzu i-290, Isuzu i-350, Isuzu i-370 75607 (Part #DT75607) is designed to fit the 2004-2012 Chevrolet Colorado.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Colorado, GMC Canyon, Isuzu i-280, Isuzu i-290, Isuzu i-350, Isuzu i-370 75607 (Part #DT75607) fits 2004-2012 Chevrolet Colorado models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Colorado, GMC Canyon, Isuzu i-280, Isuzu i-290, Isuzu i-350, Isuzu i-370 75607 (Part #DT75607) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75607 is designed for Chevrolet Colorado Pickup, GMC Canyon Pickup, and Isuzu I-Series Pickup models. The installation procedure differs slightly depending on whether your truck is 2007 and older or 2008 and newer, as the bumper bracket location changes between these model years. Confirm your truck's year before beginning installation.
The hitch has two capacity ratings depending on the type of ball mount used. With a Weight Distributing ball mount, the maximum gross trailer weight is 7,500 lb (3,405 kg) and maximum tongue weight is 750 lb (340 kg). With a Weight Carrying ball mount, the maximum gross trailer weight is 6,000 lb (2,724 kg) and maximum tongue weight is 600 lb (272 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch ratings.
You will need wrenches in sizes 21 mm, 22 mm, and 11/16". A torque wrench is required to properly tighten the fasteners to specification. No drill bits are needed. Tape is also required to hold the supplied blocks in place during installation. The fastener kit 75607F is included with the hitch.
You do not need to remove the entire bumper. You only need to remove the bumper brackets from the frame. On 2007 and older trucks, the bumper brackets are on the outside of the truck frame. On 2008 and newer trucks, the bumper brackets are on the inside of the truck frame. Remove the two bolts per side that attach the bumper brackets to the frame before installing the hitch.

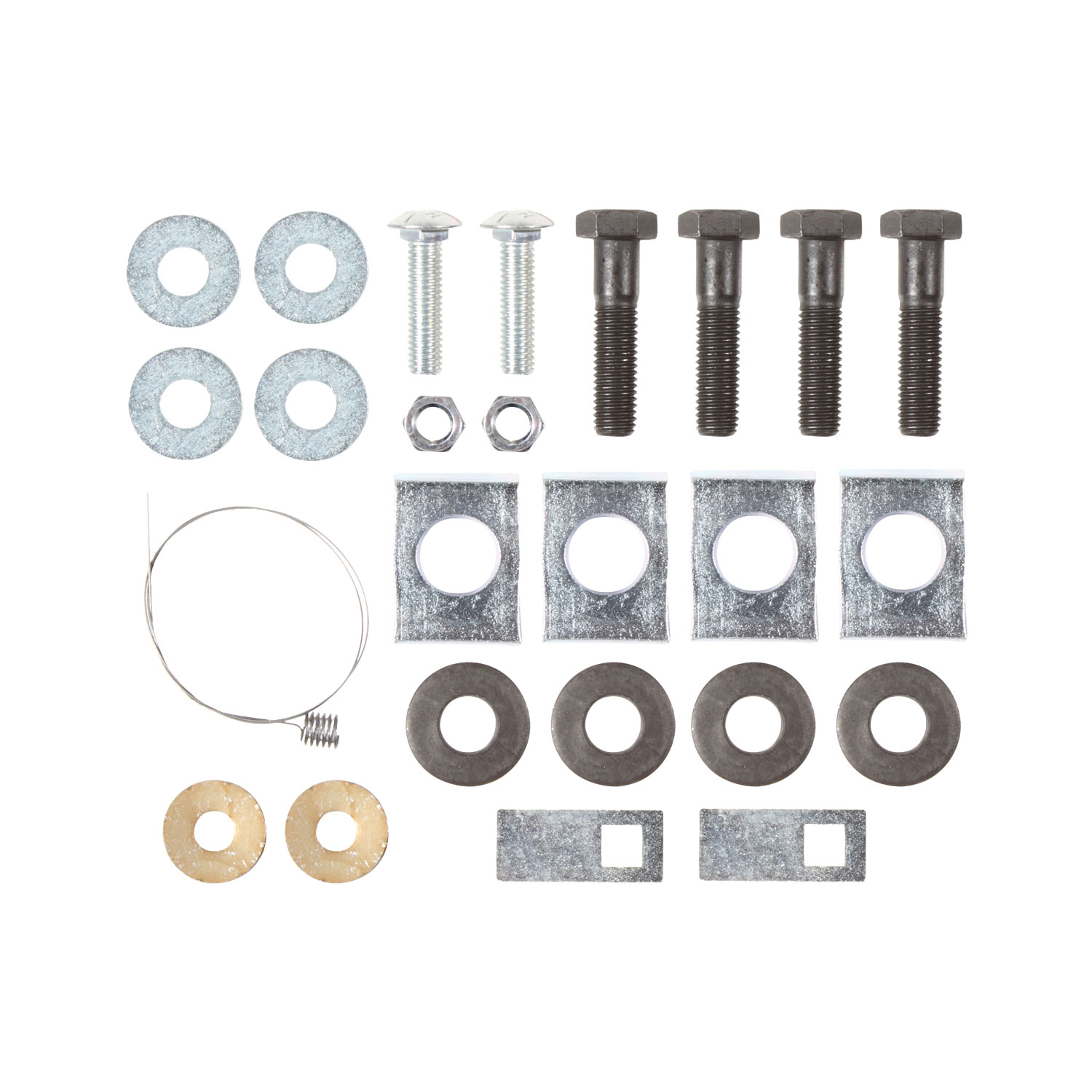

The fastener kit includes: (4) M14 × 2.00 × 60 mm hex bolts; (4) 1/2" flat washers; (4) 5/8" conical toothed washers; (2) 7/16" conical toothed washers; (4) blocks measuring 5/8" × 1-1/2" × 2-1/8"; (2) hex nuts 7/16"-14; (2) carriage bolts 7/16"-14 × 1-3/4"; (1) wire leader 7/16"; and (2) blocks measuring 1/8" × 7/8" × 2" with square hole.
Taping the 5/8" thick blocks to the side of the frame or bumper brackets before raising the hitch into place helps hold them in position during installation. This makes it easier to align the hitch and blocks correctly before inserting the bolts. The blocks are essential spacers that fill the gap created by the existing weld on the bottom of the truck frame and the existing flat washer holding the bumper bracket on newer trucks.
The main differences are: (1) Bumper bracket location: 2007 and older trucks have brackets on the outside of the frame; 2008 and newer trucks have brackets on the inside. (2) Wiring access: On 2007 and older trucks, you can fishwire the carriage bolts from the end of the truck frame. On 2008 and newer trucks, there is an access slot on the outside of the frame. The hitch assembly and fastener specifications remain the same.
The 1/2" flat washers are inserted as needed between the hitch and the bottom of the truck frame on both sides to take up space created by the existing weld on the bottom of all truck frames and the existing flat washer holding the bumper bracket on newer trucks. This ensures proper alignment and contact between the hitch and frame.
All four M14 bolts must be torqued to 115 lb.-ft. (156 N·m) using a torque wrench. This is a critical safety specification and must be followed exactly.
Both 7/16" carriage bolts must be torqued to 50 lb.-ft. (68 N·m) using a torque wrench.
On 2008 and newer trucks, there is an access slot on the outside of the frame. Fishwire the 7/16" carriage bolts and blocks through the truck frame into the holes in the truck frame that align with the slots in the hitch using this exterior access slot. The carriage bolts must pass through the frame and into the holes that correspond to the hitch slots.
On 2007 and older trucks, you can fishwire the 7/16" carriage bolts and blocks from the end of the truck frame. The bolts must pass through the truck frame into the holes that align with the slots in the hitch.
Install the two new M14 bolts per side through the hitch, blocks, and frame and loosely tighten them first (step 3). Then fishwire the carriage bolts and blocks into place (step 4). Only after all fasteners are in place should you torque all four M14 bolts to 115 lb.-ft. (156 N·m) and both 7/16" bolts to 50 lb.-ft. (68 N·m) using a torque wrench.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection to ensure continued safe operation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes the importance of regular inspection.
The wiring access location is PU3. This is where you will connect the wiring for the hitch lights and other electrical components.
No, drilling is not required. The manual lists "Drill Bits: None" under Equipment Required. The hitch uses existing frame holes and slots for attachment.
Part 75607 fits Chevrolet Colorado, GMC Canyon, and Isuzu I-Series pickups. Installation differs for 2007 and older (bumper brackets outside frame) versus 2008 and newer (brackets inside frame).
Weight Distributing: 7,500 lb gross trailer weight, 750 lb tongue weight. Weight Carrying: 6,000 lb gross trailer weight, 600 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Wrenches (21 mm, 22 mm, 11/16"), torque wrench, and tape. No drilling required. Fastener kit 75607F is included.
No, only the bumper brackets need to be removed (two bolts per side). The brackets are on the outside on 2007 and older trucks, inside on 2008 and newer trucks.
M14 bolts: 115 lb.-ft. (156 N·m). 7/16" carriage bolts: 50 lb.-ft. (68 N·m). Use a torque wrench and tighten only after all fasteners are in place.
Wear eye protection. Do not use a torch to cut holes. Work safely beneath the vehicle. If removed, plug all frame holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball.
Check frequently that all fasteners and the ball are properly tightened. Verify torque specifications are maintained.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
