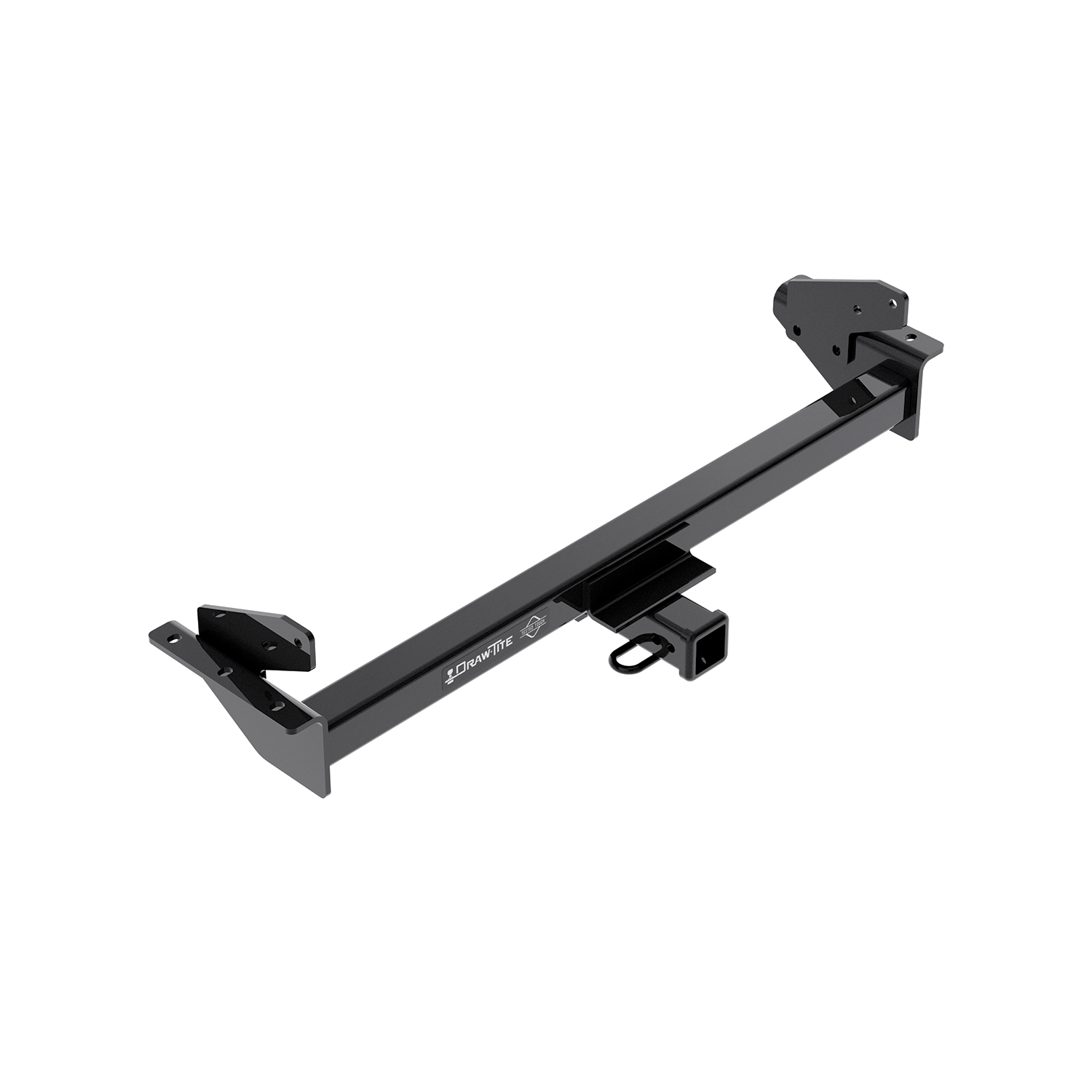

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 8,000 lbs. gross trailer weight (GTW) and up to 800 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 800 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76078 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 40.5 LBS |
| GROSS TOWING WEIGHT: | 8,000 LBS. |
| GROSS TONGUE WEIGHT: | 800 LBS. |

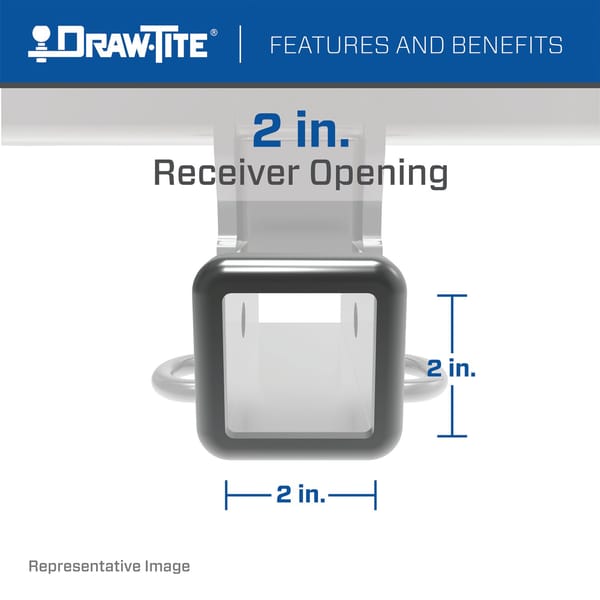

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 8,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 800 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2023 | Nissan NP300 Navara | Class 4 Trailer Hitch: 8000 lbs 800/8,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 800/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes. Part numbers 76078, 84078, and CQT76078 are designed for 2016-Current Nissan Navara NP300 models. For the most up-to-date information regarding specific application years and trim levels, visit the Cequent website.
No. This hitch is designed for 2016-Current Nissan Navara NP300 models only. For fitment on other years or models, contact Cequent at 800-632-3290 or visit their website for the most current application information.
The maximum gross trailer weight is 8000 lb (3629 kg) and the maximum tongue weight is 800 lb (363 kg) for both weight-carrying and weight-distributing configurations. However, you must not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need a ratchet, a torque wrench, safety glasses, and 19 mm sockets. The manual notes that the average installation time for professional installers is 30 minutes. If you do not feel comfortable performing the installation yourself, contact a professional installer.
Yes. You must remove the tow hook from the rear driver frame by uninstalling 5 existing M12 bolts (2 from the bottom and 3 from the inside). Return the bolts and tow hook to the vehicle owner.
Raise the hitch into position and align the 3 holes on each hitch bracket with the 3 holes on each frame. Install 3 M12 bolts (item 1) and 3 conical washers through the holes on each hitch bracket and into the weldnuts of the frame. If more clearance is required, loosen or lower the spare tire or lower the exhaust.
Install 2 M12 bolts (item 1) and 2 conical washers through the top 2 holes of each bolt plate. On each bolt, place 1 spacer then thread the bolt into the weldnut in the frame. In the bottom 2 holes of each bolt plate and each hitch bracket, thread 1 M12 bolt (item 2) and 1 conical washer, then secure each bolt with 1 conical washer and 1 M12 nut. See Figure 1 in the manual for the correct assembly.
Tighten all M12 CL 8.8 fasteners to 57 ft-lbs (77 N-m) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Tighten all M12 CL 10.9 fasteners to 130 ft-lbs (176 N-m) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Fastener Kit 76078F includes: (10) M12 x 1.25 x 35mm Hex Bolts CL 8.8; (4) M12 x 1.25 x 40mm Hex Bolts CL 10.9; (18) 1/2" Conical Washers; (4) Spacers (.188 x 1.50" x 2.00"); (4) M12 x 1.25 Hex Nuts CL 10.9; and (2) Bolt Plates.
You must remove and retain 1 M12 bolt and 1 M12 nut from the hitch itself before removing the tow hook. These fasteners are reused during hitch installation. Additionally, the 5 M12 bolts removed from the tow hook (2 from the bottom and 3 from the inside) should be returned to the vehicle owner.
The conical washers must be installed with the teeth side against the hitch. This orientation is shown in Figure 1 of the manual and is critical for proper fastener seating.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and follow all posted speed limits when towing.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability during towing.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual emphasizes periodic inspection to ensure the hitch remains securely mounted to your vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue towing with damaged equipment.
Do not cut, weld or modify this receiver. Any cutting, welding, or modification will compromise the structural integrity and safety of the hitch and may void the warranty.
Always wear safety glasses when installing the hitch. Additionally, observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This hitch (76078, 84078, CQT76078) fits 2016-Current Nissan Navara NP300 models. Check the Cequent website for the most current application information for your specific year and trim level.
Maximum gross trailer weight is 8000 lb (3629 kg) and maximum tongue weight is 800 lb (363 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You will need a ratchet, torque wrench, safety glasses, and 19 mm sockets. Professional installation takes approximately 30 minutes.
Yes. Remove the factory tow hook by uninstalling 5 existing M12 bolts (2 from the bottom, 3 from the inside) and return it to the vehicle owner.
M12 CL 8.8 fasteners: 57 ft-lbs (77 N-m). M12 CL 10.9 fasteners: 130 ft-lbs (176 N-m). Use a torque wrench for all fasteners.
No drilling is required. The hitch bolts to existing frame weldnuts on the vehicle. Do not cut access holes with a torch.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
