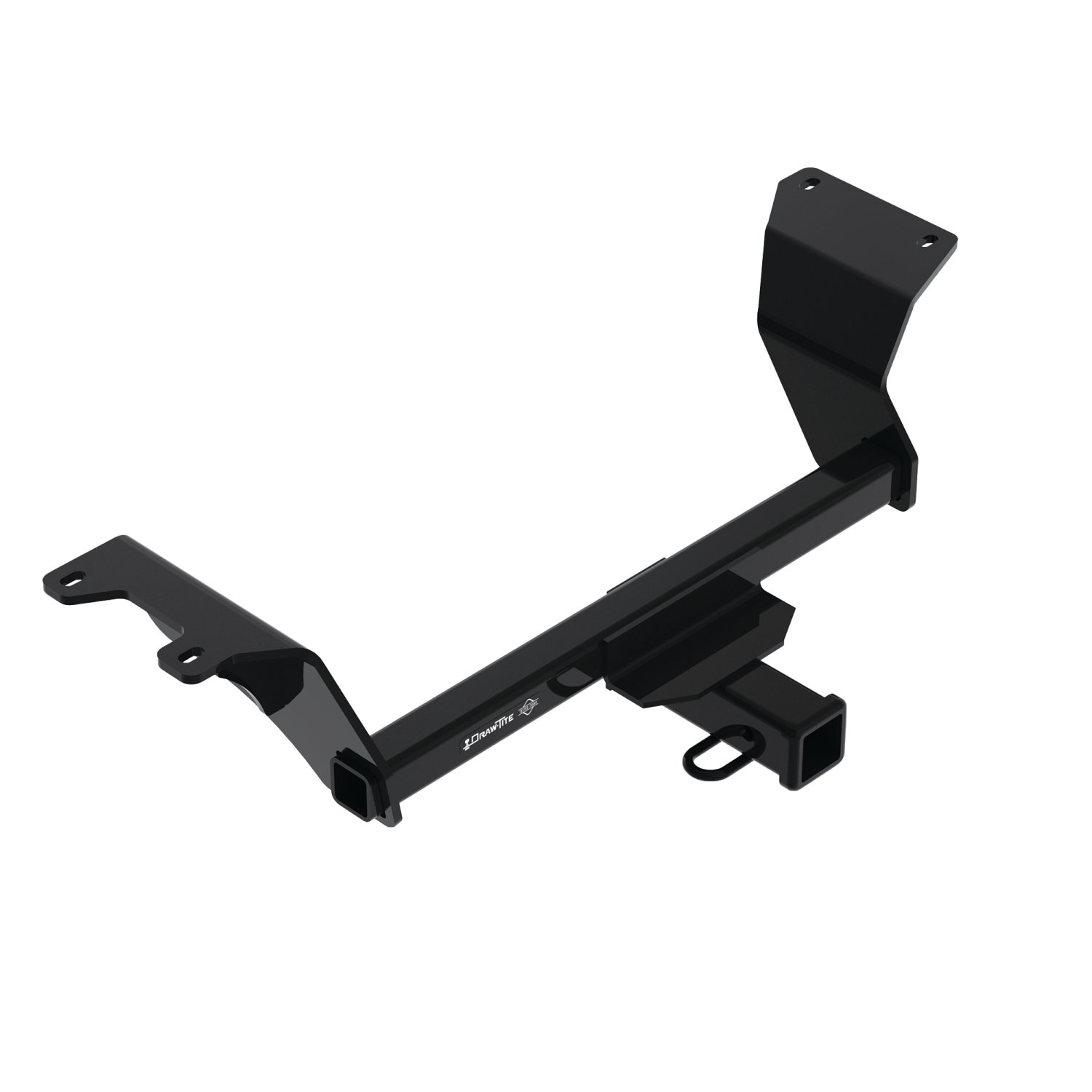

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76518 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 38.883 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2024 | Nissan Kicks | Class 3 Trailer Hitch: 2000 lbs 300/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Kicks 76518 (Part #DT76518) is designed to fit the 2018-2024 Nissan Kicks.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Kicks 76518 (Part #DT76518) fits 2018-2024 Nissan Kicks models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Kicks 76518 (Part #DT76518) fits the following vehicles: 2018-2024 Nissan Kicks. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Kicks 76518 (Part #DT76518) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 76518 is a weight-carrying hitch with a maximum gross trailer weight of 2000 Lb. (907 kg) and maximum tongue weight of 300 Lb. (136 kg). Do not exceed the lower of your Nissan Kicks manufacturer's towing rating or these limits.
Yes, the 76518 is designed for 2018-Current Nissan Kicks. For the most up-to-date information regarding specific application years and trim levels, visit www.horizonglobal.com.
The installation requires lowering the muffler by removing the two rearmost rubber exhaust hangers, and the heat shield must be trimmed. The exhaust is then reinstalled to its original position. The hitch is designed to fit with the exhaust system in place, but the muffler must be supported during removal to prevent damage.
The carbon canister must be lowered during installation by removing the rearmost M8 bolt on the driver side frame, allowing the canister to hang. It is then reinstalled using the original M8 bolt after the hitch is mounted. The hitch is designed to accommodate this component.
Required tools include: ratchet, torque wrench, safety glasses, sockets (10mm, 13mm, 11/16", 15/16"), 6" socket extension, exhaust removal pliers, tape measure, marker, die grinder, and tin snips. A professional installer is recommended if you are not comfortable performing the installation yourself.
The fastener kit 76518F includes: (4) carriage bolts 7/16"-14 x 1.50 GR5, (4) spacers .250 x .875 x 3.00, (4) conical washers 7/16", (4) hex nuts 7/16"-14 GR2, and (4) fish wires 7/16". These are used to attach the hitch to the frame rails.
The manual does not specify battery disconnection as a requirement for this installation.
The average installation time for professional installers is 45 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Yes. The forward attachment holes on both driver and passenger side frame rails must be enlarged using a die grinder to insert the carriage block and bolt. The heat shield must also be trimmed in the area marked in Figure 2 (approximately 5" x 8.5"). All dimensions are approximate; confirm fit prior to trimming.
No. Installation requires enlarging the forward attachment holes on the frame rails using a die grinder and trimming the heat shield. These are permanent modifications. The manual also requires lowering the muffler and carbon canister, though these are temporary removals reinstalled after hitch mounting.
The heat shield trim area is approximately 5" x 8.5" as marked in Figure 2. All dimensions are approximate; you must confirm fit prior to trimming.
All 7/16"-14 fasteners must be tightened with a torque wrench to 50 Lb.-Ft. (68 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
The manual does not specify a torque value for the carbon canister M8 bolt. It is reinstalled using the original bolt that was removed in step 3.
1. Lower muffler by removing rubber exhaust hangers. 2. Remove heat shield and trim marked area. 3. Lower carbon canister. 4. Enlarge forward attachment holes on frame rails. 5. Install carriage bolts and spacers in rear and forward attachment holes using fish wire. 6. Reinstall heat shield. 7. Raise hitch into position and hand-tighten nuts and conical washers. 8. Center hitch on vehicle. 9. Tighten all fasteners to 50 Lb.-Ft. 10. Reinstall carbon canister. 11. Reinstall exhaust.
Insert the spacer block and carriage bolt into the attachment holes in the frame through the enlarged holes on both sides using fish wire. Leave the fish wires attached. This is done for both the rearward attachment holes (Figure 4) and forward attachment holes (Figure 5). The fish wire helps route the bolts through the frame before final tightening.
The conical washer must be installed with the teeth side facing toward the hitch. This is shown in Figure 1 and is critical for proper fastening.
Yes. On the passenger side, the heat shield must be sandwiched between the frame rail and the hitch during installation.
Fasteners are hand-tightened in step 7 after the hitch is raised into position and the nuts and conical washers are installed. They are then fully tightened to 50 Lb.-Ft. in step 9 using a torque wrench after the hitch is centered on the vehicle.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Be sure the exhaust is supported before removing from rubber hangers to prevent damage. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or 2000 Lb. GVWR / 300 Lb. tongue weight. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Verify that the hitch is securely mounted to your vehicle periodically. If the hitch is damaged, it should be removed and replaced.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify a particular interval but emphasizes periodic checking to ensure the hitch remains securely mounted to your vehicle.
Yes, the 76518 is designed for 2018-Current Nissan Kicks. Visit www.horizonglobal.com for the most up-to-date information on specific trim levels.
Maximum gross trailer weight is 2000 Lb. (907 kg) and maximum tongue weight is 300 Lb. (136 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. The forward attachment holes on frame rails must be enlarged using a die grinder, and the heat shield must be trimmed approximately 5" x 8.5". Confirm fit prior to trimming.
Required tools: ratchet, torque wrench, safety glasses, sockets (10mm, 13mm, 11/16", 15/16"), 6" socket extension, exhaust removal pliers, tape measure, marker, die grinder, and tin snips.
All 7/16"-14 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Average installation time for professional installers is 45 minutes. Professional installation is recommended if you are not comfortable performing it yourself.
Maximum tongue weight is 300 Lb. (136 kg). Do not exceed the lower of your vehicle manufacturer's rating or this limit.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
