Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2009 - 2014 Nissan Murano
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

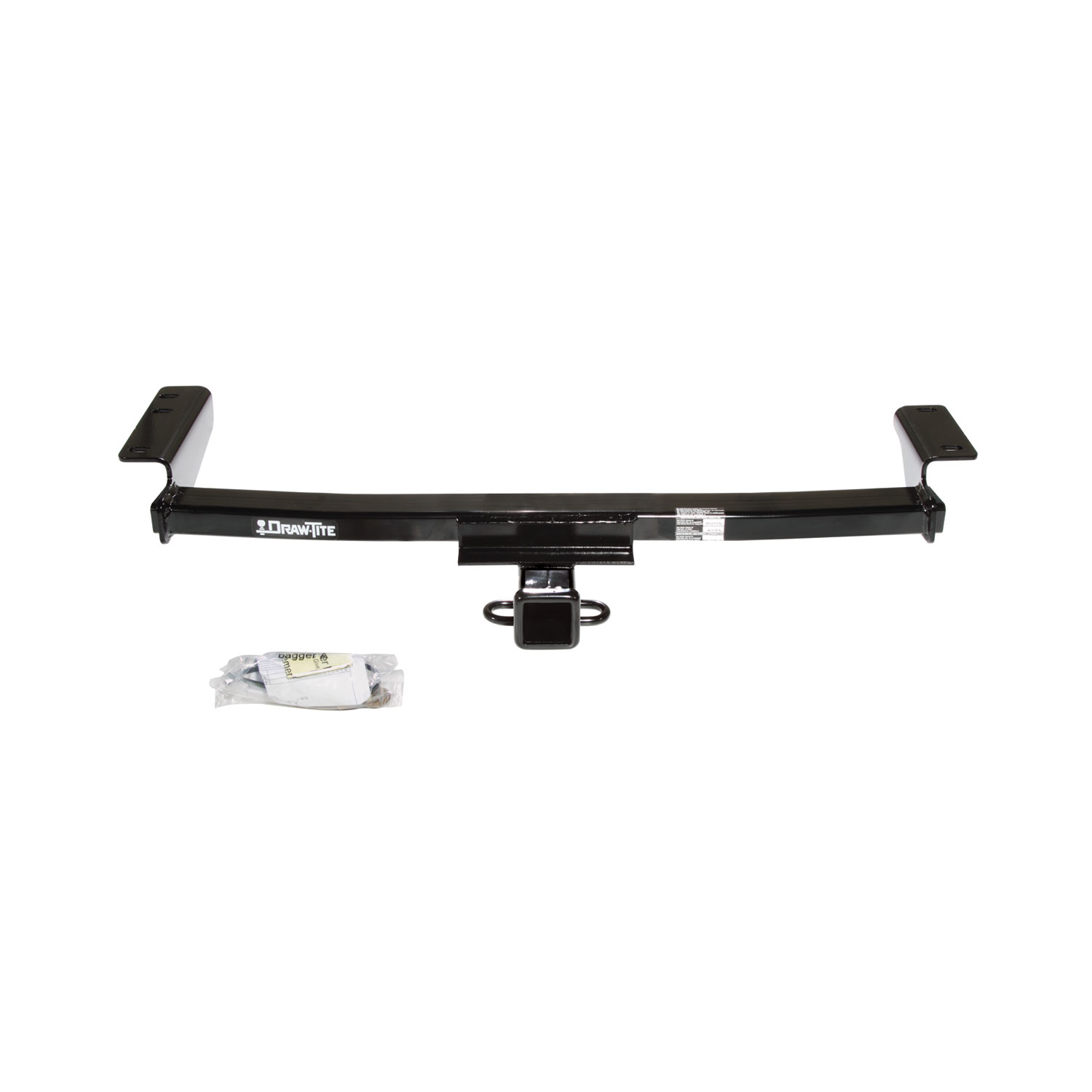

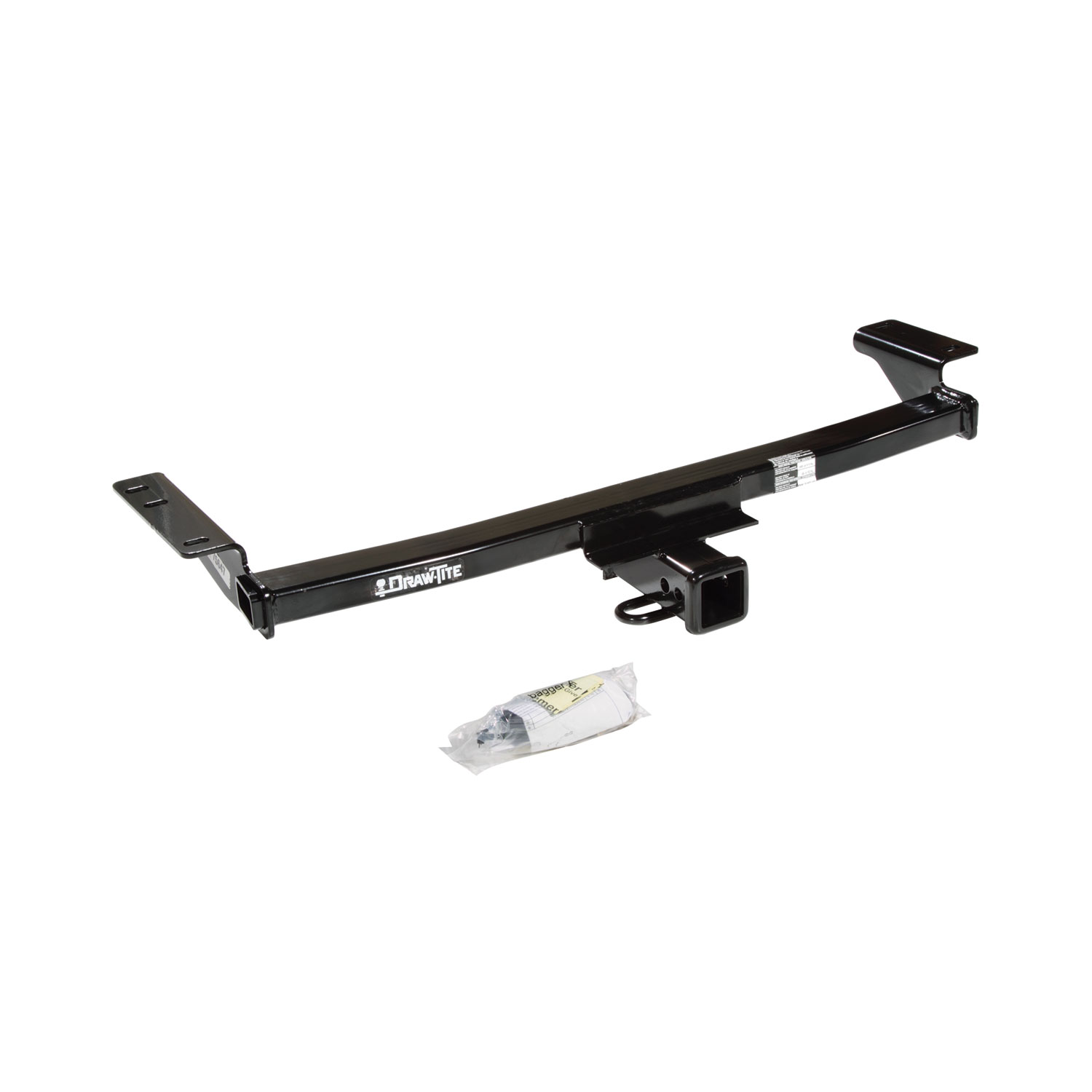

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 400 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75647 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28 LBS |
| GROSS TOWING WEIGHT: | 4,000 LBS. |
| GROSS TONGUE WEIGHT: | 400 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2014 | Nissan Murano | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Murano 75647 (Part #DT75647) is designed to fit the 2009-2014 Nissan Murano.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Murano 75647 (Part #DT75647) fits 2009-2014 Nissan Murano models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Murano 75647 (Part #DT75647) fits the following vehicles: 2009-2014 Nissan Murano. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Murano 75647 (Part #DT75647) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. This hitch will not fit with the optional Aero kit. If your Murano is equipped with an Aero kit, this hitch is not compatible.
The maximum gross trailer weight is 4,000 lb (1,816 kg) and the maximum tongue weight is 400 lb (182 kg). However, you must not exceed the lower of your towing vehicle manufacturer's rating or these hitch specifications.
No. Do not use this hitch with Spring Bars. This is a Weight Carrying Ball Mount hitch, not a Weight Distributing hitch.
You will need a small screwdriver, wrenches in sizes 10mm, 16mm, 17mm, and 19mm, and a torque wrench. No drill bits are required as no drilling is needed for this installation.

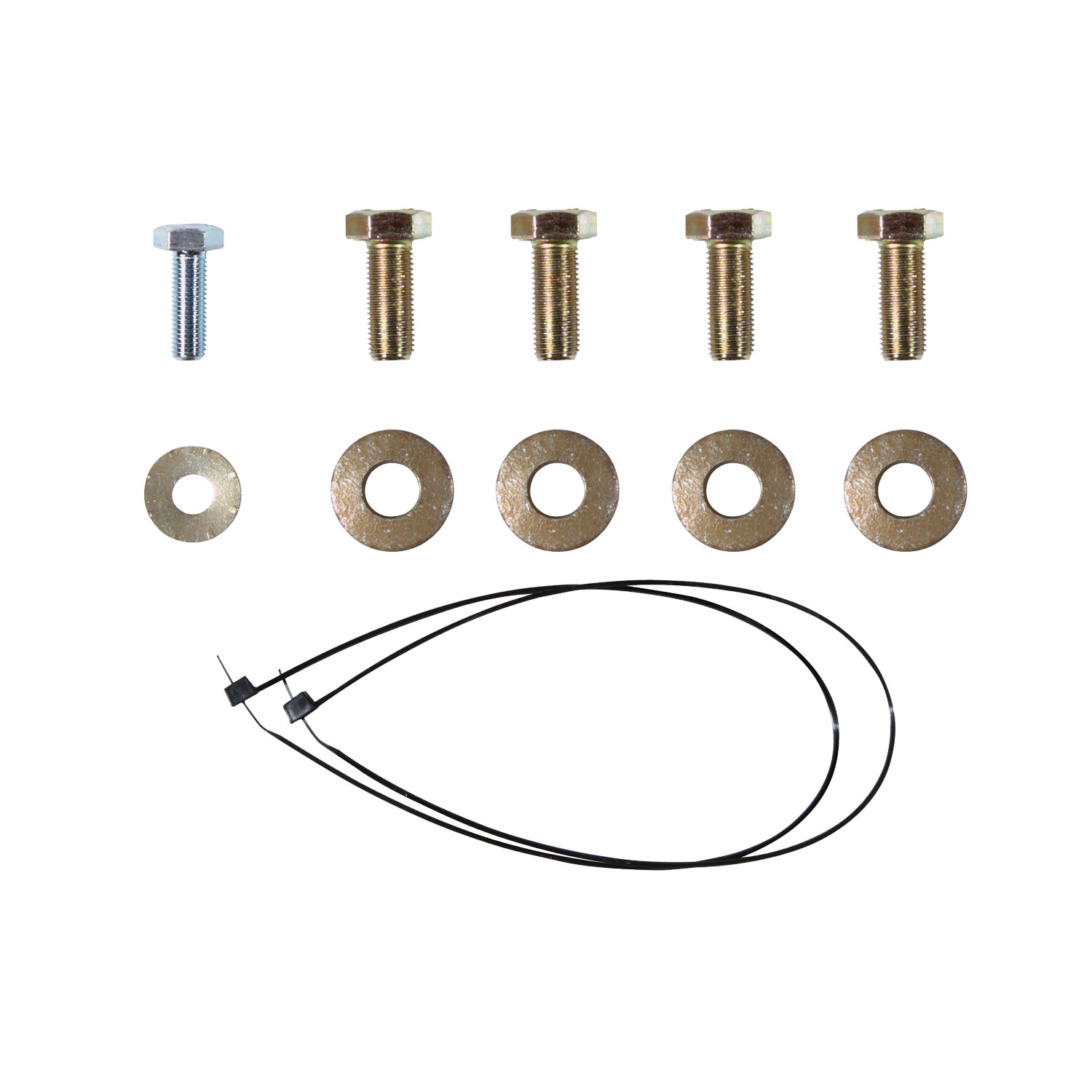

The fastener kit 75647F includes: (4) M12 x 1.25 x 30mm CL8.8 hex bolts, (1) 3/8" conical washer, (4) ½" conical washers, (2) cable ties, and (1) M10 x 1.25 x 30mm CL8.8 hex bolt. The installation uses existing M12 and M10 weldnuts already in the vehicle frame.
Yes. You must remove the valence panel from the vehicle bulkhead by removing 4 hex nuts, and remove the tie-down bracket from the driver's side frame rail. You must also lower the exhaust system by removing 3 rubber exhaust hangers (2 on driver's side, 1 on passenger's side). All removed components and fasteners should be returned to the vehicle owner.
The manual does not specify whether the battery must be disconnected. Consult the vehicle manufacturer's service manual or a qualified technician for guidance on whether battery disconnection is necessary for your specific vehicle.
1. Lower the exhaust by removing 3 rubber exhaust hangers. 2. Remove the tie-down bracket from the driver's side frame rail. 3. Disconnect the plastic fascia from the valence panel by removing 2 push pins. 4. Remove the valence panel by removing 4 hex nuts. 5. Raise the hitch into position by carefully pulling the fascia down for clearance, then secure with conical washers and M12 hex bolts into existing weldnuts. 6. Raise the exhaust back into position and re-attach the exhaust hangers. 7. Use cable ties to secure the plastic fascia to the hitch crosstube.
No. The manual specifies that no drill bits are required. The hitch uses existing M12 and M10 weldnuts already present in the vehicle frame.
All M12 CL8.8 fasteners must be tightened to 76 lb-ft (103 N·m) using a torque wrench.
All M10 CL8.8 fasteners must be tightened to 42 lb-ft (57 N·m) using a torque wrench.
After installation, verify that the hitch is in the proper position as shown in the manual. Ensure all fasteners are tightened to the specified torque values: M12 bolts to 76 lb-ft (103 N·m) and M10 bolts to 42 lb-ft (57 N·m). Confirm that the plastic fascia is securely attached to the hitch crosstube with cable ties.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to maintain safe operation.
If the hitch is removed, you must plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. The manual does not specify whether a lift or jack is required, so consult a qualified technician if you are unsure about safe working practices.
No, this hitch will not fit with the optional Aero kit.
Maximum 4,000 lb gross trailer weight and 400 lb tongue weight, but do not exceed your vehicle manufacturer's rating.
Small screwdriver, wrenches (10mm, 16mm, 17mm, 19mm), and a torque wrench. No drilling required.
Yes: remove the valence panel, tie-down bracket, and lower the exhaust system by removing 3 rubber hangers.
M12 bolts: 76 lb-ft (103 N·m). M10 bolts: 42 lb-ft (57 N·m). Use a torque wrench.
No. This is a Weight Carrying hitch, not Weight Distributing. Do not use with Spring Bars.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry. Replace if damaged.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
