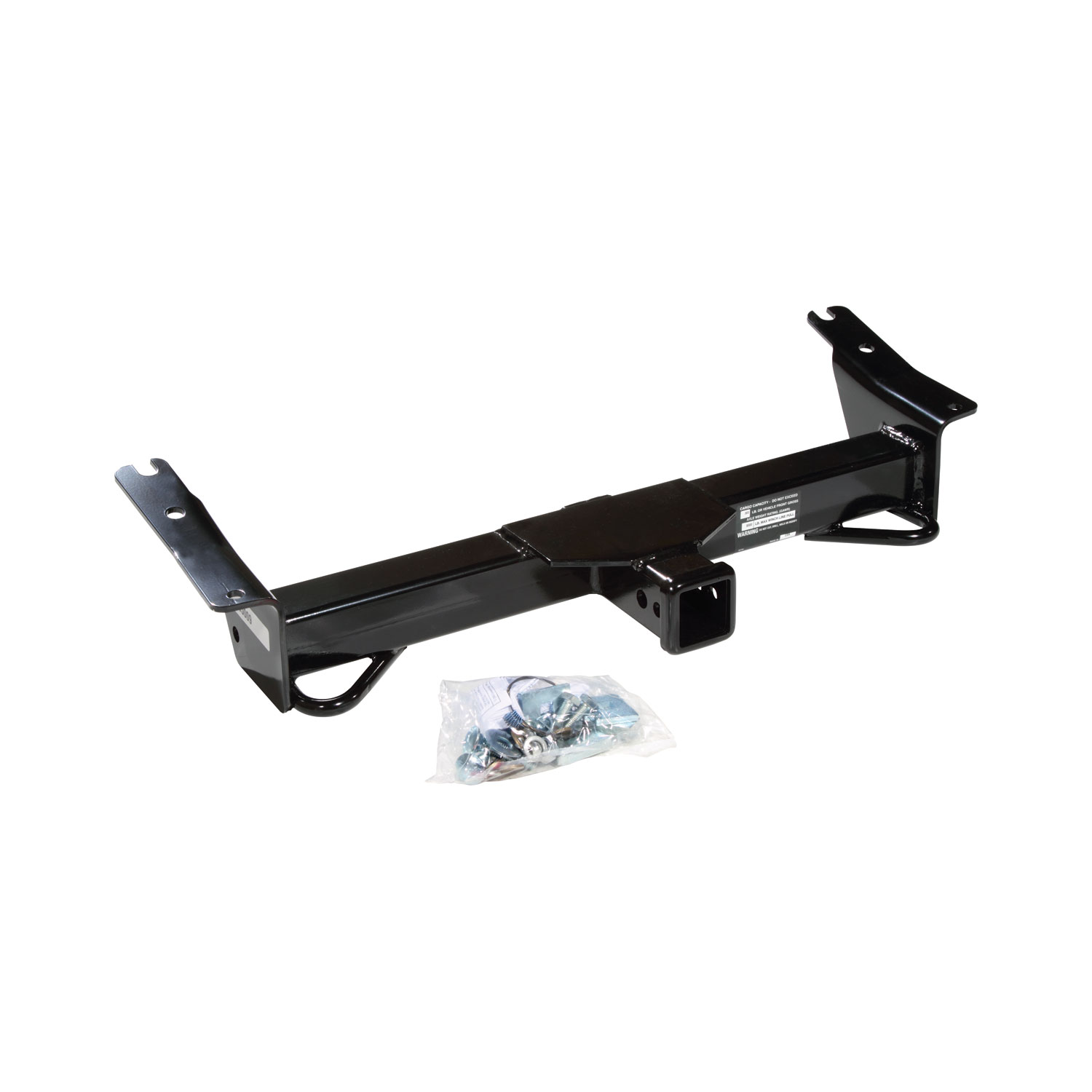

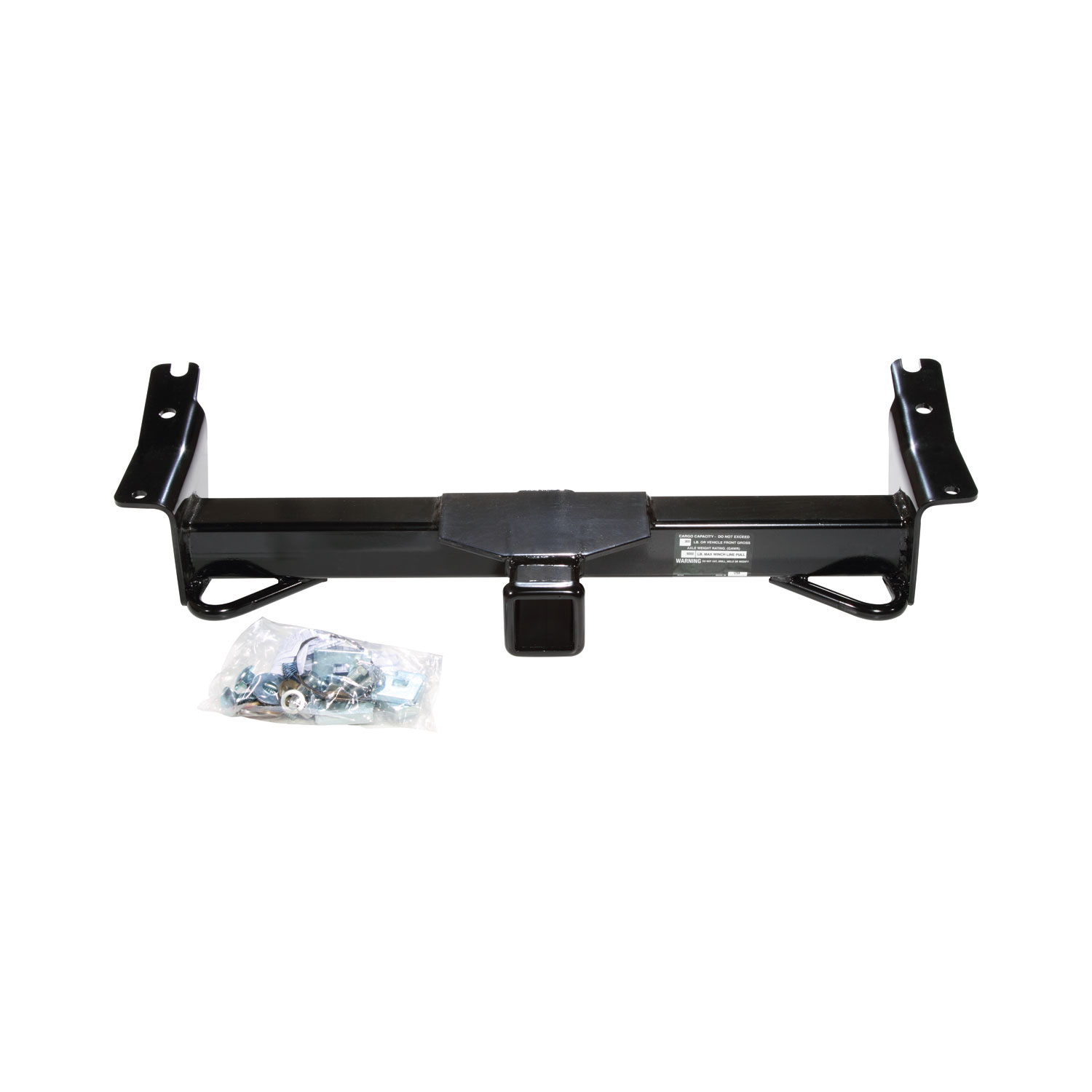

Draw-Tite Front Mounted Receiver hitches provide the perfect attachment point for a variety of accessories. Use it to connect spare tires, snowplows, winches, cargo carriers, and more! Each front mounted receiver hitch is custom built according to manufacturer make and model year specifications and bolts to the underside of the vehicle frame, making installation a breeze! This particular front mount receiver hitch is rated up to 300 lbs. tongue weight and up to 9,000 lbs. line pull with a 2 inch square tube receiver opening for your attachments. Each is made of solid, all-welded steel for maximum strength and safety with a black powder coat finish to resist rust and corrosion. Draw-Tite front hitches are tested to exceed V-5 and SAE J684 standards.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 65009 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 29 LBS |
| GROSS TOWING WEIGHT: | 300 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 2 IN. |
| MAXIMUM LINE PULL: | 9,000 LBS. |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | FRONT |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1984 - 2001 | Jeep Cherokee | Front Mount Receiver Drilling Required Install Time is 30 minutes |
| 1986 - 1992 | Jeep Comanche | Front Mount Receiver Drilling Required Install Time is 30 minutes |
| 1984 - 1990 | Jeep Wagoneer | Front Mount Receiver Drilling Required Install Time is 30 minutes |
The Trailer Hitch for 84-01 Jeep Cherokee, 86-92 Jeep Comanche, 84-90 Jeep Wagoneer (Part #DT65009) fits the following vehicles: 1984-2001 Jeep Cherokee; 1986-1992 Jeep Comanche; 1984-1990 Jeep Wagoneer. Always verify your specific year, make, and model before ordering.
The Trailer Hitch for 84-01 Jeep Cherokee, 86-92 Jeep Comanche, 84-90 Jeep Wagoneer (Part #DT65009) fits 1984-2001 Jeep Cherokee models. The 2001 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Trailer Hitch for 84-01 Jeep Cherokee, 86-92 Jeep Comanche, 84-90 Jeep Wagoneer (Part #DT65009) is designed to fit the 1984-2001 Jeep Cherokee.
The Trailer Hitch for 84-01 Jeep Cherokee, 86-92 Jeep Comanche, 84-90 Jeep Wagoneer (Part #DT65009) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the 65009 front mounted receiver is designed for Jeep Cherokee, Comanche, and Wagoneer (Downsize) models. Confirm your vehicle matches this specification before purchasing.
The maximum cargo capacity is 300 lb. or the vehicle front gross axle weight rating (GAWR), whichever is lower. Do not exceed this limit. The receiver also has a maximum winch line pull rating of 9,000 lb.

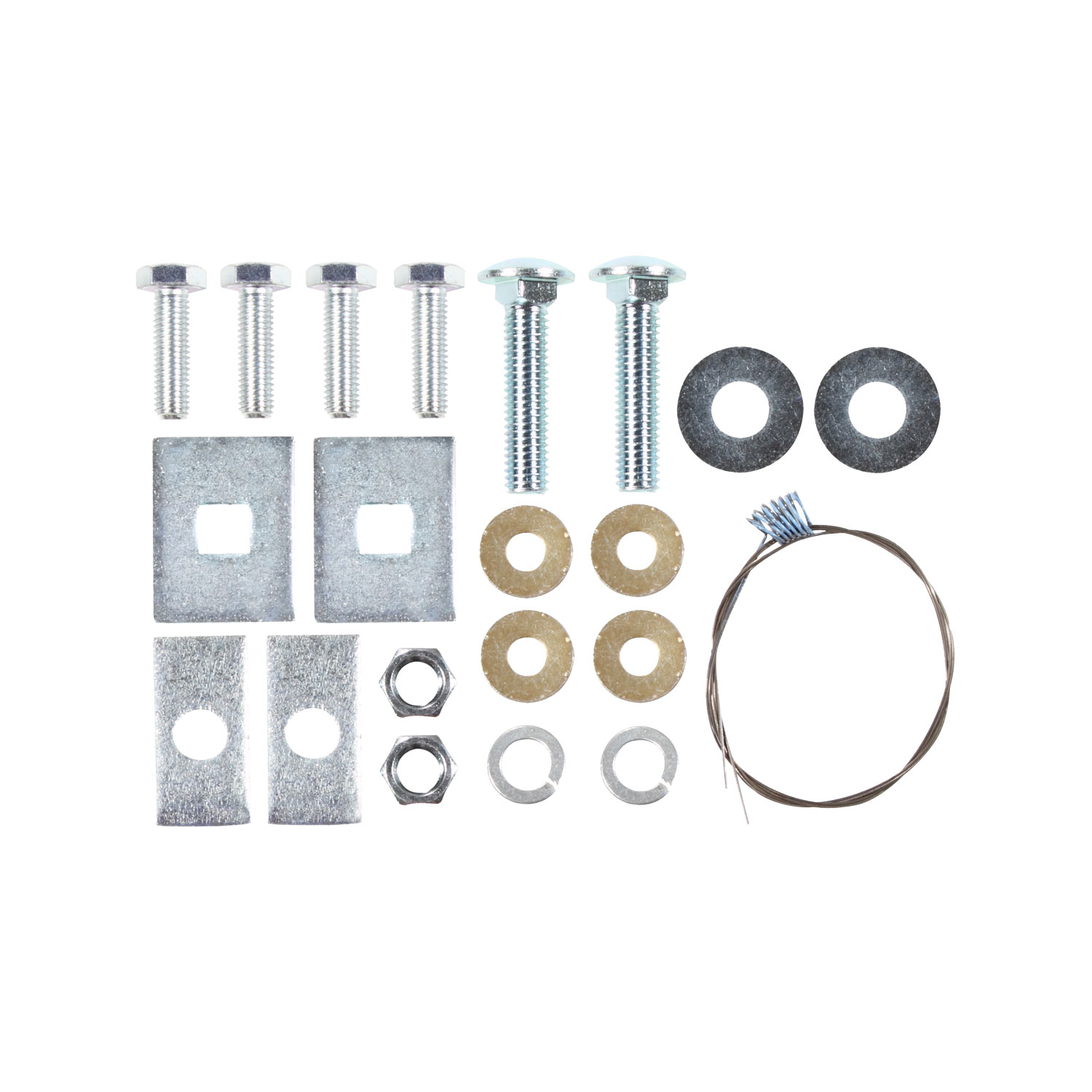

The fastener kit K65009 includes: 4 hex bolts M10 x 1.50 x 35; 2 carriage bolts 1/2"-13 x 2-1/4"; 2 hex nuts 1/2"; 2 lock washers 1/2"; 4 conical washers 3/8"; 2 flat washers 1/2"; 2 spacers 1" x 2" x 7/16"; 2 spacers 1-1/2" x 2" x 1/4"; and 2 pull wires.
Required tools are: torque wrench, 15mm wrench, 7/8" wrench, 1/2" drill bit, and hammer. These are needed to lower the swaybar bracket, drill the mounting hole, feed fasteners through the frame rail slots, and tighten all fasteners to specification.
If a steel skid shield is present on your vehicle, yes, it must be removed before installation. After removal, return the skid shield to the vehicle owner.
Yes, the lower fascia or trim must be removed or trimmed to clear the receiver. You must consult the vehicle owner before trimming to ensure they approve this modification.
Yes, drilling is required. Using the receiver as a template, you must drill a 1/2" hole in the frame rail. A 1/2" drill bit is included in the required equipment.
No. Do not cut access or attachment holes with a torch. Use a drill with a 1/2" bit as specified in the installation instructions.
The lip on the underside of the frame rail may need to be flattened so the spacer block can be installed. This is not always required; check during assembly and flatten only if necessary to fit the block.
1. Remove steel skid shield if present. 2. Remove or trim lower fascia to clear receiver. 3. Lower swaybar bracket on each frame rail. 4. Raise hitch into position and loosely reinstall swaybar bracket. 5. Using receiver as template, drill 1/2" hole. 6. Feed remaining fasteners through slot in frame rail end using pull wire. 7. Tighten all fasteners to specification with torque wrench.
Feed the fasteners through the slot in the end of the frame rails using the pull wire provided in the fastener kit. The pull wire allows you to guide fasteners into position without removing the receiver.
All M10 CL10.9 fasteners must be tightened to 42 lb.-ft (57 N-m) using a torque wrench.
All 1/2" GR5 fasteners must be tightened to 75 lb.-ft (102 N-m) using a torque wrench.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed after installation, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Perform these checks regularly throughout the life of the product to maintain safe operation.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged receiver or ball.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle interior and prevents corrosion.
The 65009 front mounted receiver fits Jeep Cherokee, Comanche, and Wagoneer (Downsize) models.
Maximum cargo capacity is 300 lb. or the vehicle front GAWR, whichever is lower. Maximum winch line pull is 9,000 lb.
You need a torque wrench, 15mm and 7/8" wrenches, 1/2" drill bit, and hammer. The fastener kit K65009 is included.
Yes, you must drill a 1/2" hole in the frame rail using the receiver as a template. Trimming of the lower fascia is also required.
M10 CL10.9 fasteners: 42 lb.-ft (57 N-m). 1/2" GR5 fasteners: 75 lb.-ft (102 N-m). Use a torque wrench for all final tightening.
Wear eye protection when working beneath the vehicle. Do not use a torch to cut holes. If removed, plug all holes to prevent water and exhaust fume entry. Check fasteners and ball frequently.
