Description

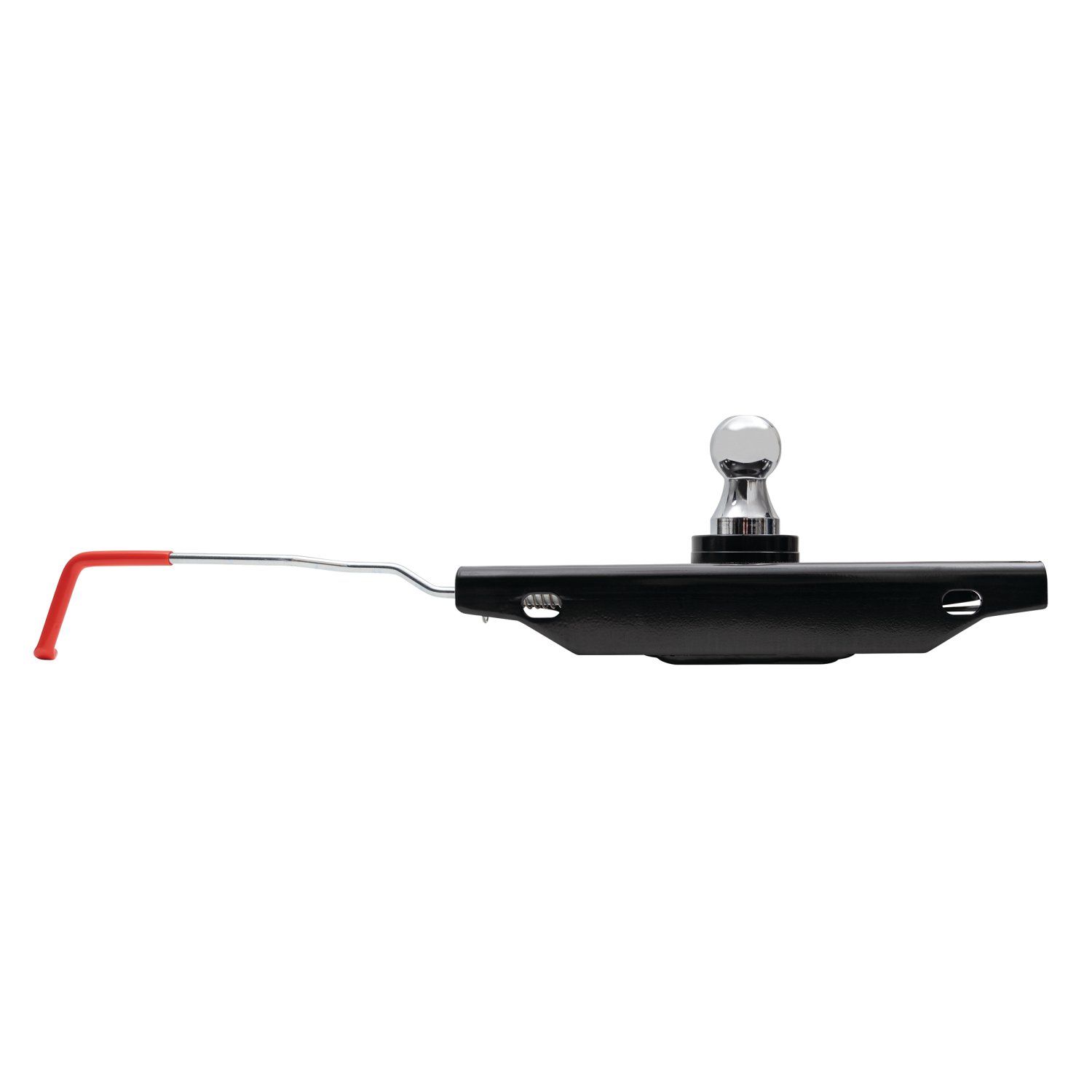

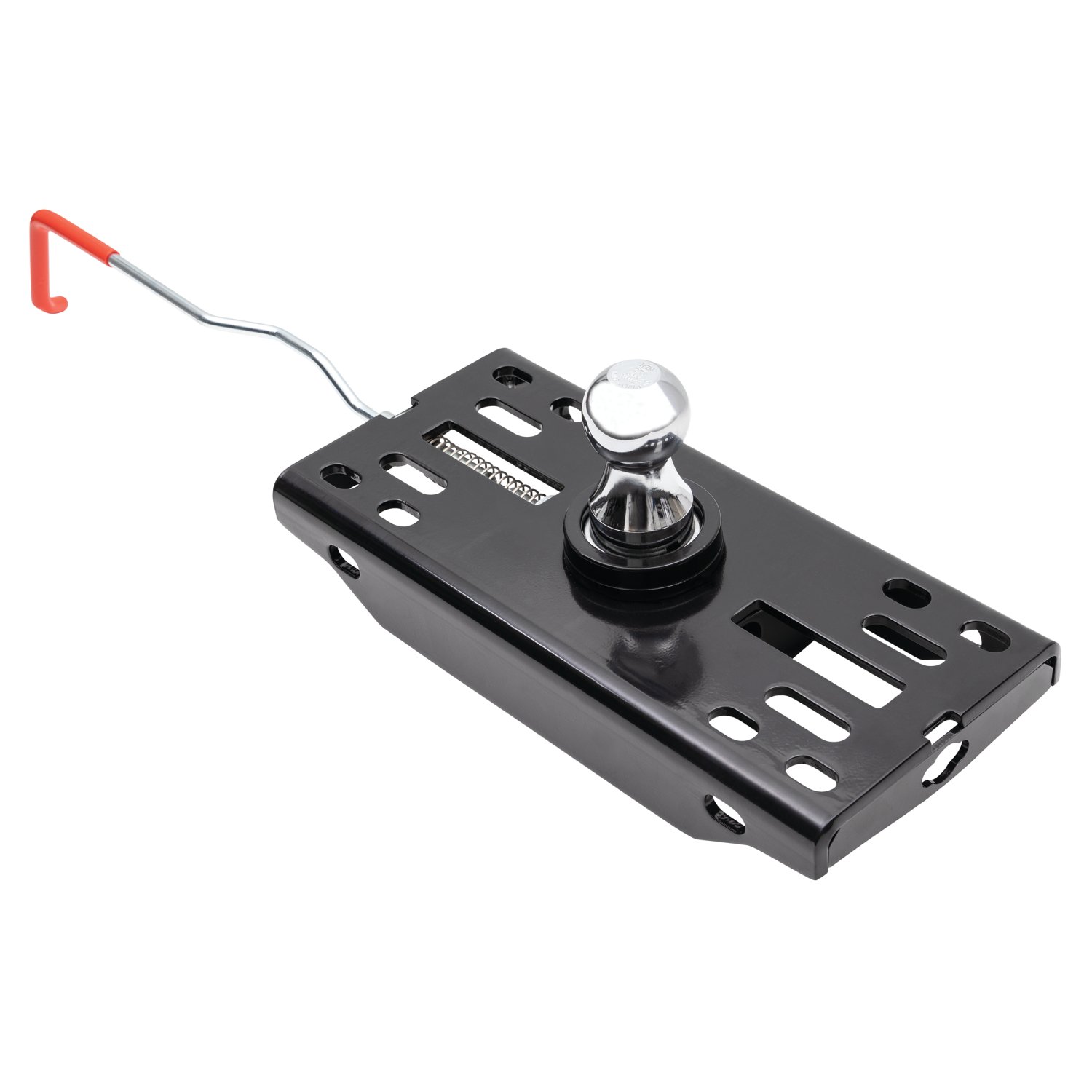

Draw-Tite gooseneck hitch systems allow unrestricted use of the pick up bed. In truck platforms support 2-5/16 in. and 3 In. hitch balls. All framework for Bulldog gooseneck trailer hitches reside under the bed of the truck with only the bed exposed. Stronger, and able to utilize the full suspension of the truck, these hitch systems are rated up to the full towing capacity of the vehicle.

• Allows full use of pick-up bed area when hauling cargo
• No alteration of OE exhaust systems required
• Accommodates all standard vehicle suspensions
• 2-5/16" high strength chrome plated ball standard, 3" ball optional
• Grade 8 hardware, with heavy duty 5/8" U-Bolt Safety chain attachments
• Magnetic cover protects ball hole when not in use
• Rail kits are rated to match manufacturer's vehicle weight ratings
• Requires installation rail kit
• Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating

Specifications

Product Video
