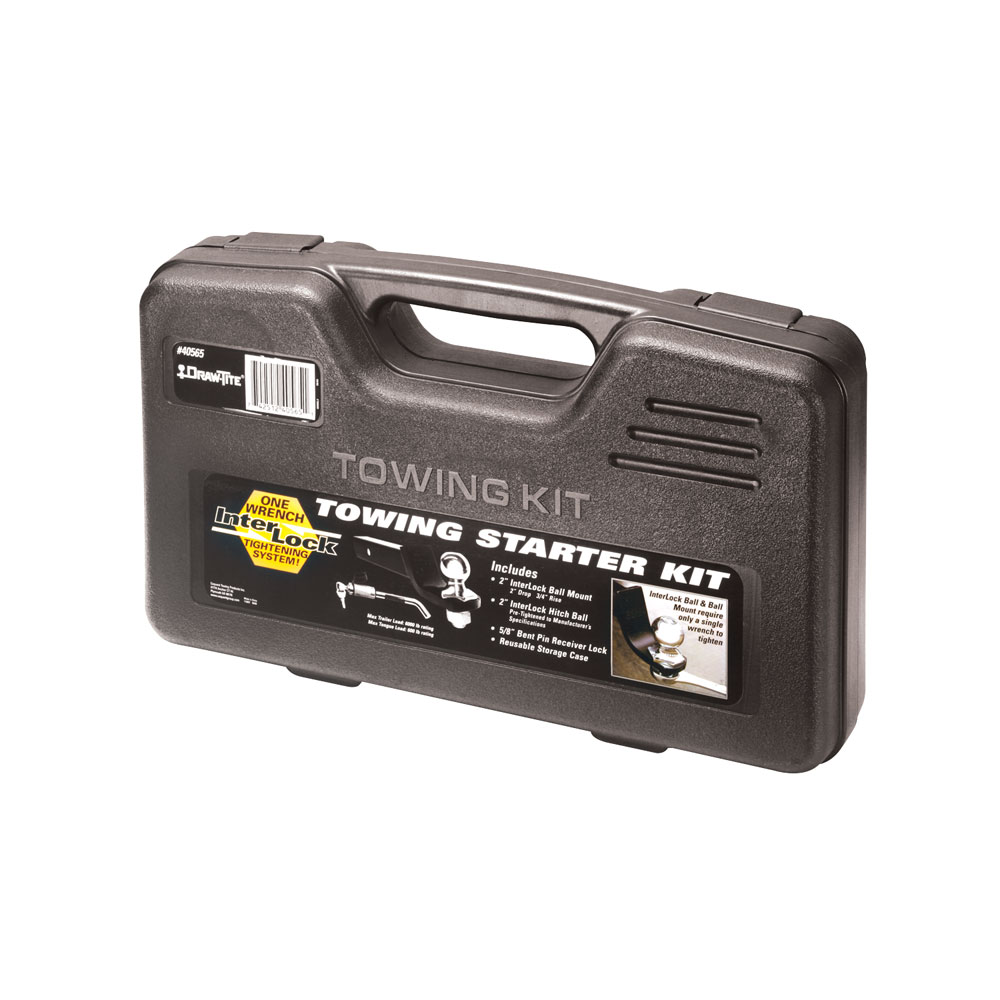

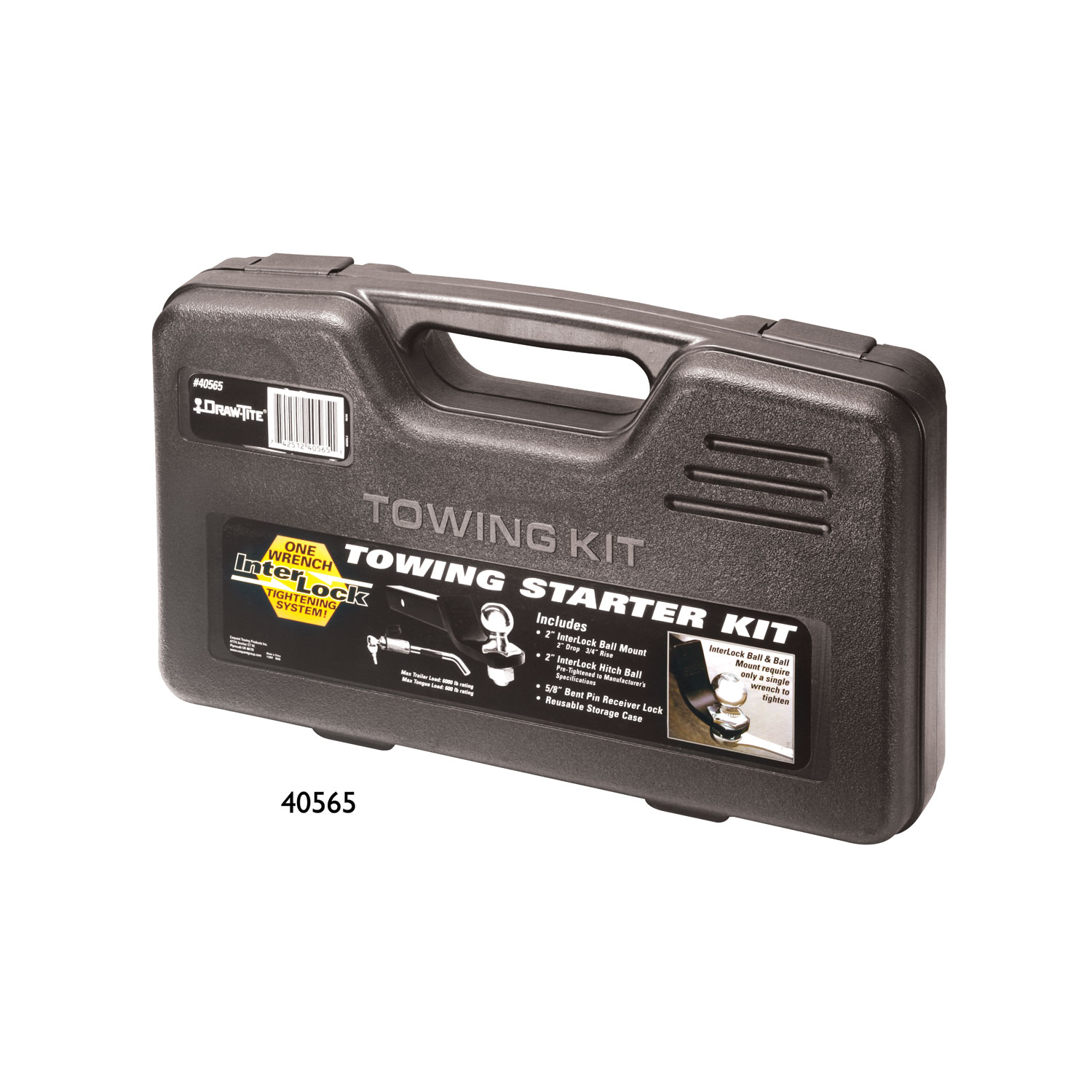

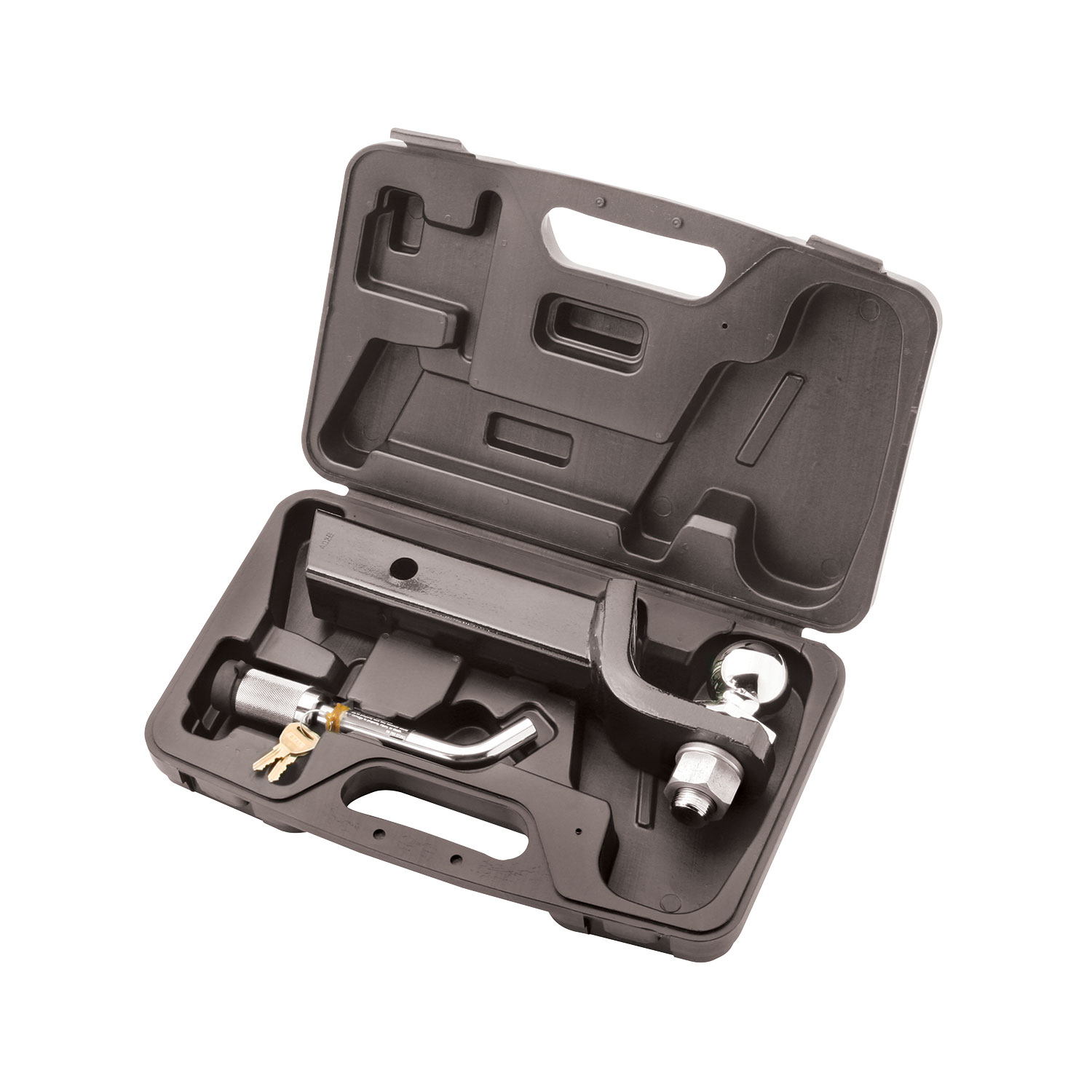

The Draw-Tite trailer hitch ball mount starter kit is the perfect purchase for anyone who is new to towing and not sure what to get. Draw-Tite starter kits come complete with everything you need to set up your trailer hitch and tow safely. Each starter kit includes a ball mount with a pre-torqued hitch ball and Interlock technology to keep it securely in place on your ball mount. Draw-Tite starter kits also include either a pin and clip or a lock to keep the shank of the ball mount securely connected to your vehicles receiver hitch. Each Draw-Tite ball mount is made from solid, all-welded steel and has a Black Powder Coat finish and is specifically designed to work with 2 in. hitch receivers. The drop needed for each vehicle and trailer combination varies, so be sure to pair your vehicle and trailer correctly to achieve a level and safe towing setup.
This Draw-Tite starter kit fits a 2 in. receiver hitch and has a 2 in. drop. It has a maximum towing capacity of 6,000 lbs. and includes a 2 in. Trailer Ball and Receiver Lock Brought to you Draw-Tite, maker of North Americas Favorite Hitch!
| BRAND: | DRAW-TITE |
| PART NUMBER: | 40565 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 11.88 LBS |
| CAPACITY: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 600 LBS. |
| DROP: | 2 IN. |
| RISE: | 0.75 IN. |
| RISE CAPACITY: | 6,000 LBS. |
| RISE TONGUE WEIGHT: | 600 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| BALL INCLUDED: | YES |
| BALL DIAMETER: | 2 IN. |
| BALL FINISH: | CHROME |
| BALL HOLE DIAMETER: | 1 IN. |
| BALL SHANK LENGTH: | 2.15 IN. |
| BALL SHANK DIAMETER: | 1 IN. |
| ADJUSTABLE: | NO |
| MATERIAL: | STEEL |
| SHANK LENGTH: | 8.5 IN. |
| FINISH: | BLACK POWDER COAT |
| COLOR: | BLACK |
| HEAT HARDENED: | NO |
| HITCH LOCK INCLUDED: | NO |
| HITCH PIN INCLUDED: | YES |
| COTTER PIN INCLUDED: | YES |
| PIN DIAMETER: | 0.656 IN. |
| NUT INCLUDED: | YES |
| BALL MATERIAL: | STEEL |
| LOCK WASHER INCLUDED: | YES |
| BALL COLOR: | CHROME |
| HITCH PIN MATERIAL: | STEEL |
| HITCH PIN HOLE DIAMETER: | 0.625 IN. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
