Strong, durable, and sturdy, the Pro Series 12,000 lbs. support capacity square jacks can be used on agricultural,  construction, heavy-duty utility, and horse/livestock trailers. All Pro Series 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.

What's Included:

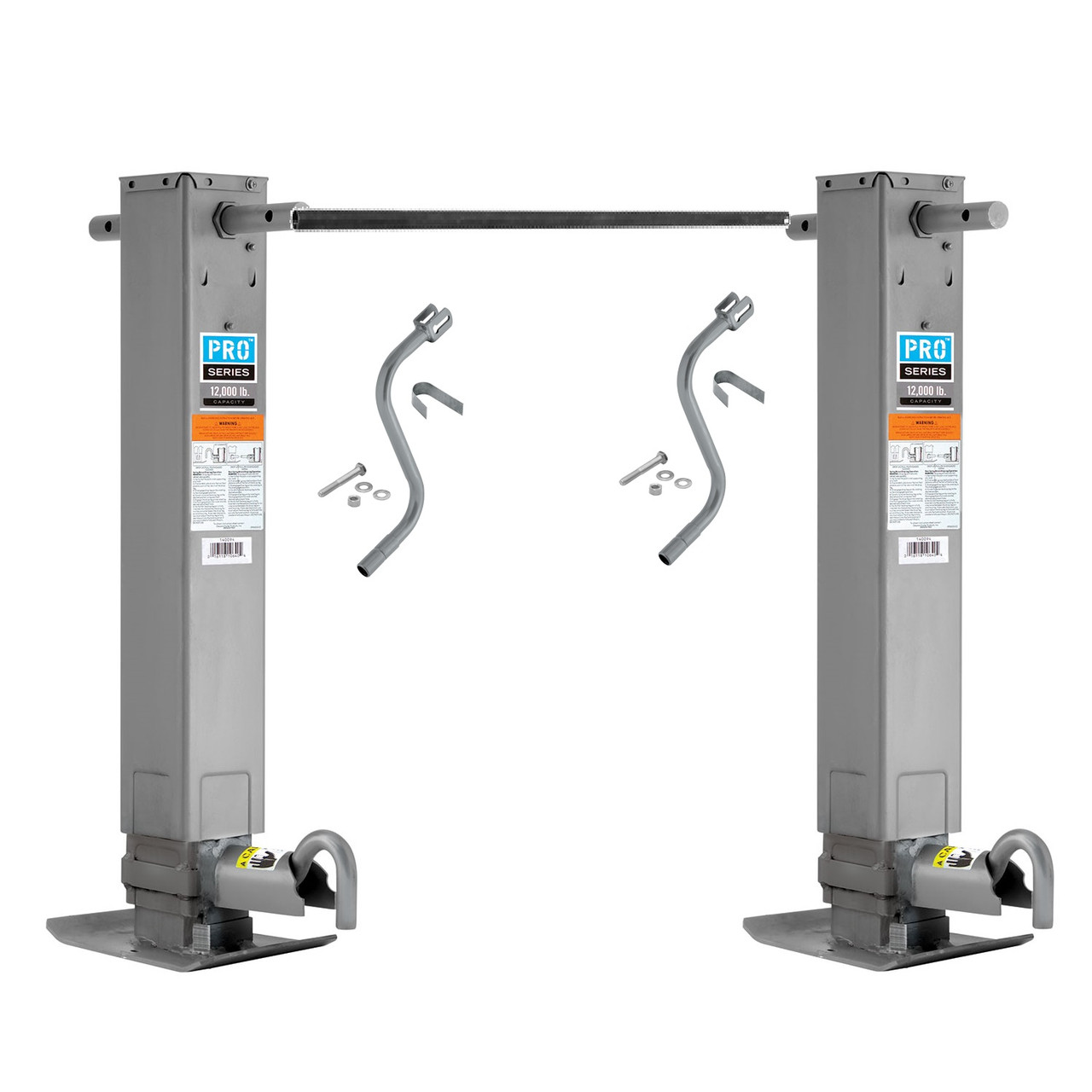

Pro Series 12,000 lbs. Square Trailer Jack 12.5" Lift Drop Leg Spring Return Pin on Side
Pro Series 12,000 lbs. Square Trailer Jack 12.5" Lift Drop Leg Spring Return Pin on Side
2x Crank Handles
73" Cross Shaft (Can be cut to fit your required length)

Specifications:

• Support Capacity: 12,000 lbs.

• Lift Capacity: 10,000 lbs.

• Retracted Bracket Height: 27.25"

• Extended Bracket Height: 53.25"

• Travel/Lift: 12.5"

• This Jack is intended to be welded on directly onto your application

• Spring Return Drop Leg w/ integrated footplate

• Drop Leg offers 13.50" of additional adjustment

• Drop Leg pull pin is on the side (same side as the handle)

• Crank included

4" Tubing width

Two of these Jacks can be used in tandem applications.
