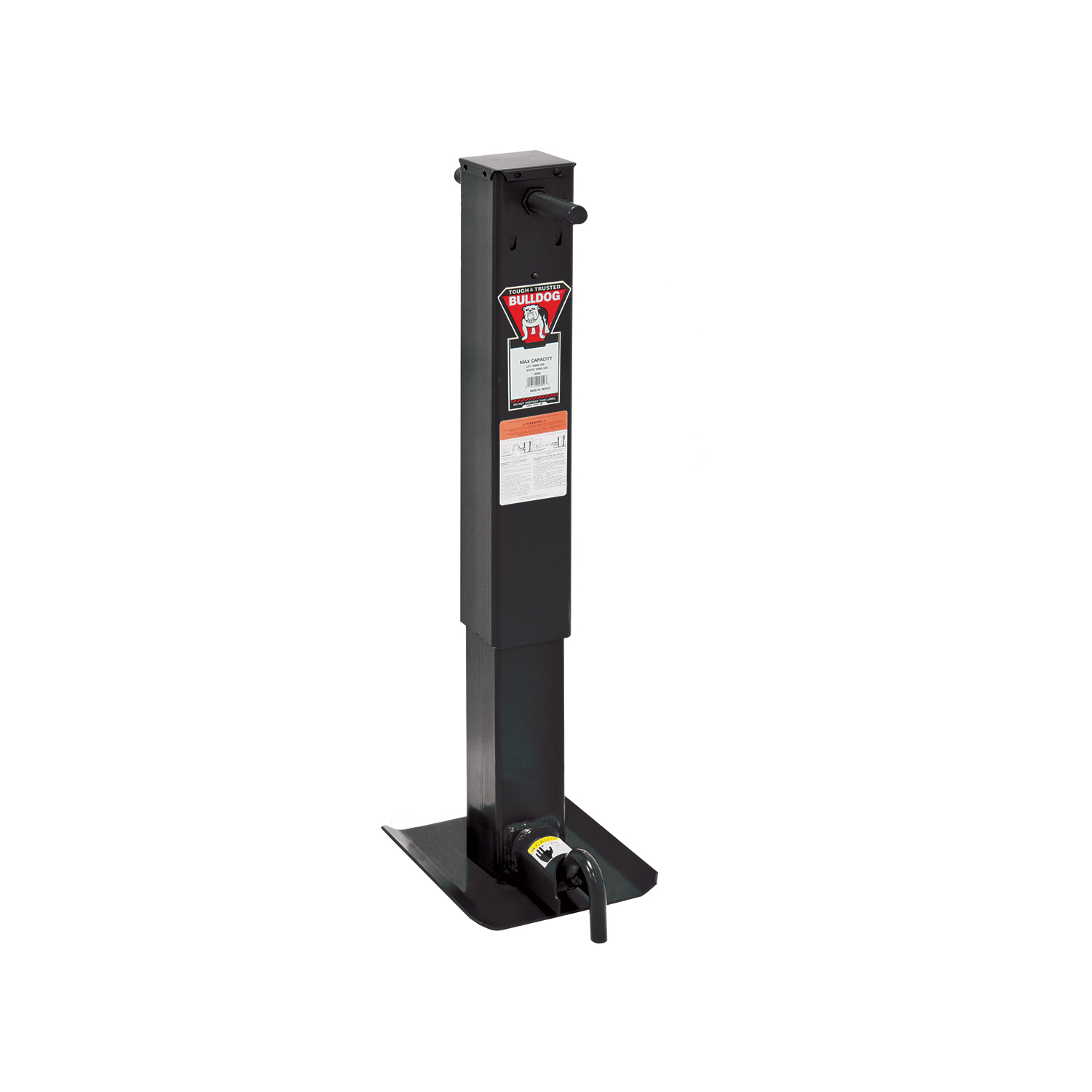

Strong, durable, and sturdy, the BULLDOG 12,000 lbs. support capacity square jack is the BIG reason why BULLDOG has carried the load in agricultural, construction, heavy-duty utility, and horse/livestock trailer industries since 1923. All BULLDOG 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.
| BRAND: | BULLDOG |
| PART NUMBER: | 182805 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 62.3 LBS |
| CAPACITY: | 12,000 LBS. |
| TRAVEL: | 12.5 IN. |
| RETRACTED: | 27.4 IN. |
| EXTENDED: | 53.5 IN. |
| MODEL NUMBER: | SWQ 180 DL-BX RH |
| HANDLE STYLE: | SIDEWIND |
| ATTACHED WHEELS: | NO |
| MATERIAL: | STEEL |
| SPEEDY LIFT: | NO |
| COLOR: | GRAY |
Founded in 1920, Bulldog has become the standard for heavy-duty trailer connection hardware in agricultural, military and utility service. The line covers gooseneck hitches and couplers, A-frame and channel-mount trailer couplers with the Wedge-Latch mechanism, and heavy-duty jacks, built for unmatched strength, reliability and safety under demanding loads.
Bulldog was founded in 1920 and has spent more than a century supplying the connection hardware that heavy trailers depend on. Its market has always been the demanding end: agricultural, military and utility applications where a coupler failure is not an inconvenience but a serious incident. The brand summarises its position as Tough and Tested, and it sits within the Horizon Global towing group alongside Reese, Draw-Tite, Fulton, Tekonsha, Bargman and Wesbar.
Gooseneck equipment is the brand's signature. Gooseneck hitches mount in the truck bed over the rear axle, which places the load where the chassis can carry it properly and allows far tighter turning than a receiver hitch permits. Matching gooseneck couplers attach at the trailer end, in round tube and square configurations across the capacity range used by livestock, equipment and flatbed trailers.
The conventional trailer coupler range is built around the Wedge-Latch mechanism, which uses a wedge to take up wear between coupler and ball rather than relying on a fixed clamp that loosens over time. That matters on a trailer accumulating hard miles, where slack in the coupling shows up as noise and shock loading. Couplers are offered in A-frame form for standard tongues and in channel-mount form for straight tongue and fabricated frames, with adjustable channel versions that let a coupler be positioned to suit the tongue height.
Heavy-duty jacks complete the line, sized for the tongue weights that gooseneck and equipment trailers generate. Across the range the emphasis is consistent: forged and heavy-section components, load ratings backed by testing, and hardware specified for agricultural, military and heavy-duty commercial use rather than occasional recreational towing.
Experts available to answer your questions
Call 888-634-94945 Years
How to Maintain Your BULLDOG® Square Tube Jack
The jack has a rated capacity of 12,000 lb. However, the actual capacity is limited to the lesser of the jack, footplate, or caster wheel capacity. Always refer to the stamped markings or decals on the product to confirm the rated capacity for your specific unit. If uncertain, contact Cequent Performance Products at 1-800-521-0510 or www.cequentgroup.com.
The jack handle moves 5/8" to 3/4" while shifting between high and low gear. This clearance must be accounted for during installation to prevent interference with the tow vehicle, tongue, or other mounted accessories.
High gear is engaged when the shaft is pushed in. Low gear is engaged when the shaft is pulled out. The handle moves 5/8" to 3/4" during the shift between gears.
No. These jacks are designed for mounting to flat surfaces only. Before mounting, confirm there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check for interference in all positions including handle swing in both gears and swivel positions if applicable. Check for interference again after installation is complete.
These jacks are designed for vertical loading only. Excessive side forces may cause jack failure and must be avoided.
All welding must be performed by an AWS certified welder. For direct-mount installation, three 2" long 1/4" fillet welds must be placed on both sides of the jack along the contacting surface. The welds should be as far apart as possible to maximize strength under load. For weld-on pivot tube mounting, the non-beveled side of the pivot tube is welded to the tongue with a 1/4" fillet weld all around.
Yes. All welding must be performed by an AWS certified welder. This applies to both direct-mount and weld-on pivot tube mounting installations.
Before mounting the jack, confirm that there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check for interference in all positions including handle swing in both gears (if applicable) and swivel positions (if applicable). Check for interference again after installation is complete.
1) All welding must be performed by an AWS certified welder. 2) Place the jack at the desired location. 3) Weld 3" in 2 locations on both sides of the jack using a 1/4" fillet weld. The three 2" long 1/4" fillet welds should be placed on both sides of the jack along the contacting surface, as far apart as possible to maximize strength under load.
1) All welding must be performed by an AWS certified welder. 2) The non-beveled side of the pivot tube is welded to the tongue. 3) Place the weld-on pivot tube against the tongue and weld all around with a 1/4" fillet weld. 4) Align one set of pivot mount holes vertically. 5) Mate the jack to the pivot tube and secure with the supplied pin.

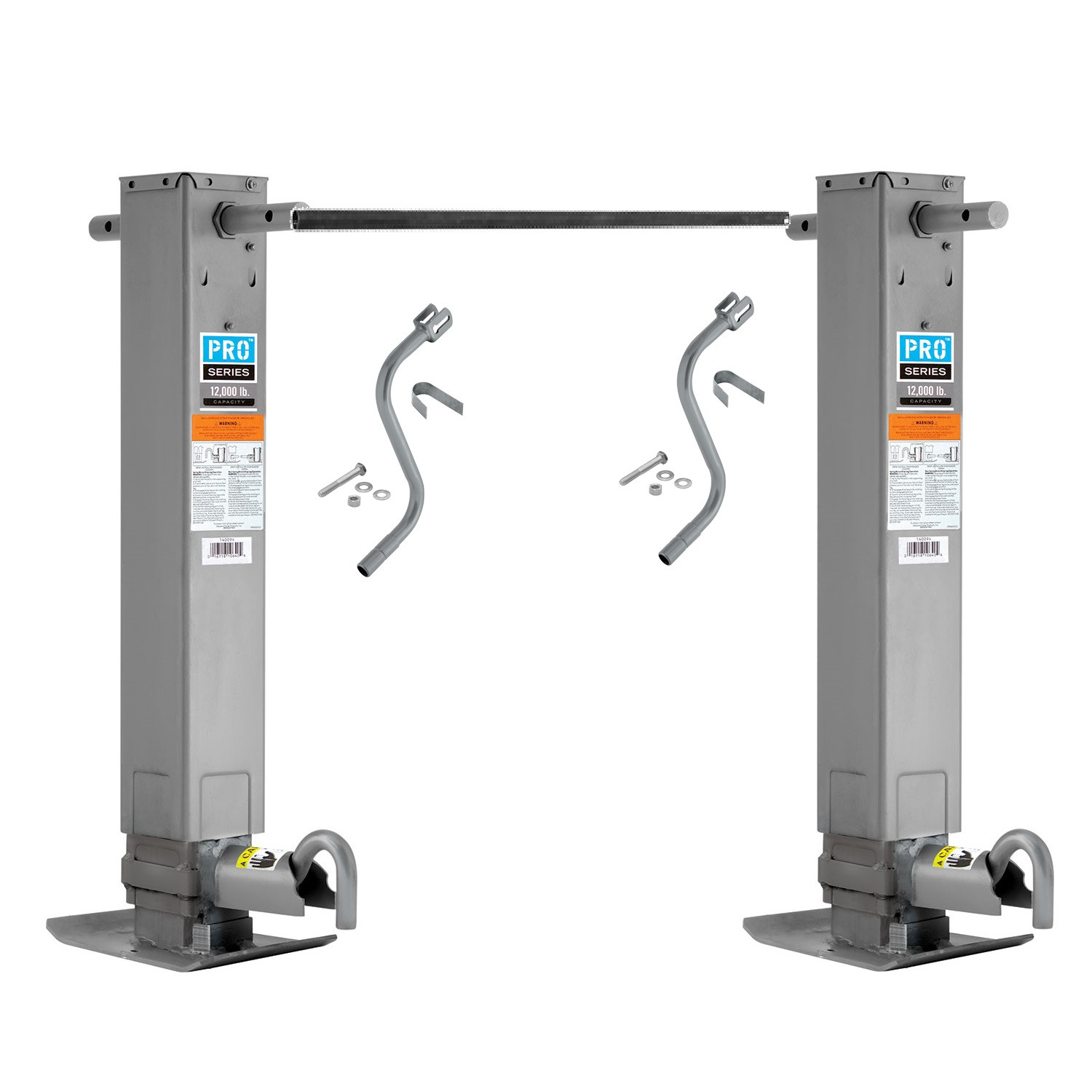

If mounting in a tandem application, align the jacks carefully so they raise and lower together and share the load equally.
The supplied pin is used to secure the jack to the pivot tube after the pivot tube has been welded to the tongue. The pin is inserted through the pivot tube and the pivot mount to hold the jack in place.
If this product has a pivot tube mount, make certain the pivot pin is fully inserted through both sides on the pivot tube and the pivot mount.
When using the drop leg, make certain the drop leg pin is fully inserted before using the jack. Verify that the drop leg pin is fully inserted into the jack by checking for no clearance between the drop leg pin and housing. If you see clearance, you must adjust the drop leg to fully seat the pin into the hole location. If you are unable to fully seat the pin, do not use the jack.
Never position any part of your body under any portion of the jack or the load being supported. Secure the load, vehicle and trailer from rolling by blocking wheels when operating the jack or coupling the trailer. Never exceed the maximum rated capacity. Do not allow children to play on or around the product or the load being supported. Always replace bent, broken, or worn parts before using the product.
Fully retract and/or rotate the jack before towing.
Keep clear of the pinch point at the drop leg pin. The drop leg will naturally drop or retract very quickly depending on the model. Also keep clear of holes in the drop leg.
No. If this product has a drop leg, never attempt to adjust the drop leg when the jack is under load.
The following procedures should be performed at least annually: The gears, bushings, and screw of the jack must be kept lubricated. For side-wind models, apply a small amount of automotive grease with a grease gun at the lubrication points found on the side of the jack near the input shaft. Rotate the jack handle to distribute the grease evenly. A lightweight oil must be applied to the input shaft bushings at both sides of the jack or gearbox. For top-wind models, the screw-stem should be lubricated with a lightweight oil. If equipped, the drop leg pin and spring must be kept clean and lubricated with a lightweight oil.
For side-wind models, apply automotive grease with a grease gun at the lubrication points near the input shaft. A lightweight oil must be applied to the input shaft bushings at both sides of the jack or gearbox. For top-wind models, the screw-stem should be lubricated with lightweight oil. If equipped, the drop leg pin and spring must be kept clean and lubricated with lightweight oil.
The lubrication points are found on the side of the jack near the input shaft. Apply a small amount of automotive grease with a grease gun at these points and rotate the jack handle to distribute the grease evenly.
The gears, bushings, and screw of the jack must be kept lubricated. The input shaft bushings at both sides of the jack or gearbox must be lubricated with lightweight oil. If equipped, the drop leg pin and spring must be kept clean and lubricated with lightweight oil.
If equipped, the drop leg pin and spring must be kept clean and lubricated with a lightweight oil. You may need to lubricate the drop leg pin assembly if the pin does not fully seat into the hole location.
Yes. These jacks are designed for mounting to flat surfaces only. Before installation, check for interference from the tow vehicle, tongue, ground, and other accessories in all positions including handle swing and swivel positions.
Yes. All welding must be performed by an AWS certified welder for both direct-mount and weld-on pivot tube installations.
A 1/4" fillet weld is required. For direct-mount, place three 2" long 1/4" fillet welds on both sides of the jack. For weld-on pivot tube mounting, weld all around the pivot tube with a 1/4" fillet weld.
Fully retract and/or rotate the jack before towing.
No. Never attempt to adjust the drop leg when the jack is under load.
At least annually. Apply automotive grease to side-wind models at lubrication points near the input shaft, and lightweight oil to input shaft bushings and drop leg components.
You may need to lubricate the drop leg pin assembly as described in the maintenance section. If you are unable to fully seat the pin after lubrication, do not use the jack. Verify that the drop leg pin is fully inserted into the jack by checking for no clearance between the drop leg pin and housing.
On Sale Today
Original price was $250.00. Current price is $212.78.You save $37.22 (15%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Fri, Aug 28 - Mon, Aug 31
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Part Number | Model Number | Description | Support Capacity (lbs.) | Lift Capacity (lbs.) | Handle Style | Travel (in.) | A Retracted (in.) | B Extended (in.) |
|---|---|---|---|---|---|---|---|---|
| 182800 | SWQ 180 DL-B-SR | Drop Leg Pull Pin to the SIDE, Crank Sold Separately | 12,000 | 10,000 | Sidewind | 12.50 | 27.40 | 53.60 |
| 182804 | SWQ 180 DL-BC-SR | Drop Leg Pull Pin to the SIDE, Includes Crank | 12,000 | 10,000 | Sidewind | 12.50 | 27.40 | 53.60 |
| 182805 | SWQ 180 DL-BX RH | Drop Leg Pull Pin to the SIDE, Crank Sold Separately Companion Jack to 182800, 182802, and 182804 | 12,000 | 10,000 | Sidewind | 12.50 | 27.40 | 53.50 |
| 182815 | SWQ 180 DL-BX | Drop Leg Pull Pin to the FRONT, Crank Sold Separately | 12,000 | 10,000 | Sidewind | 12.50 | 28.60 | 54.60 |
| 182300 | TWQ 180 DL-B | Crank Sold Separately | 12,000 | 10,000 | Topwind | 12.50 | 23.40 | 49.40 |
| 182304 | TWQ 180 DL-BC | Crank Included | 12,000 | 10,000 | Topwind | 12.50 | 23.40 | 49.40 |
| 182400 | SWQ 180 DL-B | Drop Leg Pull Pin to the SIDE, Crank Sold Separately | 12,000 | 10,000 | Sidewind | 12.50 | 27.40 | 53.30 |
| 182404 | SWQ 180 DL-BC | Drop Leg Pull Pin to the SIDE, Crank Included | 12,000 | 10,000 | Sidewind | 12.50 | 27.40 | 53.30 |
| 182411 | SWQ 180 DL-B | Drop Leg Pull Pin to the SIDE, Crank Sold Separately, Companion Jack to 182400 and 182404 | 12,000 | 10,000 | Sidewind | 12.50 | 27.40 | 53.50 |
| 182415 | SWQ 180 DL-BX | Drop Leg Pull Pin to the FRONT, Crank Sold Separately | 12,000 | 10,000 | Sidewind | 12.50 | 28.60 | 54.60 |
| 182500 | SWQ 180 FL-B | Fixed Leg Jack with Standard Disc Foot, Crank Sold Separately | 12,000 | 10,000 | Sidewind | 12.50 | 27.00 | 39.50 |
| 182524 | SWQ 180 TS-FL-BCX | Fixed Leg Jack with Standard Disc Foot, Crank Included, Mating Mount not Included, (use #005122) | 12,000 | 10,000 | Sidewind | 12.50 | 17.00 | 29.60 |
