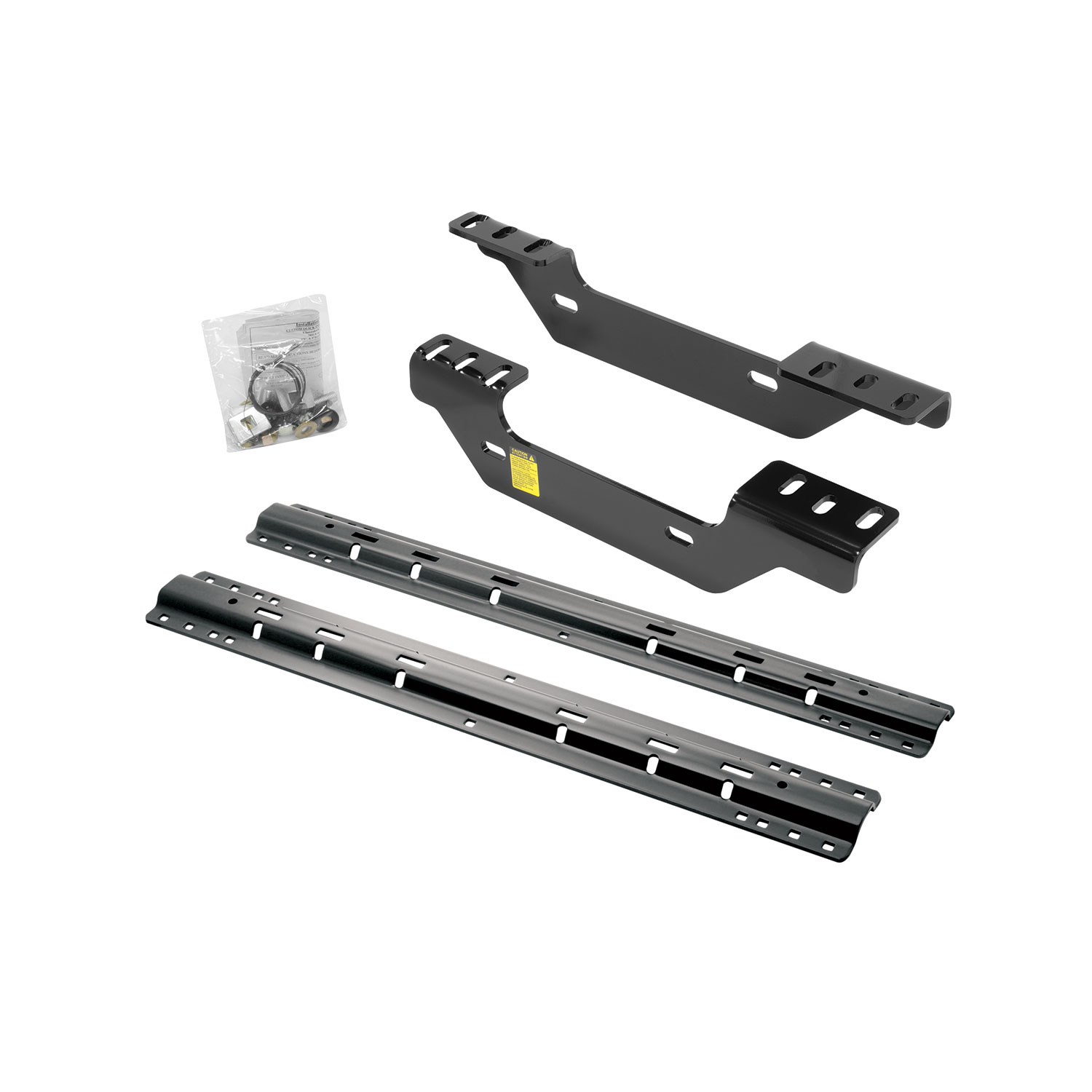

Reese Fifth Wheel Hitch Mounting System Custom Bracket RE50066ReeseOriginal price was $258.75. Current price is $244.38.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Reese
Verify Fitment
Select your vehicle to confirm this part fits.
2011 - 2019 Chevrolet Silverado 2500 HD
Confirmed to Fit
2011 - 2019 Chevrolet Silverado 3500 HD
Confirmed to Fit
2011 - 2019 GMC Sierra 2500 HD
Confirmed to Fit
2011 - 2019 GMC Sierra 3500 HD
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Want to take the family on a cross-country adventure? Or perhaps you're planning a shorter trip to your favorite campground. Whatever your destination, it's important to have the right equipment, especially when towing a fifth wheel trailer. To ensure proper hookup and safety while towing, you'll need something to attach your fifth wheel hitch in the bed on your truck. Many pickups come equipped with factory-installed rails or puck systems, but if you don't have one of these already installed, don't worry. REESE has an extensive line of mounting rails and bracket kits, custom-made to the exact specifications needed based on your truck's year, make, and model. REESE also offers several Industry Standard designs, as well as fastener kits, spacer kits, and a Power Puck mounting kit, so you can be sure you're covered, no matter what pickup you're using to tow. So make it easy. Make it fun. Make it REESE, so you can make the journey as enjoyable as the destination.
| BRAND: | REESE |
| PART NUMBER: | 50066-58 |
| WARRANTY: | LIMITED 10 YEAR WARRANTY |
| WEIGHT: | 61.35 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| WELDING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| RAILS INCLUDED: | YES |
| DRILLING REQUIRED: | YES |
| MATERIAL: | STEEL |
| BOLT GRADE: | GRADE 5 |
| LOCKABLE: | NO |
| COLOR: | BLACK |
Reese has designed towing equipment since 1952 and remains a benchmark for heavy-duty towing. The line covers fifth wheel hitches such as the modular M5, gooseneck couplers including the Goose Box, air-ride and short-bed pin boxes, weight distribution systems with active sway control, and the accessories that connect them, all built to exceed published industry standards.
Reese has been pioneering towing performance since 1952, when Margaret Reese asked her husband TJ to stop travel trailers rocking every time somebody walked through them. His answer, the first pair of stabilising jacks, was simple and effective enough to change the RV industry. From that starting point Reese grew into a designer and manufacturer of complete towing systems, and today it anchors the heavy-duty end of the Horizon Global towing portfolio.
Fifth wheel towing is where the brand's engineering is most visible. The M5 fifth wheel hitch uses a modular design that breaks into manageable sections for assembly, with a wider stance, tighter tolerances and a shock absorption system aimed at the jolts that travel up through a truck bed. For owners who would rather tow from a gooseneck coupler and keep the bed clear, the Goose Box 20K replaces the trailer's king pin with a gooseneck connection carrying its own air-ride cushioning.
Pin boxes are a Reese speciality. The 5th Airborne uses air-ride technology to dampen road shock and reduce the chucking motion that makes fifth wheel towing tiring, while the Sidewinder was designed for short-bed pickups, pivoting the connection point so the trailer can turn sharply without the front cap meeting the cab.
For conventional towing, Reese weight distribution systems restore load to the tow vehicle's front axle and control sway. The Pro Round Bar distributes weight evenly while damping sway, and the Pro Dual Cam II uses active cam-based sway control that works harder the stronger the sway force becomes. Complete kits pair bars, head and shank to a rated tongue weight, and dedicated sway control kits can be added to existing setups. The products suit RV owners, horse and livestock haulers and anyone towing near the upper end of a vehicle's rating.
Experts available to answer your questions
Call 888-634-949410 Years
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2019 | Chevrolet Silverado 2500 HD | Fifth Wheel Trailer Hitch Install Kit Drilling Required Install Time is 0 minutes Custom Quick Install Bracket & Rail Kit |
| 2011 - 2019 | Chevrolet Silverado 3500 HD | Fifth Wheel Trailer Hitch Install Kit Drilling Required Install Time is 0 minutes Custom Quick Install Bracket & Rail Kit |
| 2011 - 2019 | GMC Sierra 2500 HD | Fifth Wheel Trailer Hitch Install Kit Drilling Required Install Time is 0 minutes Custom Quick Install Bracket & Rail Kit |
| 2011 - 2019 | GMC Sierra 3500 HD | Fifth Wheel Trailer Hitch Install Kit Drilling Required Install Time is 0 minutes Custom Quick Install Bracket & Rail Kit |
Yes, the Reese Fifth Wheel Hitch Mounting System Custom Install Kit RE50066-58 (Part #RE50066-58) is designed to fit the 2011-2019 Chevrolet Silverado 2500 HD.
The Reese Fifth Wheel Hitch Mounting System Custom Install Kit RE50066-58 (Part #RE50066-58) fits the following vehicles: 2011-2019 Chevrolet Silverado 2500 HD; 2011-2019 Chevrolet Silverado 3500 HD; 2011-2019 GMC Sierra 2500 HD; 2011-2019 GMC Sierra 3500 HD. Always verify your specific year, make, and model before ordering.
The Reese Fifth Wheel Hitch Mounting System Custom Install Kit RE50066-58 (Part #RE50066-58) fits 2011-2019 Chevrolet Silverado 2500 HD models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Reese Fifth Wheel Hitch Mounting System Custom Install Kit RE50066-58 (Part #RE50066-58) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the 50066 Custom Quick Install Mounting Kit is designed for Chevrolet/GMC 2500 and 3500 pickup trucks from 2011 and up, with both 6'6" and 8' beds. However, the kit includes only the frame brackets and fasteners to attach to the frame. You must also purchase the mounting rails separately (either 58058 or 30035 for the 10-bolt system, or 30124 or 30095 for the 4-bolt system) and fifth wheel support arches, slider, or goose for positioning.
No. Plastic bed liners must be cut out of the way to provide metal-to-metal contact between the mounting rails and the truck bed. However, the mounting rails may be installed on spray-in bed liners, which do not need to be removed.
The minimum bed length is 6 feet. Do not install this product on or attempt to tow with a truck with a bed less than 6 feet long unless a Reese Sidewinder pinbox has been installed on the trailer.
For the 10-bolt system (58058 or 30035): wrenches (¾" and 15/16"), drill bits (1/8" and 9/16"), center punch, and measuring tape. For the 4-bolt system (30124 or 30095): wrench (15/16"), drill bits (1/8" and 11/16"), center punch, and measuring tape. You will also need Fastener Kit 50066F.
The 50066 kit includes only the hardware to attach the frame brackets to the vehicle frame. You must order Fastener Kit 50066F separately. Additionally, the mounting rails (58058, 30035, 30124, or 30095) come with their own fasteners for attaching the rails to the brackets. If fasteners are missing from the rail kit, order service kit 58430 (for 58058) or 58406 (for 30124).
Yes. Always measure the truck and trailer before installing the kit to ensure there is adequate clearance at the cab and at the bumper to allow for turns. This is the responsibility of the installer and owner.
For an 8-foot bed, position the rear rail 29-3/8" from the rear edge of the truck box. For a 6'6" bed, position it 24-5/8" from the rear edge. Use a measuring tape to locate the proper distance and center the rail on the floor of the truck bed.
Yes. Drilling is required. You must drill 1/8" pilot holes through the truck bed at marked positions, then enlarge them to either 9/16" (for 10-bolt system) or 11/16" (for 4-bolt system). Use a center punch to mark hole locations before drilling. On the driver's side, the fuel tank is located below the bed, so be careful not to damage it when drilling.
No permanent frame modifications are required. The kit uses existing frame holes and drilled bed holes. However, if you have a plastic bed liner, it must be cut away to provide metal-to-metal contact between the mounting rails and the bed.
Torque all 1/2" nuts to 75 ft-lbs.
Torque all 5/8" Grade 5 nuts to 150 ft-lbs.
Torque all 5/8" Grade 8 nuts to 212 ft-lbs. You can identify Grade 8 bolts by their head marking, which differs from Grade 5 bolts.
The 10-bolt system uses 5/8-11 x 2" carriage bolts to attach the frame brackets to the frame, and 1/2" x 2" carriage bolts to attach the mounting rails to the brackets.
The 4-bolt system uses 5/8-11 x 2" carriage bolts to attach the frame brackets to the frame, and 5/8" x 3-1/2" carriage bolts to attach the mounting rails to the brackets. The rail bolts pass through a 1-1/4" long tube spacer.
Screw the 5/8" pull wire over a 5/8" x 2" carriage bolt. Place a square hole spacer over the pull wire. Insert the free end of the pull wire into the large access hole on the inside of the frame. Pull the threaded end of the bolt out through one of the mounting holes. Ensure the square hole plate is over the bolt and the square shank of the bolt is in the square hole. Place the bracket over the bolt. Remove the wire. Install a 5/8" serrated washer and 5/8" nut on the bolt and finger tighten. Repeat for the other 3 bolts.
Use 5/16" thick U-shaped spacer blocks between the frame bracket and the bottom of the bed, or between the mounting rails and the truck bed, to ensure metal-to-metal contact. These blocks are supplied with the rail kit.
Place the unassembled fifth wheel support arches, slider, or goose into the already-installed rear mounting rail. Position the forward mounting rail by inserting the tabs into the mounting rail and pushing the mounting rail tight towards the rear rail. Ensure the mounting rail is centered on the bed of the vehicle. This positions the rail correctly and ensures the fifth wheel has a snug fit to the truck. If using multiple hitch products, use both types at the same time to align the rear rail and ensure one product does not compromise the fit of the other.
For the 10-bolt system, use the outside holes as shown in Figure 2A. For the 4-bolt system, use the outside holes as shown in Figure 4A. Mark these holes with a center punch, then drill with a 1/8" bit.
For the 10-bolt system, use the second hole from the outside as shown in Figure 2A. For the 4-bolt system, use the center mounting hole as shown in Figure 4A. Mark these holes with a center punch, then drill with a 1/8" bit.
Finger tighten all nuts during the initial assembly steps. Only after all bolts are in place and aligned should you apply final torque: 75 ft-lbs for 1/2" nuts (10-bolt system), 150 ft-lbs for 5/8" Grade 5 nuts, and 212 ft-lbs for 5/8" Grade 8 nuts.
Do not exceed the towing vehicle manufacturer's recommended vehicle towing capacity. The kit itself does not increase or change your truck's towing capacity—it only provides a mounting point for fifth wheel hitches.
If you are installing a hitch rated over 18,000 lbs with the 4-bolt system (30124 or 30095), additional hardware supplied with that hitch must be installed in the center of each rail.
Yes, the 50066 Custom Quick Install Mounting Kit fits 2011 and newer Chevrolet/GMC 2500 and 3500 pickup trucks with 6'6" or 8' beds. You must also purchase the mounting rails separately (58058, 30035, 30124, or 30095) and fifth wheel support arches/slider/goose.
You need Fastener Kit 50066F, wrenches (¾" and 15/16" for 10-bolt; 15/16" for 4-bolt), drill bits (1/8" and 9/16" for 10-bolt; 1/8" and 11/16" for 4-bolt), center punch, and measuring tape. Drilling is required.
Yes. You must drill 1/8" pilot holes through the truck bed, then enlarge them to 9/16" (10-bolt) or 11/16" (4-bolt). Plastic bed liners must be cut away for metal-to-metal contact. Avoid the fuel tank on the driver's side.
Torque 1/2" nuts to 75 ft-lbs (10-bolt system), 5/8" Grade 5 nuts to 150 ft-lbs, and 5/8" Grade 8 nuts to 212 ft-lbs. Identify Grade 8 bolts by their head marking.
Minimum 6 feet. Do not install on beds shorter than 6 feet unless a Reese Sidewinder pinbox is installed on the trailer.
No. Plastic bed liners must be cut away to provide metal-to-metal contact. Spray-in liners may be left in place.
