Tekonsha Trailer Brake Controller Custom Harness, Vehicle & Brake Control Ends 301500Tekonsha$36.41Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

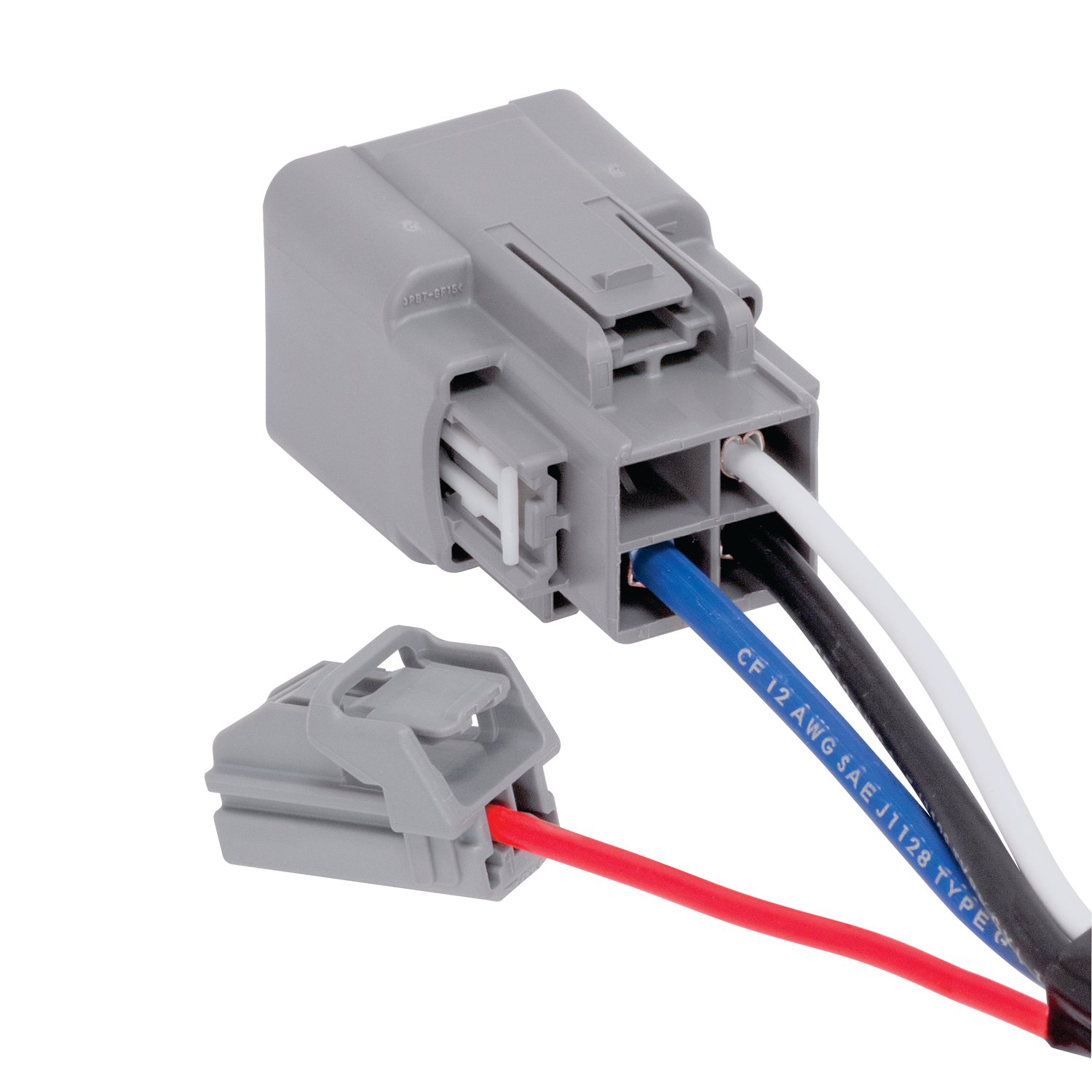

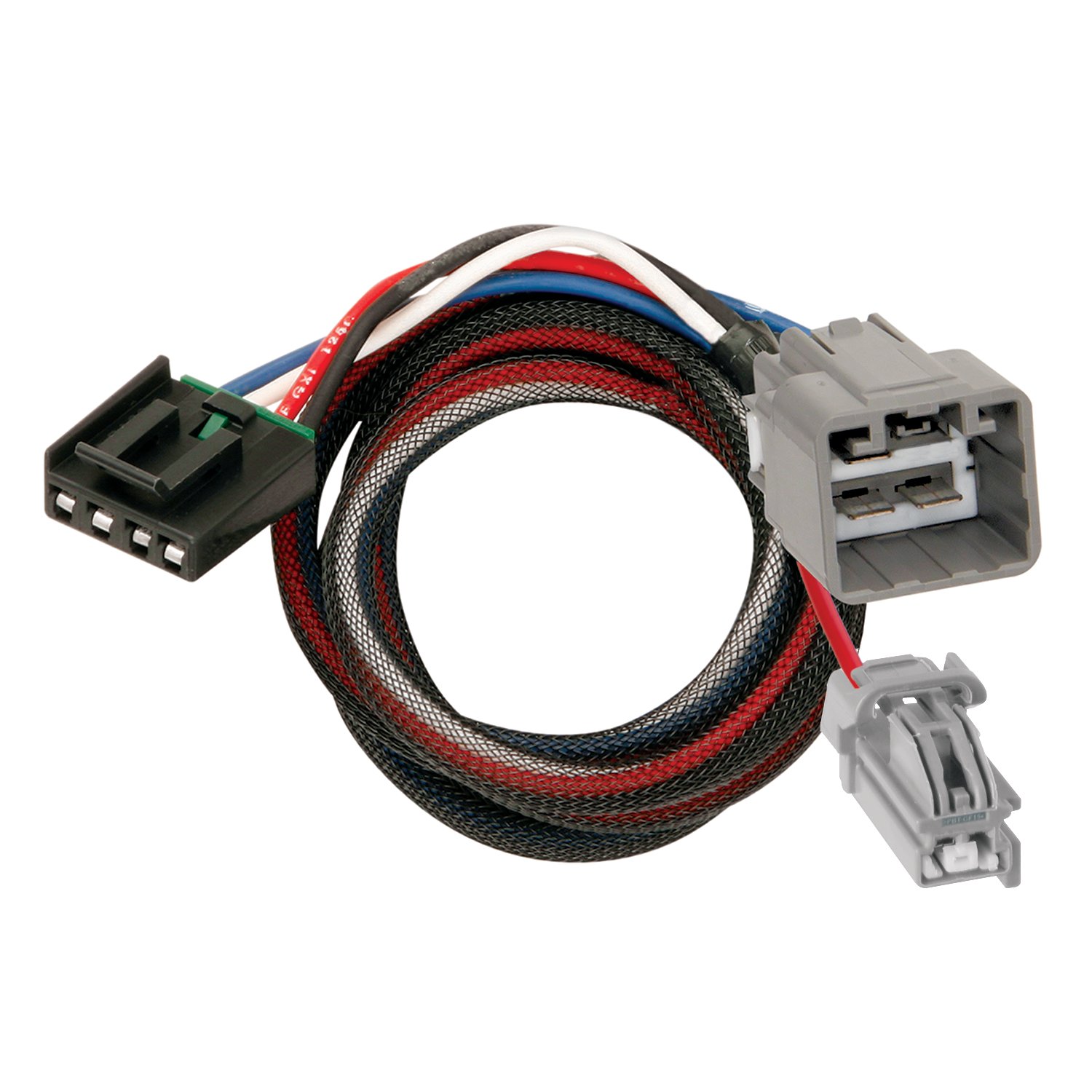

Tekonsha trailer brake controller harnesses exist to make connecting your brake controller to your vehicle as easy as possible. These custom two-plug units are specifically designed to be used with any Tekonsha brake controller. The Plug & Play feature on the Tekonsha wiring harnesses makes them easy to install. Simply plug one end of the harness into the back of your desired Tekonsha brake controller and the other end into the port in your vehicle. No cutting, splicing, or taping required.
Each wiring harness is made up of four copper wires wrapped with a braided nylon thread to insulate the wires and protect them against nicks, punctures, and elevated temperatures. The four-pin Plug & Play connectors on each end of the harness are uniquely designed, with one end to fit each vehicle based on make and model year specifications, while the other end plugs easily into any Tekonsha brake controller.
Tekonsha trailer brake controller harnesses are custom designed, giving you plenty of wire to reach between where it is connected to the vehicle and where it connects to the brake controller without stretching or straining the wires. And because Tekonsha is the leader in wiring and electrical, you can relax knowing your connections will be safe and secure, so you can hit the road with confidence! With Tekonsha, Lifes a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 302300 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.345 LBS |
| WIRE COLORS: | BLACK, RED, BLUE WHITE |
| CONNECTOR GENDER: | FEMALE |
| CONNECTOR SHAPE: | SQUARE |
| CONNECTOR QUANTITY: | 2 |
| TERMINAL QUANTITY: | 4 |
| TERMINAL TYPE: | BLADE |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
Yes, the 30234-P adapter is designed for Ram 1500, 2500, and 3500 vehicles. The adapter connects to the vehicle's factory 7-way trailer harness connector (located under the vehicle behind the bumper at the center) and the electric brake control harness connectors (located under the dash left of the steering column). The 30234-P kit includes both the 3023-P and 30235-P components and complies with all applicable California regulations.
Part number 3023-P is the base adapter. Part number 30235-P is an additional kit required for California compliance when installing 3023-P alone. Part number 30234-P is a complete kit that contains both 3023-P and 30235-P together, ensuring full California regulatory compliance without needing a separate purchase. If you are installing 3023-P only, you must also use 30235-P to ensure compliance with California regulations.
The following tools are required: 10mm socket and ratchet (or 10mm wrench), 1/4" socket, wire crimpers, wire cutters, and a test probe. A wiring kit is not included in all kits, so verify your kit contents before beginning installation.
Yes, you must disconnect the vehicle's negative (-) battery cable before beginning installation. This is a critical safety step performed at the start of the installation process. After completing the wiring connections, you will reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
The electric brake control harness connector is located underneath the dash and to the left of the steering column. It is taped to another harness near the emergency brake pedal. You will find a 4-pin connector that mates with the adapter, and a second 2-pin connector located just above the brake pedal that also mates with the adapter.
The 7-way trailer harness connector is located under the vehicle, behind the bumper, at the center of the vehicle. This is where you will plug the adapter between the factory socket and the 7-way connector.
First, plug the brake control adapter into the mating receptacle on the backside of the brake control before attaching to the vehicle connector. Then plug the brake control adapters into the vehicle's electric brake control harness connectors. Follow all brake control manufacturer's installation instructions for mounting the unit and performing test procedures.
Separate the factory 7-way trailer harness connector carefully, being careful not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt. Plug the adapter between the factory socket and the 7-way connector. Be careful not to damage the locking tabs and ensure that connectors are fully inserted with locking tabs in place.
Mount the black adapter box near the 7-way connector on a flat surface in an out-of-the-way location. The module must be mounted so that the epoxy side points toward the ground to prevent water buildup. The unit must be in a protected area and cannot be damaged by road debris or objects driven over.
A 15 amp fuse is required. The fuse is installed into the yellow fuse holder. The fuse holder wire must be cut, and a ring terminal must be attached and secured to the vehicle's positive (+) battery cable. The other end of the fuse holder connects to the black 12 ga. wire using a yellow butt connector.
Route the black 12 ga. wire along the exterior frame into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. The wire must also avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. Secure the remainder of the adapter harness with cable ties to prevent damage or rattling.
The installation uses a black 12 ga. wire, a yellow wire from the black adapter box, yellow butt connectors, and a yellow fuse holder. The black wire connects to the positive battery cable via a ring terminal and fuse holder. The yellow wire from the adapter box connects to the black 12 ga. wire using a yellow butt connector.
Do not exceed the lower of the towing manufacturer's rating or: maximum 4 axles with 8 brakes (24 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information about your specific towing capacity.
All connections must be complete for the adapter to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Perform test procedures as instructed by the electric brake control manufacturer.
Wear safety glasses and use all safety precautions during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Ensure the adapter module is mounted with the epoxy side pointing toward the ground. Mount the unit in a protected area away from road debris. Route all wires carefully to avoid hot pipes, heat shields, fuel tank, and areas that may pinch, cut, or melt the wire.
Yes, the 30234-P electric trailer brake control wiring adapter is designed for Ram 1500, 2500, and 3500 vehicles. It connects to the factory 7-way trailer harness and electric brake control harness connectors.
You need a 10mm socket and ratchet (or 10mm wrench), 1/4" socket, wire crimpers, wire cutters, and a test probe. A wiring kit is not included in all kits.
Yes, disconnect the vehicle's negative (-) battery cable before starting installation. Reconnect it after completing the wiring connections and installing the 15 amp fuse.
A 15 amp fuse is required. It installs into the yellow fuse holder that connects to the vehicle's positive battery cable.
Do not exceed the lower of the towing manufacturer's rating or maximum 4 axles with 8 brakes (24 amps). Overloading can cause fires.
Test with a test light or trailer once installed. Reset the vehicle electrical system by temporarily removing the key from the ignition for the initial test.
Yes, the yellow fuse holder wire must be cut. A ring terminal is then attached to the vehicle's positive battery cable, and the other end connects to the black 12 ga. wire using a yellow butt connector.
