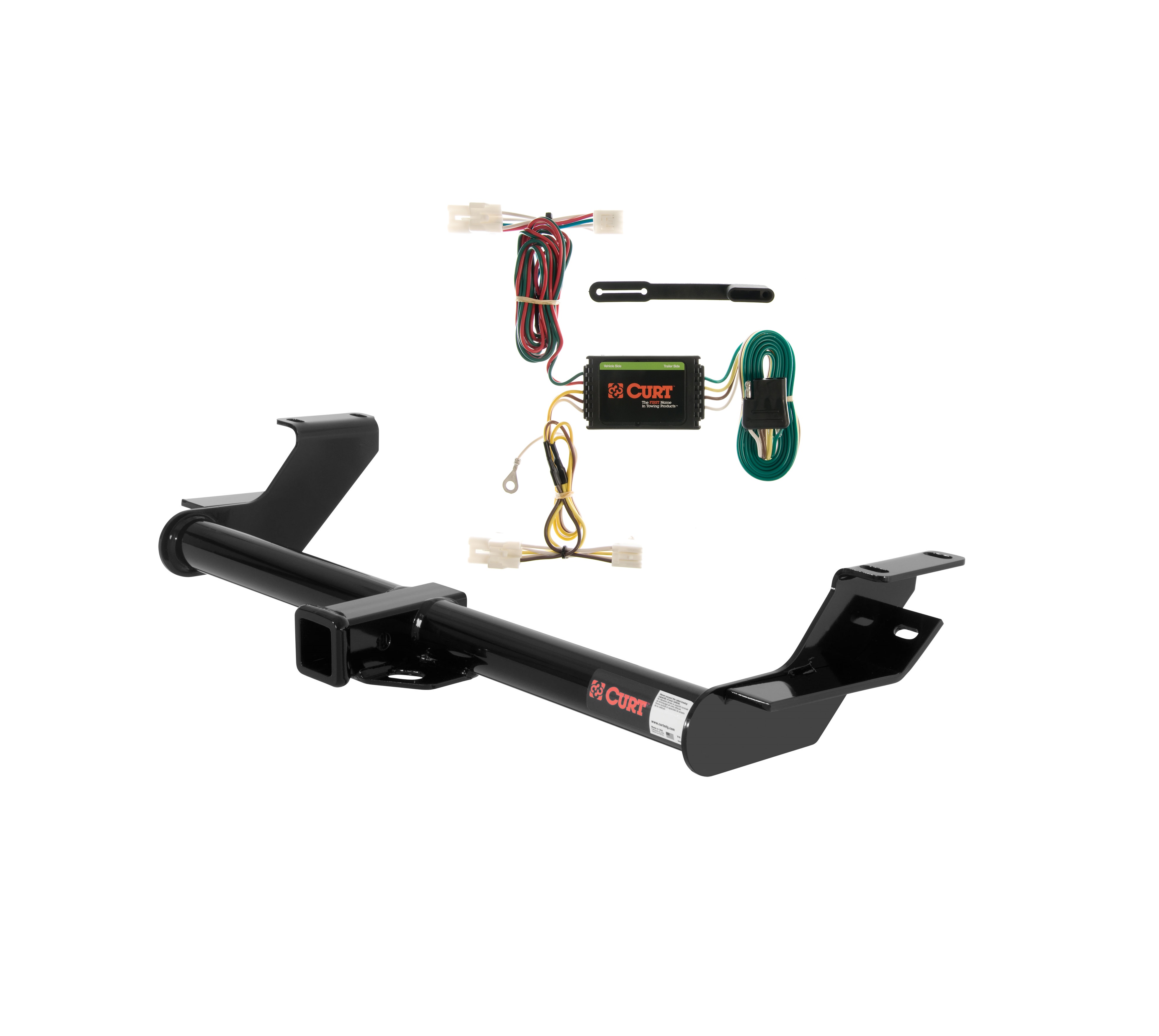

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2002 - 2005 Kia Sedona. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

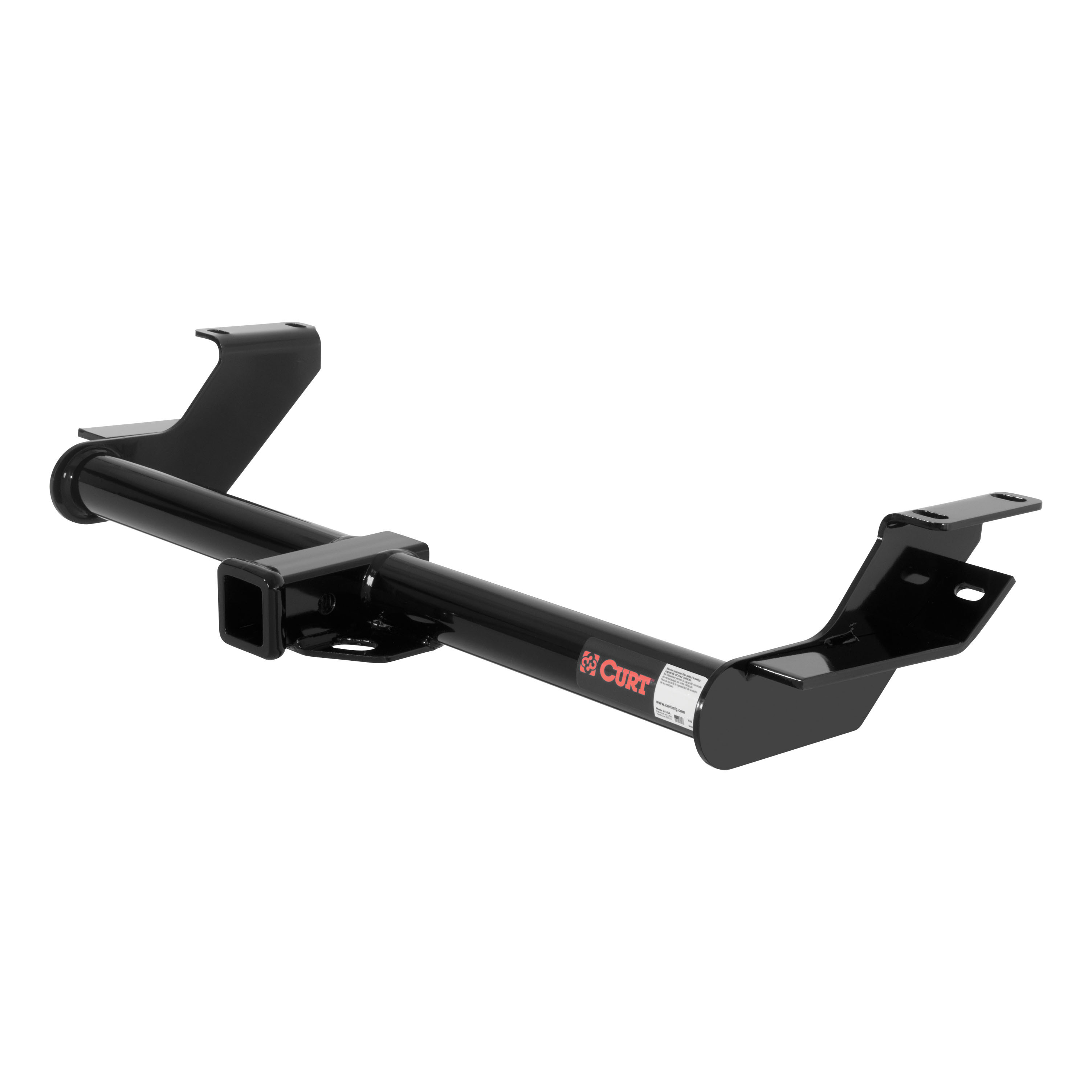

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Kia Sedona (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 300 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 500 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

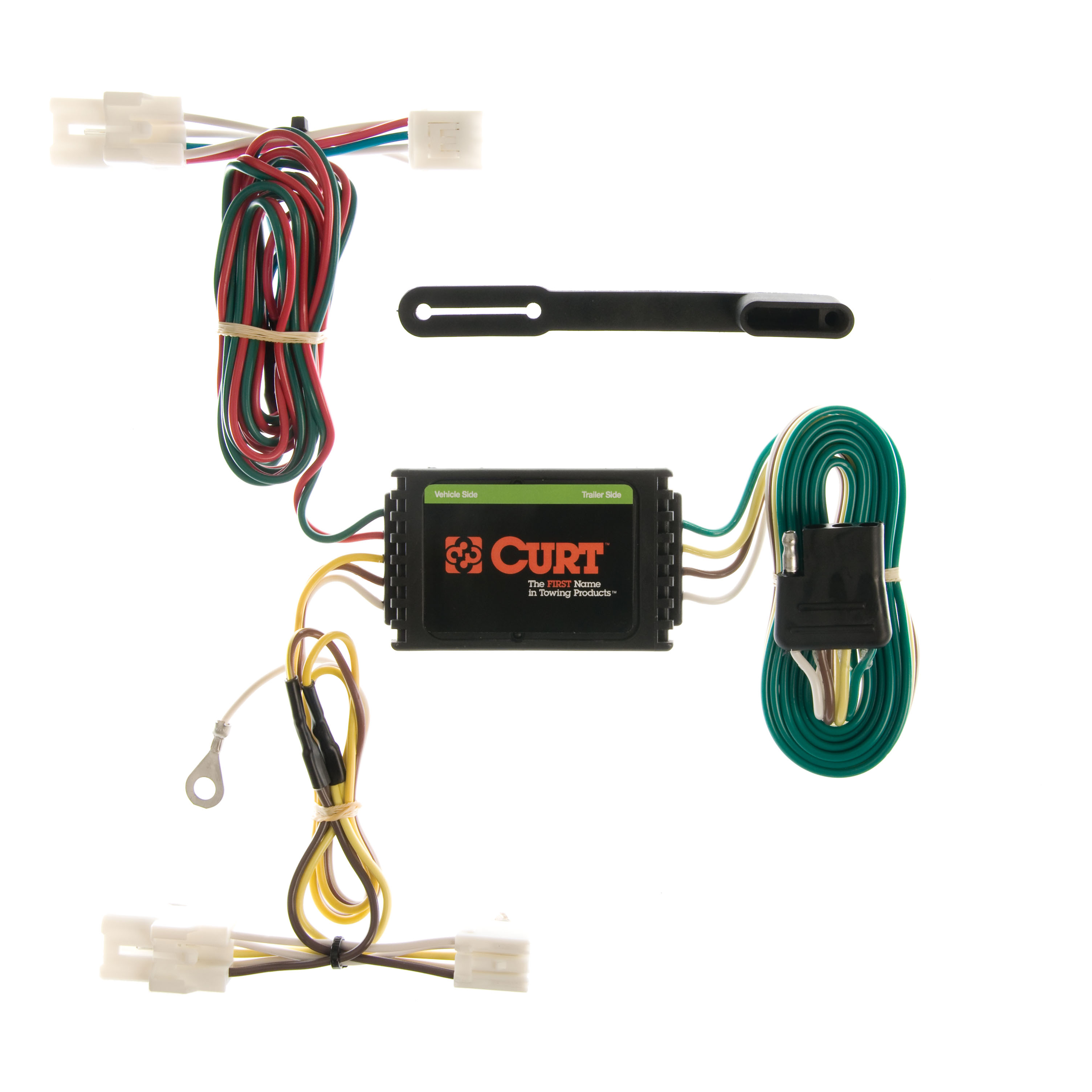

CURT custom wiring is the easiest way to outfit your vehicle with a trailer wiring connection. Each harness is engineered for a specific make and model and uses an OEM-compatible plug, so no cutting or splicing is required during installation. Provides a 4-way flat connector socket for tail lights, brake lights and turn signals. Includes a dust cover and is backed by a limited one-year warranty.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2005 | Kia Sedona | — |
Yes, Curt part numbers 13340, 78225, and 757340 are designed for 2002–2005 Kia Sedona vans. The hitch mounts to the frame rails using existing weld nuts and the vehicle's tow loops, with no drilling required.
This hitch is designed specifically for 2002–2005 Kia Sedana vans. Do not use it on other model years or vehicle types without confirming fitment with Curt Manufacturing or a fitment database.
The manual lists gross load capacity specifications for both weight-carrying and weight-distribution modes, but the capacity values are not filled in on the provided documentation. Contact Curt Manufacturing or check the product label on the hitch itself for the exact trailer weight and tongue weight limits. Always respect your vehicle manufacturer's recommended towing capacity, which may be lower.
The kit includes: two 1/2-13 UNC hex head cap screws (HHCS) grade 8 (part 10-10286); two 1/2-13 UNC serrated flange nuts grade 8 (part 20-00062); four M12×1.5 hex head cap screws class 10.9 (part 10-10456); four 1/2" split-contact washers (part 30-00149); and four 0.250 × 1.50 × 2.00" round hole spacers (part CM-SP16). The M12 bolts replace the vehicle's existing bumper bracket bolts.
No. All fasteners required for installation are included in the kit. The M12 bolts (part 10-10456) replace the four existing 12mm bumper bracket bolts you remove from the frame rails. The 1/2" bolts and spacers (parts 10-10286, 20-00062, 30-00149, CM-SP16) attach the side arms to the tow loops.
You will need a 12mm socket or wrench to remove and reinstall the bumper bracket bolts, a 1/2" socket or wrench for the tow loop fasteners, and a torque wrench capable of reaching 83 lb.-ft. and 110 lb.-ft. A jack or lift may be helpful to access the frame rails and tow loops, but the manual does not specify whether professional equipment is required.
No. The manual explicitly states "Do not move bumper." You only need to remove the four 12mm bolts that secure the bumper brackets inside the frame rails. The bumper itself stays in place.
The manual does not mention battery disconnection. This is a mechanical hitch installation with no electrical components, so battery disconnection is not required.
1. Remove the four 12mm bolts securing the bumper brackets inside the frame rails. Do not move the bumper. 2. Position the hitch on the bottom of the frame rails with the side arms on top of the vehicle tow loops. 3. Fasten the hitch to the frame using the M12 bolts in the locations where the original bolts were removed. 4. Fasten the side arms to the tow loops using 1/2" bolts and spacer plates. Add additional spacers between the hitch and tow loop as needed. 5. Torque all 12mm fasteners to 83 lb.-ft. and all 1/2" fasteners to 110 lb.-ft.
The spacer plates (part CM-SP16) go between the side arms and the tow loops. Place them as shown in the diagram. The manual notes that additional spacers may be needed depending on the gap between the hitch and tow loop; add them as required to ensure a solid connection.
No. The manual explicitly states "NO DRILLING REQUIRED." The hitch uses existing weld nuts on the frame rails and the vehicle's factory tow loops.
Torque all 12mm fasteners (the M12×1.5 hex head cap screws) to 83 lb.-ft.
Torque all 1/2" fasteners (the 1/2-13 UNC hex head cap screws) to 110 lb.-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual emphasizes this in bold: "DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY." Your Kia Sedona's owner manual will specify the maximum trailer weight and tongue weight limits. The hitch itself has capacity ratings, but your vehicle's limits take precedence.
After installation, verify that all fasteners are tight and all structural components are sound. The manual recommends periodically checking the receiver hitch to ensure that all fasteners remain tight and that all structural components are in good condition. Perform these checks before each towing trip.
The manual recommends periodically checking the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. Perform these checks regularly, especially before towing. No specific interval is given, so check before each use and at least monthly if the hitch is installed.
Curt Manufacturing warrants the hitch to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt will repair or replace it at their option when returned prepaid with proof of purchase. The warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
The Curt 13340 is designed for 2002–2005 Kia Sedona vans only. Confirm your model year and vehicle type before purchasing.
No drilling is required. The hitch uses existing weld nuts on the frame rails and factory tow loops.
The kit includes M12 bolts, 1/2" bolts, flange nuts, washers, and spacer plates. All fasteners needed for installation are included; no additional bolts must be purchased.
Torque 12mm fasteners to 83 lb.-ft. and 1/2" fasteners to 110 lb.-ft. Use a calibrated torque wrench.
Do not exceed your vehicle manufacturer's recommended towing capacity. Capacity values are listed on the hitch label; contact Curt Manufacturing if the label is missing.
