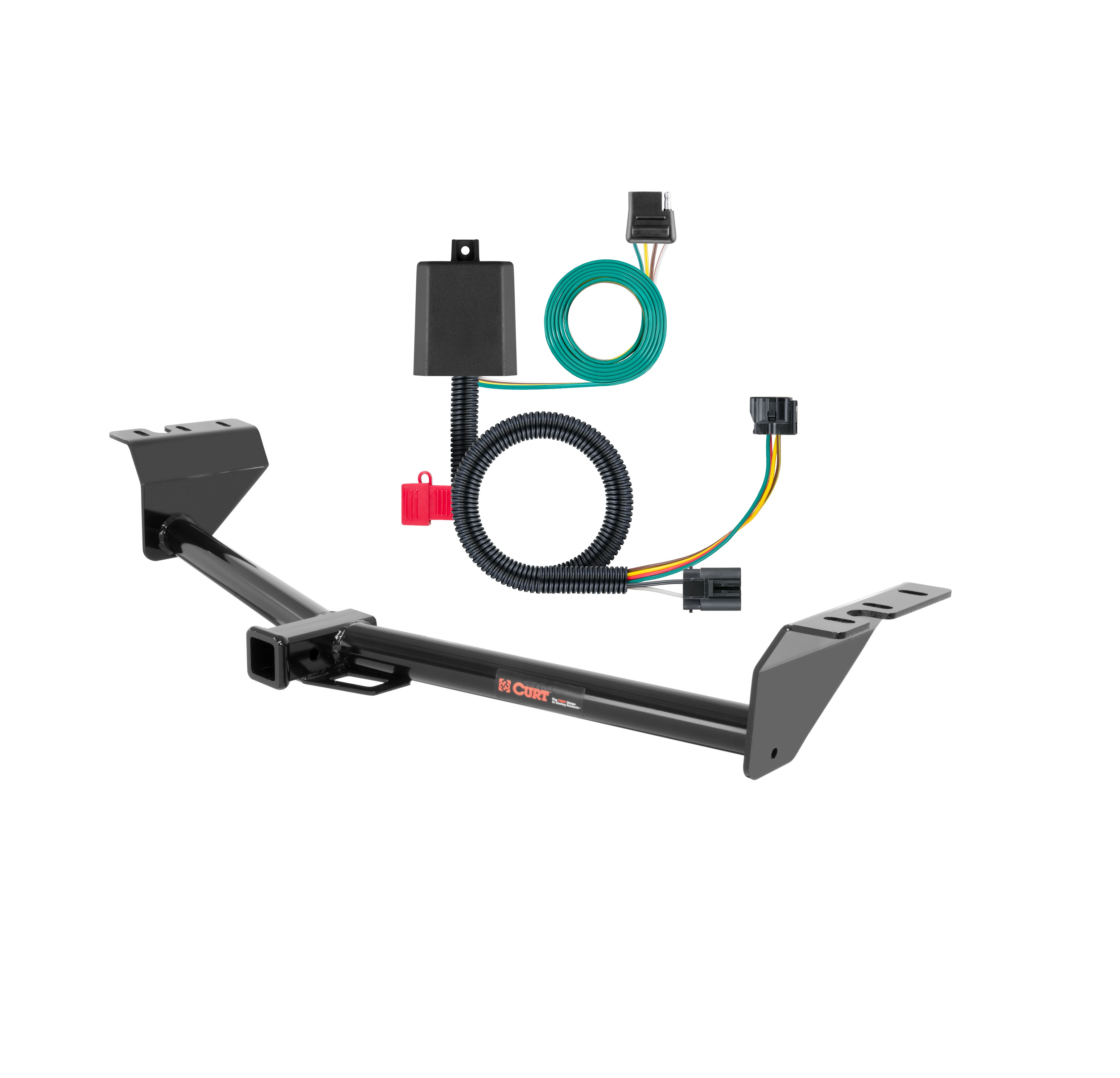

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2015 - 2021 Kia Sedona. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Kia Sedona (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 400 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Hyundai Santa Fe, Santa Fe XL and Veracruz and Kia Sedona and Sorento (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2021 | Kia Sedona | — |
The 15 - 21 Kia Sedona Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13115 (Part #CHW-2047) fits the following vehicles: 2015-2021 Kia Sedona. Always verify your specific year, make, and model before ordering.
Yes, the 15 - 21 Kia Sedona Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13115 (Part #CHW-2047) is designed to fit the 2015-2021 Kia Sedona.
The 15 - 21 Kia Sedona Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13115 (Part #CHW-2047) fits 2015-2021 Kia Sedona models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 15 - 21 Kia Sedona Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13115 (Part #CHW-2047) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the CURT 13115 is designed for the 2015 Kia Sedona van. Verify that your vehicle matches this year and model before purchasing.
The CURT 13115 has a gross load capacity of 4,000 lbs trailer weight and 400 lbs tongue weight when used as a weight carrying hitch, or 4,000 lbs trailer weight and 400 lbs tongue weight when used as a weight distribution hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 43 lbs.
The hitch includes 6 M12x1.25 hex cap screws (part number 10-10275) and 6 S-CON washers 1/2" (part number 30-00149). These bolts and washers attach the hitch to the existing frame weldnuts on both sides of the frame rail.
Required tools are: wire brush, screwdriver, spray lubricant, 19mm socket, ratchet, socket extension, and torque wrench. Safety glasses should be worn at all times during installation.
Yes, if equipped. Remove the driver side plastic panel by removing the plastic rivets and screws (6 places) securing it. Return the panel to the owner after installation.
Yes. Lower the exhaust by removing the 4 rearmost rubber isolators from the muffler hangers. Support the exhaust from underneath during this process.
Weldnut cleaning may be required prior to hitch installation. Use a wire brush and/or spray lubricant to clean the weldnut threads on the frame rails. This ensures proper bolt engagement and torque.
Raise the hitch into position and loosely secure it by installing the M12 bolts and washers using a 19mm socket. The bolts attach to the existing frame weldnuts on both the driver and passenger sides. Do not fully tighten at this stage.
Torque all M12 hardware to 86 ft-lb using a torque wrench.
After torquing all M12 hardware to 86 ft-lb, reattach all exhaust hangers to their original positions.
No, drilling is not required. The hitch uses existing frame weldnuts for attachment.
Safety glasses should be worn at all times while installing this product. Support the exhaust from underneath when lowering it. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain the integrity and safety of the installation.
Professional installation time is approximately 43 minutes. Novice (DIY) installation time is approximately 60 minutes.
Two people may be required to ease installation, though the manual does not state whether this is mandatory or optional.
Yes, the CURT 13115 is designed for the 2015 Kia Sedona van.
You need a wire brush, screwdriver, spray lubricant, 19mm socket, ratchet, socket extension, and torque wrench. Safety glasses are required.
Yes. Remove the driver side plastic panel (if equipped) and lower the exhaust by removing the 4 rearmost rubber isolators from the muffler hangers, supporting the exhaust from underneath.
Torque all M12 hardware to 86 ft-lb using a torque wrench.
The hitch supports 4,000 lbs trailer weight and 400 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Wear safety glasses at all times. Support the exhaust from underneath when lowering it. Never exceed your vehicle manufacturer's recommended towing capacity.
The Curt 56332 fits Kia Sorento models with a factory tow package. It does not fit EX and Limited trim levels equipped with the 2.0L 4-cylinder engine. Check your vehicle's documentation to confirm whether your Sorento has the factory tow package and engine size before purchasing.
Yes, the Curt 56332 is compatible with Hyundai Santa Fe models. No factory tow package requirement is listed for the Santa Fe application.
Yes, the Curt 56332 is compatible with Hyundai Veracruz models.
Yes, the Curt 56332 is compatible with Kia Sedona models.
The Curt 56332 has a maximum rating of 3.0 amps per side for signal circuits and 6.0 amps total for tail and running circuits. The battery connection must be fuse protected with a 10 amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
You will need a flat blade screwdriver and side cutter. The harness comes with a 10 amp fuse, double-sided tape, and cable ties.
A 10 amp fuse is required. The fuse is provided with the harness and must be inserted into the in-line fuse holder to complete installation. The battery connection must be fuse protected with a 10 amp maximum.
On Santa Fe and Sorento models, the vehicle taillight wiring connector is located behind the rear tire on the driver side, on the outside frame rail.
On Veracruz models with a factory tow package, the vehicle taillight wiring connector is located near the rear tire on the passenger side, along the frame.
1. Locate the vehicle taillight wiring connector (location varies by model—see installation steps for your vehicle). 2. Remove the protective cap from the custom wiring harness. 3. Insert the custom wiring harness into the vehicle connector. 4. Ensure the connector is fully inserted with locking tabs in place. The connector will be similar in design to the one on the custom harness.
Route the 4-flat to the center of the vehicle by going over the exhaust along the bumper. Avoid any areas that may cut, pinch or melt the wire. Secure any loose wires with the provided cable ties.
Mount the black converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Secure any loose wires with the provided cable ties. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating and potential fire.
Insert the provided 10 amp fuse into the in-line fuse holder. This is the final step. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating (3.0 amps per side for signal circuits, 6.0 amps total for tail and running circuits) or your tow vehicle's lamp load rating, whichever is lower.
The battery connection must be fuse protected with a 10 amp maximum to prevent overheating and potential fire. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The Curt 56332 fits Hyundai Santa Fe, Hyundai Veracruz, Kia Sedona, and Kia Sorento with factory tow package (excluding EX and Limited with 2.0L 4Cyl).
The harness includes a 10 amp fuse, double-sided tape, and cable ties. You will need a flat blade screwdriver and side cutter.
No drilling is required. The harness connects to the existing vehicle taillight connector and is mounted using provided double-sided tape.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Battery connection must use a 10 amp fuse maximum. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
The manual does not specify whether the battery must be disconnected. Consult your vehicle owner's manual or contact the vehicle manufacturer for safety guidance.
