| Side Application Type Description | Blank |
| T-Connector Location | S1,S2 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2006 | Scion xB | — |

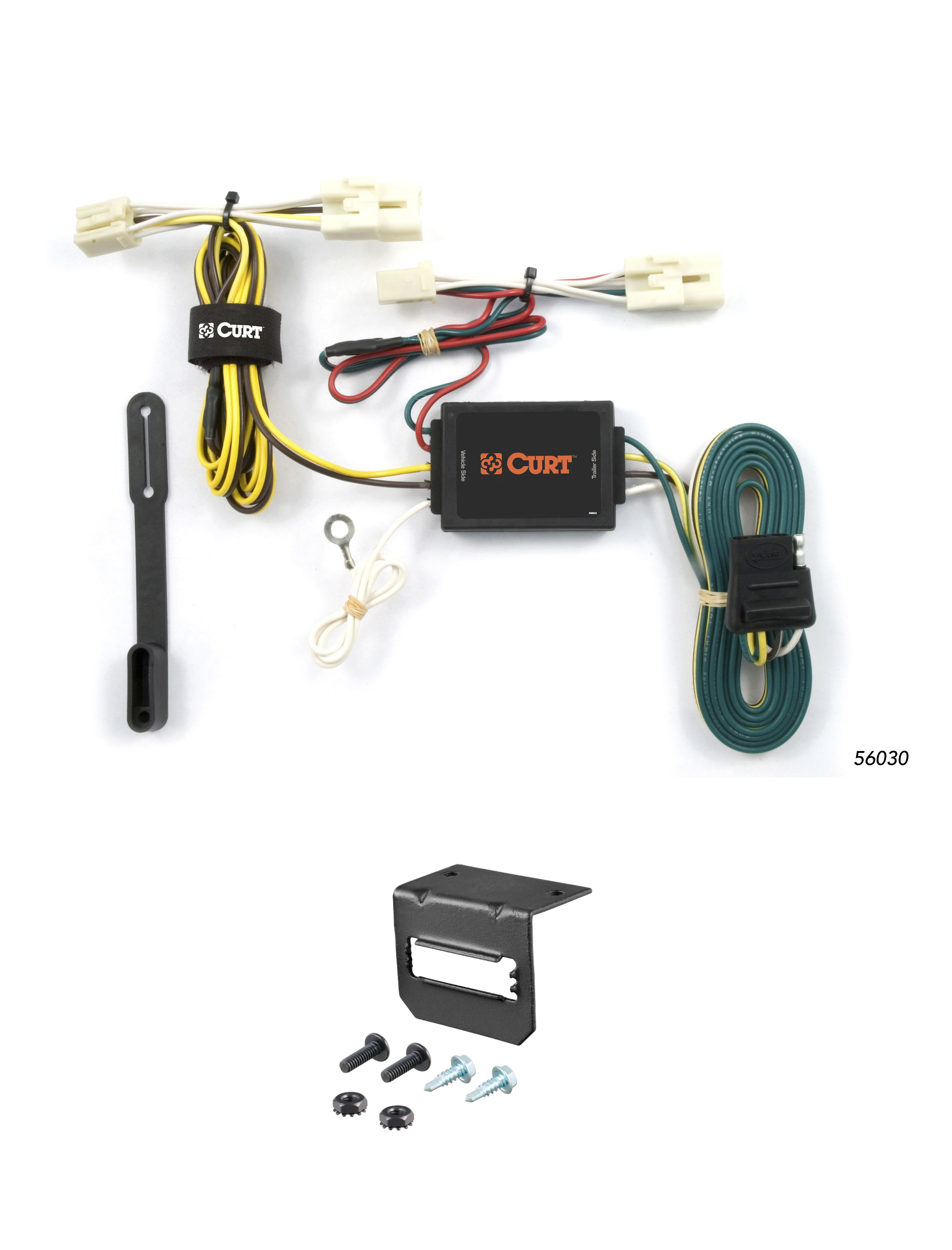

The 04-06 Scion xB CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2247) fits 2004-2006 Scion xB models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 04-06 Scion xB CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2247) is designed to fit the 2004-2006 Scion xB.
The 04-06 Scion xB CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2247) fits the following vehicles: 2004-2006 Scion xB. Always verify your specific year, make, and model before ordering.
The 04-06 Scion xB CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2247) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56030 T-Connector is designed for the Scion xB. The installation manual is specific to this vehicle model.
You must open the rear hatch and temporarily remove: the rear threshold plate, storage covers, floor covering, and partially remove the rear interior trim panels on both the driver and passenger sides. Several trim panel fasteners will need to be removed to access the panels.
Locate the taillight wiring harness on both driver and passenger sides. Separate the vehicle's taillight connector carefully, ensuring the locking tabs are not broken and all connector surfaces are clean. Insert the T-Connector end with the green wire between the vehicle wiring connectors on the passenger side and lock into place. Route the T-Connector end with the yellow wire to the driver's side behind the panels and along the threshold, then repeat the connection process. Ensure connectors are fully inserted with locking tabs in place.
Yes, you must drill a 3/32" hole to secure the white ground wire with an eyelet using the screw provided. However, if an existing ground stud is available on the passenger side, you can use that instead by loosening the bolt, placing the screw eyelet on the stud, and re-tightening the bolt.
Drill a 3/32" hole to secure the white ground wire with the eyelet and screw provided.
Mount the T-Connector black converter box on the passenger side in an out-of-the-way location using the double-sided tape provided. Secure all loose wires with the cable ties provided.
Secure all loose wires with the cable ties provided. Route the T-Connector harness carefully to prevent damage or rattling, and avoid any areas that would cut or pinch the wire. When reinstalling trim panels, threshold, storage covers and floor covering, be careful not to pinch or cut the wires.
Before drilling, verify that miscellaneous items hidden behind or under any surface are identified to avoid damage and/or personal injury.
You will need a drill with a 3/32" bit to create the ground wire hole. You will also need tools to remove trim panel fasteners (likely a screwdriver or trim removal tool, depending on fastener type). The manual does not specify other tools required.

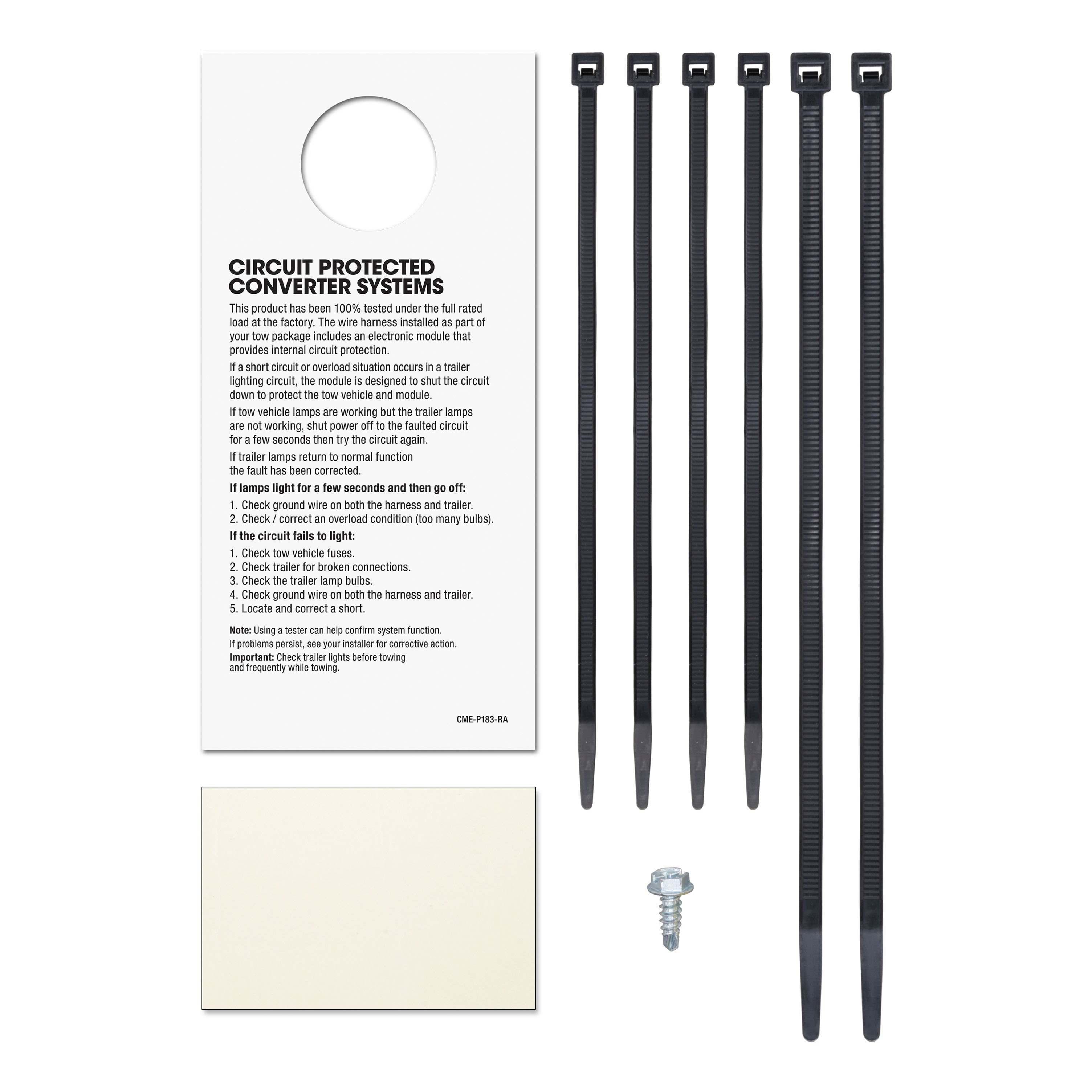

The Curt 56030 includes: a T-Connector with green and yellow wire ends, a white ground wire with eyelet, a screw for securing the ground wire, a black converter box, double-sided tape for mounting the converter box, and cable ties for securing wires.
Start on the passenger side and insert the T-Connector end with the green wire between the vehicle wiring connectors and lock into place. Then route the T-Connector end with the yellow wire to the driver's side behind the panels and along the threshold, and repeat the connection process on the driver's side.
Ensure that connectors are fully inserted with locking tabs in place. Be careful not to damage the locking tabs during insertion.
Yes. All connector surfaces should be clean and free of dirt before connecting the T-Connector.
The Curt 56030 T-Connector is designed for the Scion xB.
Yes, you must drill a 3/32" hole for the ground wire, unless an existing ground stud is available on the passenger side.
You need a drill with a 3/32" bit and tools to remove trim panel fasteners (screwdriver or trim removal tool).
Yes, you must partially remove rear interior trim panels on both driver and passenger sides, along with the rear threshold plate, storage covers, and floor covering.
Verify that miscellaneous items hidden behind or under any surface are identified before drilling to avoid damage and personal injury.
