Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

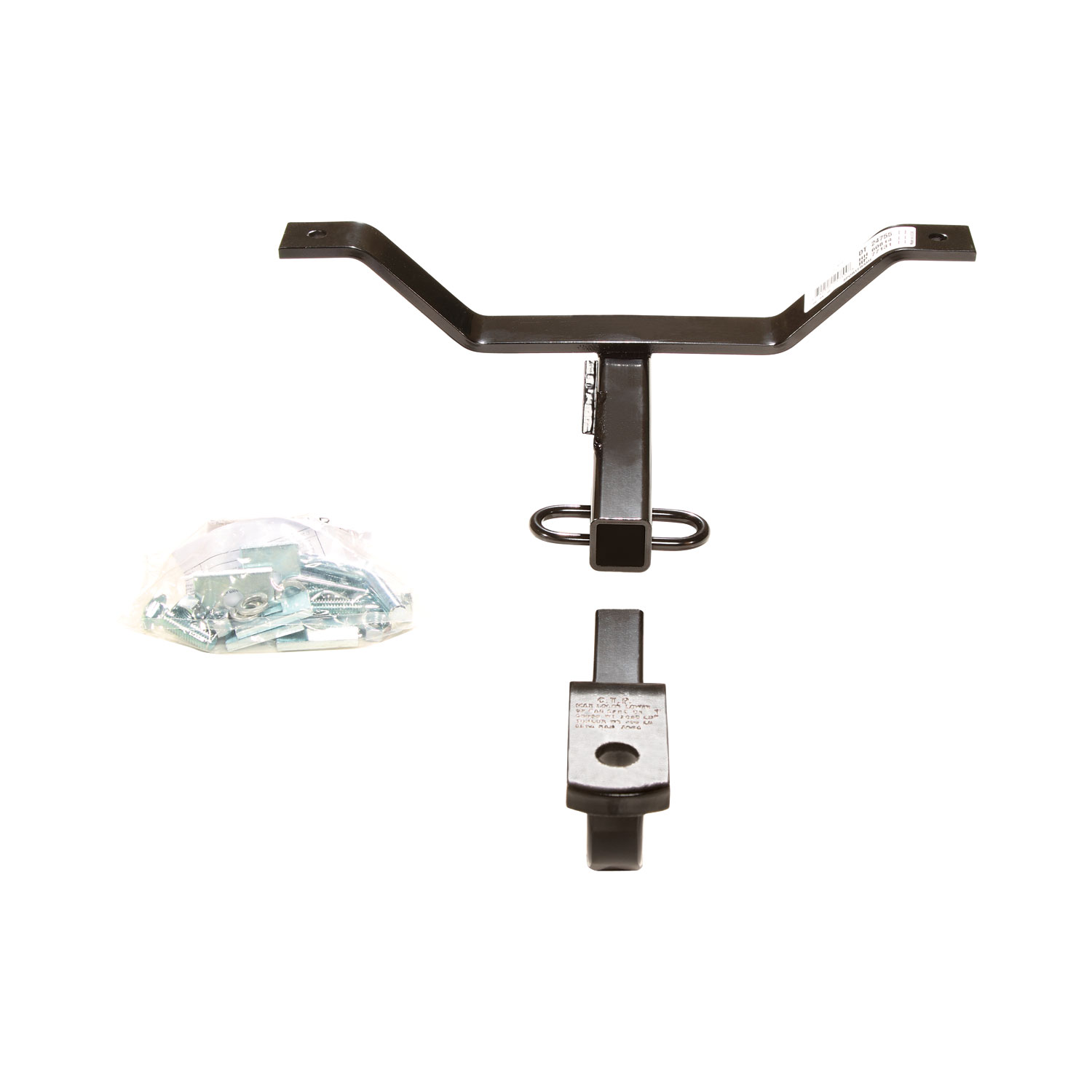

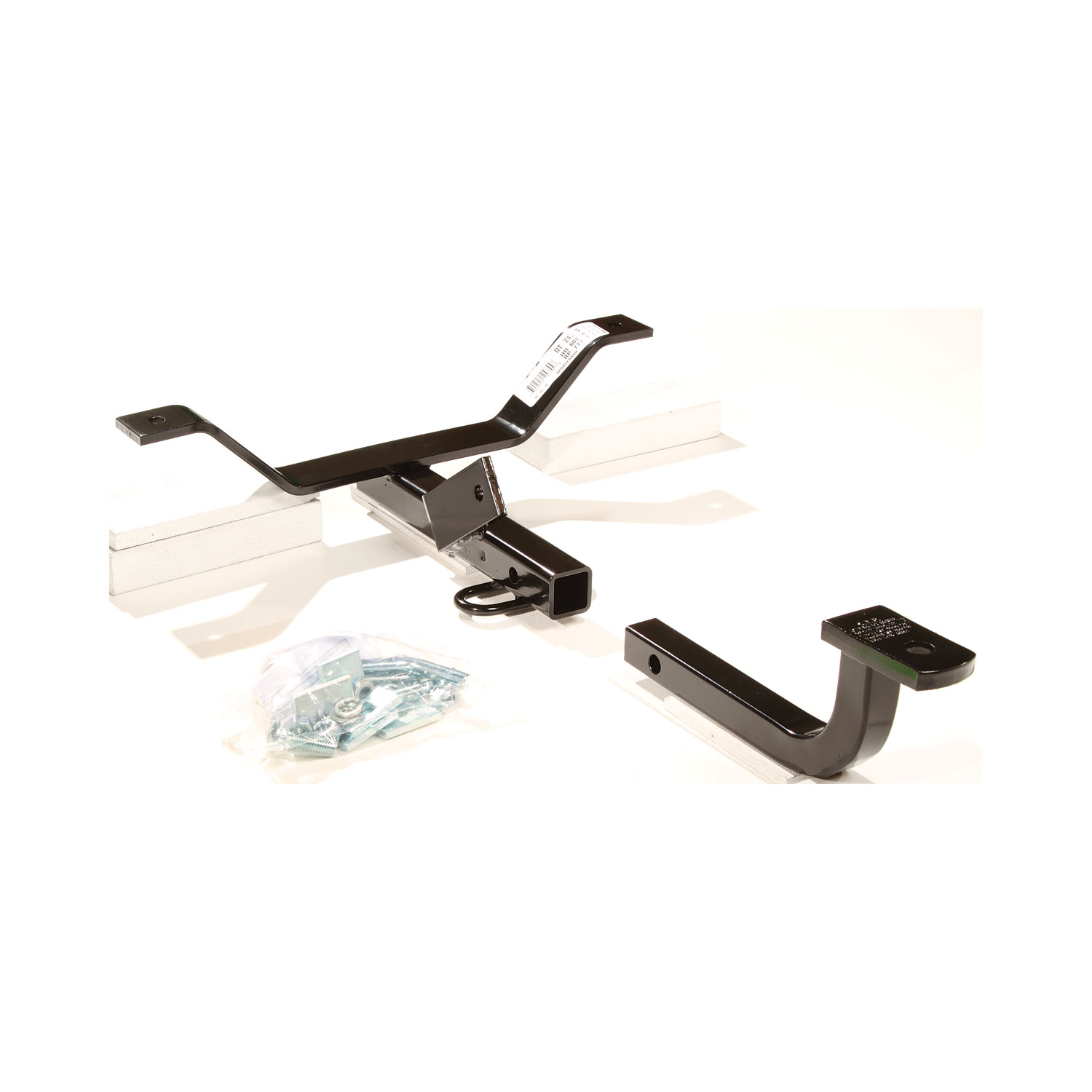

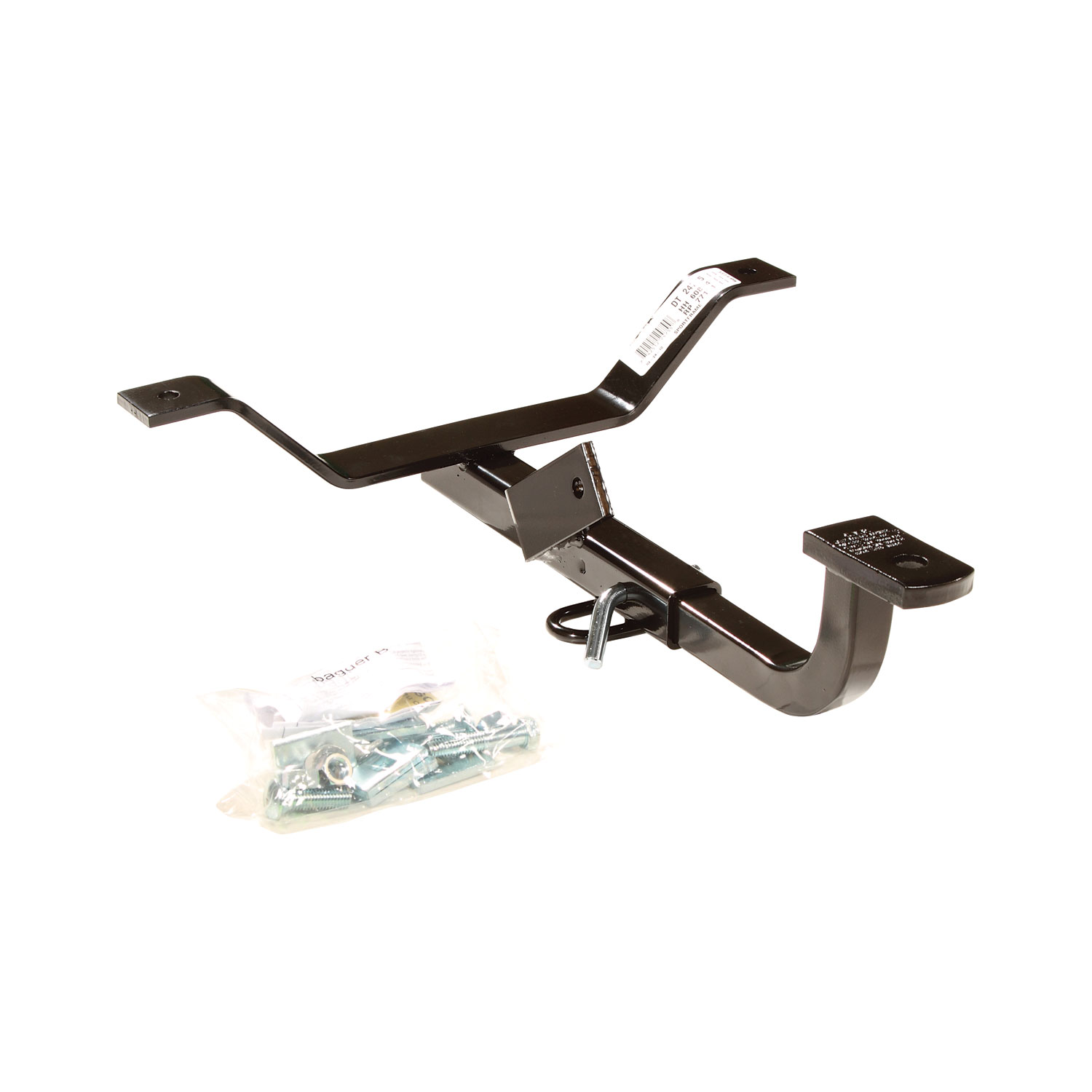

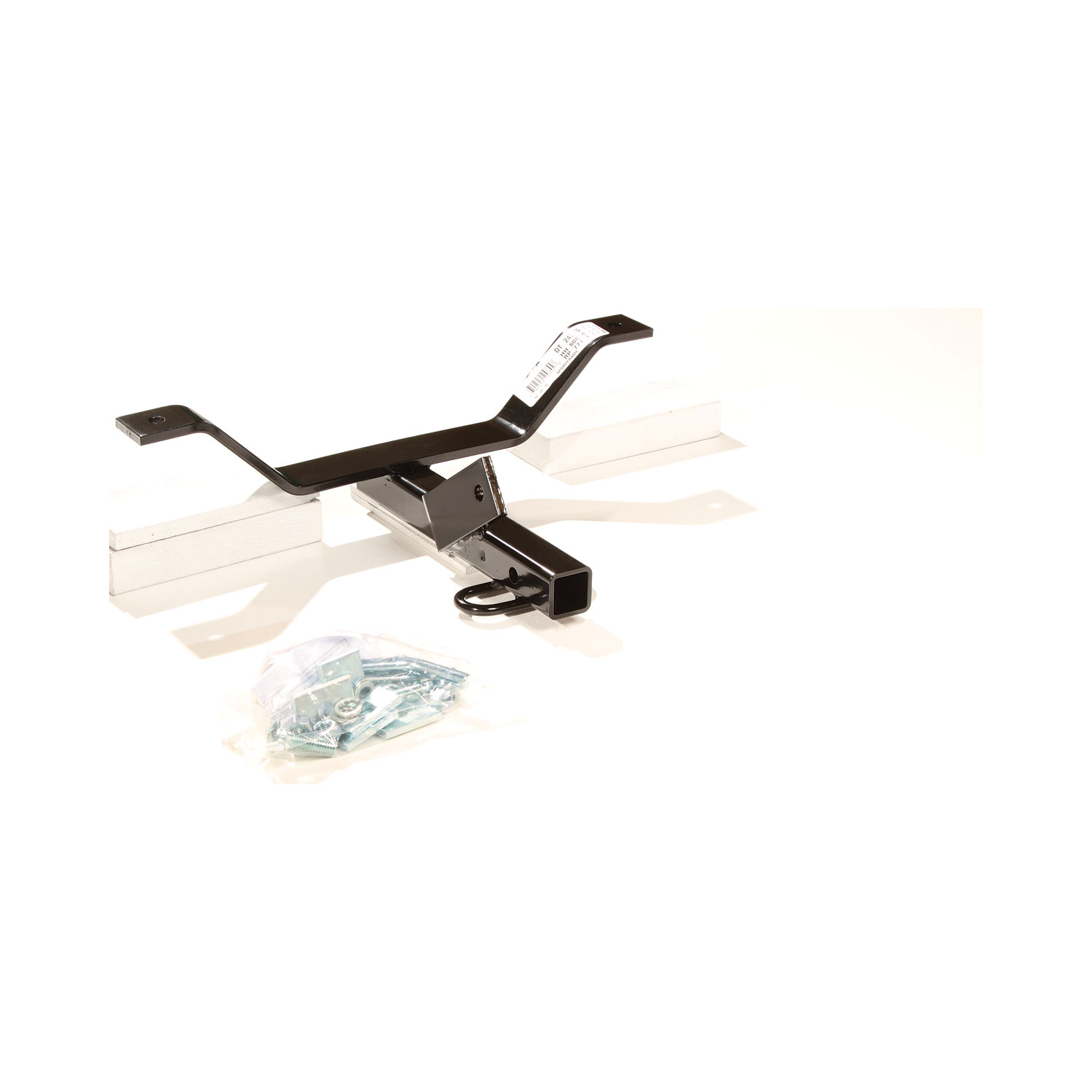

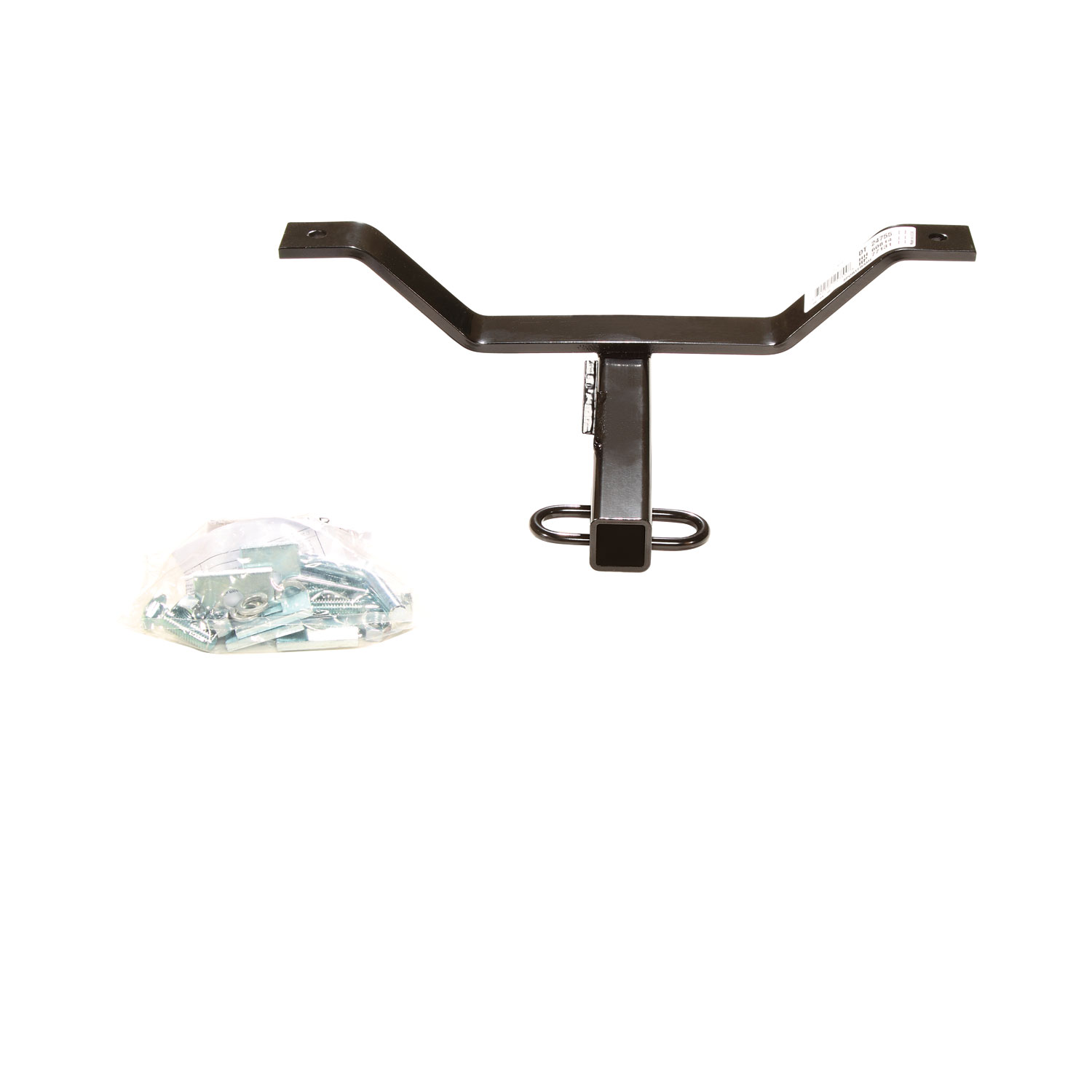

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24755 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 10.4 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura TL 24755 (Part #DT24755) fits the following vehicles: 2004-2008 Acura TL. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura TL 24755 (Part #DT24755) is designed to fit the 2004-2008 Acura TL.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura TL 24755 (Part #DT24755) fits 2004-2008 Acura TL models. The 2008 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura TL 24755 (Part #DT24755) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 24755 is designed for the Acura TL. The manual covers installation for this vehicle. However, the manual does not specify which model years are compatible, so contact the manufacturer or your retailer to confirm your specific year is supported.
The maximum gross trailer weight is 2000 LB and the maximum tongue weight is 200 LB. Do not exceed the lower of these limits or your towing vehicle manufacturer's rating.
You will need a 3/4" wrench, a 10mm wrench, a 1/2" drill bit, and a torque wrench. The manual specifies these as required equipment.

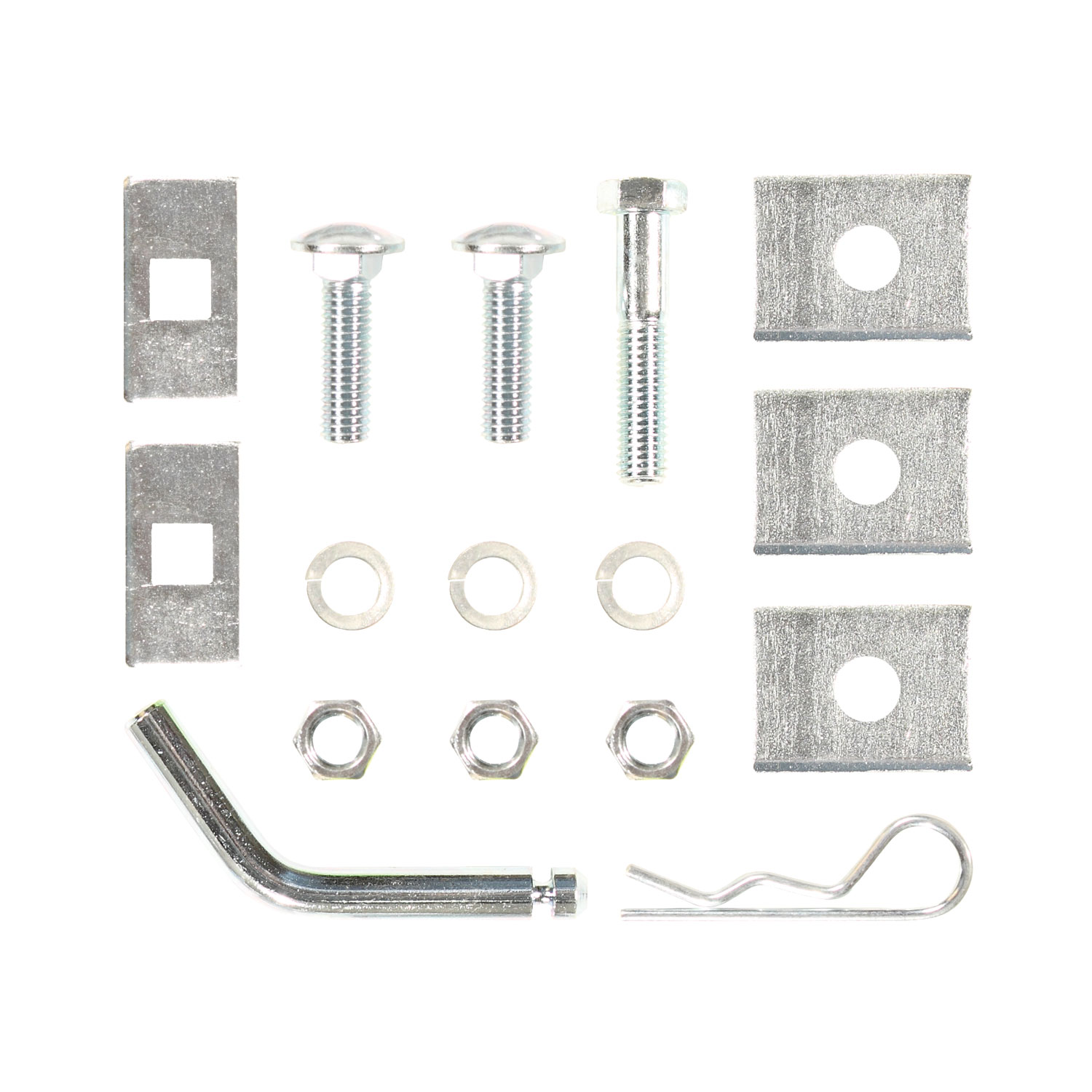

The hitch includes: 1 hex bolt 1/2"-13 x 2-1/2", 3 hex nuts 1/2", 3 lock washers 1/2", 3 spacers 1/4" x 1-1/2" x 2", 2 carriage bolts 1/2"-13 x 1-3/4", and 2 spacers 1/4" x 1" x 2". Additional fasteners are available in fastener kit 24755F.
Yes. Step 1 of the installation instructions requires you to remove the spare tire from the trunk before beginning work. The manual emphasizes: "REMOVE SPARE TIRE BEFORE DRILLING."
You must remove the plastic cover located under the trunk. It is held in place by four plastic rivets connecting it to the fascia and two hex flange nuts connecting it to the trunk bottom. After installation, you must reinstall the rivets and return the plastic cover and hex flange nuts to the vehicle owner.
You need to drill two 1/2" holes in the trunk pan. Use the hitch as a template to mark the hole locations. Do not use a torch to cut the holes.
A 1/2" drill bit is required. This is listed in the Equipment Required section.
All 1/2" GR5 fasteners must be tightened to 75 Lb.-Ft. using a torque wrench.
The spacers must be oriented with respect to the tow hook as shown in Figure 2 and Figure 3 of the manual. The manual states: "Orient the spacers with respect to the tow hook as shown in Figure 2 and Figure 3." Refer to these diagrams for the correct orientation.
1. Attach the hitch to the tow hook and orient the spacers as shown in Figures 2 and 3. 2. Using the hitch as a template, drill two 1/2" holes in the trunk pan. 3. Install the hitch to the trunk pan using carriage bolts, spacers, lock washers and nuts as shown in Figure 1. 4. Seal the drilled holes to prevent water and exhaust fume intrusion. 5. Reinstall the spare tire.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes: "Note: check hitch frequently, making sure all fasteners and ball are properly tightened."
Yes. Step 6 requires you to seal the holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water. The manual does not specify what type of sealant to use; contact the manufacturer for sealant recommendations.
No. The drawbar is sold separately as kit 3594. The manual notes that the drawbar must be used in the RISE position only.
Part number 24730 is a U-Haul product sold separately. The manual does not provide details about this part or its function.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue using a damaged hitch.
Yes, part 24755 is designed for the Acura TL. Confirm your model year with the manufacturer.
You need a 3/4" wrench, 10mm wrench, 1/2" drill bit, and a torque wrench.
Yes. You must drill two 1/2" holes in the trunk pan using the hitch as a template. Remove the spare tire before drilling.
All 1/2" GR5 fasteners must be tightened to 75 Lb.-Ft. using a torque wrench.
Maximum gross trailer weight is 2000 LB and maximum tongue weight is 200 LB. Do not exceed your vehicle manufacturer's rating.
Yes. Remove the spare tire from the trunk before beginning installation, especially before drilling.
Yes. Seal the holes in the trunk pan to prevent water and exhaust fume intrusion.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2008 | Acura TL | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
