Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Total for 5 items:
$379.38$471.83

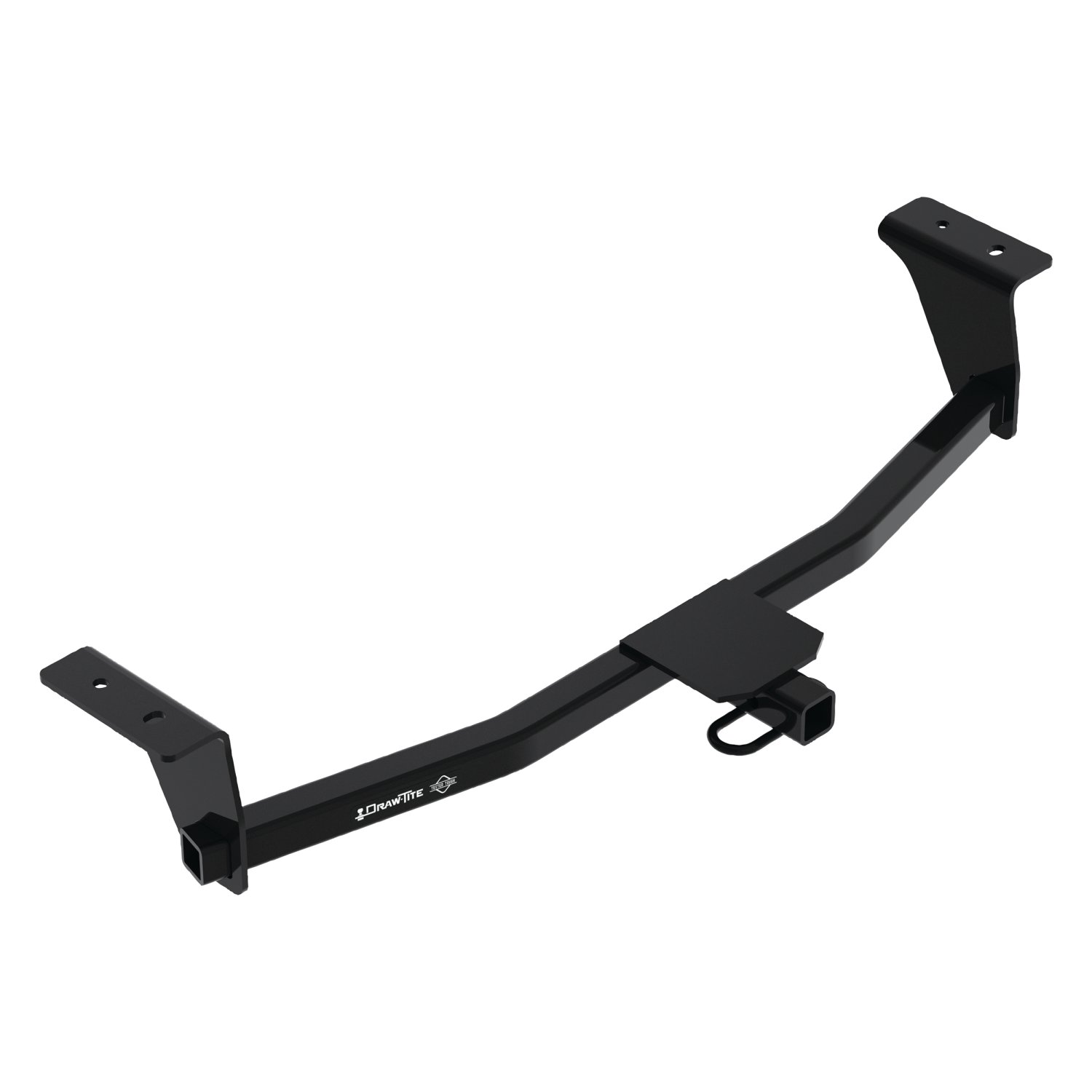

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 25003 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 22.8 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura TLX 25003 (Part #DT25003) fits the following vehicles: 2021-2025 Acura TLX. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura TLX 25003 (Part #DT25003) fits 2021-2025 Acura TLX models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura TLX 25003 (Part #DT25003) is designed to fit the 2021-2025 Acura TLX.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura TLX 25003 (Part #DT25003) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 25003, 78296, and CQT25003 are designed for 2021-current Acura TLX models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The 25003 is a weight-carrying hitch with a maximum gross trailer weight of 2000 lb (907 kg) and maximum tongue weight of 200 lb (90.7 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, 10 mm socket, 11/16" socket, 6" socket extension, torque wrench, drill with 1/2" drill bit, marker, tape measure, tin snips, exhaust hanger removal tool (or pliers), and soapy water or lubricant. Safety glasses are mandatory.
Yes. You must drill four 1/2" holes: two new holes for the forward attachment points and two enlarged holes from the existing rear attachment holes. Drilling is performed on both sides of the vehicle. Do not use a torch to cut these holes.
You must lower the exhaust muffler, not fully remove it. Using an exhaust hanger removal tool, remove the two rearmost rubber hangers on each side. Apply soapy water or lubricant to the rubber hangers to make them slide off the metal pins more easily. Ensure the exhaust is properly supported before removing the hangers.
Yes. Using a 10 mm socket, remove four bolts from each heat shield on both sides and remove the heat shields. After installing the hitch, you will trim the heat shields and reinstall them.
Driver side heat shield: trim 7.5" wide by 3.5" tall. Passenger side heat shield: trim 7.5" wide by 3.5" tall. Use a tape measure, marker, and tin snips to measure, mark, and trim these areas. Refer to Figures 3 and 4 in the manual for visual guidance.
All 7/16"-14x1.50 Gr5 fasteners must be tightened to 50 ft.lb. (68 N·m) using a torque wrench. Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
Fastener Kit 25003F includes: (4) carriage bolts 7/16"-14x1.50", (4) spacers .188" x 1" x 2", (4) conical washers 7/16", (4) hex nuts 7/16"-14, and (4) pull wires 7/16"-14. The conical washer teeth side must face against the hitch.
Feed the carriage bolts and spacers through the access holes using the pull wires. Leave the pull wires attached. Raise the hitch into position and feed the pull wires through the bracket holes. Remove the pull wires and loosely install the conical washers and hex nuts. Kink the pull wire to keep the spacer independent of the bolt.
No. During step 4, loosely install the conical washers and hex nuts. Only fully tighten all 7/16"-14x1.50 Gr5 fasteners to 50 ft.lb. (68 N·m) in step 6, after the hitch is properly positioned and aligned.
The authorized drawbar is part number 3593 (sold separately). The drawbar must be used in the RISE position only.
Always wear your seatbelt. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or 2000 lb max gross trailer weight / 200 lb max tongue weight. Slow down when towing and never exceed posted speed limits. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel steady—do not apply brakes and do not speed up.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that the hitch is securely mounted to the vehicle. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fume entry.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact retorque interval, but periodic inspection is required to maintain secure mounting during towing.
No. Do not cut, weld, or modify the receiver. Additionally, do not use a torch to cut access or attachment holes in the vehicle body.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath the vehicle and wear eye protection.
Yes, the 25003 is designed for 2021-current Acura TLX models. Check the manufacturer's website for the most current trim level information.
Maximum gross trailer weight: 2000 lb (907 kg). Maximum tongue weight: 200 lb (90.7 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. You must drill four 1/2" holes: two new holes for forward attachment and two enlarged holes for rear attachment, on both sides.
Ratchet, 10 mm and 11/16" sockets, 6" socket extension, torque wrench, 1/2" drill bit, marker, tape measure, tin snips, exhaust hanger removal tool, and safety glasses.
All 7/16"-14x1.50 Gr5 fasteners: 50 ft.lb. (68 N·m) using a torque wrench.
You must lower the exhaust muffler by removing the two rearmost rubber hangers on each side using an exhaust hanger removal tool. Apply soapy water or lubricant to ease removal.
Driver side: 7.5" wide × 3.5" tall. Passenger side: 7.5" wide × 3.5" tall. Use tin snips to trim after installing the hitch.
No. Do not cut, weld, or modify the receiver. Do not use a torch to cut holes.
Apply soapy water or a spray lubricant to the rubber hangers. This makes them slide off the metal pins more easily. Ensure the exhaust is properly supported before removing the hangers.
Before drilling, raise the hitch into position and align it with the rear attachment holes on both sides. Use a marker to mark the drill point at the center of the forward attachment holes. Make sure the hitch sits straight while drill locations are marked. If it is not straight, reposition it before marking and drilling.
Check all fasteners to ensure they are tight. Retighten all 7/16"-14x1.50 Gr5 fasteners to 50 ft.lb. (68 N·m) using a torque wrench. Check the hitch frequently to ensure all fasteners and the ball remain properly tightened.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2025 | Acura TLX | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 60 minutes |
| Bulk # | Pkg # | Lift Capacity | Wind | Travel | Bracket Ht. | Wheel Size | Retracted Ht. | Extended Ht. | Finish |
|---|---|---|---|---|---|---|---|---|---|
| 25004 | 25003 | 1,000 lbs. | Side | 10" | 12-1/4" | 6" | 9-1/4" | 19-1/4" | Zinc-plated |
| 28112 | 28113 | 1,200 lbs. | Side | 11" | 12-11/16" | 6" | 12-1/2" | 23-1/2" | Zinc-plated |
| 28115 | 28116 | 1,500 lbs. | Side | 11" | 12-11/16" | 8" | 13" | 24" | Zinc-plated |
| 28155 | 28156 | 1,500 lbs. | Side | 10-3/8" | 12-1/2" | Dual 6" | 12-5/8" | 23" | Zinc-plated |
