Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

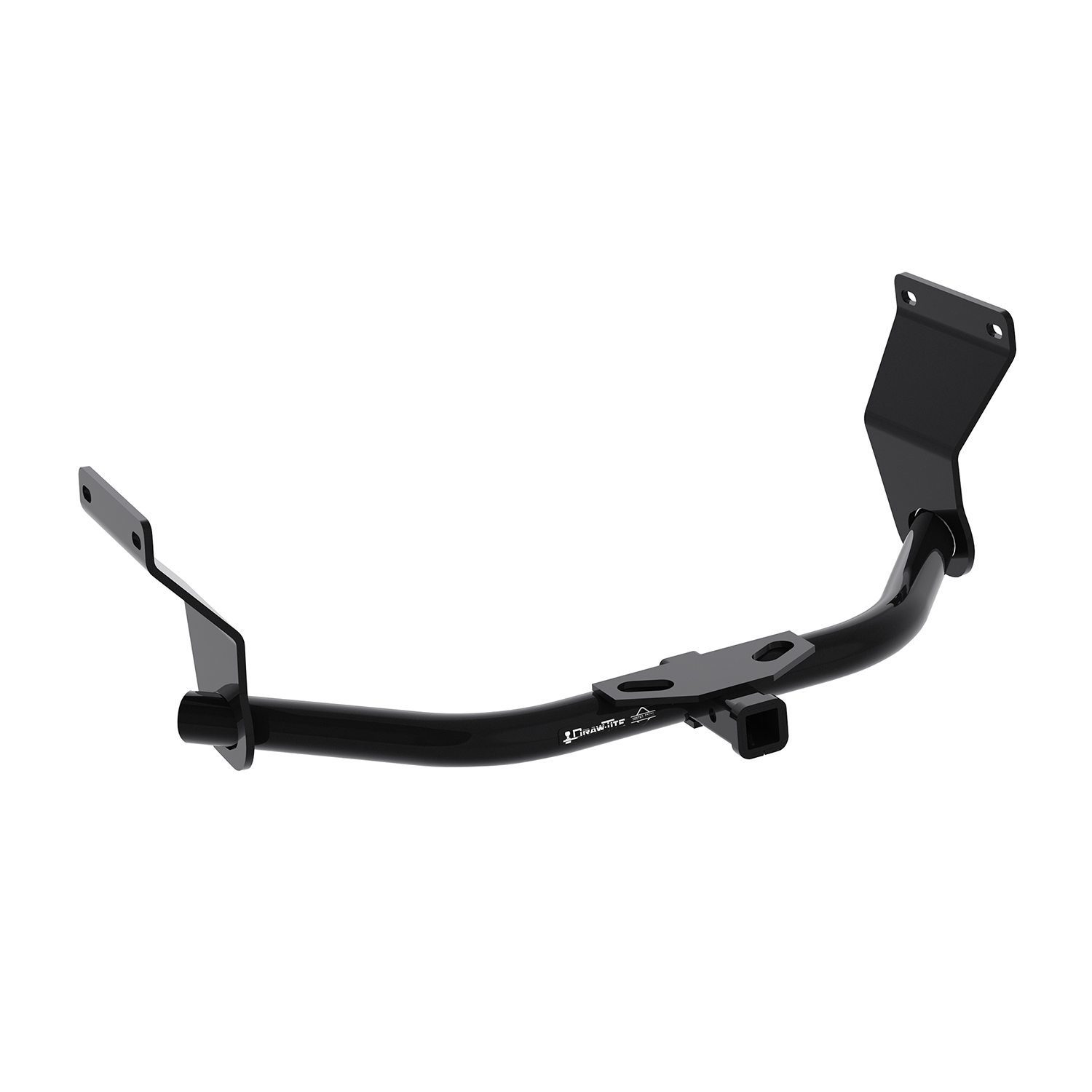

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36114 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 25.7 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |

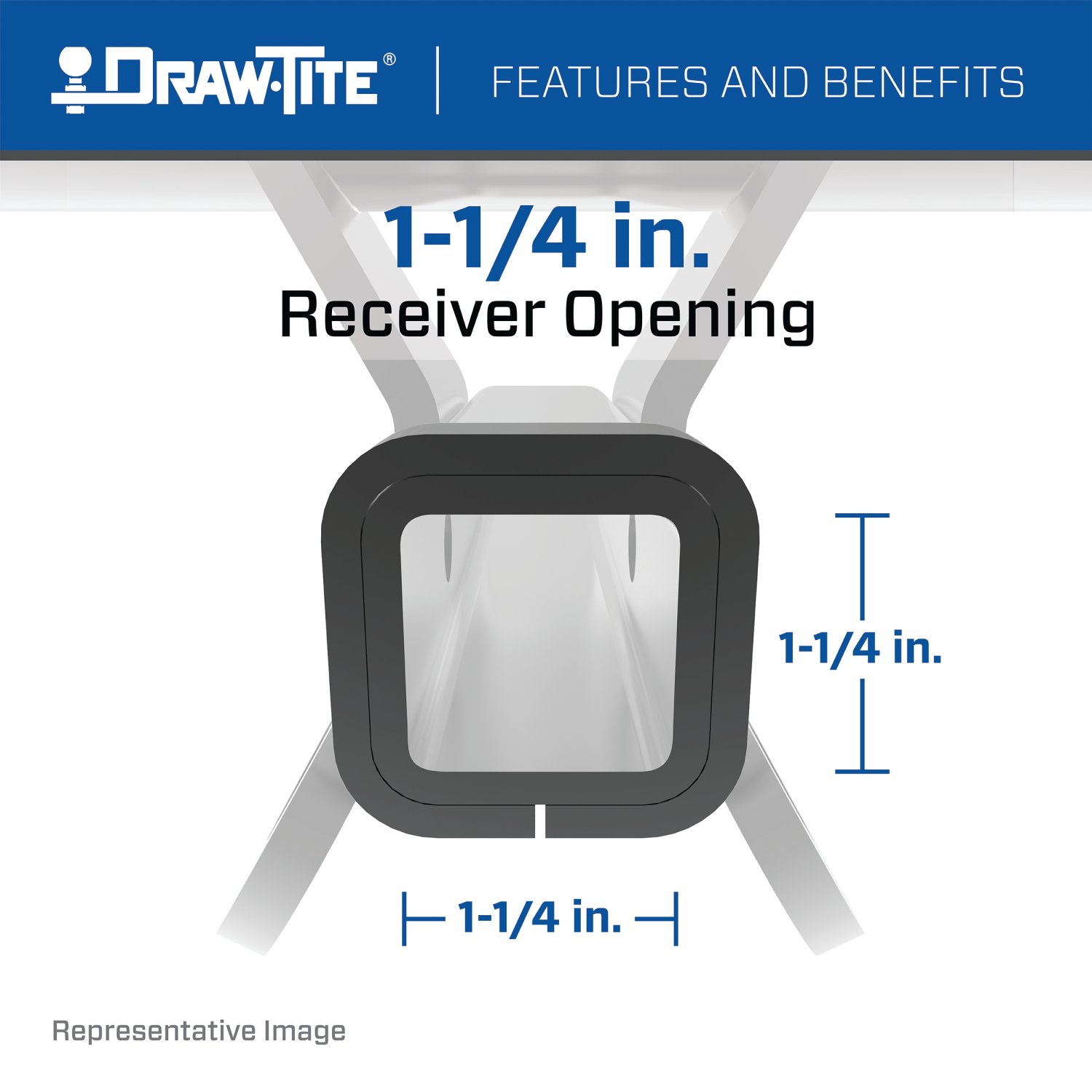

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |

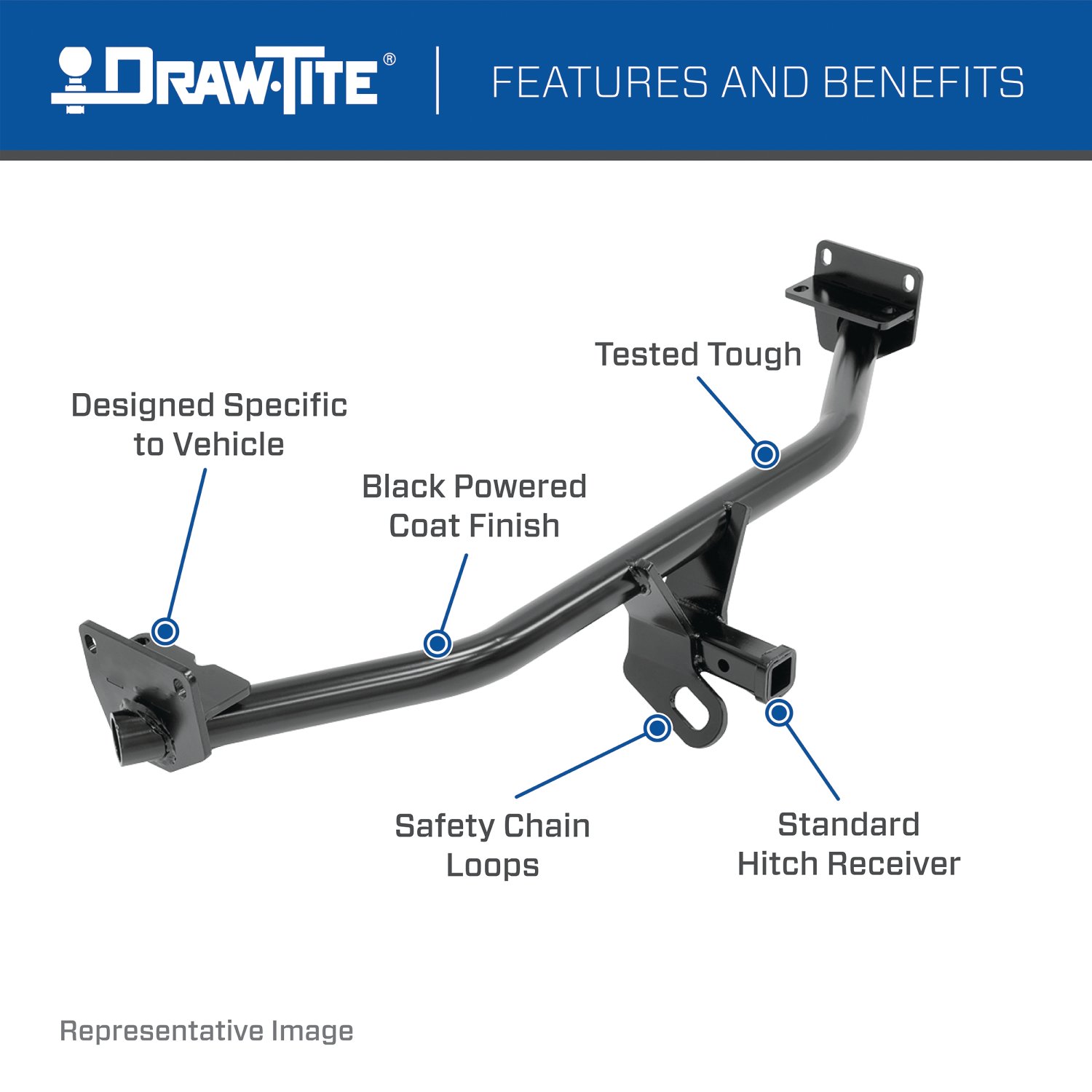

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.

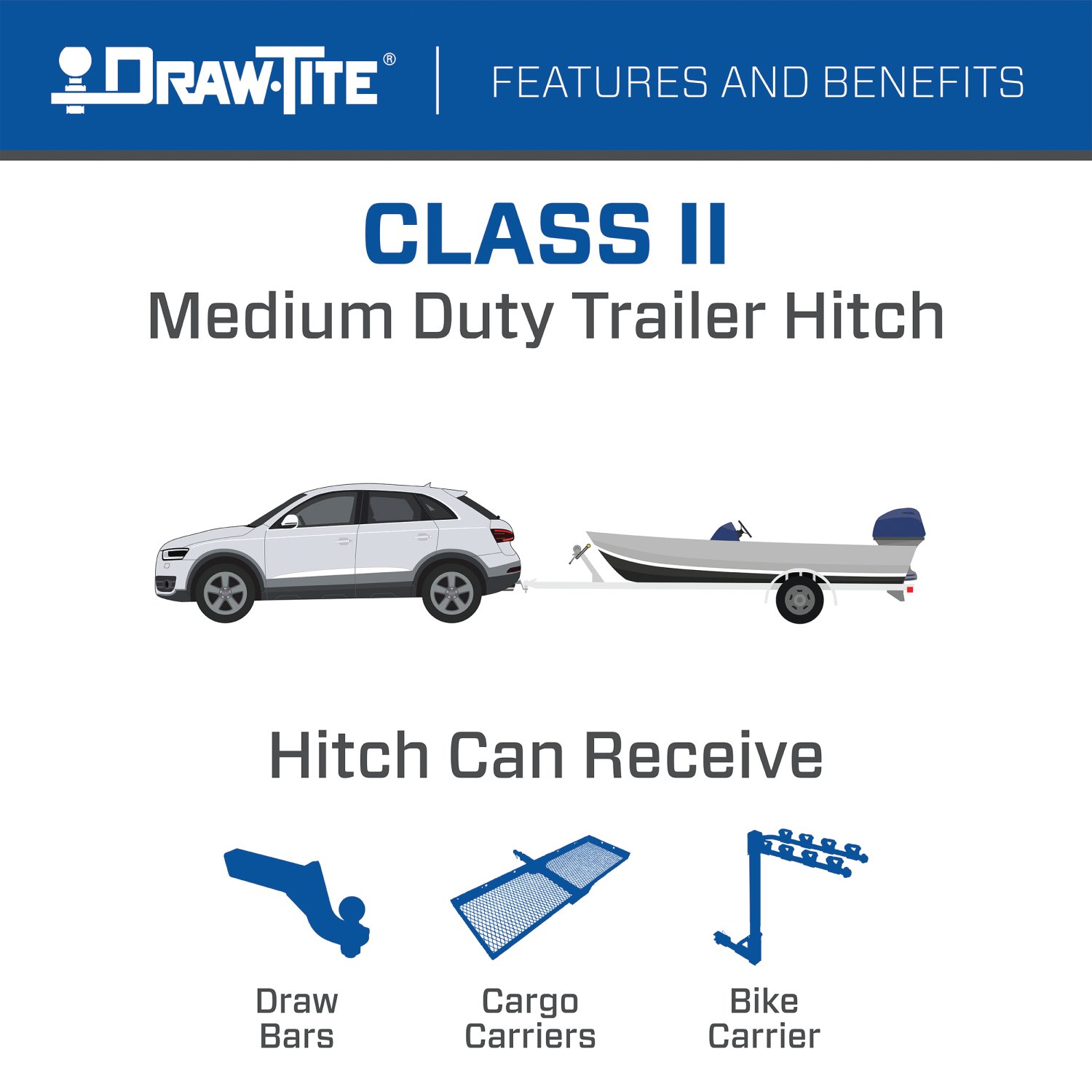

The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2026 | Acura RDX | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura RDX 36114 (Part #DT36114) fits 2019-2026 Acura RDX models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura RDX 36114 (Part #DT36114) fits the following vehicles: 2019-2026 Acura RDX. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura RDX 36114 (Part #DT36114) is designed to fit the 2019-2026 Acura RDX.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Acura RDX 36114 (Part #DT36114) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 36114 fits 2019-current Acura RDX models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
Maximum Gross Trailer Weight: 3500 lb. (1589 kg). Maximum Tongue Weight: 350 lb. (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, prybar, torque wrench, safety glasses, 19 mm sockets, 6-inch socket extension, and exhaust removal pliers.
Yes. You must lower the spare tire using the vehicle's lowering tools and mechanism (consult your vehicle owner's manual) and set it aside before installation. It is reinstalled after the hitch is mounted.
Yes. Using exhaust removal pliers or a prybar, remove the rubber exhaust hangers from in front of and behind the muffler. Support the exhaust to prevent damage. Reinstall after the hitch is mounted.
All M12 fasteners must be tightened to 42 lb-ft (57 N·m) using a torque wrench.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath the vehicle and wear eye protection.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
The part numbers are 36114, 06193, and CQT36114. These are equivalent part numbers for the same hitch receiver.
No. Hitch 36114 is a weight-carrying hitch only. Weight-distributing capacity is listed as n/a. If you need weight-distributing capability, you will need a different hitch model.
The fastener kit 36114F includes: (4) Hex Bolts M12 x 1.25 x 40mm Class 10.9, and (4) Conical Washers 1/2" (Part No. 01292008). The conical washers must be installed with the teeth side facing toward the hitch.
Install the conical washers with the teeth side facing toward the hitch. The washers are part of the fastener kit 36114F and must be positioned correctly to ensure proper load distribution and fastener security.
The hitch attaches to the rearmost weldnuts on each side of the frame rail. Align the attachment holes to these weldnuts and install the supplied bolts and conical washers into them. The weldnuts must be clear of rust and debris before installation.
Before installation, make sure the weldnuts are clear from rust and debris. Clean them if necessary to ensure proper fastener engagement and secure mounting.
1. Lower the spare tire and set aside. 2. Lower the exhaust by removing rubber hangers from in front of and behind the muffler, supporting the exhaust. 3. Raise the hitch into position, aligning attachment holes to the rearmost weldnuts on each side of the frame rail, and install bolts and conical washers (teeth side toward hitch). 4. Tighten all M12 fasteners to 42 lb-ft (57 N·m). 5. Raise the exhaust back into position and reinstall all hangers. 6. Reinstall the spare tire.
No drilling is required. The hitch attaches to existing weldnuts on the vehicle frame. Do not cut access or attachment holes with a torch.
No. Do not cut, weld, or modify this receiver. Doing so will compromise the hitch integrity and safety.
The maximum tongue weight is 350 lb. (159 kg). Do not exceed this limit or the lower of your towing vehicle manufacturer's rating.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and improves towing stability.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
The authorized drawbar kit is part number 36051 (sold separately). The drawbar must be used in the RISE position only.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Always read and follow all warnings and instructions for your vehicle and other accessories you will use with the hitch before use.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Periodically verify that all fasteners are tight and the hitch is securely mounted to your vehicle.
Horizon Global Americas Inc. provides a Limited Lifetime Warranty to the original consumer purchaser. The product is warranted to be free from material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are installed, maintained, and used in accordance with the instructions, and any alleged defects have not been caused by misuse, neglect, wear and tear, improper installation, unsuitable storage, improper repair, alteration, or accident. Product replacement is the sole and exclusive remedy. For warranty claims, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@horizonglobal.com.
Hitch 36114 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Fasteners may loosen if they were not torqued to the correct specification (42 lb-ft / 57 N·m) or if they were not checked periodically. Proper torque is needed to keep the hitch secure to the vehicle when towing. Check all fasteners frequently and retighten if necessary.
Ensure the weldnuts are clear of rust and debris, as buildup can prevent proper alignment. Clean the weldnuts thoroughly. If alignment issues persist, verify you are using the rearmost weldnuts on each side of the frame rail, as specified in the installation instructions.
Use exhaust removal pliers or a prybar to carefully remove the rubber exhaust hangers from in front of and behind the muffler. Be sure to support the exhaust to prevent damage during removal. If hangers are stuck, apply gentle pressure and work them free gradually.
