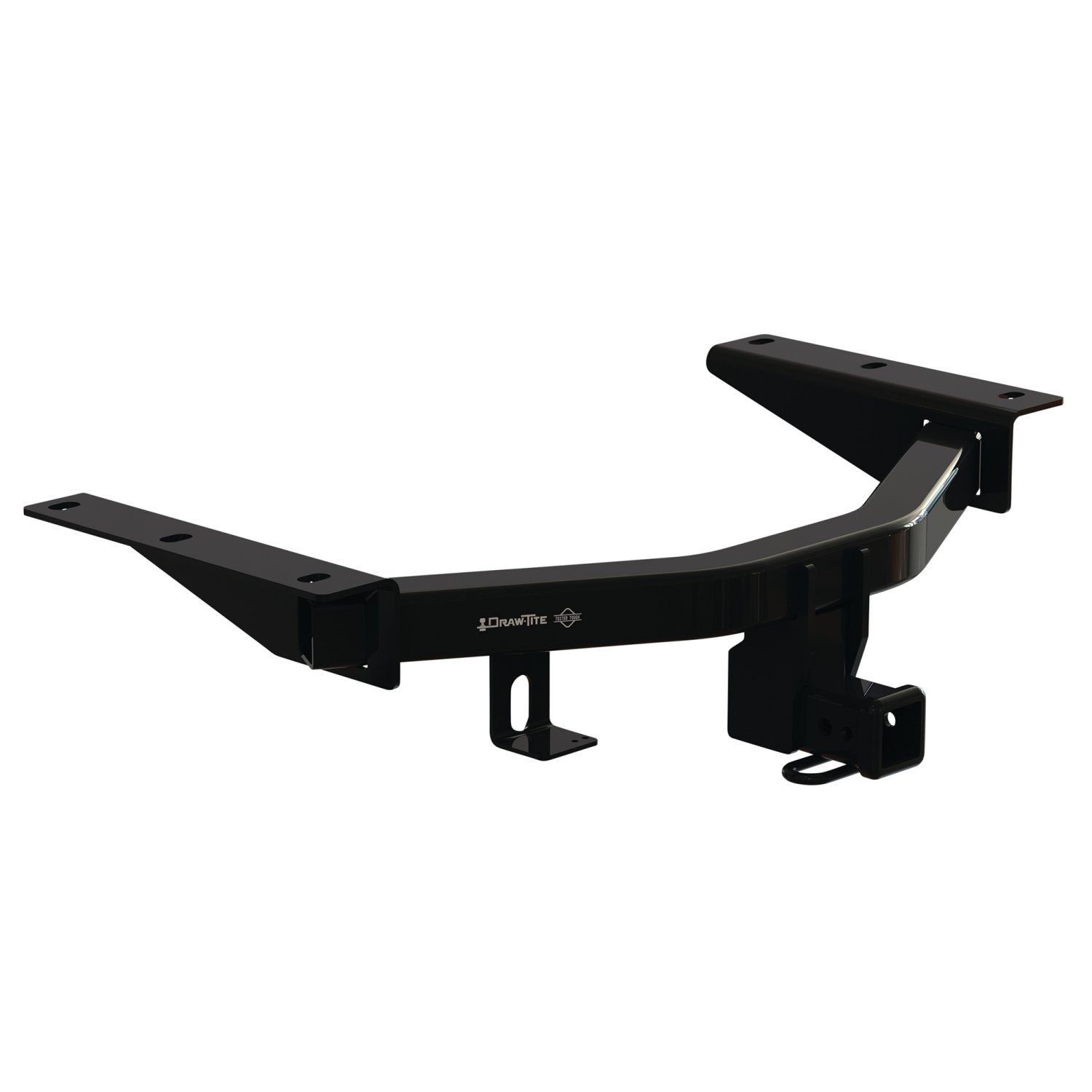

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 900 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 900 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76453 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 42.4 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 900 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 8,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 900 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime

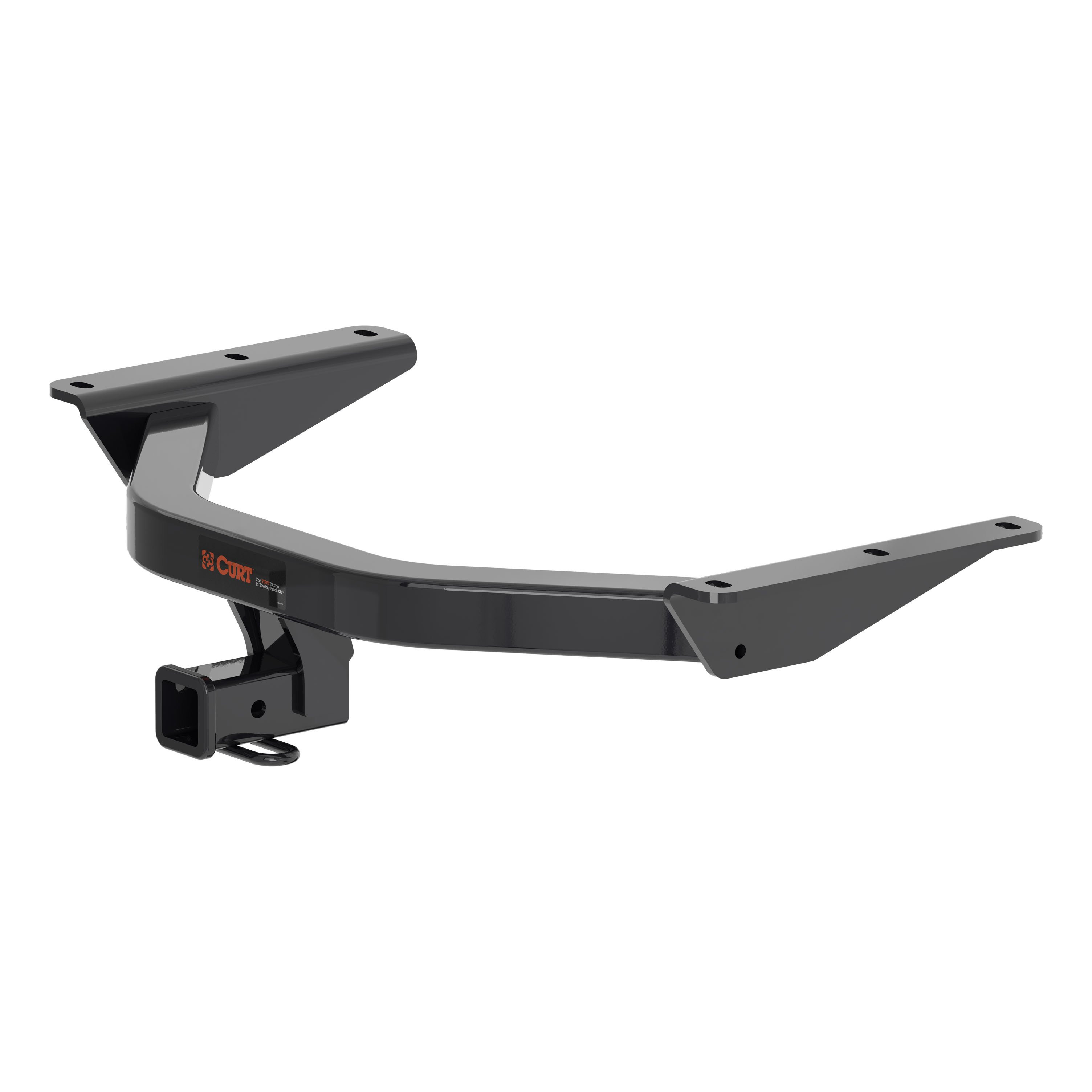

Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Acura MDX, Honda Pilot 76453 (Part #DT76453) fits the following vehicles: 2022-2026 Acura MDX; 2023-2026 Honda Pilot. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Acura MDX, Honda Pilot 76453 (Part #DT76453) is designed to fit the 2022-2026 Acura MDX.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Acura MDX, Honda Pilot 76453 (Part #DT76453) fits 2022-2026 Acura MDX models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Acura MDX, Honda Pilot 76453 (Part #DT76453) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 76453 hitch is designed for 2022-current Acura MDX models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
No. The hitch does not fit with a full-size spare tire. The spare tire must be lowered during installation and raised afterward, and you must verify that the spare tire will not interfere with the hitch after installation.
The 76453 is a weight-carrying hitch with a maximum gross trailer weight of 6000 lb. (2722 kg) and a maximum tongue weight of 900 lb. (408 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, a torque wrench, a 22 mm socket, a socket extension, a flat-head screwdriver, a hack saw, an M14 x 1.50 tap, and safety glasses. The manual notes that if you do not feel comfortable performing the installation yourself, you should contact a professional installer.
The fastener kit 76453F includes 6 M14 x 1.50 x 45 CL10.9 bolts and 6 conical washers (5/8 inch). These fasteners attach the hitch to the vehicle's weldnuts.
The manual does not specify that the battery must be disconnected. However, the manual recommends contacting a professional installer if you do not feel comfortable performing the installation yourself.
No drilling is required. The hitch uses existing weldnuts on the vehicle frame. However, you must trim the bottom center of the fascia using a hack saw. The trim is 3.50 inches from the centerline of the fascia and extends 4.00 inches along the edge.
Using a hack saw, trim the bottom center of the fascia 3.50 inches from the centerline of the fascia and 4.00 inches along the edge of the fascia, as shown in Figure 2 of the installation instructions.
All M14 CL10.9 fasteners must be tightened with a torque wrench to 148 Lb.-Ft. (201 N·M). Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
1. Lower the spare tire using tools under the storage compartment. 2. Trim the bottom center of the fascia with a hack saw. 3. Using a tap, remove paint and debris from the weldnuts on both sides. Raise the hitch into position and loosely install the M14 bolts and conical washers into the weldnuts using a 22 mm socket. 4. Tighten all M14 CL10.9 fasteners to 148 Lb.-Ft. (201 N·M) with a torque wrench. 5. Raise the spare tire back into position and verify it does not interfere with the hitch.
The M14 bolts should be loosely installed first using a 22 mm socket. After all bolts are in place, tighten all M14 CL10.9 fasteners to 148 Lb.-Ft. (201 N·M) with a torque wrench.
The conical washer must be installed with the teeth side against the hitch. This orientation is required on all six fasteners.
Always wear safety glasses during installation. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
After installation, verify that the spare tire will not interfere with the hitch. Check the hitch frequently to ensure all fasteners and the ball are properly tightened. All fasteners must be tight and the hitch must be securely mounted to the vehicle.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes that proper torque is needed to keep the hitch secure to the vehicle when towing.
Load the trailer heavier in front. Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating (6000 lb. gross trailer weight, 900 lb. tongue weight for weight-carrying). Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. Do not cut, weld, or modify the receiver. Doing so may compromise the structural integrity and safety of the hitch.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes, the 76453 is designed for 2022-current Acura MDX models. It does not fit with a full-size spare tire.
Ratchet, torque wrench, 22 mm socket, socket extension, flat-head screwdriver, hack saw, M14 x 1.50 tap, and safety glasses.
No drilling is required. You must trim the fascia with a hack saw (3.50 inches from centerline, 4.00 inches along edge), but the hitch uses existing weldnuts.
All M14 CL10.9 fasteners: 148 Lb.-Ft. (201 N·M).
Weight-carrying hitch: 6000 lb. (2722 kg) max gross trailer weight, 900 lb. (408 kg) max tongue weight. Do not exceed vehicle manufacturer's rating.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle and wear eye protection.
Verify the spare tire does not interfere with the hitch. Check that all fasteners are tight and the hitch is securely mounted. Check frequently during use.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2026 | Acura MDX | Class 4 Trailer Hitch: 6000 lbs 900/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 900/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2022 - 2025 | Acura MDX | Class 4 Trailer Hitch: 6000 lbs 900/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 900/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes Except with Full Size Spare Tire |
| 2023 - 2026 | Honda Pilot | Class 4 Trailer Hitch: 6000 lbs 900/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 900/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes Except with Full Size Spare Tire |
