Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

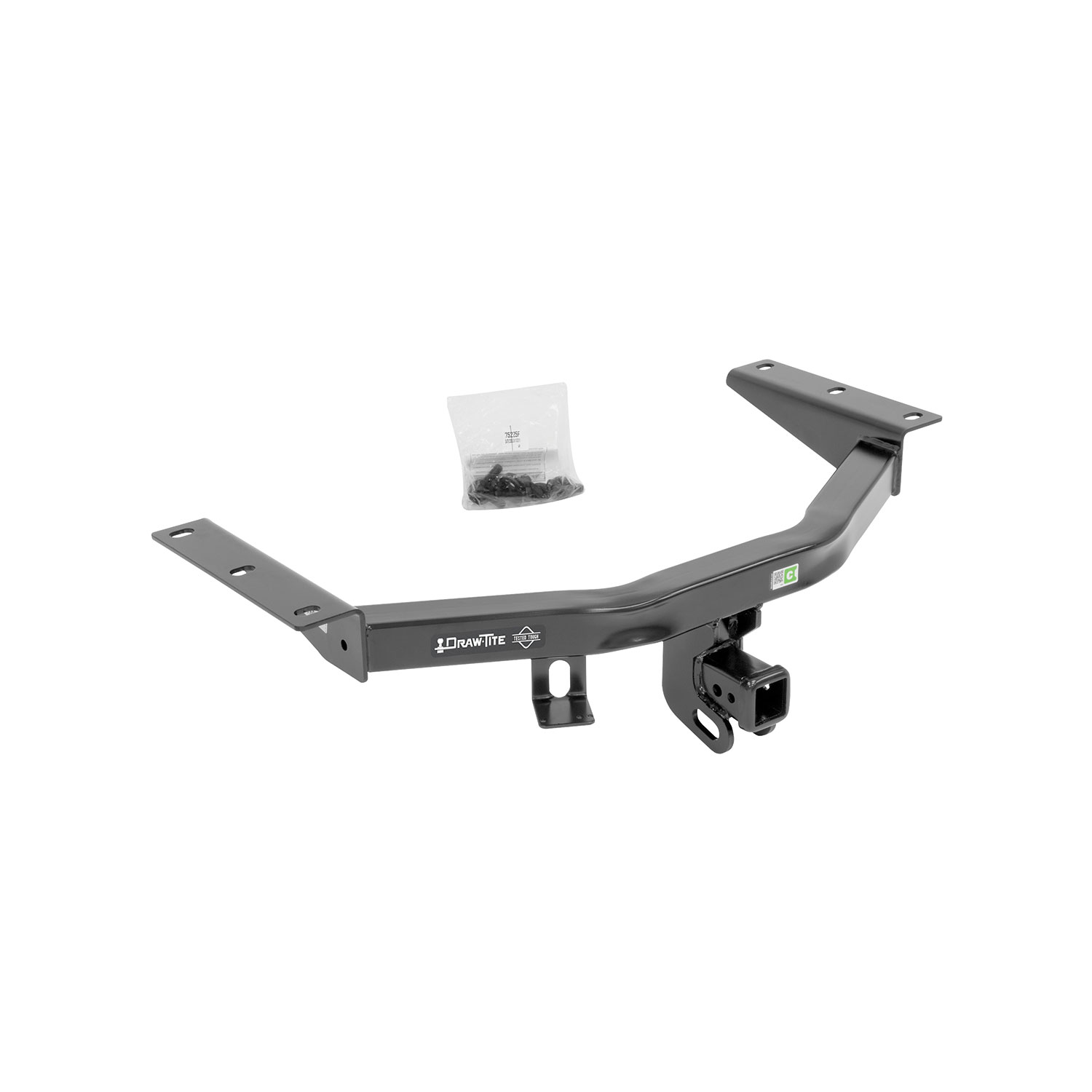

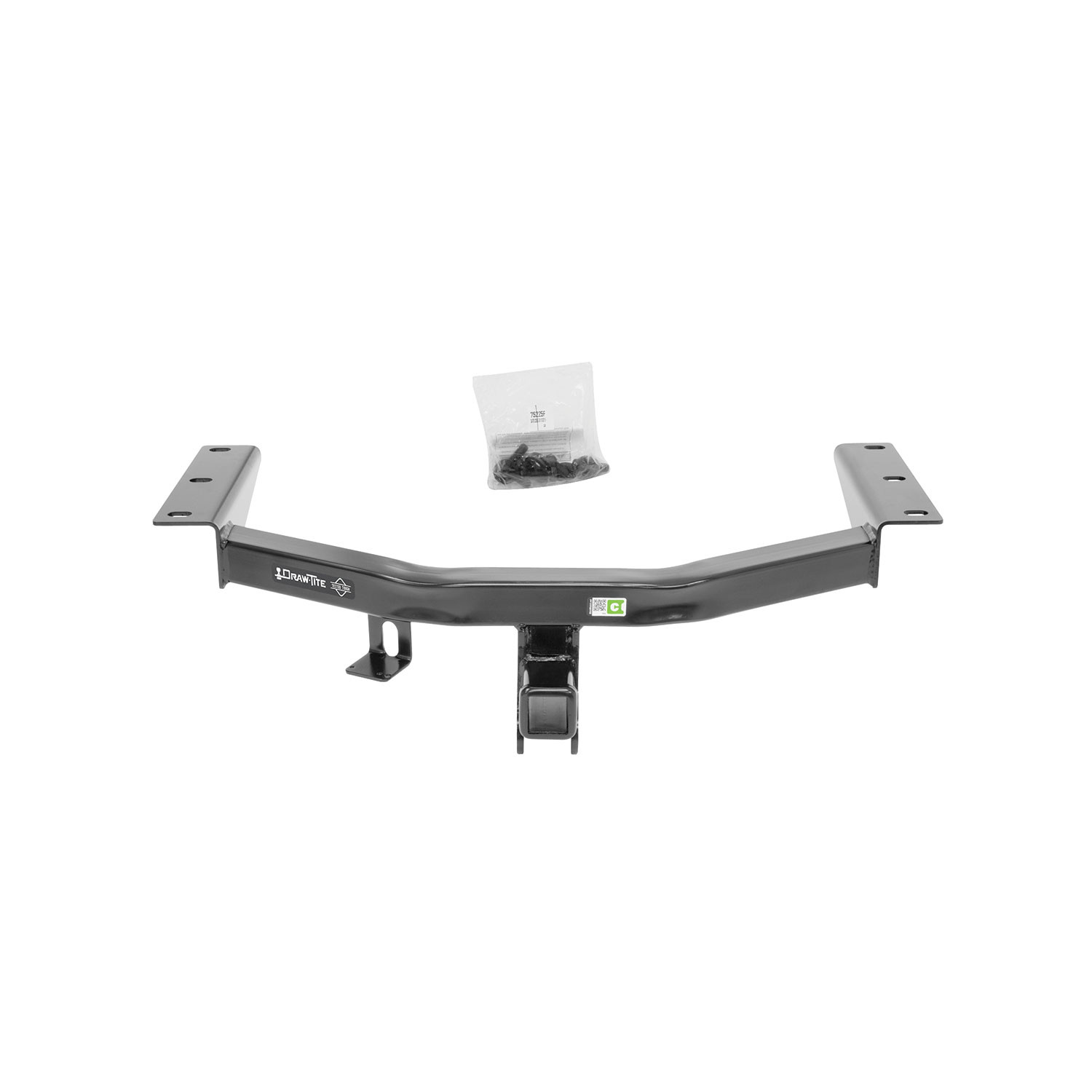

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 900 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 900 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75225 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 40 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 900 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 8,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 900 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2020 | Acura MDX | Class 4 Trailer Hitch: 6000 lbs 900/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 900/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes Except with Spare Tire |
| 2016 - 2022 | Honda Pilot | Class 4 Trailer Hitch: 6000 lbs 900/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 900/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver for Select Acura MDX, Honda Pilot 75225 (Part #DT75225) is designed to fit the 2014-2020 Acura MDX.
The Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver for Select Acura MDX, Honda Pilot 75225 (Part #DT75225) fits the following vehicles: 2014-2020 Acura MDX; 2016-2022 Honda Pilot. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver for Select Acura MDX, Honda Pilot 75225 (Part #DT75225) fits 2014-2020 Acura MDX models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver for Select Acura MDX, Honda Pilot 75225 (Part #DT75225) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75225 is designed for 2014-current Honda Pilot models. However, the manual recommends visiting the Cequent website for the most up-to-date information regarding specific application years and trim levels, as compatibility may vary.
Yes, part number 75225 is compatible with 2014-current Acura MDX models. Visit the Cequent website for the most current information on specific trim levels and application years.
No. The manual explicitly states: "Hitch does not fit with full size spare tire." The spare tire must be lowered during installation and raised afterward, but a full-size spare tire will interfere with the hitch.
You will need: a ratchet, a torque wrench, safety glasses, 22 mm sockets, a flat head screwdriver, and a 3 inch socket extension. The manual recommends professional installation if you are not comfortable performing the work yourself.

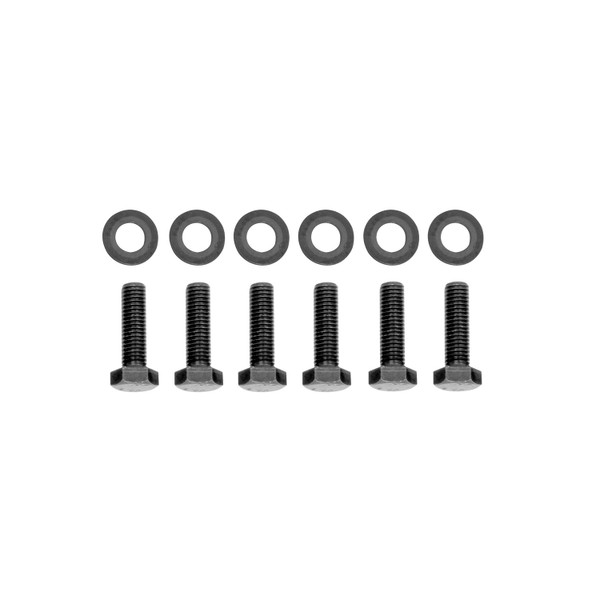

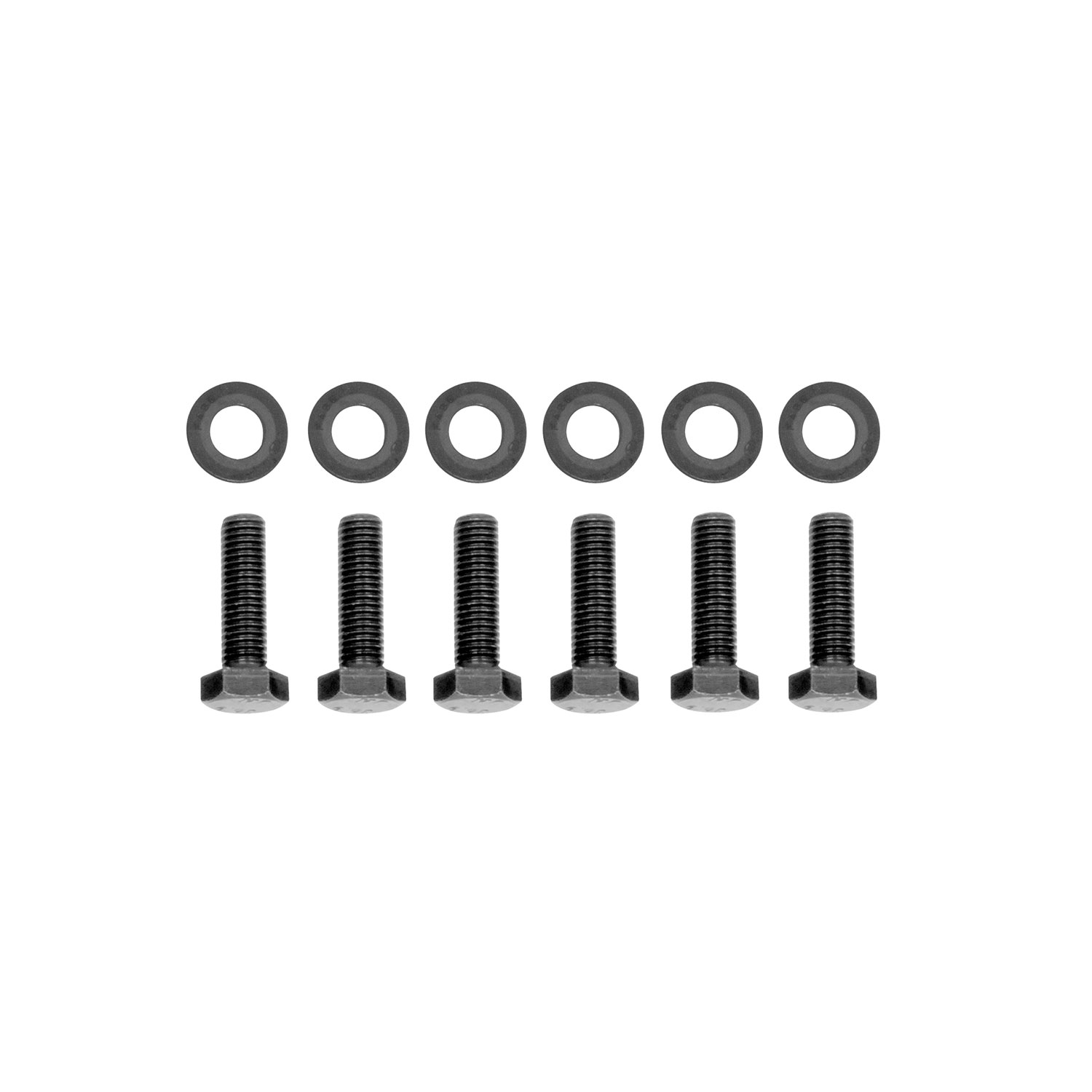

The fastener kit 75225F includes six M14 CL10.9 bolts (1.50 x 45) and six 5/8 inch conical washers. These are the only fasteners required for installation.
The manual does not mention disconnecting the battery. This is a mechanical hitch installation that does not involve electrical work.
Yes. The first installation step is to lower and remove the spare tire using the tools stored in the vehicle's storage compartment. After the hitch is installed and tightened, the spare tire is raised back into position. You must verify that the spare tire will not interfere with the hitch after reinstallation.
1. Lower and remove the spare tire. 2. Raise the hitch into position and loosely install the M14 bolts and conical washers into the weldnuts. 3. Tighten all M14 CL10.9 fasteners with a torque wrench to 148 Lb.-Ft. (201 N·M). 4. Raise the spare tire back into position and verify it does not interfere with the hitch.
No. The manual instructs you to "loosely install" the M14 bolts and conical washers first. Only after all bolts are loosely installed should you use the torque wrench to tighten them to the final specification of 148 Lb.-Ft. (201 N·M).
All M14 CL10.9 fasteners must be tightened to 148 Lb.-Ft. (201 N·M) using a torque wrench. Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
The bolts are M14 CL10.9, measuring 1.50 x 45 mm. Six bolts are used, one for each weldnut attachment point.
The conical washers are 5/8 inch. Six washers are included, one for each bolt. The teeth side of the washer must face against the hitch.
Six M14 bolts and six 5/8 inch conical washers are required. These attach the hitch to the weldnuts on the vehicle frame.
The hitch has two ratings depending on type: Weight Carrying hitch has a maximum gross trailer weight of 6000 lb. (2724 kg) and maximum tongue weight of 900 lb. (409 kg). Weight Distributing hitch has a maximum gross trailer weight of 8000 lb. (3632 kg) and maximum tongue weight of 900 lb. (409 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch ratings.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Always read and follow all warnings and instructions for your vehicle and other accessories used with the hitch before use.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Yes. The manual states: "Always wear SAFETY GLASSES when installing hitch." Safety glasses are also listed as required equipment.
After installation, verify that the spare tire is correctly positioned and will not interfere with the hitch. The manual also states: "Check hitch frequently, making sure all fasteners and ball are properly tightened." Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. It also states: "CHECK all fasteners are tight and your hitch is securely mounted to your vehicle periodically." No specific interval is provided; regular inspection before towing is recommended.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
The manual lists an installation time of 20 minutes for professional installers. However, the manual recommends contacting a professional installer if you do not feel comfortable performing the installation yourself.
No. The manual explicitly states: "DO NOT cut, weld or modify this receiver." Additionally, do not use a torch to cut access or attachment holes.
Cequent Performance Products offers a Limited Lifetime Warranty to the original consumer purchaser. The warranty covers material defects in material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are returned for inspection, the defect is not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained and used according to instructions. Product replacement is the sole remedy. For warranty claims, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. Retain your purchase receipt.
For technical assistance, contact Cequent Performance Products at 1-800-632-3290 or email TechnicalSupport@cequentgroup.com. For warranty claims, contact the main office at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170.
Yes, part 75225 is designed for 2014-current Honda Pilot and Acura MDX. Check the Cequent website for specific trim level compatibility. Note: it does not fit vehicles with full-size spare tires.
You need a ratchet, torque wrench, safety glasses, 22 mm sockets, flat head screwdriver, and 3 inch socket extension. The kit includes six M14 bolts and six 5/8 inch conical washers.
Yes. Lower and remove the spare tire before installation, then raise it back after tightening the hitch. Verify it does not interfere with the hitch.
Tighten all M14 CL10.9 fasteners to 148 Lb.-Ft. (201 N·M) using a torque wrench. Proper torque is essential for secure mounting.
Weight Carrying: 6000 lb. gross trailer weight, 900 lb. tongue weight. Weight Distributing: 8000 lb. gross trailer weight, 900 lb. tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Always wear your seatbelt. Slow down and never exceed posted speed limits. Load the trailer heavier in front. If sway occurs, release the gas pedal and hold the steering wheel steady; do not brake or accelerate.
Verify the spare tire is correctly positioned and does not interfere with the hitch. Check that all fasteners are tight and the hitch is securely mounted. Periodically recheck fasteners before towing.
No. Do not cut, weld, or modify the receiver. Do not use a torch to cut access or attachment holes.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
