16-23 Nissan Maxima Sedan CURT 4-flat Plug and Play Trailer WiringCURT$95.31Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P3,P4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2014 | Nissan Maxima | Sedan |
Yes, the Curt 56022 Custom Wiring Harness is designed for Nissan Altima, Maxima, and Sentra models. Confirm your specific model year matches the vehicle list in the manual before purchasing.
Yes, the Curt 56022 is compatible with Nissan Maxima. It is also available for Altima and Sentra models.
Yes, the Curt 56022 Custom Wiring Harness is compatible with Nissan Sentra, along with Altima and Maxima models.
The battery connection must be fuse-protected with a 10-amp maximum. Signal circuits are rated at 3.0 amps per side, and tail/running circuits are rated at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
You will need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. The manual also references an included CME-PCL-INS sheet for battery routing details.
Drilling may be required. If a suitable existing grounding point (such as a screw with nut in the vehicle frame) is not available near the connector, you will need to drill a 3/32" pilot hole for the provided ground screw. The area must be free of rust, dirt and paint before securing the white ground wire.
Drill a 3/32" pilot hole if a suitable existing grounding point is not available. The area should be free of rust, dirt and paint before installing the provided ground screw with the white ground wire ring terminal.
1. Remove the four plastic fasteners securing the rear scuff panel and felt trim liner. 2. Remove the scuff panel and partially remove the felt trunk liner to locate the vehicle taillight wiring harness connectors. 3. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. 4. Insert the custom wiring harness end with the yellow wire between the separated connectors. 5. Make sure the connectors are fully inserted with locking tabs in place. 6. Repeat this process on the passenger side using the harness end with the green wire.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Install the provided 4-flat dust cover to help prevent corrosion.
The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.

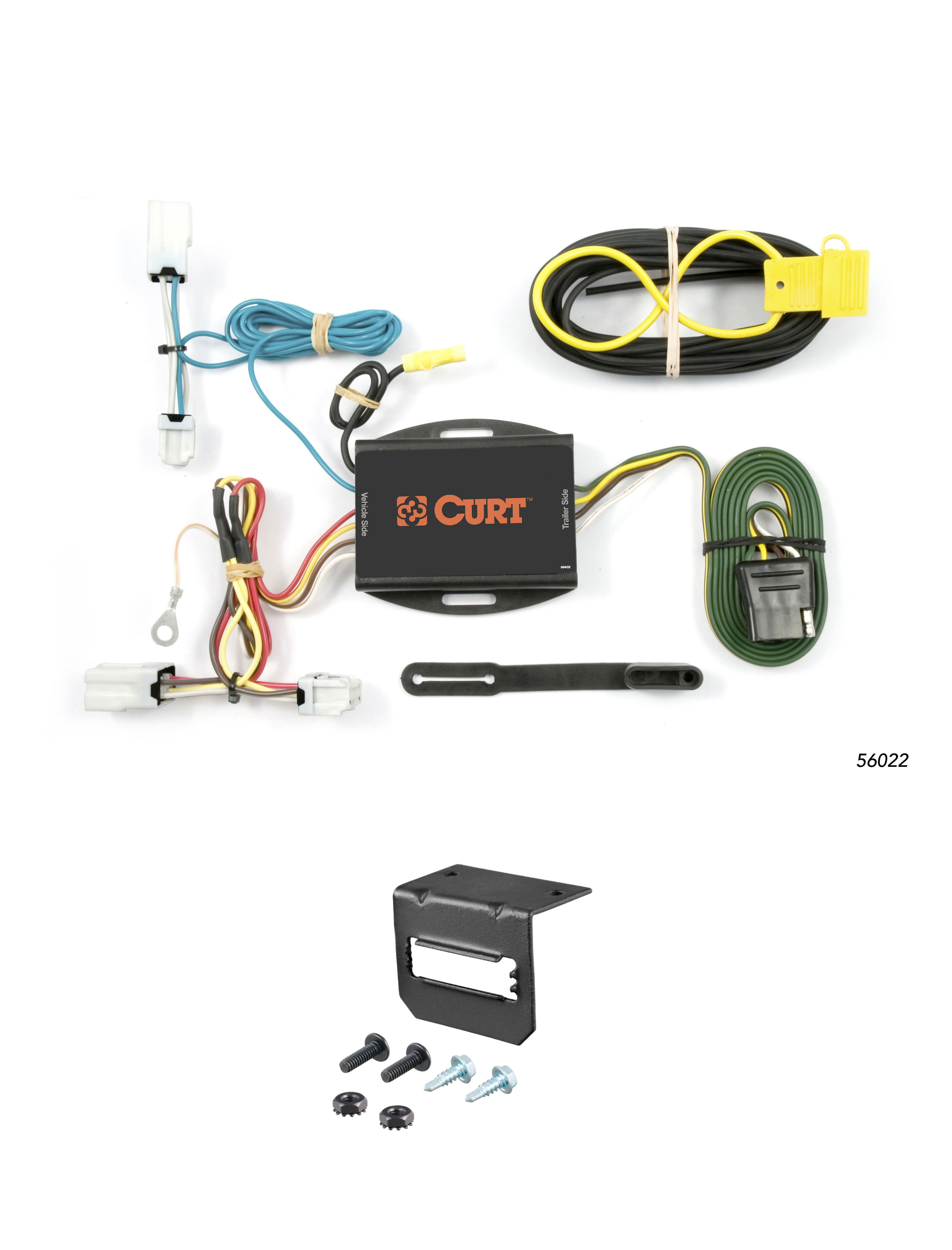

The 56022 uses yellow, green, white, and black wires. The yellow wire connects to the driver side taillight, the green wire to the passenger side taillight, the white wire is the ground connection, and the black wire is the power connection from the vehicle battery.
The Curt 56022 Custom Wiring Harness fits Nissan Altima, Maxima, and Sentra models.
Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. A 3/32" drill bit may be needed if an existing grounding point is not available.
10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Drilling may be required if a suitable existing grounding point is not available near the connector. If needed, drill a 3/32" pilot hole for the provided ground screw.
Test for proper function using a test light or by connecting a properly wired trailer.
