| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P3,P4 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2015 | Mazda MX-5 Miata | Excluding appearance package |
Yes, the 06-15 Mazda MX-5 Miata Excluding appearance package CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1816) is designed to fit the 2006-2015 Mazda MX-5 Miata.
The 06-15 Mazda MX-5 Miata Excluding appearance package CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1816) fits the following vehicles: 2006-2015 Mazda MX-5 Miata. Always verify your specific year, make, and model before ordering.
The 06-15 Mazda MX-5 Miata Excluding appearance package CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1816) fits 2006-2015 Mazda MX-5 Miata models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 06-15 Mazda MX-5 Miata Excluding appearance package CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1816) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 56082 is designed for the Mazda MX-5 Miata. The manual does not specify model year restrictions, so contact Curt Manufacturing or your retailer to confirm compatibility with your specific model year.

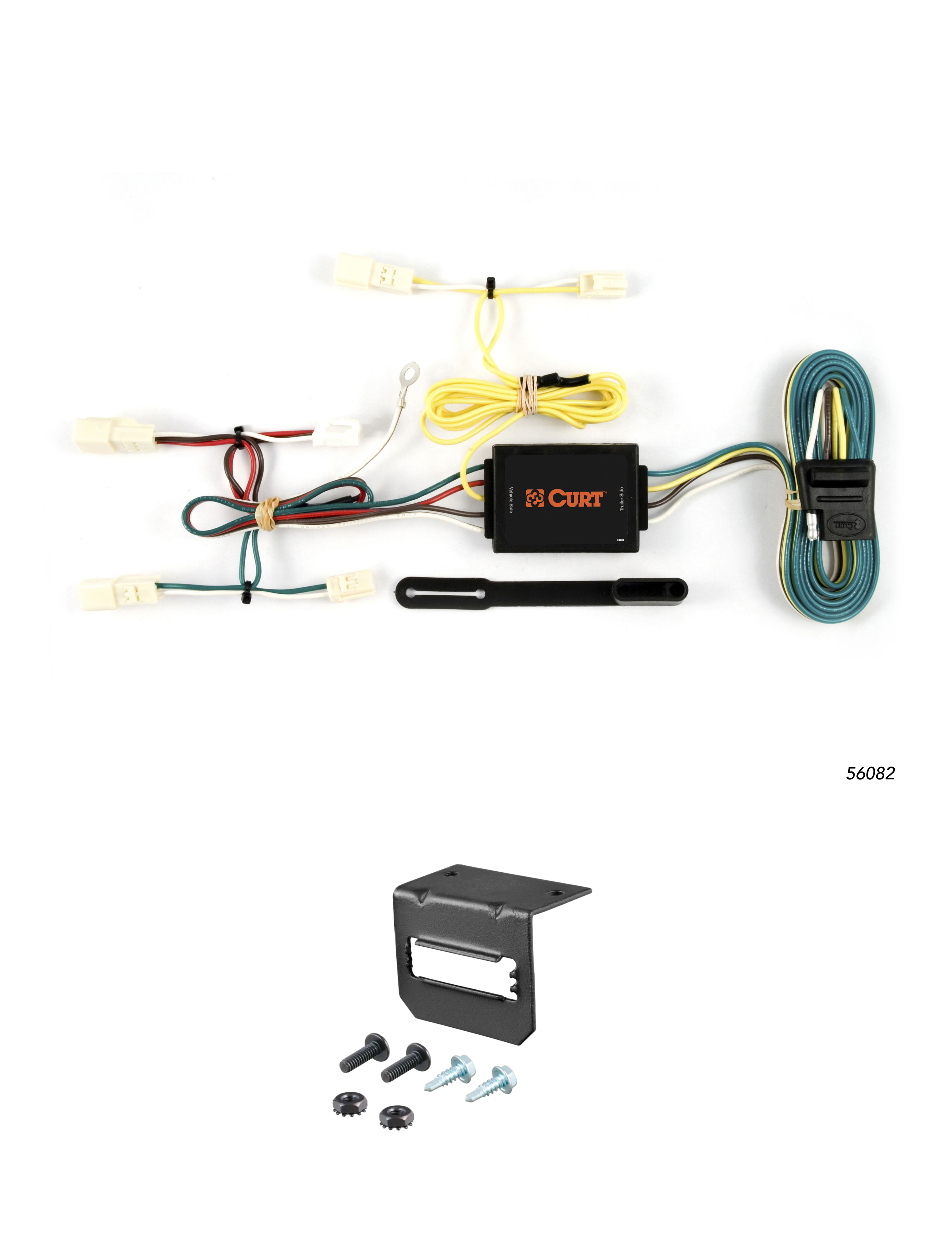

Curt part number 56082 is a T-connector trailer wiring harness for the Mazda MX-5 Miata. It includes a black converter box, T-connector with red, green, and yellow wires, a 4-flat wire connector, white ground wire with eyelet and screw, double-sided tape, and cable ties.
You will need a trim puller to remove plastic fasteners from the trunk interior. If you do not have an existing grounding point with a screw and nut in the vehicle's frame, you will also need a drill with a 3/32" bit to create a grounding hole.
Open the trunk and remove the floor cover, trim panels on the driver and passenger sides, the rear scuff panel (by removing plastic fasteners with a trim puller), and the jack storage cover.
Starting on the passenger side, pull back the rear trim panel to reveal the vehicle's taillight wiring harness. Separate the connectors carefully without damaging the locking tabs. Insert the T-connector ends with the red and green wires between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place. Repeat this process on the driver side using the yellow wire.
Route the T-connector end with the yellow wire out from behind the trim panel across the removed scuff panel to the driver side (after connecting the red and green wires on the passenger side).
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" hole and secure the white wire using the eyelet and screw provided with the kit.
Drilling is required only if you do not have a suitable existing grounding point (a screw with nut in the vehicle's frame) near the connector. If you must drill, create a 3/32" hole for the white ground wire eyelet and screw.
Drill a 3/32" hole for the white ground wire eyelet and screw.
Adhere the black converter box to the frame of the car using the double-sided tape provided in the kit.
Secure any loose parts of the T-connector with the cable ties provided in the kit.
Route the 4-flat wire out of the jack storage compartment to the center of the vehicle and out the trunk when in use. When not in use, roll up and store the wire in an out-of-the-way location in the jack storage compartment.
Before drilling, verify that miscellaneous items (such as wiring, fuel lines, or structural components) are not hidden behind or under any surface where you plan to drill. This will avoid damage to the vehicle and prevent personal injury.
Yes, the Curt 56082 is designed for the Mazda MX-5 Miata. Confirm your specific model year with the manufacturer.
A trim puller is required to remove plastic fasteners. A drill with 3/32" bit is needed only if you must create a grounding hole (not required if an existing grounding point is available).
Drilling is optional. It is required only if no suitable existing grounding point (screw with nut in the vehicle frame) is available near the connector. If drilling is needed, the hole size is 3/32".
The kit includes a T-connector with red, green, and yellow wires; a black converter box; a 4-flat wire connector; a white ground wire with eyelet and screw; double-sided tape; and cable ties.
Before drilling, verify that no hidden items (wiring, fuel lines, etc.) are behind or under the surface where you plan to drill, to avoid damage and injury.
