05-06 HONDA Element Excluding SC CURT 4-flat Plug and Play Trailer WiringCURT$66.76In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Free Shipping
Ships free on all orders
Authorized DealerVerify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S8 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2011 | Honda Element | Excluding SC |
The 07-11 HONDA Element Excluding SC CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1361) fits 2007-2011 Honda Element models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 07-11 HONDA Element Excluding SC CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1361) is designed to fit the 2007-2011 Honda Element.
The 07-11 HONDA Element Excluding SC CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1361) fits the following vehicles: 2007-2011 Honda Element. Always verify your specific year, make, and model before ordering.
The 07-11 HONDA Element Excluding SC CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1361) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

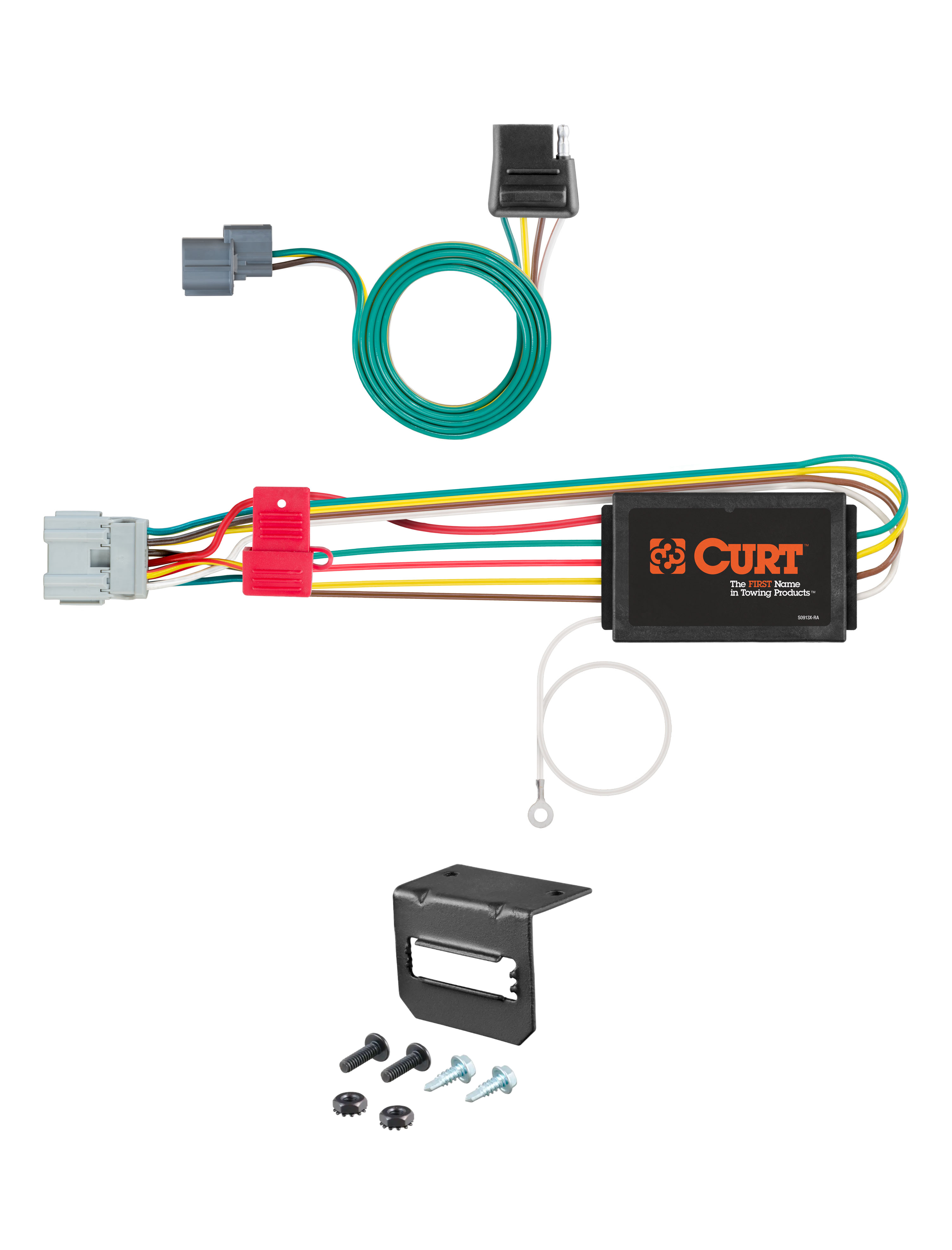

The Curt 56029 is a custom wiring connector that integrates with your vehicle's electrical system to provide trailer lighting control. It includes a 10-pin connector with a black converter box and a 4-flat connector for trailer use. The connector handles signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total).
Yes, the Curt 56029 is designed for Honda Element vehicles in the SUVs, Mini & Full-Sized Vans category. Verify your vehicle matches this application before installation.
No special tools are required. The installation uses basic hand tools to remove access panels and secure fasteners. You will need a drill with a 3/32" bit if you choose to drill a new grounding point rather than use an existing screw.
The kit includes a 10-pin connector with black converter box, a white ground wire with ring terminal, a provided screw for grounding, double-sided tape for mounting the converter box, a 4-flat dust cover, and cable ties for securing loose wires.
There are two vehicle wiring harnesses you will connect to: (1) Under the driver-side steering wheel, taped to another harness to the left of the steering column (Step 1), and (2) On the rear scuff panel on the driver side, accessed after removing the cargo area floor cover (Step 6).
Open the driver-side door and locate the access panel under the steering wheel. Turn the locking knobs 90 degrees counter-clockwise to release and remove the panel.
Insert the 10-pin connector with the black converter attached into the vehicle wiring harness connector. Push firmly until the connectors are fully inserted and the locking tabs are in place. This connection is made twice: once under the steering wheel (Step 2) and once at the rear scuff panel (Step 6).
Drilling is optional. You must locate a suitable grounding point, which can be an existing screw with nut in the vehicle frame. If no suitable existing point is available, you may drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint before securing the white ground wire with the ring terminal.
Drill a 3/32" pilot hole if you need to create a new grounding point. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
Locate a flat spot inside the vehicle under the dash and adhere the black converter box using the provided double-sided tape. Ensure the surface is clean and flat for proper adhesion.
Open the vehicle tailgate and remove the cargo nets and cargo area floor cover to access the spare tire area. On the driver side, locate the vehicle wiring harness mounted on the rear scuff panel. Remove the protective cover before inserting the custom wiring harness connector.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation and install the provided 4-flat dust cover to help prevent corrosion. Test the connector for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector functions properly.
Do not exceed the product rating (signal circuits 3.0 amps per side, tail/running circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The grounding area should be free of rust, dirt and paint before securing the white ground wire.
No special tools are required. A 3/32" drill bit is needed only if you drill a new grounding point instead of using an existing screw.
The battery connection must use a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Do not exceed the product rating (3.0 amps per side for signals, 6.0 amps total for tail/running) or your vehicle's lamp load rating, whichever is lower. Check your vehicle owner's manual for your specific rating.
Test for proper function by using a test light or connecting a properly wired trailer. All installation steps must be followed to ensure the connector functions properly.
