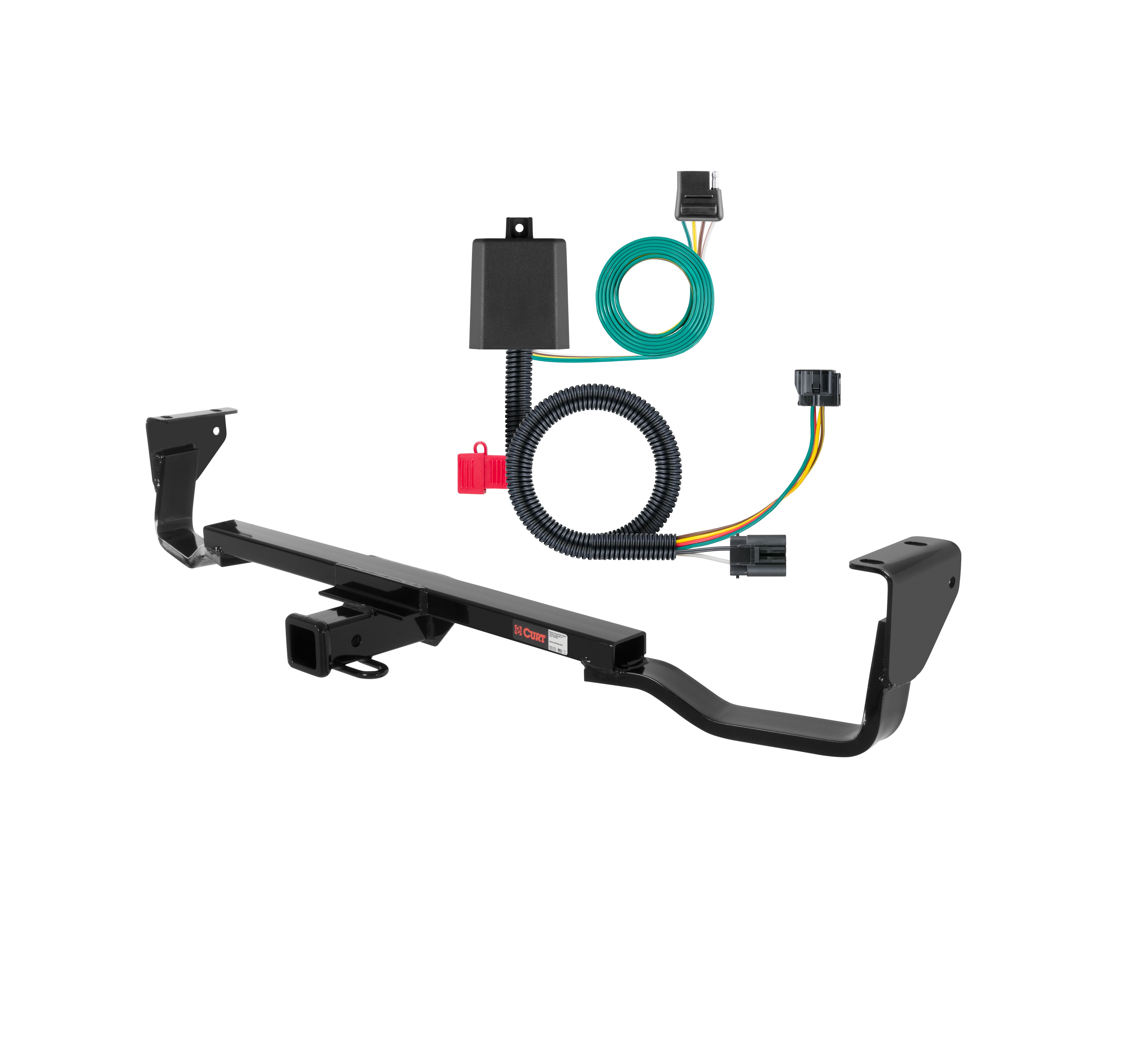

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2007 - 2012 Hyundai Veracruz. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Veracruz (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

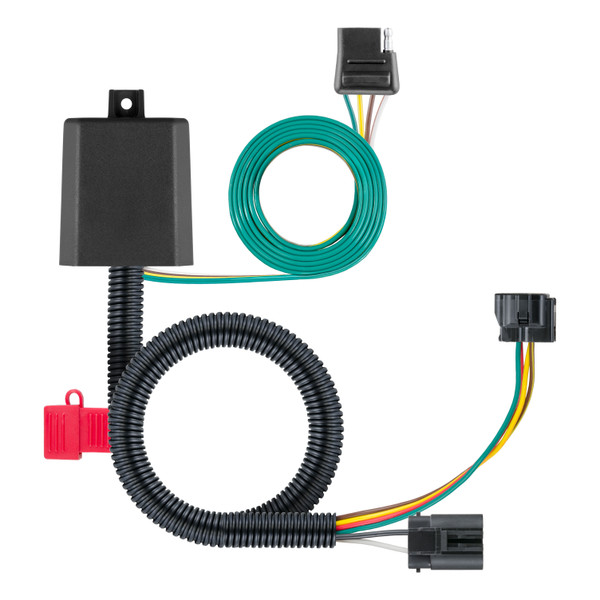

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Hyundai Santa Fe, Santa Fe XL and Veracruz and Kia Sedona and Sorento (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2012 | Hyundai Veracruz | — |
The 07 - 12 Hyundai Veracruz Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13545 (Part #CHW-1897) fits 2007-2012 Hyundai Veracruz models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The 07 - 12 Hyundai Veracruz Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13545 (Part #CHW-1897) fits the following vehicles: 2007-2012 Hyundai Veracruz. Always verify your specific year, make, and model before ordering.
Yes, the 07 - 12 Hyundai Veracruz Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13545 (Part #CHW-1897) is designed to fit the 2007-2012 Hyundai Veracruz.
The 07 - 12 Hyundai Veracruz Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13545 (Part #CHW-1897) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The gross load capacity is 3,500 lbs trailer weight and 350 lbs tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Yes, the Curt 13545 is designed for the Hyundai Veracruz. It uses existing frame rail holes, so no drilling is required.
The hitch includes 4 HHCS M10×1.25×30 bolts (part 10-10271, class 10.9, zinc-plated) and 4 S-CON washers 3/8 inch (part 30-00148, zinc-plated).
Yes. Remove the tow loop on the passenger side of the vehicle by first removing the heat shield. After the tow loop is removed, return the heat shield to its original position.
Yes. Lower the exhaust on the vehicle before raising the hitch into position. After fastening the hitch, return the exhaust to its original position.
1. Lower the exhaust. 2. Remove the tow loop on the passenger side by first removing the heat shield, then return the heat shield to its original position. 3. Raise the hitch into position and align the holes in the hitch with the holes in the frame rails. 4. Fasten the hitch using the provided hardware. 5. Torque all M10×1.25 hardware to 48 lb-ft. 6. Return the exhaust to its original position.
All M10×1.25 hardware must be torqued to 48 lb-ft.
The hitch has a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these figures.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
No. The Curt 13545 is a no-drill installation that uses existing frame rail holes on the Hyundai Veracruz.
You must lower the exhaust during installation and remove the tow loop on the passenger side (after removing the heat shield). The heat shield is returned to its original position after the tow loop is removed.
Torque all M10×1.25 bolts to 48 lb-ft.
The hitch supports 3,500 lbs trailer weight and 350 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Periodically check that all fasteners are tight and all structural components are sound.
The Curt 56332 fits Kia Sorento models with a factory tow package. It does not fit EX and Limited trim levels equipped with the 2.0L 4-cylinder engine. Check your vehicle's documentation to confirm whether your Sorento has the factory tow package and engine size before purchasing.
Yes, the Curt 56332 is compatible with Hyundai Santa Fe models. No factory tow package requirement is listed for the Santa Fe application.
Yes, the Curt 56332 is compatible with Hyundai Veracruz models.
Yes, the Curt 56332 is compatible with Kia Sedona models.
The Curt 56332 has a maximum rating of 3.0 amps per side for signal circuits and 6.0 amps total for tail and running circuits. The battery connection must be fuse protected with a 10 amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
You will need a flat blade screwdriver and side cutter. The harness comes with a 10 amp fuse, double-sided tape, and cable ties.
A 10 amp fuse is required. The fuse is provided with the harness and must be inserted into the in-line fuse holder to complete installation. The battery connection must be fuse protected with a 10 amp maximum.
On Santa Fe and Sorento models, the vehicle taillight wiring connector is located behind the rear tire on the driver side, on the outside frame rail.
On Veracruz models with a factory tow package, the vehicle taillight wiring connector is located near the rear tire on the passenger side, along the frame.
1. Locate the vehicle taillight wiring connector (location varies by model—see installation steps for your vehicle). 2. Remove the protective cap from the custom wiring harness. 3. Insert the custom wiring harness into the vehicle connector. 4. Ensure the connector is fully inserted with locking tabs in place. The connector will be similar in design to the one on the custom harness.
Route the 4-flat to the center of the vehicle by going over the exhaust along the bumper. Avoid any areas that may cut, pinch or melt the wire. Secure any loose wires with the provided cable ties.
Mount the black converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Secure any loose wires with the provided cable ties. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating and potential fire.
Insert the provided 10 amp fuse into the in-line fuse holder. This is the final step. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating (3.0 amps per side for signal circuits, 6.0 amps total for tail and running circuits) or your tow vehicle's lamp load rating, whichever is lower.
The battery connection must be fuse protected with a 10 amp maximum to prevent overheating and potential fire. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The Curt 56332 fits Hyundai Santa Fe, Hyundai Veracruz, Kia Sedona, and Kia Sorento with factory tow package (excluding EX and Limited with 2.0L 4Cyl).
The harness includes a 10 amp fuse, double-sided tape, and cable ties. You will need a flat blade screwdriver and side cutter.
No drilling is required. The harness connects to the existing vehicle taillight connector and is mounted using provided double-sided tape.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Battery connection must use a 10 amp fuse maximum. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
The manual does not specify whether the battery must be disconnected. Consult your vehicle owner's manual or contact the vehicle manufacturer for safety guidance.
