B&W 10K 5" Drop 5.5" Rise ( 1-7/8" , 2-5/16" Balls) Adjustable Ball Mount Hitch For 2" Recievers TS10048BB&W Trailer Hitches$279.00In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2008 - 2013 BMW X6
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Receiver Tube Size | 2 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 600 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 6,000 LB |
| Weight Distribution (WD) | n/a |
| Weight Distribution Tongue Weight (WDTW) | n/a |
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Round |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2013 | BMW X6 | — |
The manual lists a gross load capacity of 6,000 lbs. trailer weight and 600 lbs. tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your BMW X6 or X6M owner's manual for the maximum towing capacity your specific vehicle supports.

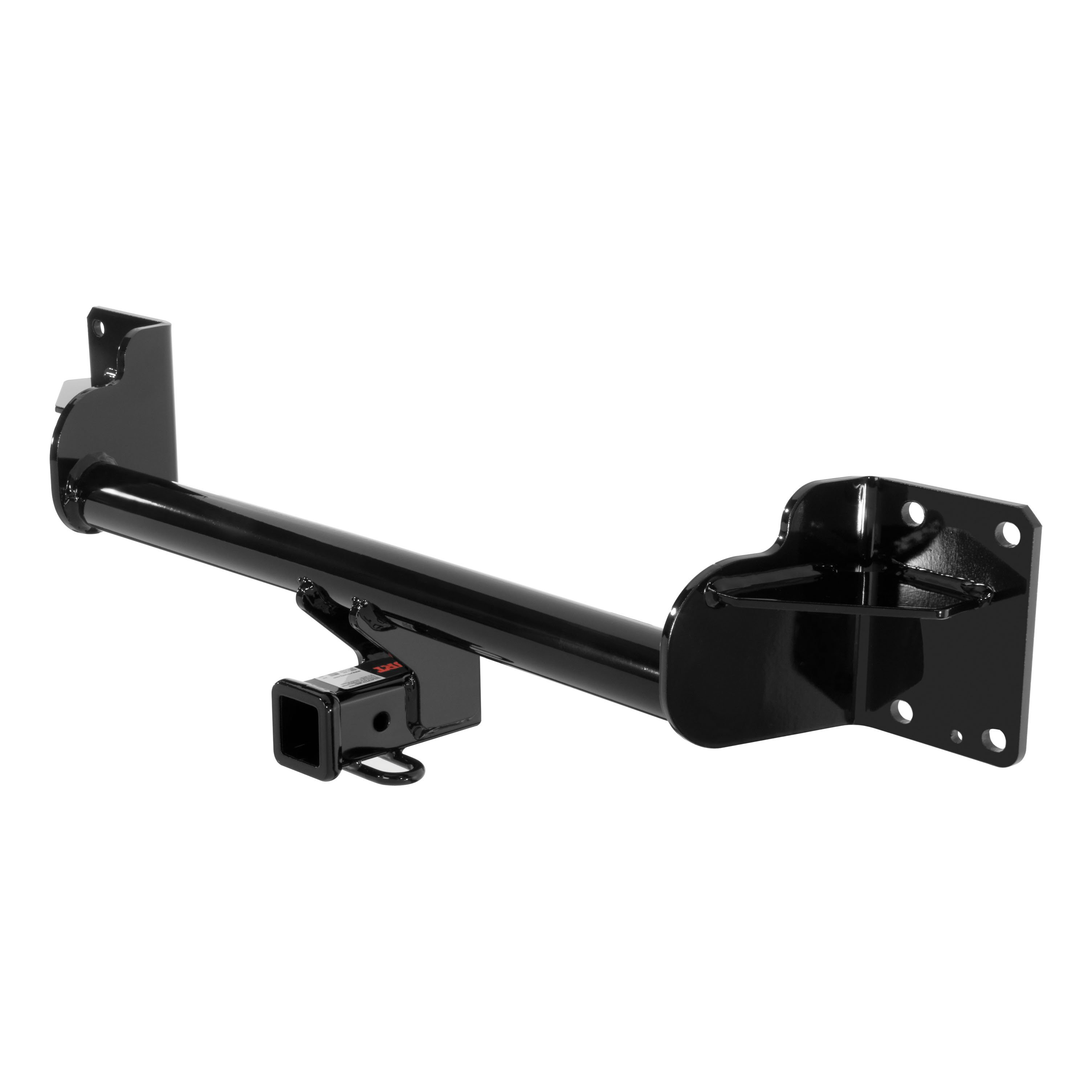

Yes, the Curt 13114 is designed for BMW X6 and X6M vehicles. Installation requires removal of the lower bumper fascia and bumper, and trimming of the bumper fascia to fit around the hitch without interference.
No. The installation note explicitly states: 'OEM tow hooks can no longer be used at rear of vehicle.' The hitch installation replaces the factory tow hook capability.
You will need: ratchet, 8mm socket, 18mm socket, 19mm socket, torque wrench, small center punch, utility knife, and plastic rivet tool. The center punch and rivet tool are needed to remove the three rivets from the lower bumper fascia.
The kit includes: 8 hex nuts M12×1.5 Class 10.9 (part 20-00133), 8 S-CON washers 1/2 inch (part 30-00149), and 3 black M6 rivets (part 10-10401). The rivets are used to reinstall the bumper fascia after trimming.
No. The installation notes explicitly state 'NO DRILLING REQUIRED.' The hitch uses existing mounting points on the vehicle after removal of the bumper assembly.
You must remove: 3 rivets from the lower bumper fascia, the bottom bolt behind the fascia, bolts behind each reflector (reflectors must be removed), and 6 bolts on the bottom of the bumper. The steel bumper beam and its fasteners are then removed and returned to the vehicle owner.
Yes. After the hitch is installed on the vehicle, you must mark the bumper fascia and trim it until it fits back onto the vehicle without interfering with the hitch. This is a required modification. Use a utility knife for trimming.
All M12 fasteners must be torqued to 82 lb-ft. This applies to the 12 fasteners (8 nuts and 8 washers) that secure the hitch to the vehicle.
All non-trailer loads applied to this hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. This applies to any load that is not a trailer.
Do not exceed your vehicle manufacturer's recommended towing capacity. Although the hitch has a gross load capacity of 6,000 lbs. trailer weight and 600 lbs. tongue weight, your BMW X6 or X6M may have a lower maximum towing capacity. Always refer to your vehicle's owner's manual for the final towing limit.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This is a routine maintenance requirement to keep the hitch safe and functional.
Yes, the Curt 13114 is designed for BMW X6 and X6M models. Installation requires removal of the lower bumper fascia and bumper, and trimming of the bumper fascia.
No, drilling is not required. The hitch uses existing mounting points on the vehicle after bumper removal.
Yes, the bumper fascia must be trimmed after the hitch is installed to ensure it fits without interfering with the hitch.
Torque all M12 fasteners to 82 lb-ft.
The hitch has a gross load capacity of 6,000 lbs. trailer weight and 600 lbs. tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
All non-trailer loads must be supported by auxiliary stabilizing straps. Failure to do so voids the warranty.
On Sale Today
Original price was $582.80. Current price is $569.46.You save $13.34
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Aug 19 - Sat, Aug 22
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
No reviews have been added for this product.
