CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2008 - 2014 Smart Smart
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Basic |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P3,P4 |
| Tail Light Circuits | 5.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2014 | Smart Smart | — |
The 08-14 Smart SMART CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2249) fits 2008-2014 Smart Smart models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The 08-14 Smart SMART CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2249) fits the following vehicles: 2008-2014 Smart Smart. Always verify your specific year, make, and model before ordering.
Yes, the 08-14 Smart SMART CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2249) is designed to fit the 2008-2014 Smart Smart.
The 08-14 Smart SMART CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2249) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part 56136 is designed for the Scion XD. The installation accesses the vehicle's taillight wiring harness located behind the rear access panel.
The Curt 56136 T-Connector is a trailer wiring harness that integrates with your Scion XD's taillight wiring. It includes a converter box and a 4-flat connector that can be routed out when in use and stored away when not needed.

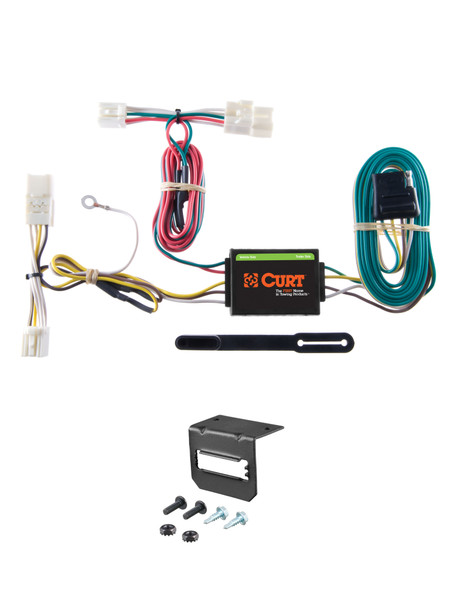

The Curt 56136 includes a T-Connector harness with yellow and green wire ends, a black converter box, double-sided tape, a white ground wire with eyelet and screw, and a 4-flat connector.
You will need basic hand tools. If a suitable grounding point does not exist on the vehicle frame, you will also need a drill with a 3/32" bit to create one.
Open the hatch and remove the rear cargo area floor cover, the foam storage tray underneath it, and the rear scuff panel (held by two plastic fasteners). The taillight wiring harness is then accessible behind the rear access panel.
Locate the vehicle's taillight wiring harness behind the rear access panel on the driver's side. Separate the connectors carefully without damaging the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors, ensuring the connectors are fully inserted with locking tabs in place. Repeat on the passenger side using the T-Connector end with the green wire.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" hole and secure the white ground wire using the eyelet and screw provided.
Locate a flat spot on the vehicle frame and adhere the black converter box using the double-sided tape provided.
Route the 4-flat connector out from under the rear trim panel to the center of the vehicle when in use. When not in use, roll it up and store it in an out-of-the-way location.
Drilling is required only if a suitable grounding point does not already exist on the vehicle frame. If needed, drill a 3/32" hole for the ground wire. Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
Drill a 3/32" hole if a suitable grounding point does not exist on the vehicle frame.
Before drilling, verify that miscellaneous items are not hidden behind or under any surface. Drilling into hidden wiring, fuel lines, or other components can cause damage and personal injury.
After completing all installation steps, re-install all items that were removed during installation, including the rear scuff panel, foam storage tray, and rear cargo area floor cover.
Yes, the Curt 56136 is designed for the Scion XD.
Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
