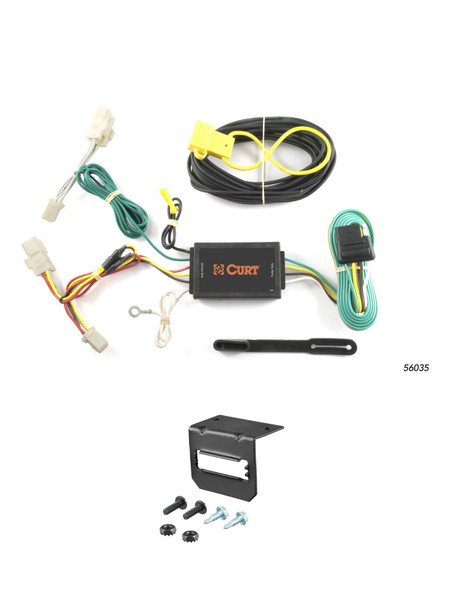

03-08 Pontiac Vibe Excluding GT CURT 4-flat Plug and Play Trailer WiringCURTOriginal price was $118.90. Current price is $114.76.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P3,P4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2010 | Pontiac Vibe | GT |
Yes, the 09-10 Pontiac Vibe GT CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2141) is designed to fit the 2009-2010 Pontiac Vibe.
The 09-10 Pontiac Vibe GT CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2141) fits the following vehicles: 2009-2010 Pontiac Vibe. Always verify your specific year, make, and model before ordering.
The 09-10 Pontiac Vibe GT CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2141) fits 2009-2010 Pontiac Vibe models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
The 09-10 Pontiac Vibe GT CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2141) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56035 Custom Wiring Harness is designed for the Pontiac Vibe. It is also compatible with the Scion XB and Toyota Matrix. The harness is installed behind the taillight housings inside the trunk.
Yes, the Curt 56035 is compatible with the Scion XB and Toyota Matrix, as well as the Pontiac Vibe. All three vehicles use the same installation procedure.
The signal circuits are rated for 3.0 amps per side. The tail and running circuits are rated for 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as this can cause loss of warranty, overheating and potential fire.
The tail and running circuits are rated for 6.0 amps total. The signal circuits are rated for 3.0 amps per side. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
You will need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. A 3/32" drill bit may be needed if a suitable existing screw is not available for the ground wire connection.
Open the vehicle tailgate and remove the rear scuff panel and cargo floor covers. On both driver and passenger sides, remove the rear access panels and cargo net loops, then partially remove the rear trim panels to access the taillight wiring harness connectors.
Locate the vehicle taillight wiring harness connectors inside the rear access panels. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors on the driver side, ensuring the connectors are fully inserted with locking tabs in place. Repeat on the passenger side using the harness end with the green wire.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required if a suitable existing screw with nut is not available for the ground wire connection. If drilling is necessary, a 3/32" pilot hole is drilled for the provided screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test the wiring harness for proper function using a test light or by connecting a properly wired trailer.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Exceeding the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower, can cause loss of warranty, overheating and potential fire. Do not exceed the 10-amp maximum fuse rating for the battery connection.
Test the wiring harness for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
The Curt 56035 fits the Pontiac Vibe, Scion XB, and Toyota Matrix.
You need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. A 3/32" drill bit may be needed if drilling is required for the ground wire.
Drilling may be required if no suitable existing screw is available for the ground wire. If needed, drill a 3/32" pilot hole.
The battery connection must use a 10-amp maximum fuse. Exceeding this can cause overheating and fire.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these or the vehicle lamp load rating.
Test using a test light or by connecting a properly wired trailer to verify proper function.
