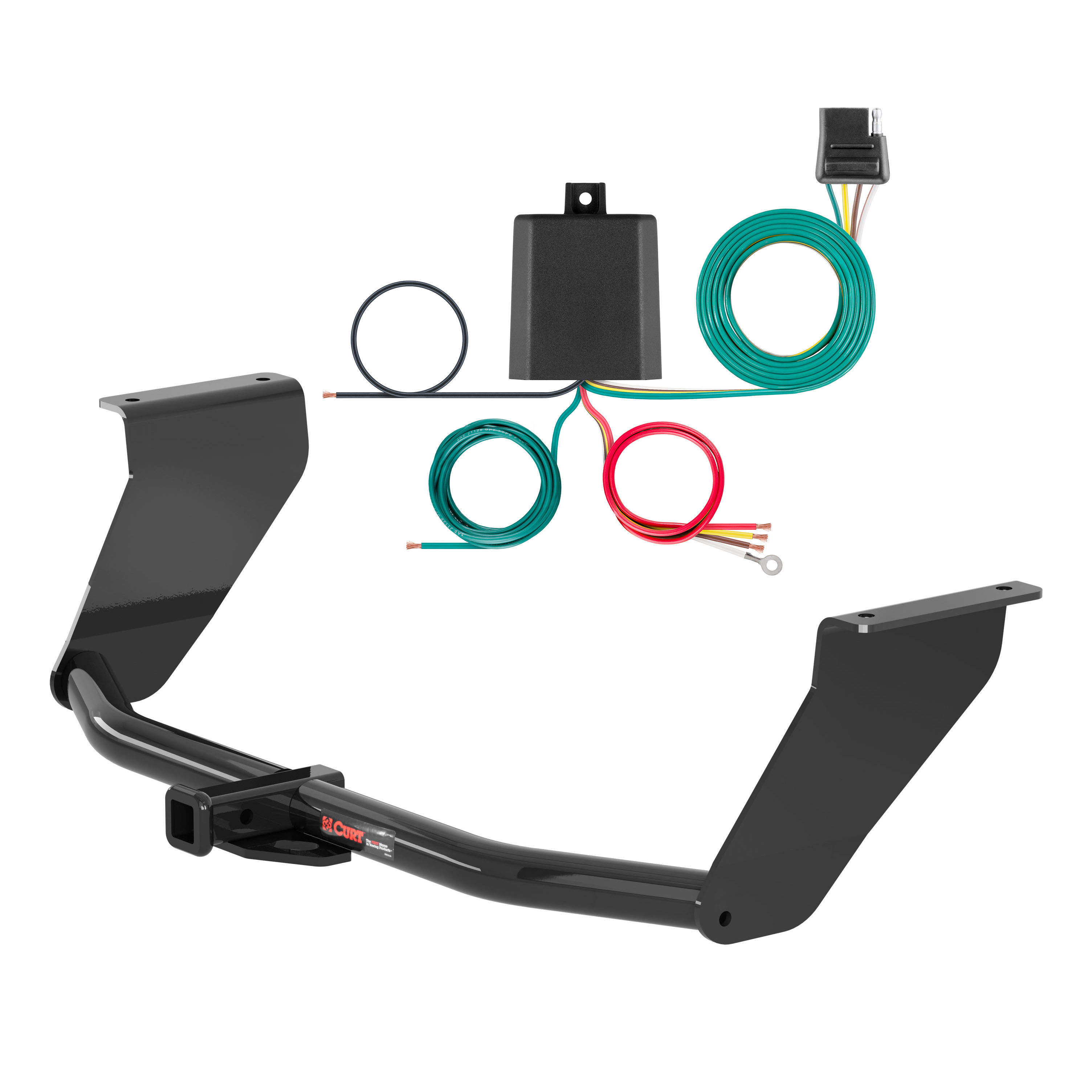

Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2009 - 2016 Hyundai Genesis Excluding 5.0. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Hyundai Genesis (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
CURT custom wiring is the easiest way to outfit your vehicle with a trailer wiring connection. Each harness is engineered for a specific make and model and uses an OEM-compatible plug, so no cutting or splicing is required during installation. Provides a 4-way flat connector socket for tail lights, brake lights and turn signals. Includes a dust cover and is backed by a limited one-year warranty.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2016 | Hyundai Genesis | Excluding 5.0 |
Yes, the 09 - 14 Hyundai Genesis Excluding 5.0 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12086 (Part #CHW-1826) is designed to fit the 2009-2014 Hyundai Genesis.
The 09 - 14 Hyundai Genesis Excluding 5.0 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12086 (Part #CHW-1826) fits the following vehicles: 2009-2014 Hyundai Genesis. Always verify your specific year, make, and model before ordering.
The 09 - 14 Hyundai Genesis Excluding 5.0 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12086 (Part #CHW-1826) fits 2009-2014 Hyundai Genesis models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The 09 - 14 Hyundai Genesis Excluding 5.0 Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12086 (Part #CHW-1826) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
This hitch is designed for the Hyundai Genesis. The manual references 2012 models specifically in the exhaust removal procedure. To confirm fitment for your model year, contact Curt Manufacturing or consult a fitment database, as the manual does not specify the full range of compatible years.
The manual shows a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your vehicle's owner manual for the final limit.
You will need: a drill with 17/32" drill bit, a ratchet, 10mm and 19mm sockets, a 3/4" socket, a torque wrench, aviator shears, and a pencil or marker. A 2-person install is recommended.
The kit includes: four 1/2-13 UNC grade 8 bolts (part 10-10272), four 0.250 x 1.00 x 3.00" square hole spacers (CM-SP6), four 1/2-13 UNC grade 8 serrated flange nuts (20-00062), and two 1/2" fishwire pieces.
Yes. On 2012 models, you must remove two nuts with a 19mm socket in front of each muffler, remove four rear rubber exhaust isolators, and gently lower the exhaust. You must also remove six heat shield screws with a 10mm socket on both sides. The exhaust is reinstalled after the hitch is mounted.
Yes. You must drill four holes using a 17/32" drill bit for the 1/2" fasteners. The hitch is positioned and centered on the frame rails just after the frame angles downward, then marked and drilled.
Yes. The heat shields must be trimmed as shown in the diagram on the manual. Specifically, you must remove the rubber isolator from both shields using aviator shears. The modified shields are then reinstalled with the original fasteners.
All 1/2" fasteners must be torqued to 110 lb-ft.
1. Remove exhaust components and heat shields (2012 models). 2. Raise hitch into position, center and square it to frame rails just after the frame angles downward, then mark and drill four holes with a 17/32" bit. 3. Lower hitch and fishwire bolts and spacers into position. 4. Raise hitch back into position and install hex flange nuts; torque all 1/2" fasteners to 110 lb-ft. 5. Modify and reinstall heat shields, then raise and reinstall exhaust components.
After drilling the four holes and lowering the hitch, the fishwire bolts and spacers are lowered into position through the drilled holes. The fishwire is then used to guide the bolts and spacers into place before the hitch is raised back up and the hex flange nuts are installed and torqued.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval or other maintenance procedures.
The hitch is designed for use with ball mount D-55001. A Euro mount option is available: part 45571 (1-7/8" ball) or part 45572 (2" ball).
Do not exceed your vehicle manufacturer's recommended towing capacity. Although the hitch has a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight, your vehicle may have a lower limit. Always follow the vehicle manufacturer's specification.
This hitch is designed for the Hyundai Genesis. The manual references 2012 models; confirm your model year with Curt Manufacturing or a fitment database.
3,500 lbs trailer weight and 350 lbs tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
Drill with 17/32" bit, ratchet, 10mm and 19mm sockets, 3/4" socket, torque wrench, aviator shears, and pencil. A 2-person install is recommended.
All 1/2" fasteners must be torqued to 110 lb-ft.
