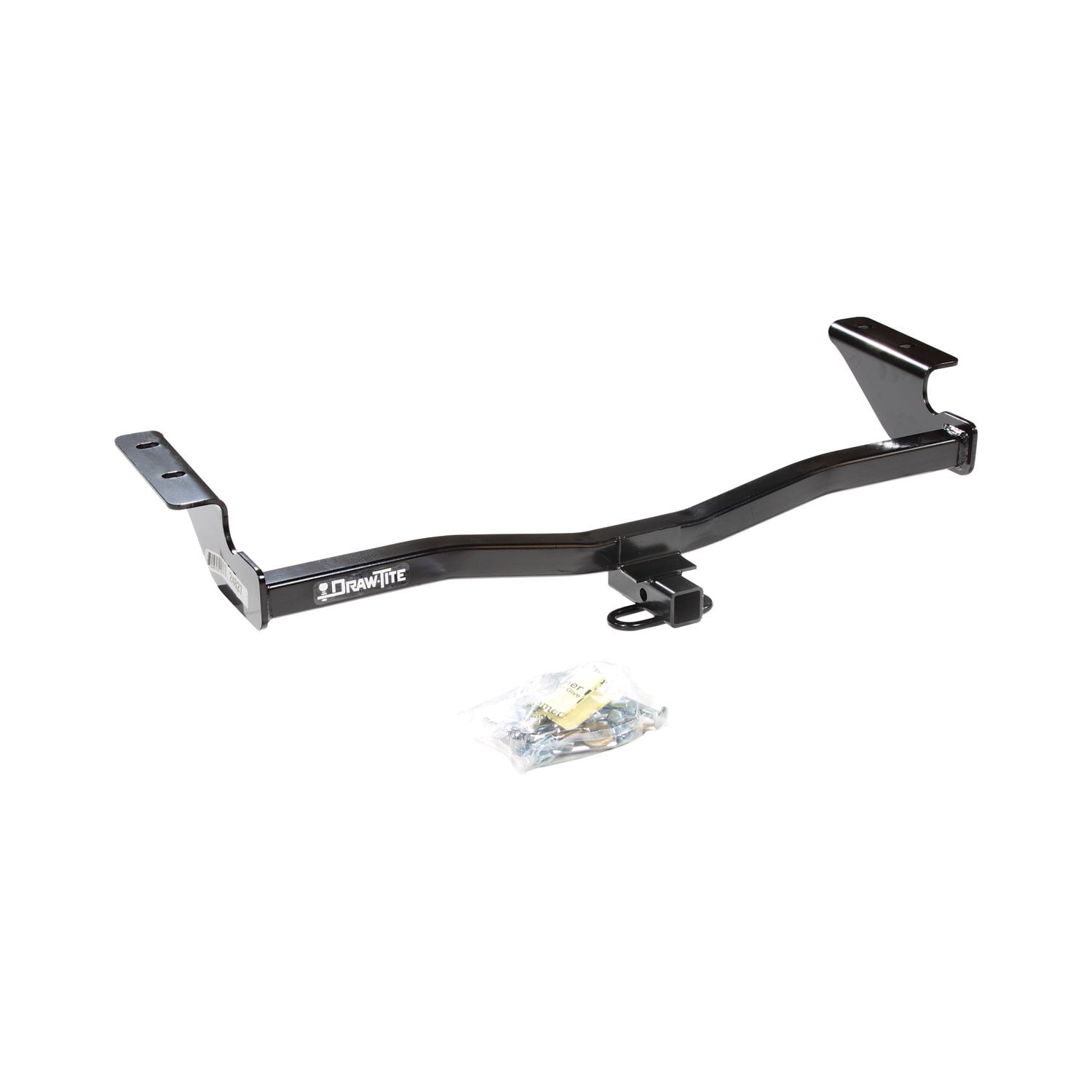

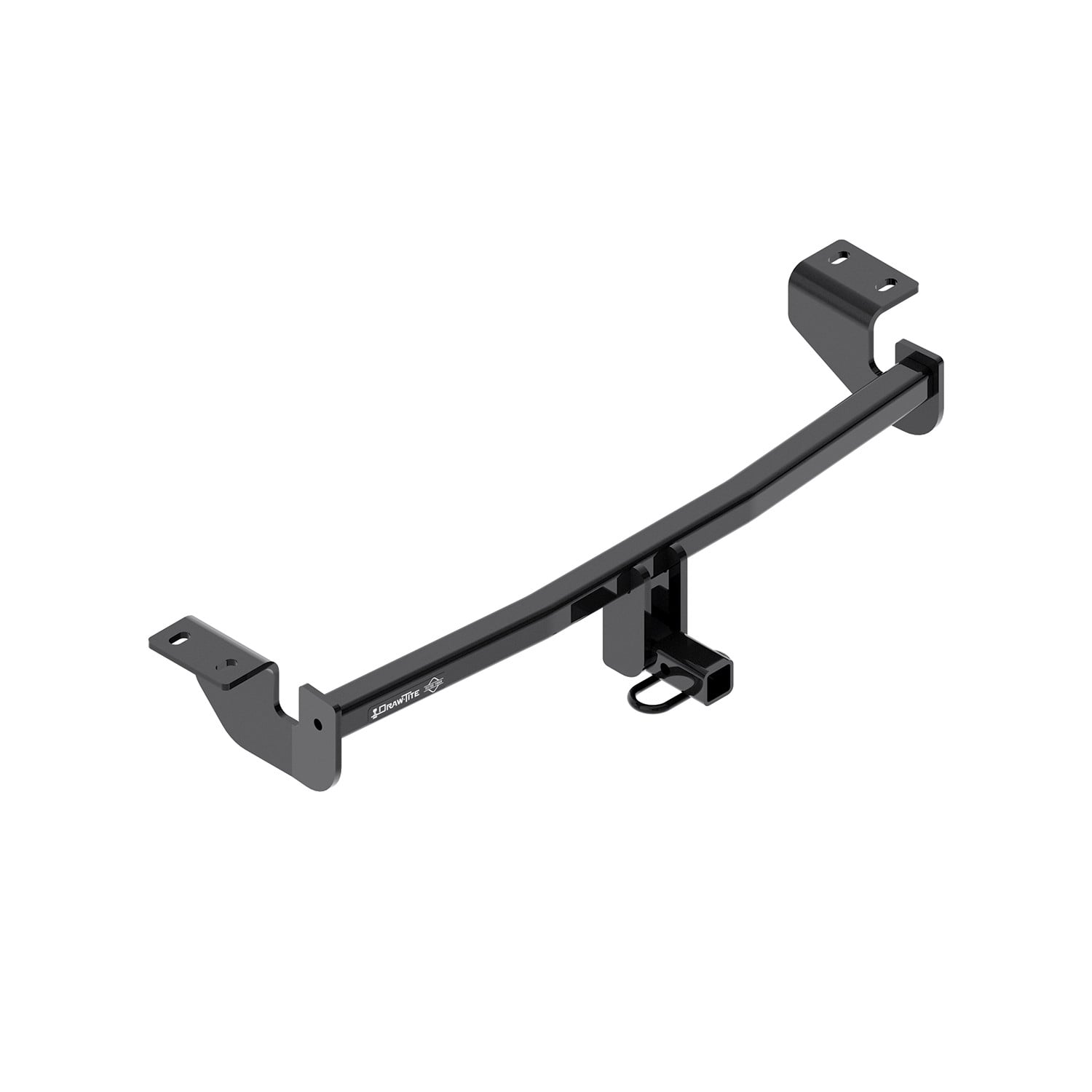

Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Scion tC 24827Draw-tite$228.48Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2011 - 2013 Scion tC
Confirmed to Fit
2008 - 2015 Scion xB
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

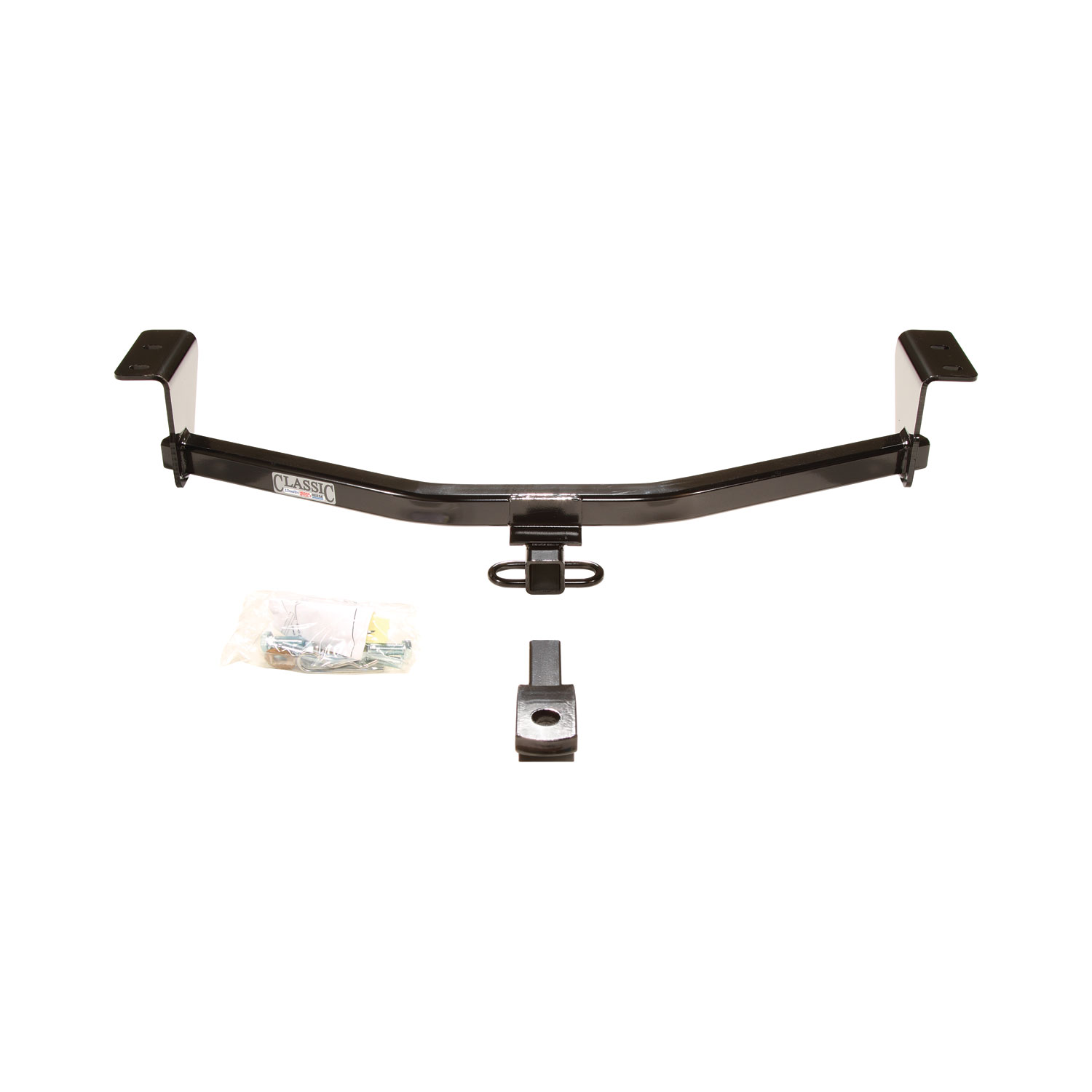

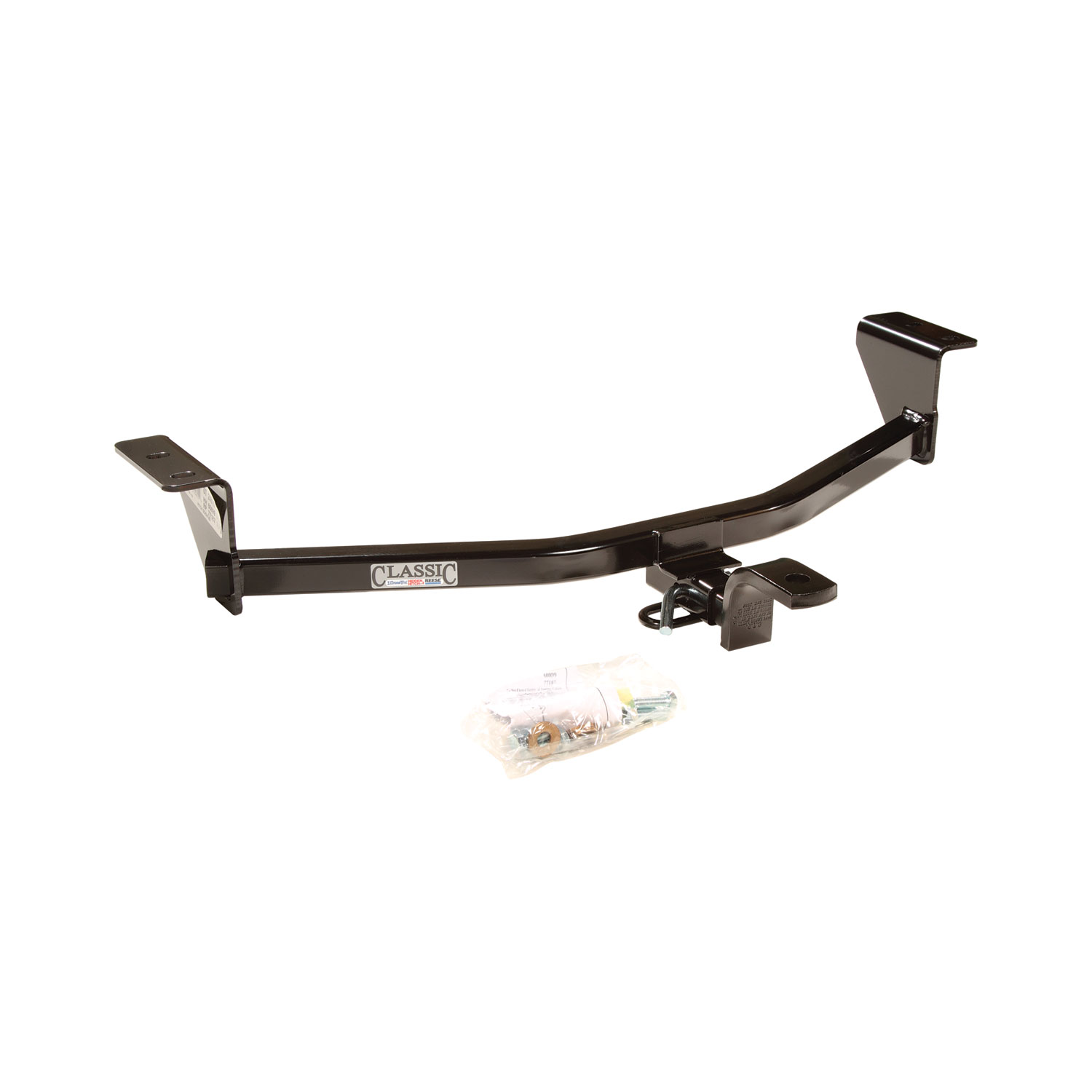

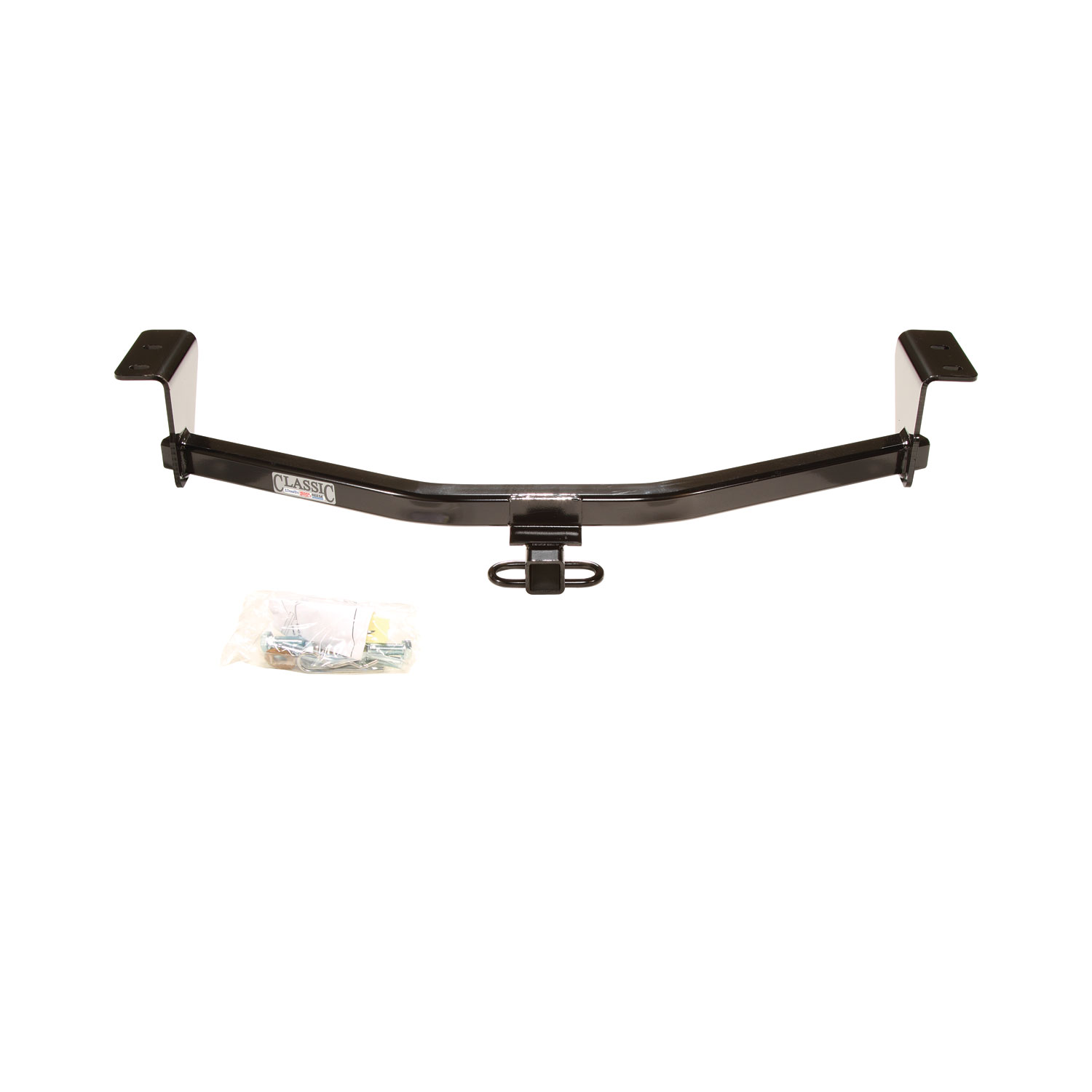

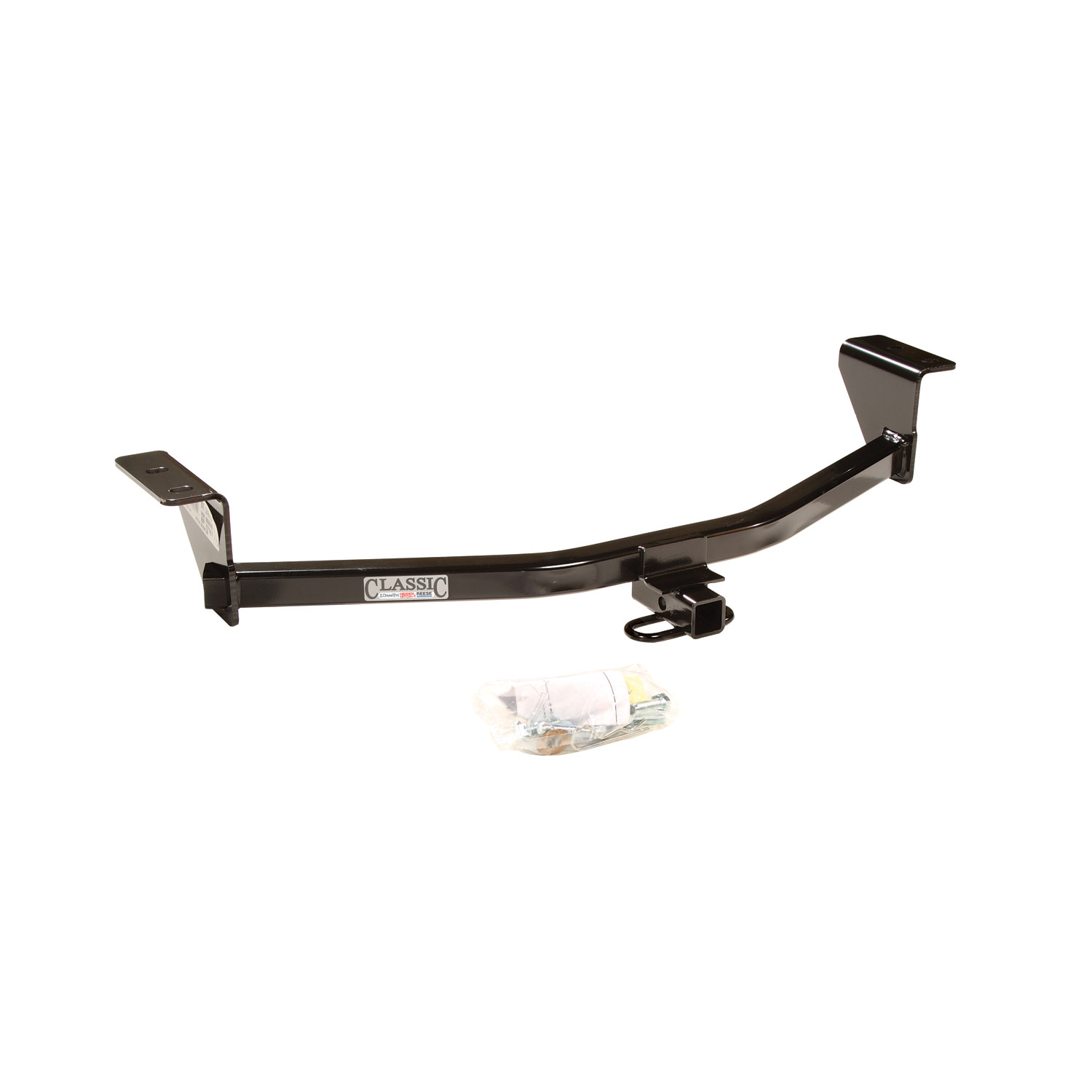

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24815 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 18.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2013 | Scion tC | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes Except Release Series |
| 2008 - 2015 | Scion xB | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Scion tC, Scion xB 24815 (Part #DT24815) is designed to fit the 2011-2013 Scion tC.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Scion tC, Scion xB 24815 (Part #DT24815) fits 2011-2013 Scion tC models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Scion tC, Scion xB 24815 (Part #DT24815) fits the following vehicles: 2011-2013 Scion tC; 2008-2015 Scion xB. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Scion tC, Scion xB 24815 (Part #DT24815) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24815 fits Scion xB models, excluding the Release Series. If you have a Release Series xB, this hitch is not compatible.
Yes, part number 24815 is compatible with Scion tC models.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need a 17mm wrench, a 19mm wrench, and a torque wrench. All fasteners must be tightened to 68 Lb.-Ft. (92 N*M) using the torque wrench.

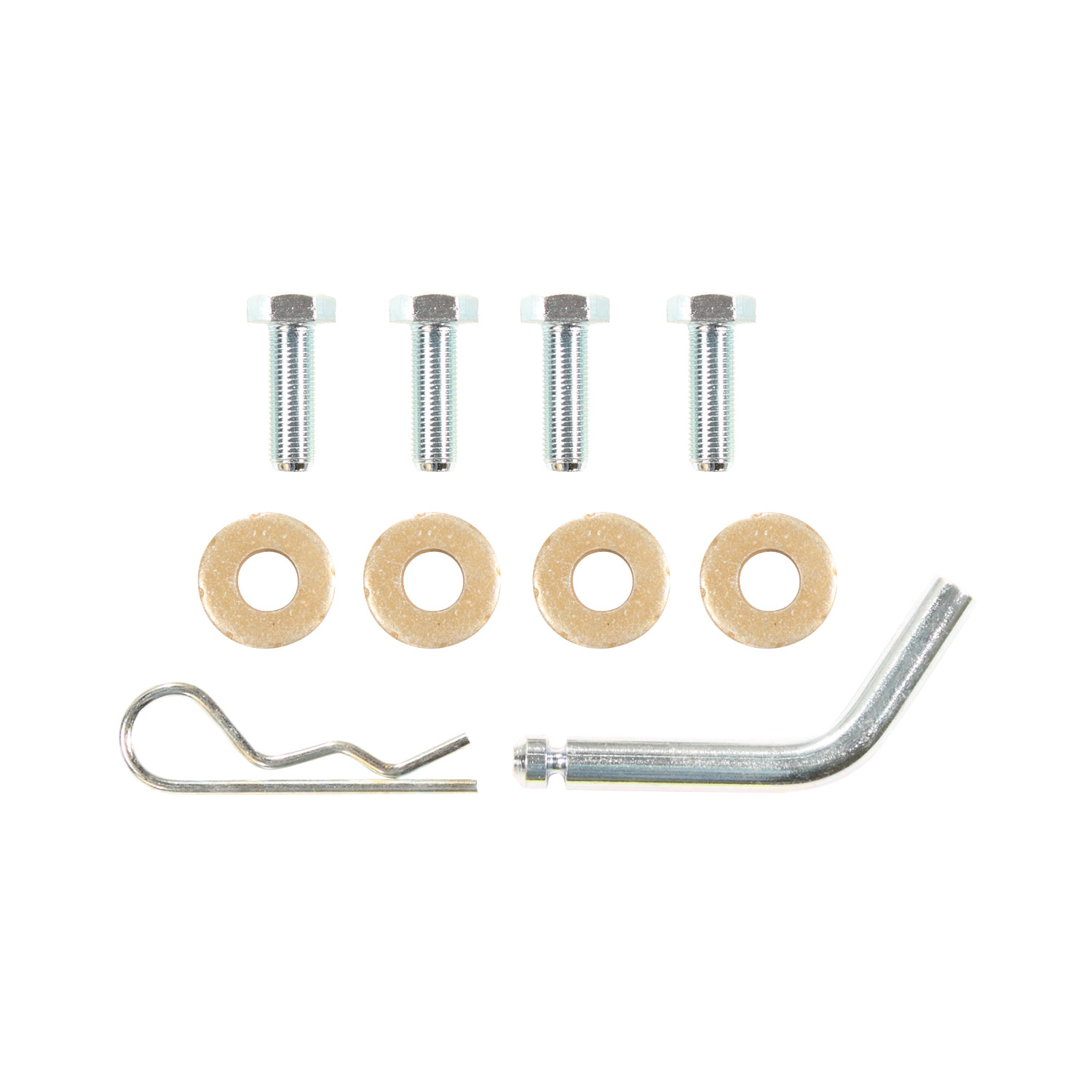

The hitch uses four M12 X 1.25 X 35 CL8.8 hex bolts and four conical washers. These fasteners attach the hitch to the existing weldnuts on the vehicle frame rails. A separate fastener kit 24815F is available if additional fasteners are needed.
If tie-down brackets are present on the vehicle frame rail, they must be removed before installation. Return the bolts and tie-down bracket to the vehicle owner.
1. If present, remove the tie-down brackets from the vehicle frame rail and return bolts and bracket to the owner. 2. Raise the hitch into position and install the four fasteners (M12 X 1.25 X 35 CL8.8 hex bolts with conical washers) as shown in the diagram. 3. Tighten all fasteners with a torque wrench to 68 Lb.-Ft. (92 N*M).
All M12 CL8.8 fasteners must be tightened to 68 Lb.-Ft. (92 N*M) using a torque wrench.
The hitch assembly itself can be installed without a drawbar. However, a drawbar kit (part number 3593) is required for towing and is sold separately. The drawbar must be used in the RISE position only.
The drawbar must be used in the RISE position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted and that no fasteners have loosened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
The 24815 fits Scion xB (excluding Release Series) and Scion tC models.
Maximum gross trailer weight is 2000 lb (908 kg); maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You need 17mm and 19mm wrenches and a torque wrench. All fasteners must be tightened to 68 Lb.-Ft. (92 N*M).
If tie-down brackets are present on the frame rail, they must be removed before installation.
The manual does not specify whether professional installation is required. Contact the manufacturer or an authorized installer for guidance.
The drawbar must be used in the RISE position only.
