Draw-Tite Hardware Kit For Class 1 Trailer Hitch, 1-1/4 Inch 24952 For 2017-2018 Toyota Corolla iM Draw-tite$39.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2016 Scion iM
Confirmed to Fit
2017 - 2018 Toyota Corolla iM
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

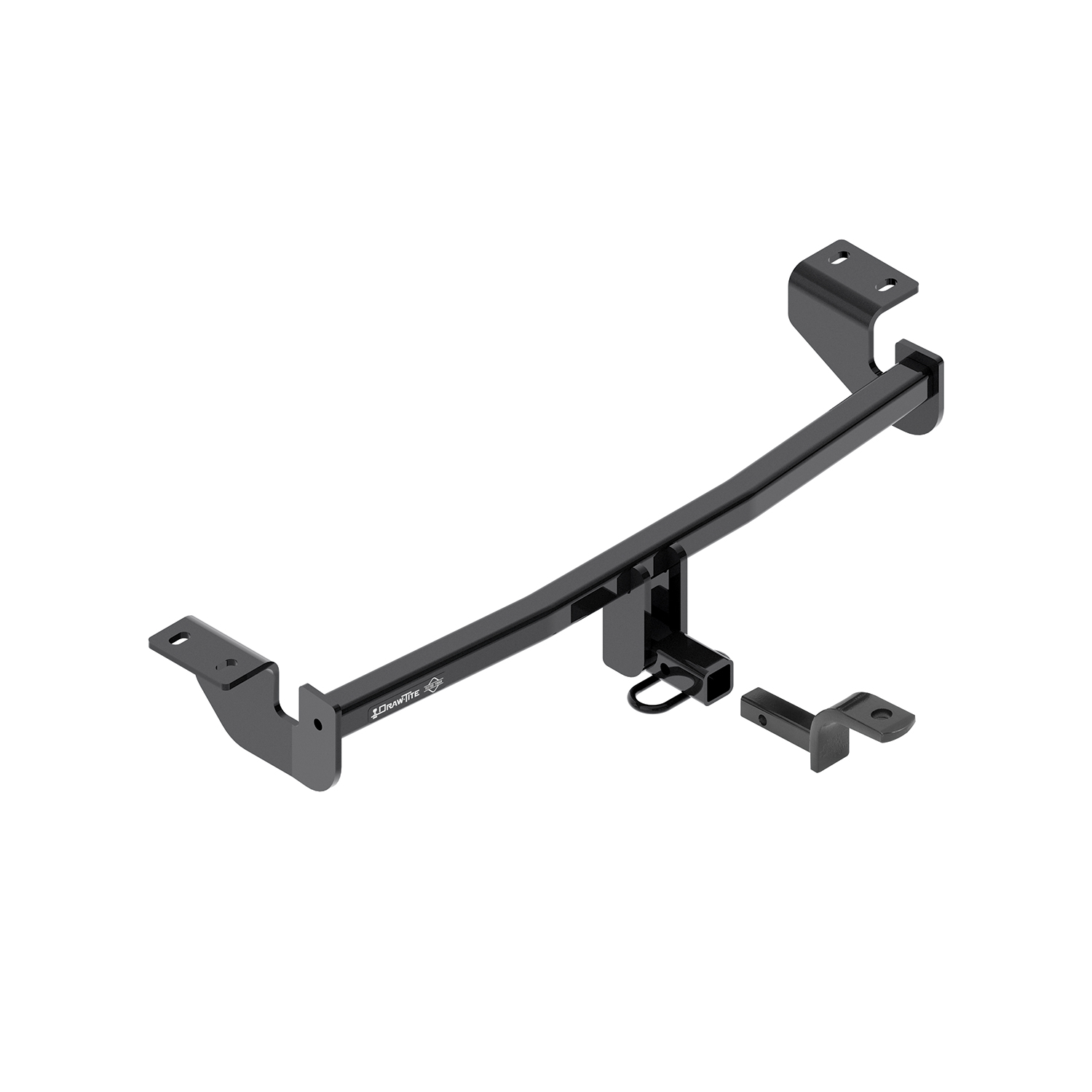

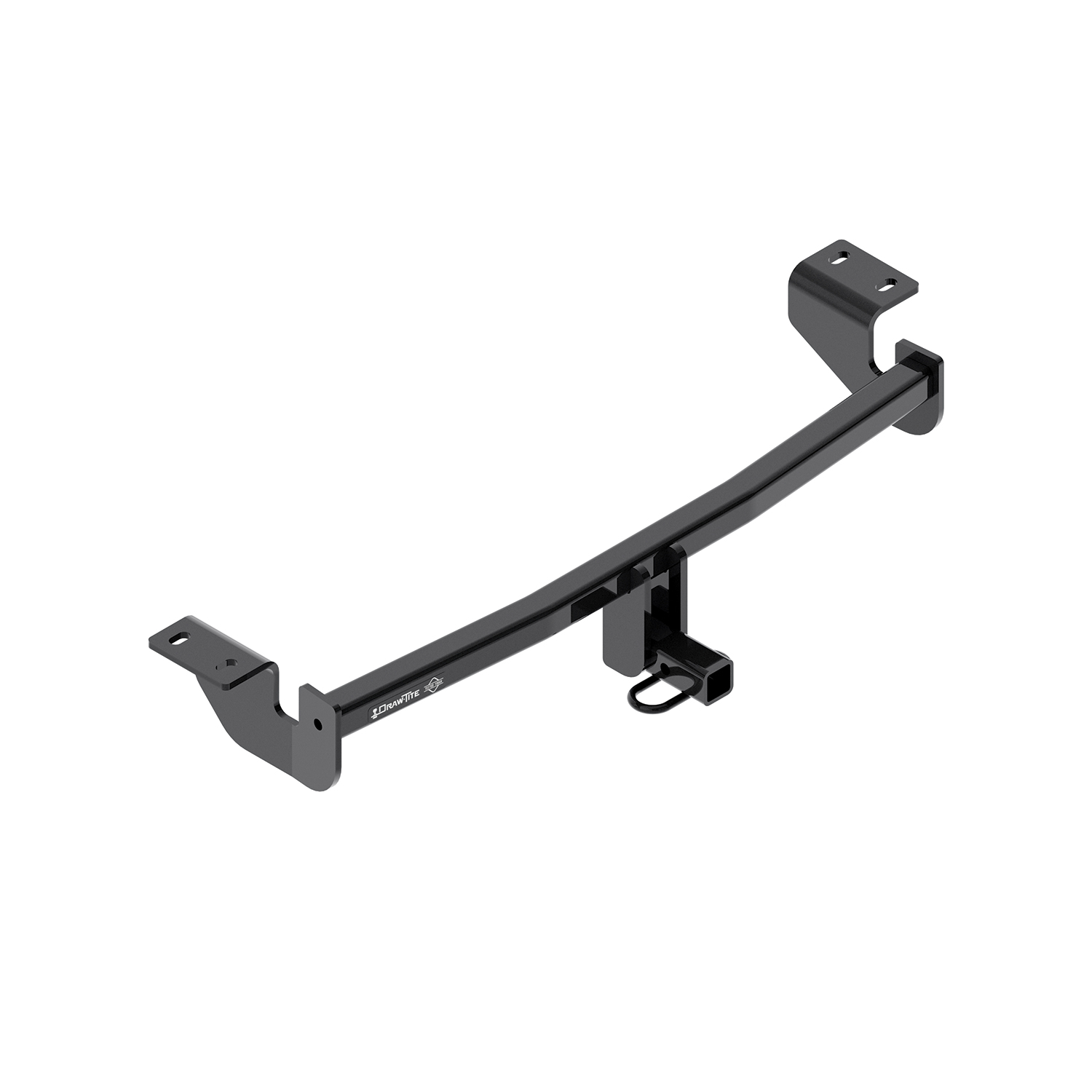

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24952 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 20.55 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 | Scion iM | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2017 - 2018 | Toyota Corolla iM | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Scion iM, Toyota Corolla iM 24952 (Part #DT24952) fits the following vehicles: 2016 Scion iM; 2017-2018 Toyota Corolla iM. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Scion iM, Toyota Corolla iM 24952 (Part #DT24952) fits 2016 Scion iM models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Scion iM, Toyota Corolla iM 24952 (Part #DT24952) is designed to fit the 2016 Scion iM.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Scion iM, Toyota Corolla iM 24952 (Part #DT24952) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Cequent 24952 hitch is designed for 2016 Scion iM and 2017-current Toyota Corolla iM models only. Visit the Cequent website for the most up-to-date information regarding application years and trim levels, as fitment may vary.
The Cequent 24952 is a weight-carrying hitch with a maximum gross trailer weight of 2000 lb. (908 kg) and a maximum tongue weight of 200 lb. (90.8 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, torque wrench, safety glasses, 12mm socket, 17mm socket, 19mm socket, 6-inch socket extension, panel removal tool, utility knife, exhaust removal pliers, and a marker. The manual notes that if you do not feel comfortable performing the installation yourself or need assistance, you should contact a professional installer.
You do not need to fully remove the exhaust, but you must lower it temporarily. Use exhaust removal pliers to lower the exhaust down from the rubber isolator on the passenger side, and use a stand to keep the muffler from getting damaged. The exhaust is reinstalled after the hitch is mounted.
You must remove the bottom appearance panel and the factory tow hook from the driver side. The bottom appearance panel is held by 3 plastic nuts (loosened with a 12mm socket) and 5 rivets (removed with a panel removal tool), plus 1 rivet from the bottom fascia tab on the passenger side. The tow hook is held by 2 bolts (removed with a 17mm socket) and should be returned to the vehicle owner.
Raise the hitch into position and slide it over the passenger side exhaust first. Loosely install the M12 bolts and conical washers to the hitch before final tightening. The conical washer teeth side must be oriented against the hitch.
Tighten the M12 fasteners with a torque wrench to 76 Lb.-Ft. (103 N·M). Proper torque is essential to keep the hitch secure to the vehicle when towing. Check all fasteners periodically to ensure they remain tight.
The fastener kit 24952F includes 4 M12 bolts (1.25 x 30mm, Class 8.8) and 4 conical washers (1/2 inch). These fasteners attach the hitch to the frame weldnuts on both sides of the vehicle.
Yes. After the hitch is mounted and torqued, you must trim the bottom appearance panel as shown in Figure 3 of the manual. The trim dimensions are 3.0 inches and 5.0 inches. After trimming, reinstall the bottom appearance panel and exhaust.
The Cequent 24952 is a weight-carrying hitch only. Weight-distributing hitches are not supported by this product (listed as N/A in the manual). Use only the weight-carrying configuration with the maximum ratings of 2000 lb. (908 kg) GVWR and 200 lb. (90.8 kg) tongue weight.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce your towing speed and ensure your trailer is loaded heavier in front and within the hitch weight limits.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch limits (2000 lb. GVWR, 200 lb. tongue weight). Always read and follow all warnings and instructions for your vehicle and other accessories before use.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes that periodic verification of fastener tightness is essential for safe towing.
The manual does not mention disconnecting the battery. No electrical work is required for this hitch installation.
No drilling is required. The hitch bolts to existing frame weldnuts. The only modification is trimming the bottom appearance panel with a utility knife as shown in Figure 3 (3.0 inches and 5.0 inches).
No. The manual explicitly states: DO NOT cut, weld or modify this receiver. Any cutting or welding will void the product and compromise safety.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not attempt to repair a damaged hitch. If the hitch is removed for any reason, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Return the factory tow hook to the vehicle owner. It is removed during installation but should not be discarded.
Yes, the Cequent 24952 is designed for 2017-current Toyota Corolla iM models. Check the Cequent website for the most current fitment information.
Maximum gross trailer weight is 2000 lb. (908 kg) and maximum tongue weight is 200 lb. (90.8 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Ratchet, torque wrench, safety glasses, 12mm/17mm/19mm sockets, 6-inch socket extension, panel removal tool, utility knife, exhaust removal pliers, and marker.
You must lower the exhaust temporarily using exhaust removal pliers, but full removal is not required. It is reinstalled after the hitch is mounted.
Torque M12 fasteners to 76 Lb.-Ft. (103 N·M) using a torque wrench.
No drilling is required. The hitch bolts to existing frame weldnuts. Only the bottom appearance panel requires trimming with a utility knife.
Take your foot off the gas, hold the steering wheel steady, do not brake, and do not speed up. Reduce your towing speed and ensure proper trailer loading.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
Use a torque wrench to retighten the M12 fasteners to 76 Lb.-Ft. (103 N·M). The manual emphasizes that proper torque is essential to keep the hitch secure to the vehicle when towing. Check all fasteners periodically to ensure they remain tight.
Ensure the exhaust has been lowered completely from the rubber isolator on the passenger side using exhaust removal pliers. The hitch must be slid over the passenger side exhaust first. If the exhaust is not lowered sufficiently, the hitch cannot be positioned correctly.
