Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

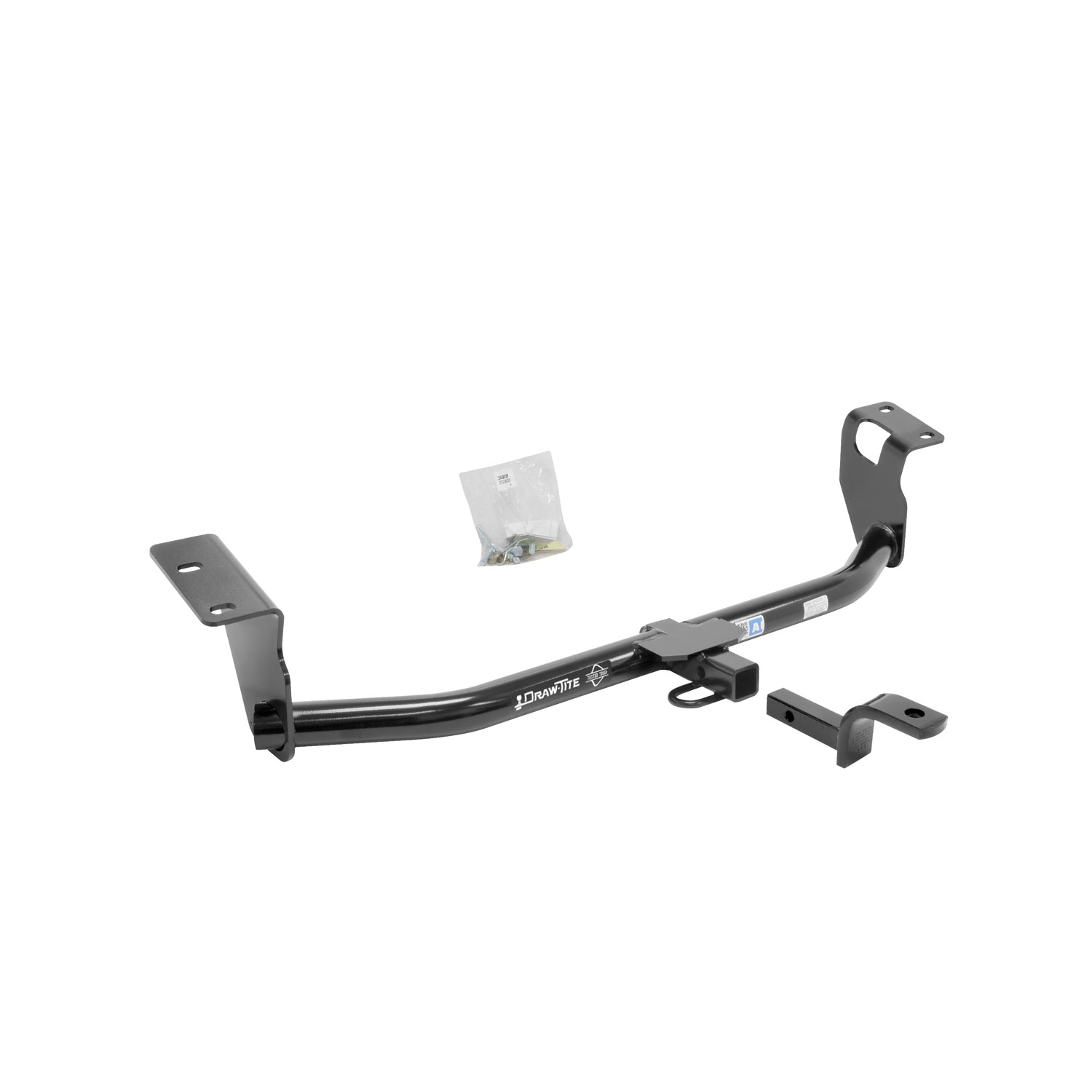

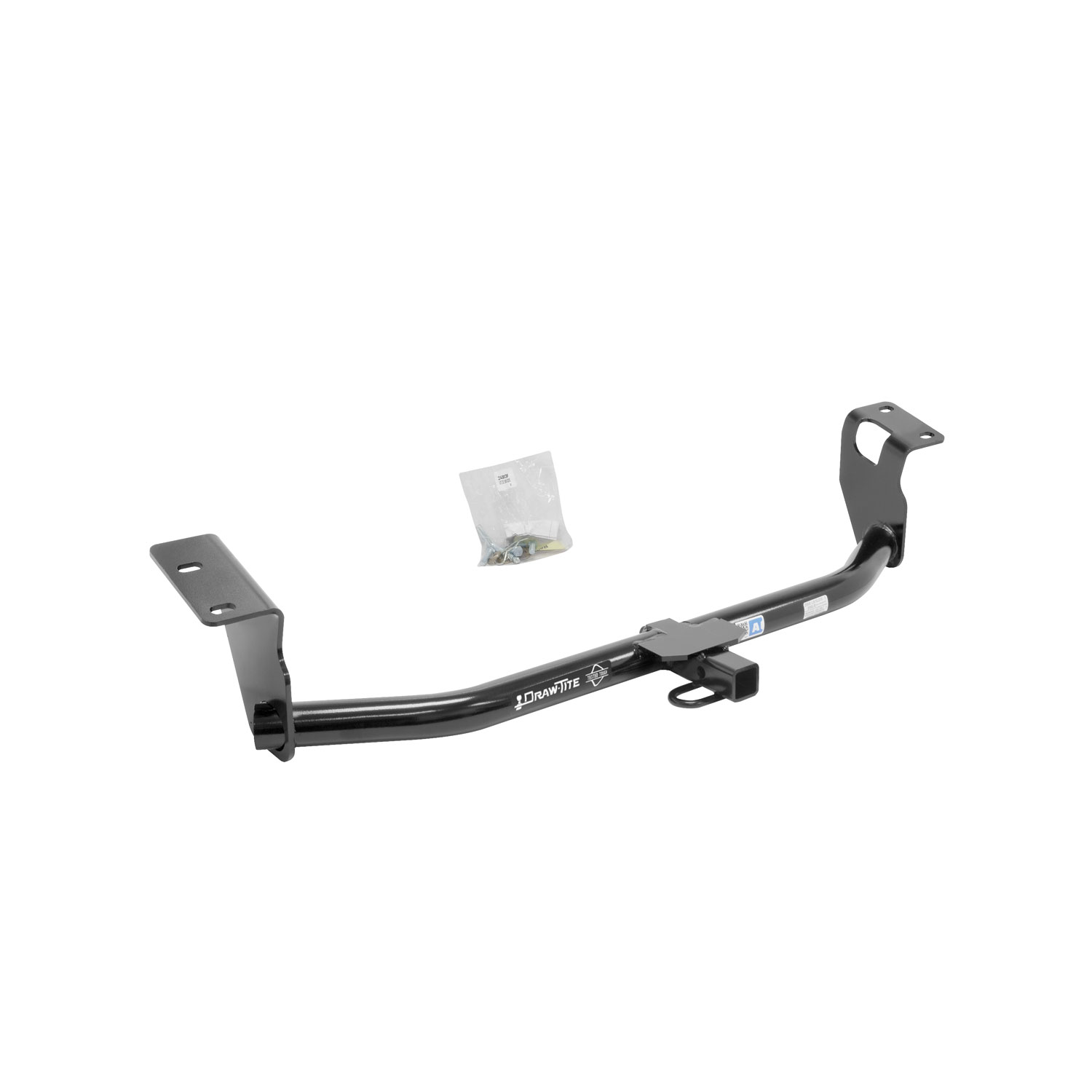

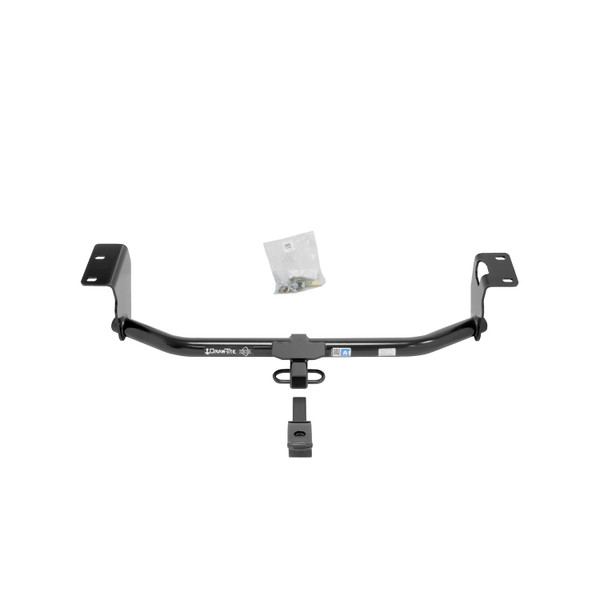

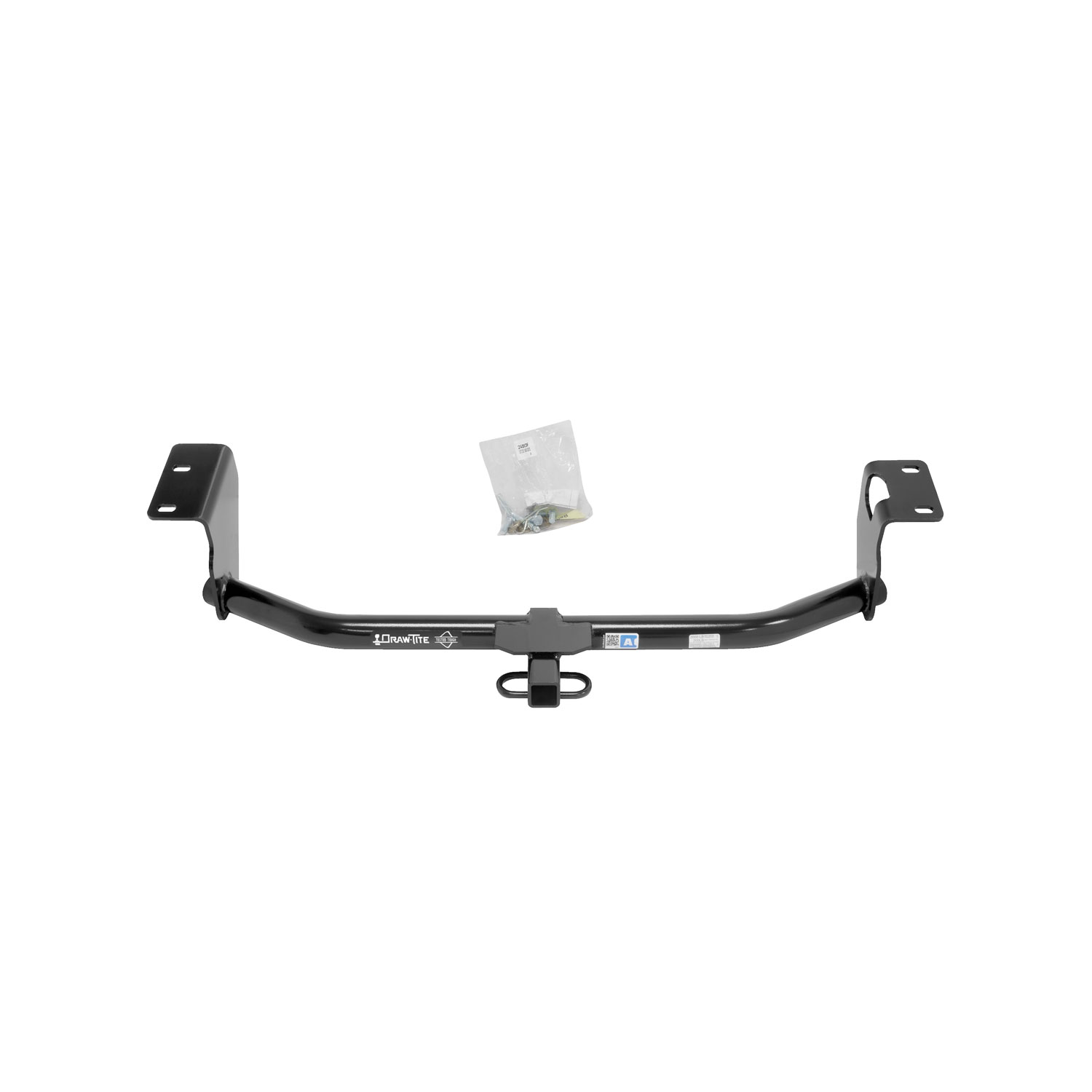

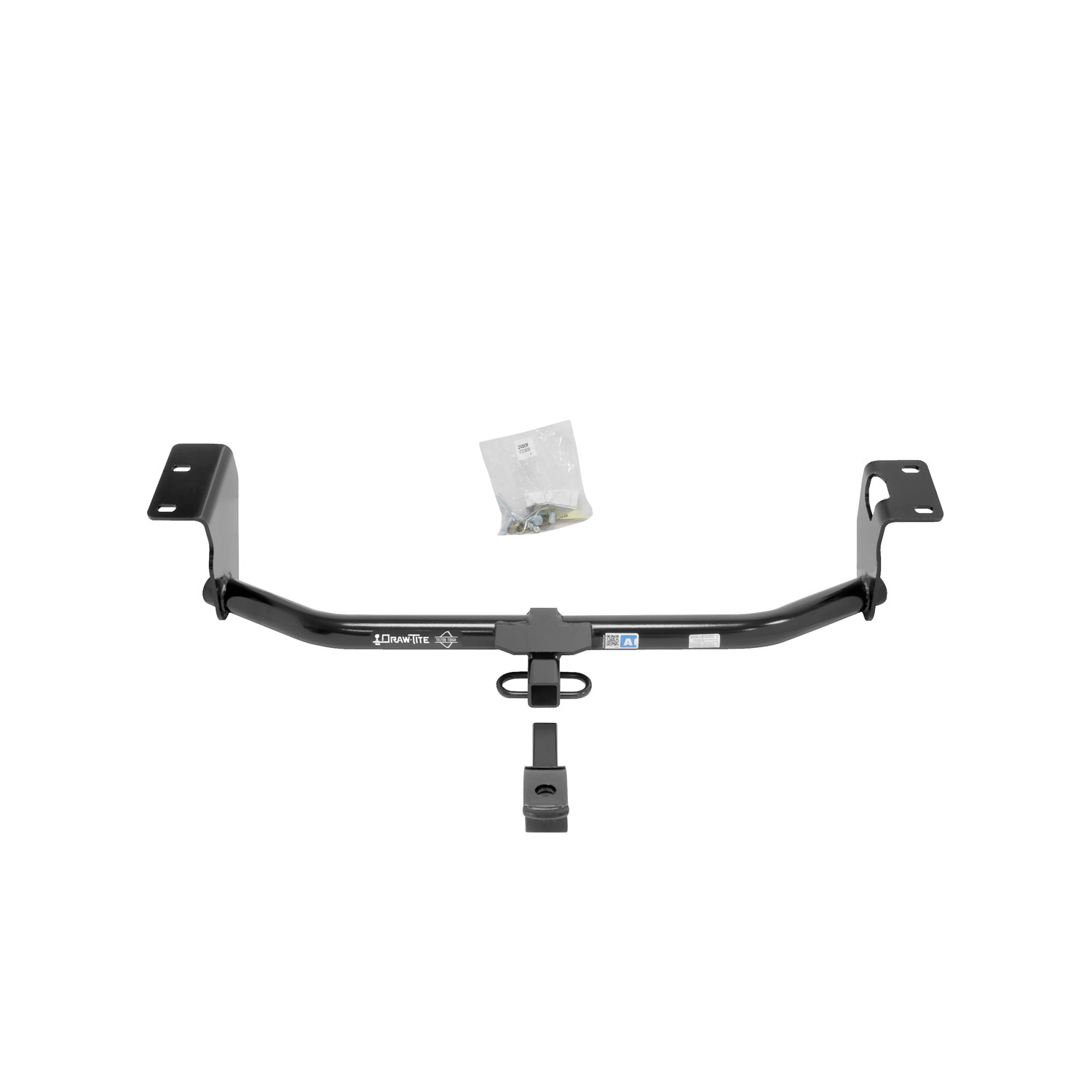

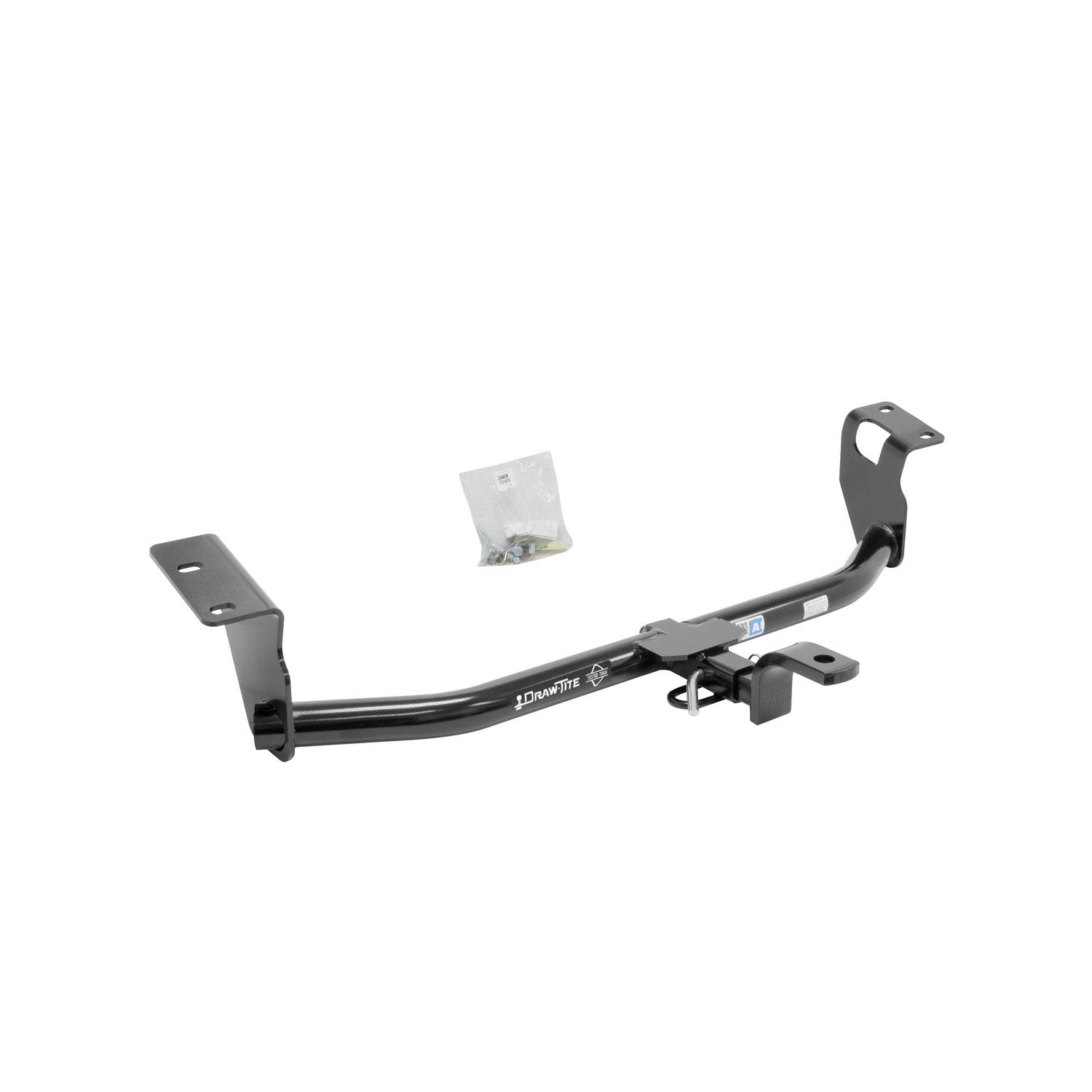

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24913 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 22.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2003 - 2013 | Toyota Corolla | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2014 - 2019 | Toyota Corolla | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Corolla 24913 (Part #DT24913) fits 2003-2019 Toyota Corolla models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Corolla 24913 (Part #DT24913) is designed to fit the 2003-2019 Toyota Corolla.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Corolla 24913 (Part #DT24913) fits the following vehicles: 2003-2019 Toyota Corolla. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Corolla 24913 (Part #DT24913) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual shows fascia variants for 2003-08, 2009, 2014, and 2015 Toyota Corolla models, indicating compatibility with these years. However, the manual does not explicitly state the complete range of compatible model years. Contact the manufacturer or your retailer to confirm fitment for your specific Corolla generation.
The maximum gross trailer weight is 2000 LB (908 Kg) and the maximum tongue weight is 200 LB (90.8 Kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need 17mm and 19mm wrenches and a torque wrench. The hitch uses existing weldnuts on the vehicle frame rails, so no additional fastening hardware is required beyond what is included or already present on the vehicle.
Only if your vehicle has an appearance panel covering the trunk pan. The manual states: 'For vehicles with appearance panel: Remove appearance panel which covers the trunk pan.' If your vehicle does not have this panel, you can proceed directly to hitch installation. The appearance panel and its fasteners should be returned to the vehicle owner after installation.
The plastic rivets fasten the fascia tabs to the vehicle. To remove them, use a screwdriver to remove the center of each rivet. The manual specifies there are 2 rivets of 10mm size. These rivets must be reinstalled after hitch installation.
If tie-down brackets are present on the vehicle frame rail, they must be removed before installing the hitch. Return the bolts and tie-down bracket to the vehicle owner. The manual states this as a conditional step: 'If present, remove the tie down brackets from vehicle frame rail.'
1. If present, remove tie-down brackets from the vehicle frame rail and return them to the owner. 2. Remove the appearance panel (if equipped) and the 2 plastic 10mm rivets fastening the fascia tabs. 3. Raise the hitch into position and install the 4 M12 X 1.25 X 35 CL8.8 hex bolts and 4 conical washers using the existing weldnuts on the frame rails. 4. Tighten all fasteners with a torque wrench to 68 Lb.-Ft. (92 N*M). 5. Reinstall the plastic rivets and appearance panel.
All M12 CL8.8 fasteners must be tightened with a torque wrench to 68 Lb.-Ft. (92 N*M). This applies to all 4 hex bolts used to attach the hitch to the vehicle frame.

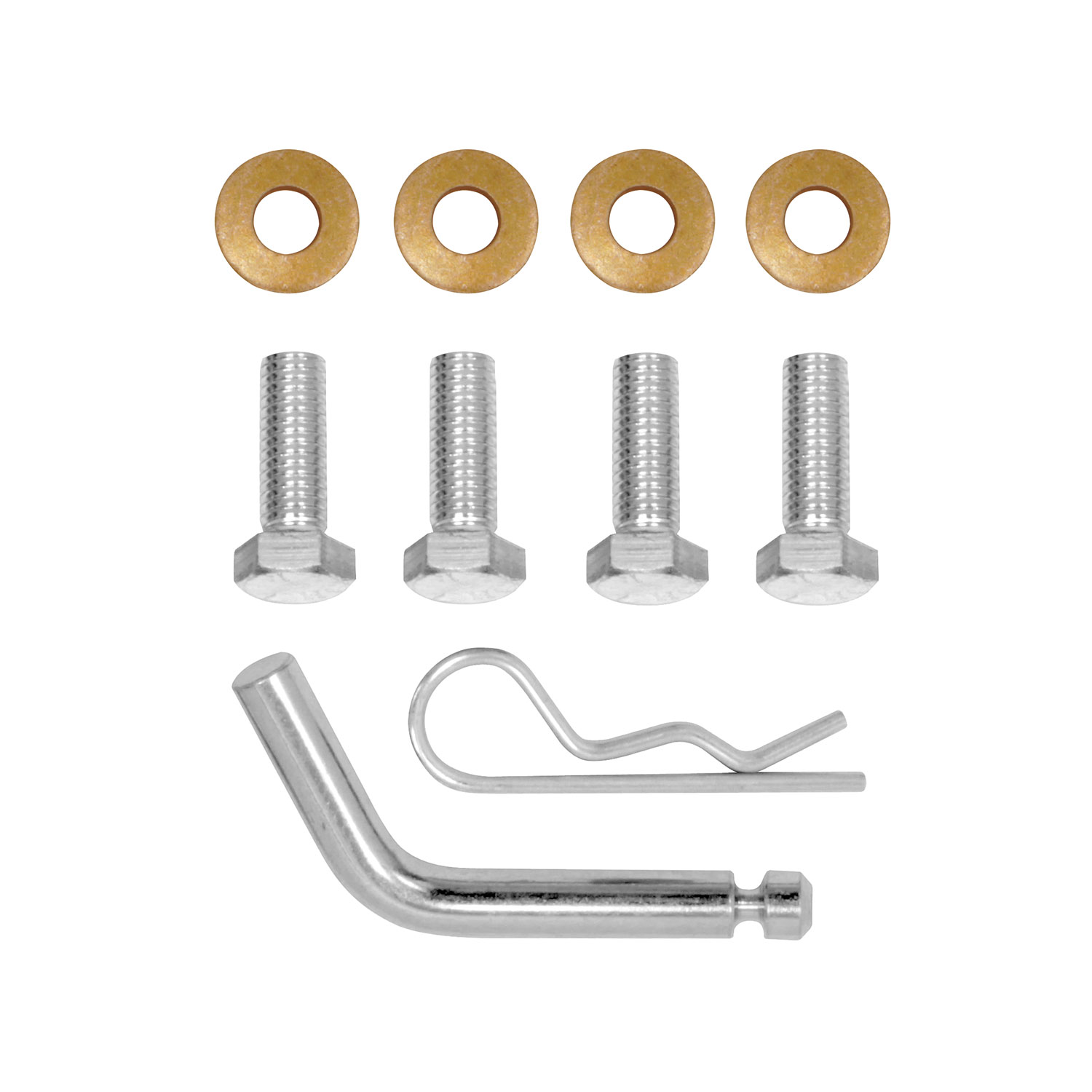

The hitch uses 4 M12 X 1.25 X 35 CL8.8 hex bolts and 4 conical washers. These fasteners attach to existing weldnuts on the vehicle frame rails. An optional Fastener Kit 24913F is available separately if additional fasteners are needed.
The Drawbar Kit 3593 is an optional accessory sold separately. The manual lists it as an available kit but does not specify whether it is required for basic hitch operation. Contact the manufacturer or your retailer to determine if this kit is necessary for your application.
The drawbar must be used in the RISE position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes this as an ongoing maintenance requirement, not just a one-time post-installation check.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This is important for protecting the vehicle's interior and preventing damage.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using damaged components.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch, as this creates safety hazards and may damage the vehicle.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York V.E.S.C. Regulation V-5 and SAE J684.
The wiring access location is at PC3, 4. However, the manual does not provide detailed instructions on wiring connections or routing. Consult the manufacturer or a professional installer for specific wiring guidance.
The hitch is designed for Toyota Corolla models 2003-2015 based on available fascia variants. Confirm your specific model year with the manufacturer or retailer before purchasing.
You need 17mm and 19mm wrenches and a torque wrench. No drilling or cutting is required.
If present, remove tie-down brackets from the frame rail. If your vehicle has an appearance panel covering the trunk pan, remove it and the 2 plastic 10mm rivets fastening the fascia tabs. Reinstall these after hitch installation.
Tighten all M12 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 Kg) and maximum tongue weight is 200 LB (90.8 Kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
The drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
