Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

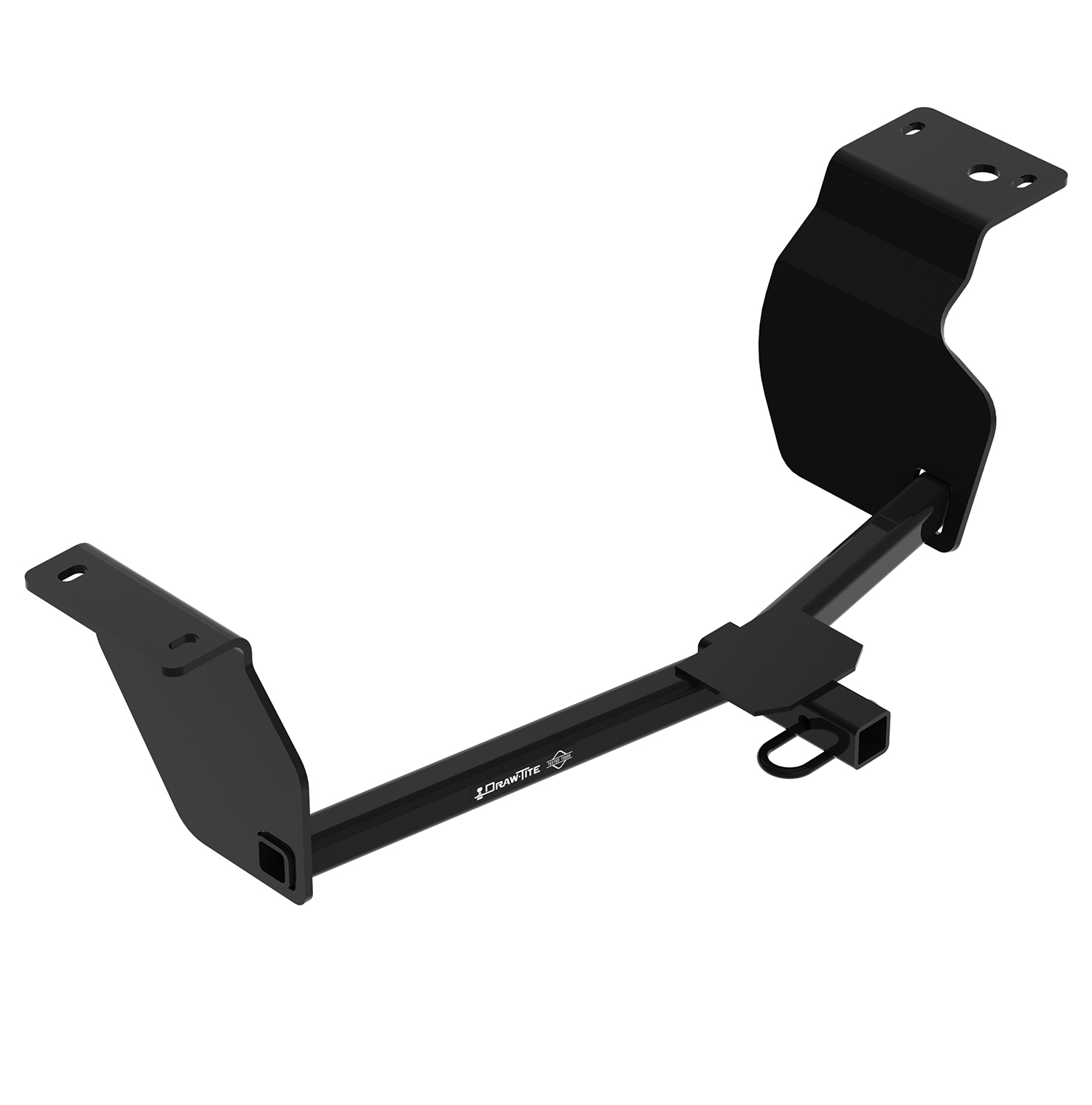

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24983 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 29.45 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2026 | Toyota Corolla | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Corolla 24983 (Part #DT24983) is designed to fit the 2020-2026 Toyota Corolla.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Corolla 24983 (Part #DT24983) fits the following vehicles: 2020-2026 Toyota Corolla. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Corolla 24983 (Part #DT24983) fits 2020-2026 Toyota Corolla models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Corolla 24983 (Part #DT24983) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, hitch 24983 fits 2020–Current Toyota Corolla models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels, as compatibility may vary.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Fastener kit 24983N includes: 4× carriage bolts 7/16"-14 × 1.50 GR5, 4× spacers (.250 × .875 × 3.00, P/N HE-2370-000), 4× conical washers 7/16" (P/N 01292007), 4× hex nuts 7/16"-14 GR2, and 4× fish wires 7/16" (P/N 5481).
Required tools: ratchet, torque wrench, safety glasses, 13/16" socket, 10mm socket, socket extension, 1" holesaw drill, exhaust removal pliers, tin snips, marker, scraper, and tape measure.
Yes. You must remove the 3 rearmost rubber exhaust hangers to lower the exhaust. Be sure to support the exhaust to avoid damage. After installation, reinstall the 3 exhaust hangers to return the exhaust to its original position.
Yes. You must drill a 1" access/attachment hole in the frame using a 1" holesaw. Do not use a torch to cut this hole. The drilling location is marked by aligning the rearmost hole in the hitch bracket with the rear attachment hole in the frame rail.
Yes. You must trim the heat shield in the area where the hitch contacts the frame rail. The trim area is approximately 7" × 3" (see Figure 2). First, remove the heat shield nuts using a 10mm socket, then trim it, and reinstall it after hitch installation.
All fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Install conical washers with the teeth side facing toward the hitch. This is critical for proper fastener seating and load distribution.
The fish wire technique (shown in Figures 3 and 4) is used to route fasteners through the frame rail access hole. First, use the forward fish wire technique to install the rearmost fastener through the drilled access hole on each side, then use the reverse fish wire technique to install the forward fastener on each side. Leave fish wires attached until the hitch is positioned and ready for final assembly.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Support the exhaust properly when lowering it to avoid damage. Do not use a torch to cut access or attachment holes. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Check that all fasteners and the ball are properly tightened. Check the hitch frequently to ensure all fasteners remain tight during use. If the hitch is damaged, it must be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to maintain secure mounting during towing.
No. Hitch 24983 is a weight-carrying hitch only. Weight-distributing capability is not available for this model (marked as 'X' in the specifications table).
The authorized drawbar is part number 3593 (sold separately). The drawbar must be used in the RISE position only.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability during towing.
Yes, hitch 24983 is designed for 2020–Current Toyota Corolla. Check the Horizon Global website for specific trim level compatibility.
Maximum 2000 lb gross trailer weight and 200 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Ratchet, torque wrench, safety glasses, 13/16" and 10mm sockets, 1" holesaw, exhaust pliers, tin snips, marker, scraper, and tape measure.
Yes. Trim the heat shield in the area where the hitch contacts the frame (approximately 7" × 3"). Remove it first using a 10mm socket, trim, and reinstall.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Check all fasteners and retighten them to 50 Lb.-Ft. (68 N·M) using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners remain properly tightened during use. Loose fasteners can compromise hitch security and safety.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair or weld a damaged hitch receiver, as the manual explicitly states 'DO NOT cut, weld or modify this receiver.' Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com for replacement options.
