Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

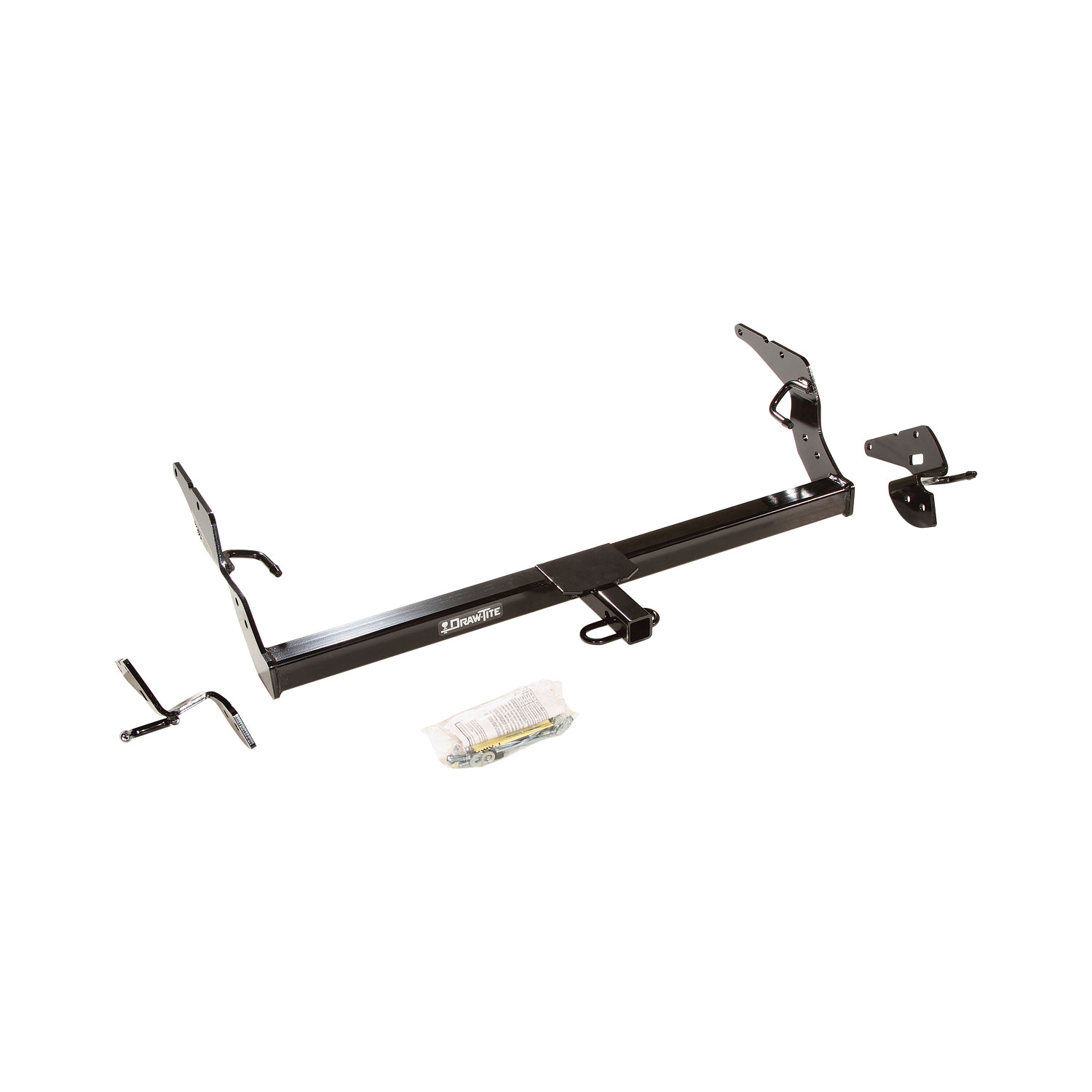

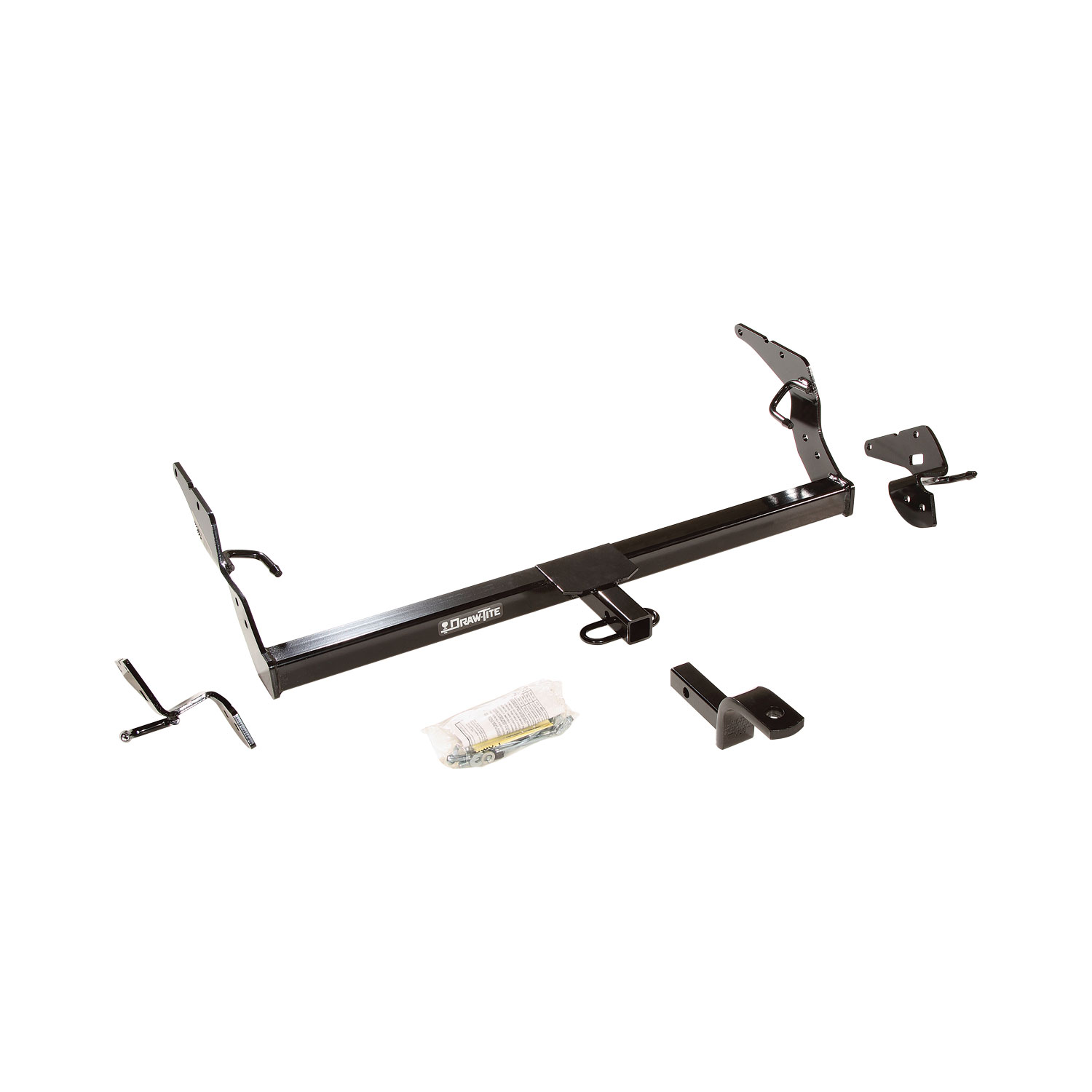

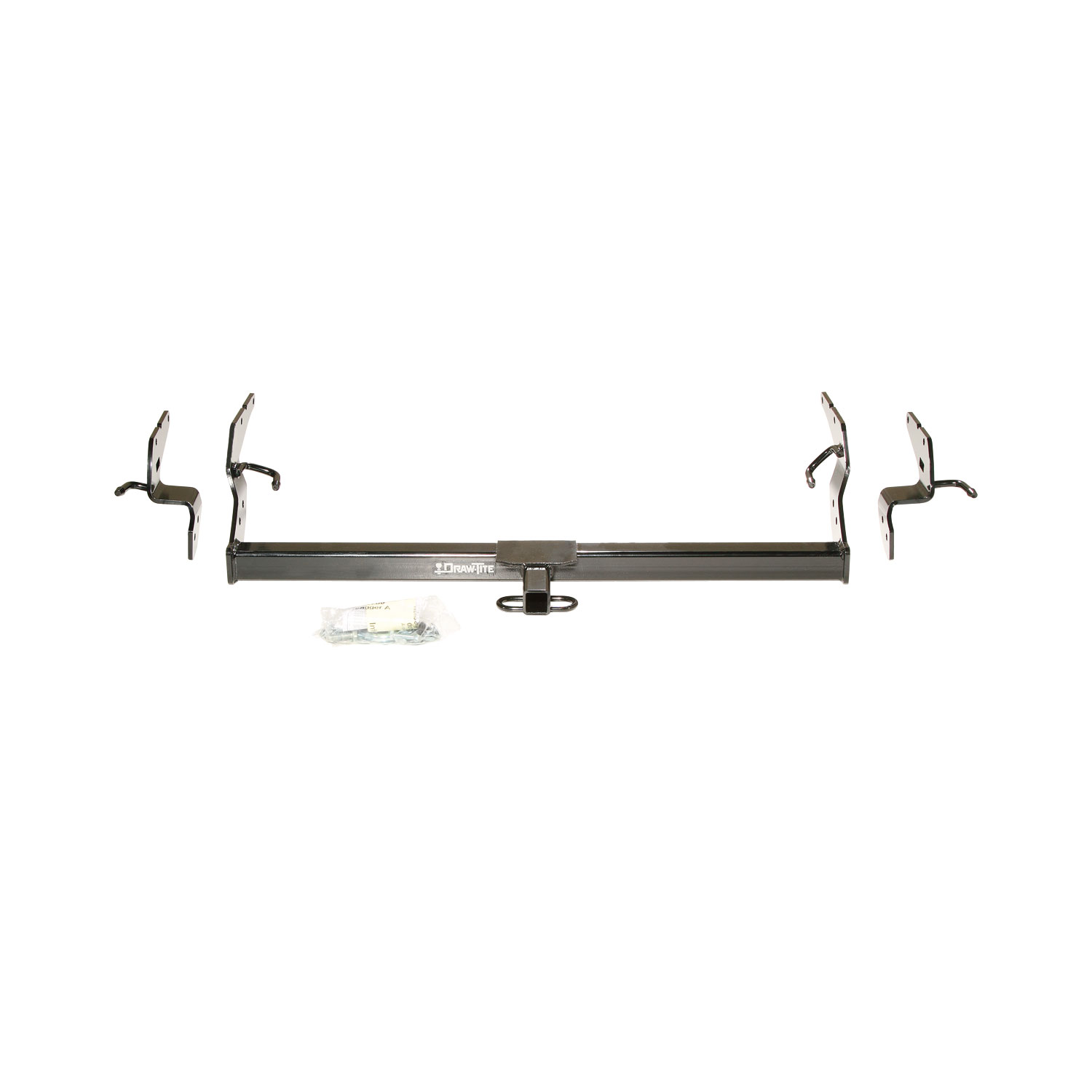

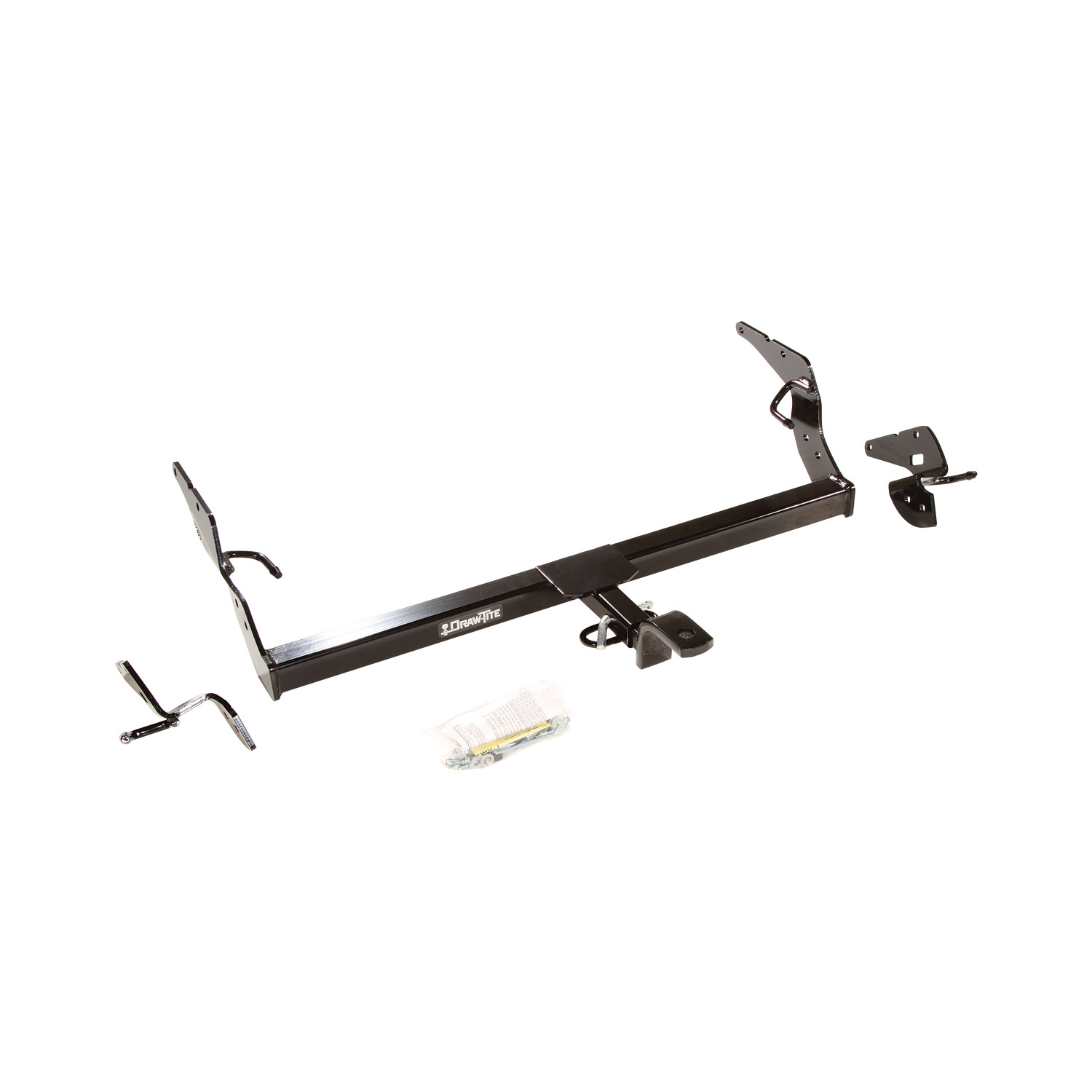

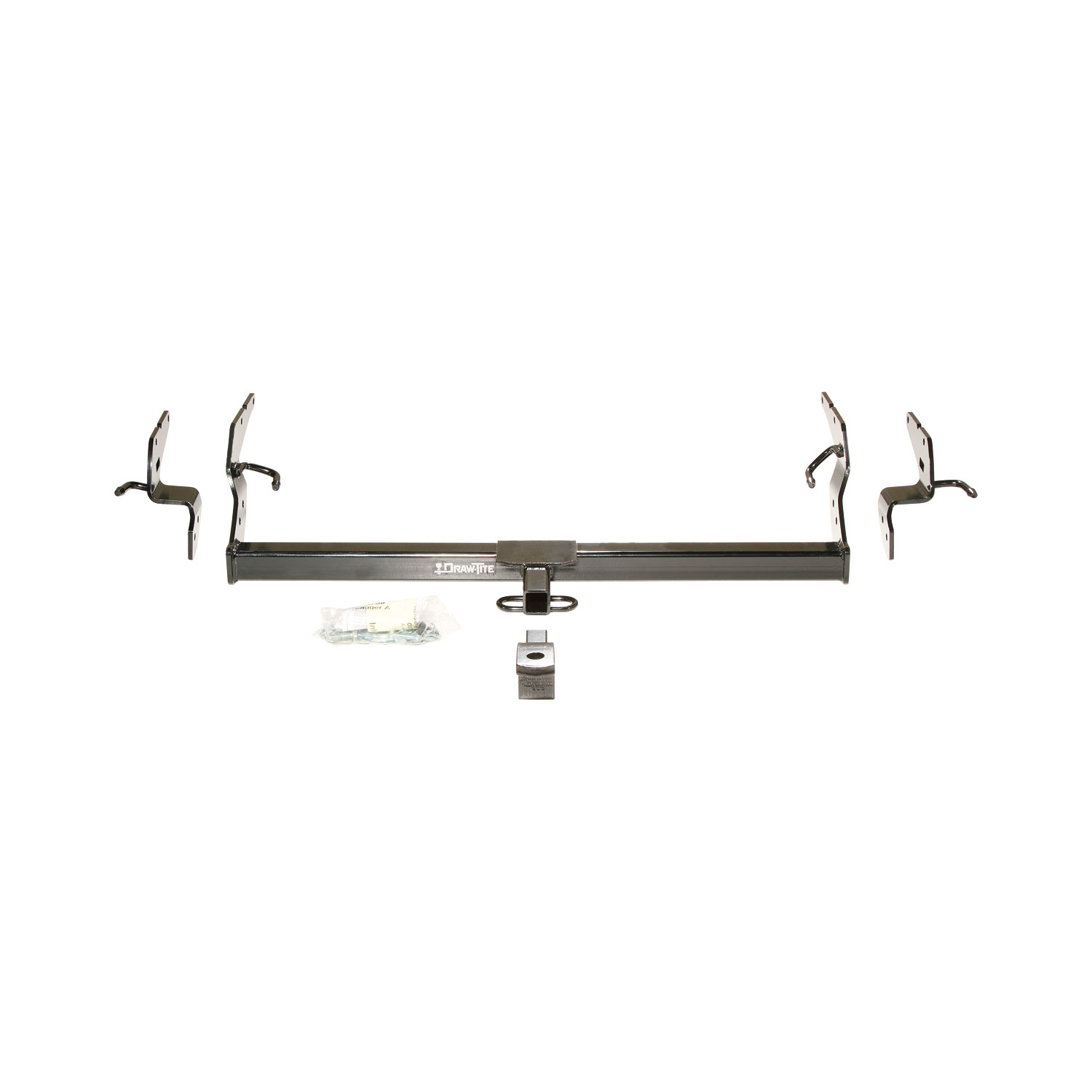

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24870 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 32.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2012 | Toyota Avalon | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Avalon 24870 (Part #DT24870) fits 2005-2012 Toyota Avalon models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Avalon 24870 (Part #DT24870) fits the following vehicles: 2005-2012 Toyota Avalon. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Avalon 24870 (Part #DT24870) is designed to fit the 2005-2012 Toyota Avalon.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Avalon 24870 (Part #DT24870) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The kit includes the hitch assembly (part 24870) and frame bracket supports. Hardware is provided separately in Fastener Kit 24870F. The Drawbar Kit 3593 is sold separately. The manual does not itemize all components included in the base kit, so contact the manufacturer or supplier for a complete parts list.
No. The installation procedure requires lowering the mufflers by removing rubber isolators (2 on the driver's side, 3 on the passenger side) and removing the rear-most muffler support brackets. After hitch installation, the mufflers are raised back into position using the muffler support rods on the hitch. The hitch is designed to work with the exhaust system in this configuration.
You will need wrenches in 10mm, 13mm, and 14mm sizes, and a torque wrench. No drill bits are required. The manual does not specify whether a jack or lifting equipment is needed to support the exhaust during installation.
Fastener Kit 24870F is sold separately and must be purchased to complete the installation. The manual does not specify which fasteners are included in this kit.
The Drawbar Kit 3593 is sold separately and is optional. It is not required for the hitch to function, but if you plan to tow, you will need a drawbar. The manual specifies that the drawbar must be used in the RISE position only.
Follow these steps in order: (1) Lower mufflers by removing rubber isolators (2 on driver's side, 3 on passenger side) and support the exhaust. (2) Remove the 2 rear-most muffler support brackets (3 bolts per bracket) and return them to the customer. (3) Remove heat shields (3 screws per shield). (4) Remove tape covering weld nuts on each side of frame rails. (5) Loosely install frame bracket supports on the outboard side of frame rails. (6) Raise hitch into position and loosely install M10 bolts to hold it in place. (7) Tighten all fasteners to recommended torque. (8) Reinstall heat shields and raise mufflers back into position using muffler support rods on the hitch to reattach rubber isolators.
Loosely installing the M10 bolts (step 6) holds the hitch up in position, which eases the installation of the M8 frame bolts. Once all bolts are in place, all fasteners are then tightened to the recommended torque in step 7.
No. The Equipment Required section explicitly states 'Drill Bits: None'. The hitch uses existing weld nuts on the frame rails, so no drilling is necessary.
No. The manual explicitly states: 'Do not cut access or attachment holes with a torch.' Use appropriate cutting tools if any modifications are necessary.
Tighten all M10 fasteners with a torque wrench to 42 Lb.-Ft. (57 N·m).
Tighten all M8 fasteners with a torque wrench to 27 Lb.-Ft. (37 N·m).
The hitch uses: (j) 8× M8×1.25×30mm CL10.9 bolts; (k) 8× 5/16" lock washers; (l) 8× 5/16" flat washers; (m) 4× M10×1.50×35 CL8.8 bolts; (n) 4× 3/8" flat washers; (o) 4× 7/16" lock washers; (p) 4× M10×1.50 CL10 nuts. These fasteners are provided in Fastener Kit 24870F, sold separately.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (91 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
The drawbar must be used in the RISE position only. Do not use it in any other position.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Support the exhaust as required during muffler removal. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes this as an ongoing maintenance task, not just a one-time post-installation check.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair it. Contact the manufacturer or supplier for a replacement part.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
This hitch is designed for Toyota Avalon. Confirm your specific model year with the manufacturer or supplier before purchasing.
You need 10mm, 13mm, and 14mm wrenches and a torque wrench. No drilling is required. Fastener Kit 24870F is sold separately.
No, no drilling is required. The hitch uses existing weld nuts on the frame rails.
M10 bolts: 42 Lb.-Ft. (57 N·m). M8 bolts: 27 Lb.-Ft. (37 N·m). Use a torque wrench for all fasteners.
Maximum gross trailer weight: 2000 lb (908 kg). Maximum tongue weight: 200 lb (91 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Wear eye protection. Do not use a torch to cut holes. Support the exhaust during muffler removal. Plug all holes if the hitch is removed to prevent water and exhaust fumes from entering the vehicle.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Replace the hitch or ball if damaged.
