Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

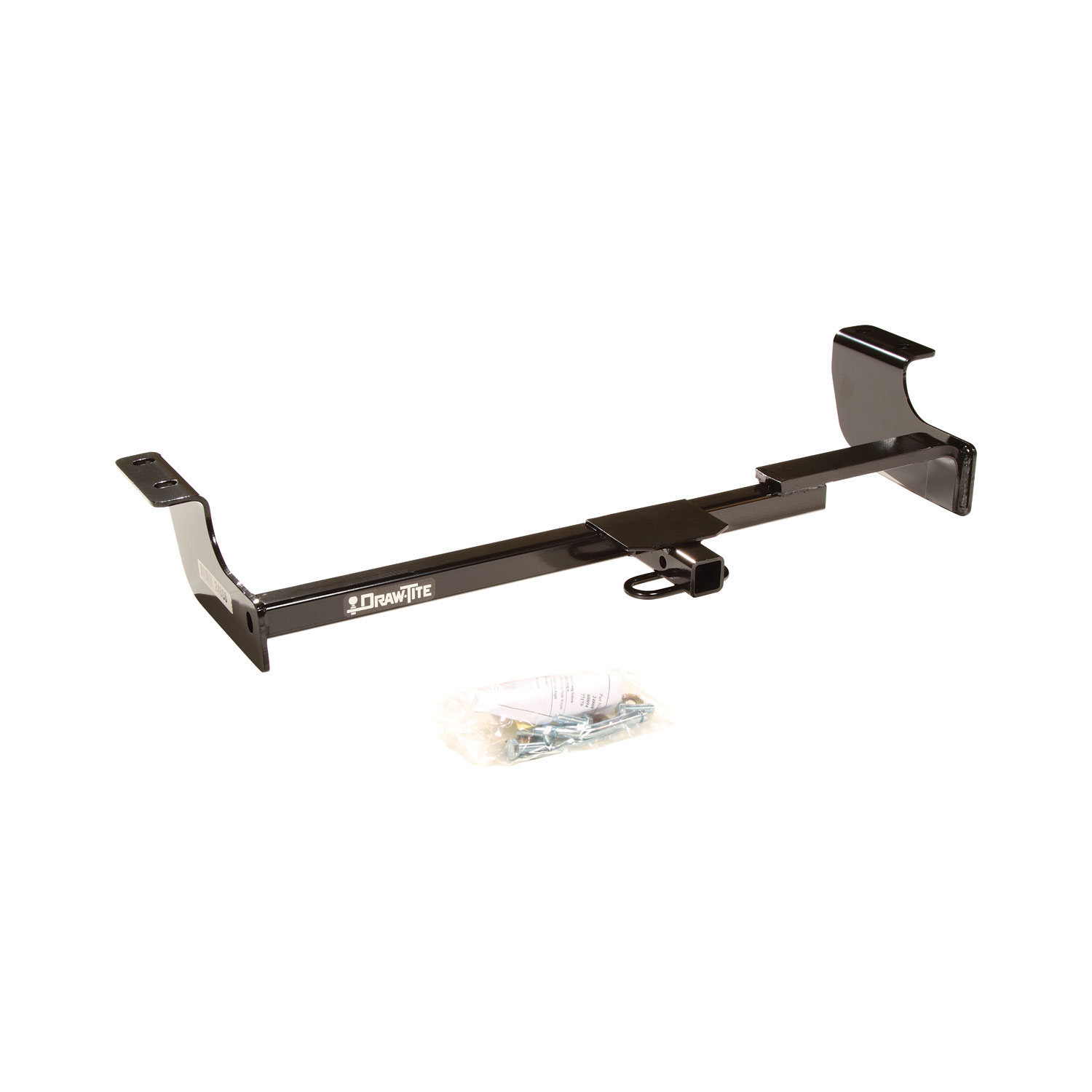

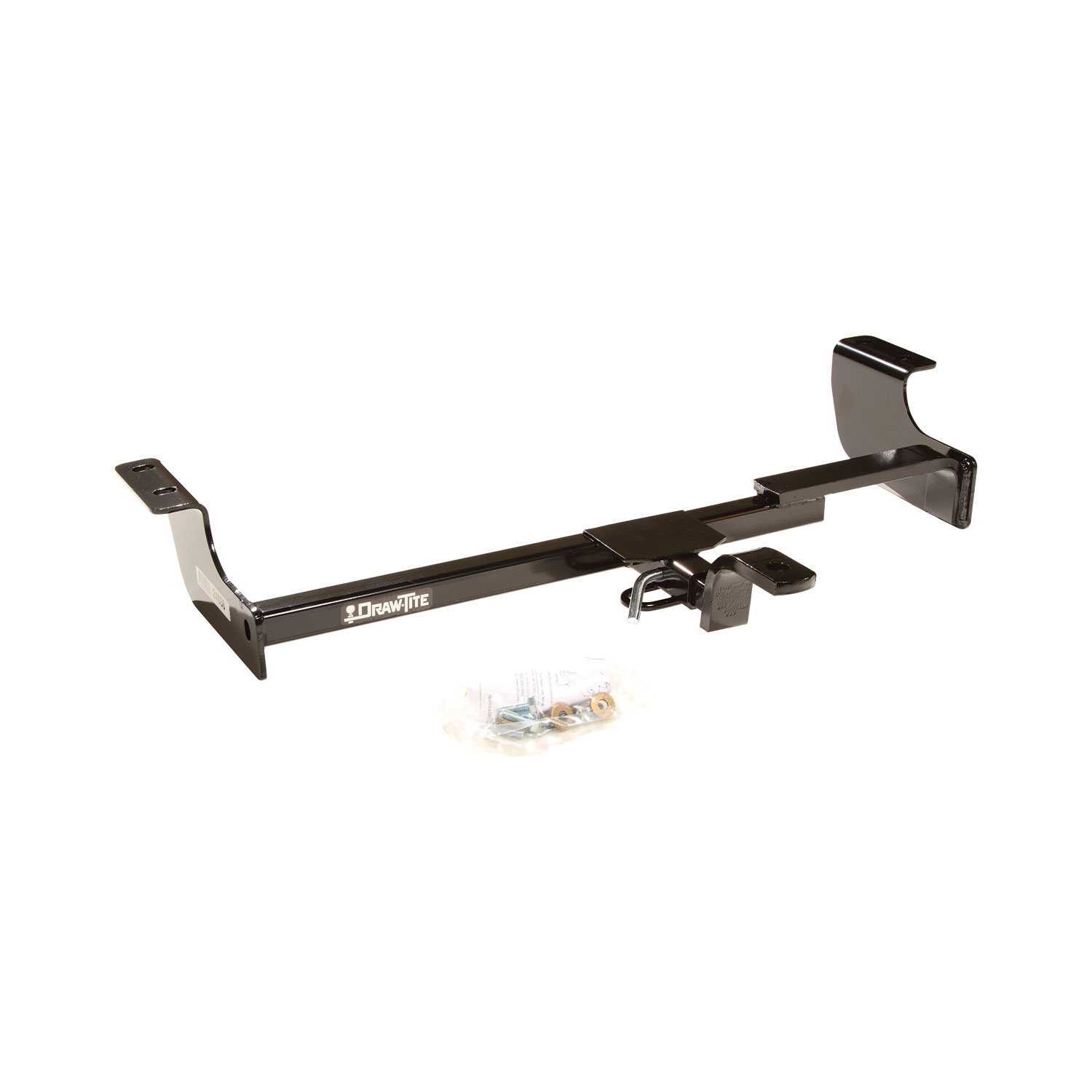

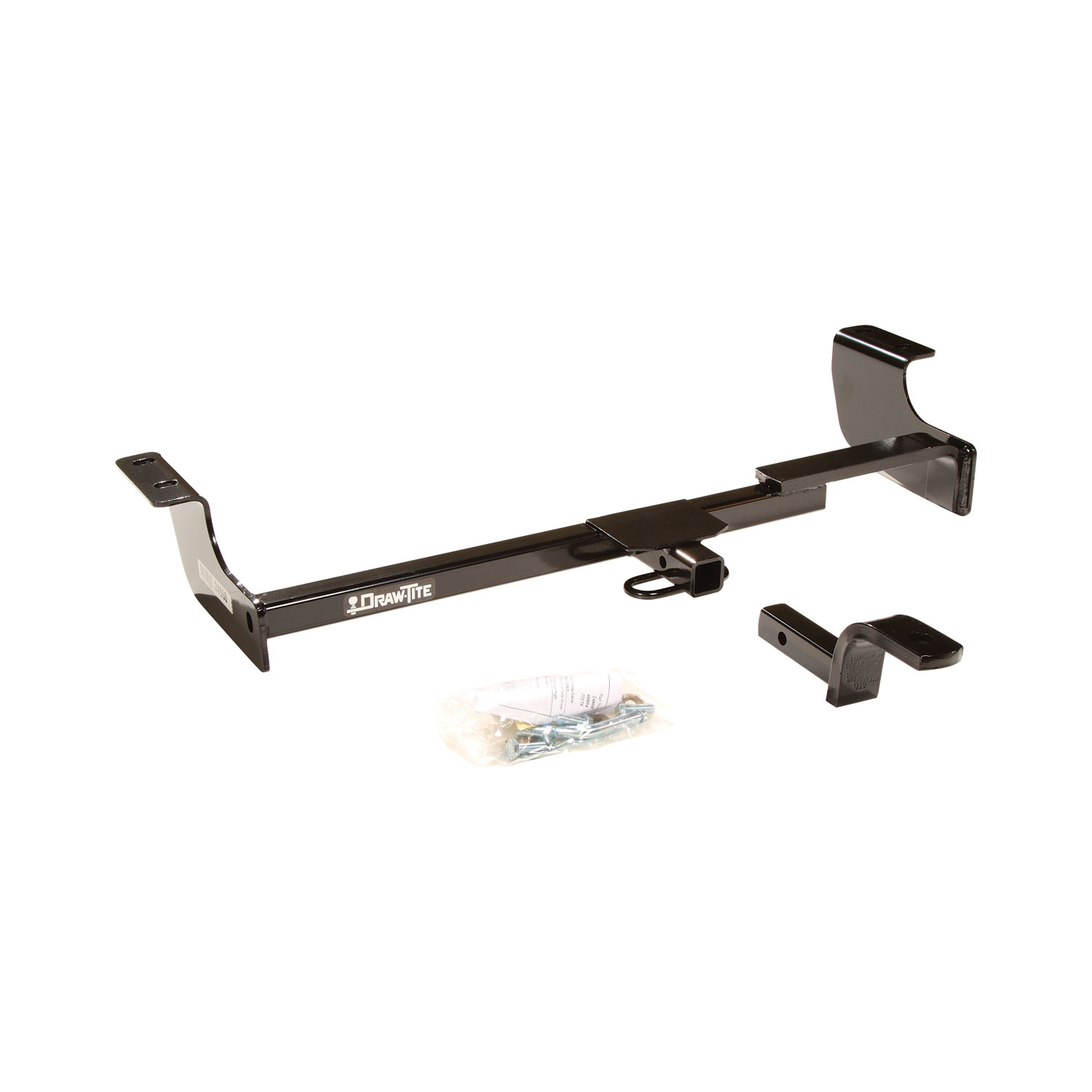

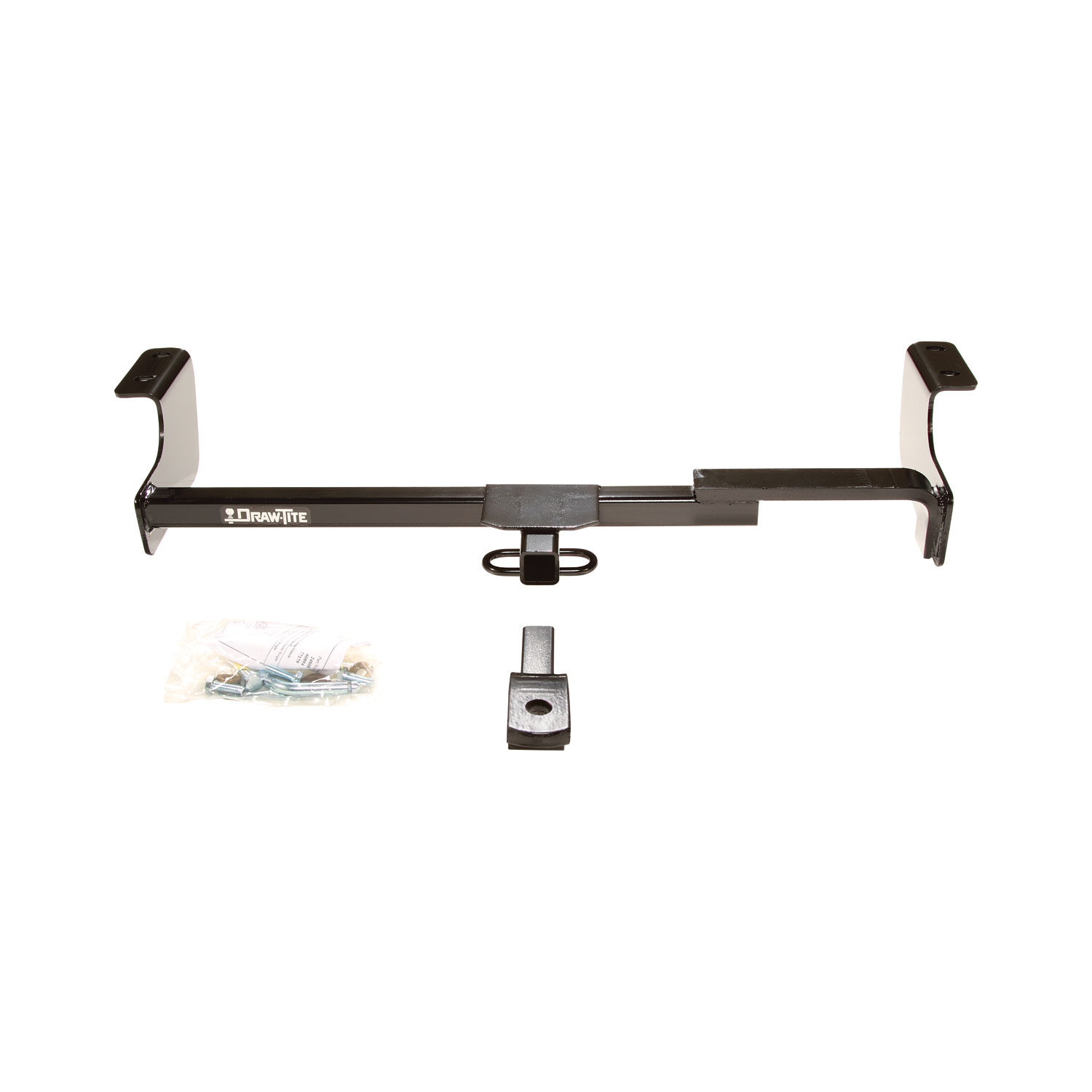

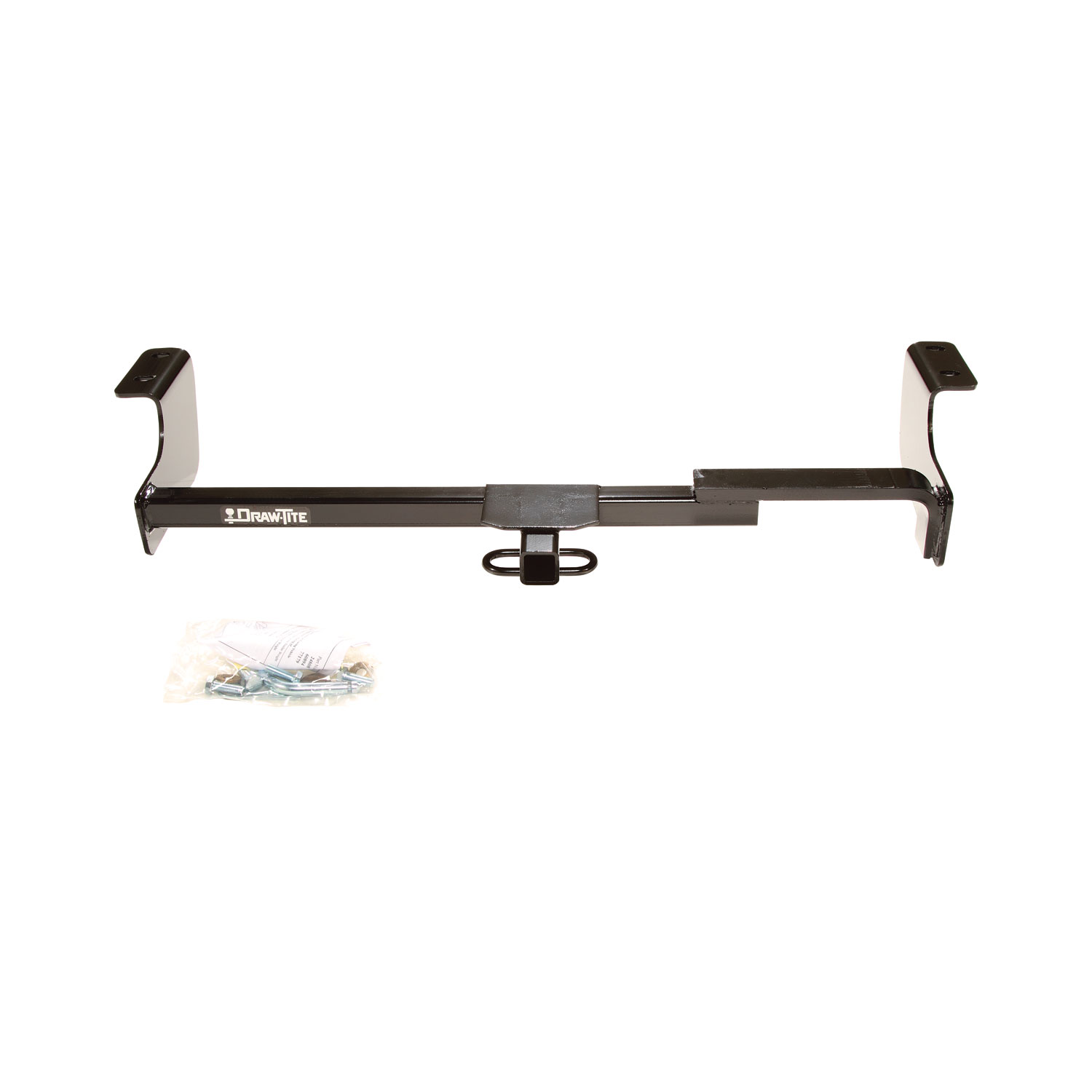

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24808 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 23.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2009 | Toyota Prius | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius 24808 (Part #DT24808) fits 2004-2009 Toyota Prius models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius 24808 (Part #DT24808) is designed to fit the 2004-2009 Toyota Prius.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius 24808 (Part #DT24808) fits the following vehicles: 2004-2009 Toyota Prius. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius 24808 (Part #DT24808) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24808 is designed for the Toyota Prius. The hitch installs using existing weldnuts on the frame rails on both sides of the vehicle. Installation requires removal of the plastic cover panel from underneath the driver side.
The maximum gross trailer weight is 2000 LB (908 Kg) and the maximum tongue weight is 200 LB (90.8 Kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: a utility knife, wrenches in 10mm, 14mm, and 17mm sizes, a small flat head screwdriver, and a torque wrench. The torque wrench is essential because all M10 CL8.8 fasteners must be tightened to exactly 35 Lb.-Ft. (47 N*M).

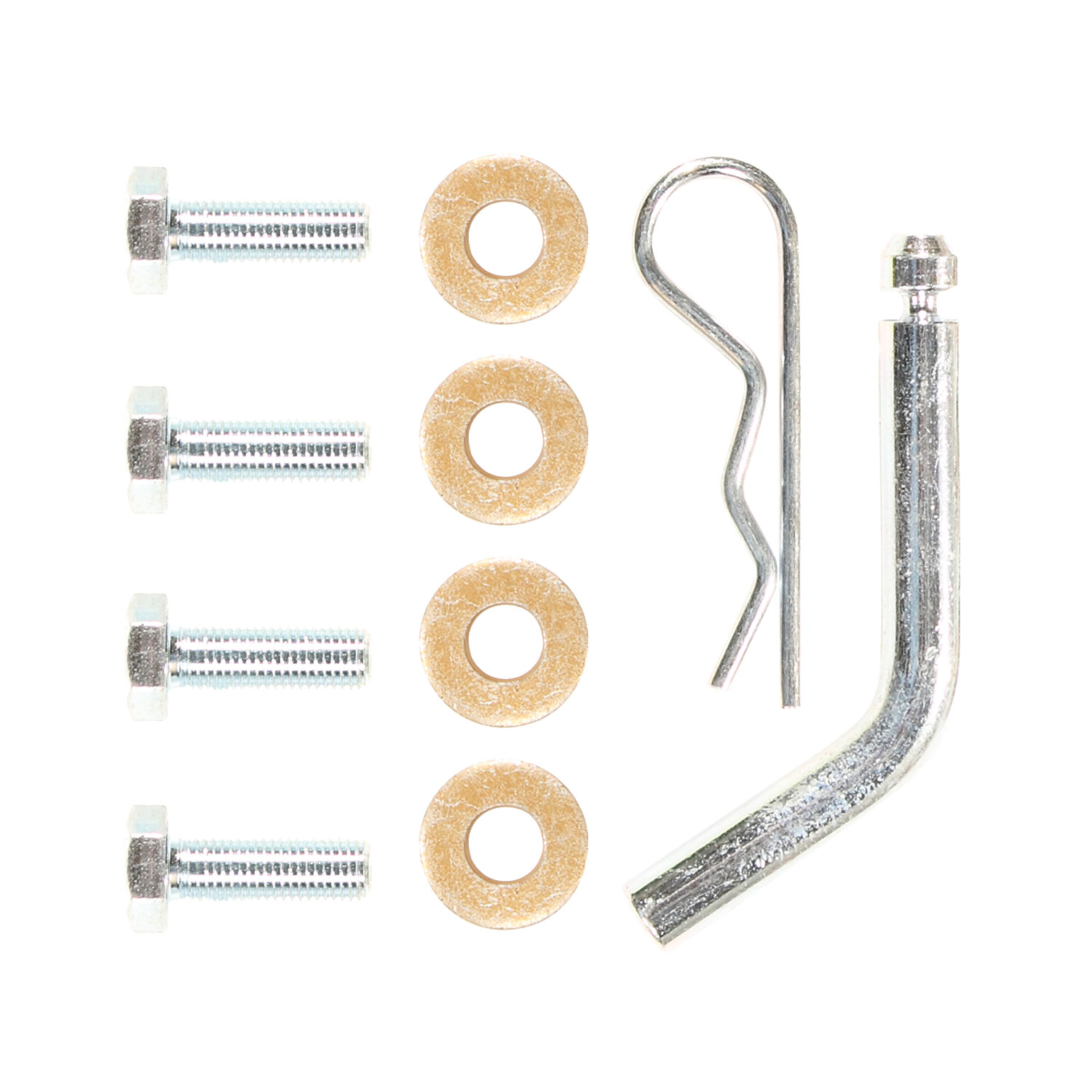

The hitch includes 4 bolts (M10 X 1.25 X 30mm CL 8.8) and 4 conical washers. These fasteners install into existing weldnuts on the frame rails. A separate Fastener Kit (part number 24808F) is also available.
Yes. Step 2 of the installation instructions requires you to remove the tow hooks if present and return them and their fasteners to the vehicle owner.
The plastic cover panel from underneath the driver side of the vehicle must be removed. This panel will need to be trimmed or not reinstalled after hitch installation. You must obtain the vehicle owner's permission before cutting or removing this panel.
The plastic cover panel will need to be trimmed or not reinstalled on the vehicle. You must obtain the vehicle owner's permission before starting installation. If permission is given, you can enlarge the tow hook slot on the plastic cover panel to fit around the driver side bracket. You may also choose to return the untrimmed panel to the vehicle owner instead.
No. The manual explicitly states: Do not cut access or attachment holes with a torch. Use a utility knife to trim the plastic cover panel.
All M10 CL8.8 fasteners must be tightened to 35 Lb.-Ft. (47 N*M) using a torque wrench. There are 4 fasteners total, installed on both sides of the frame rails.
The 4 bolts (M10 X 1.25 X 30mm CL 8.8) with conical washers install into existing weldnuts on the frame rails. The weldnuts are located on both sides of the vehicle, as shown in the installation diagram. The hitch is raised into position and the fasteners are inserted into these existing weldnuts.
The wiring access location is PC1,2. This indicates where electrical connections can be made if a wiring harness is added.
No. The drawbar must be used in the RISE position only. The manual explicitly states this restriction for safe operation.
The Drawbar Kit is part number 3593 and is sold separately. It must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection as part of ongoing maintenance.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged hitch, as it may fail during towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents corrosion.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. These precautions protect you from injury during installation.
Yes, the 24808 is designed for the Toyota Prius and uses existing weldnuts on the frame rails.
You need a utility knife, wrenches (10mm, 14mm, 17mm), a small flat head screwdriver, and a torque wrench to tighten fasteners to 35 Lb.-Ft. (47 N*M).
The plastic cover panel will need to be trimmed or not reinstalled. You must obtain the vehicle owner's permission before cutting. Use a utility knife, not a torch.
All M10 CL8.8 fasteners must be tightened to 35 Lb.-Ft. (47 N*M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 Kg) and maximum tongue weight is 200 LB (90.8 Kg). Do not exceed your vehicle manufacturer's rating.
Yes, the drawbar must be used in the RISE position only. The Drawbar Kit (part 3593) is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fumes from entering.
