Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

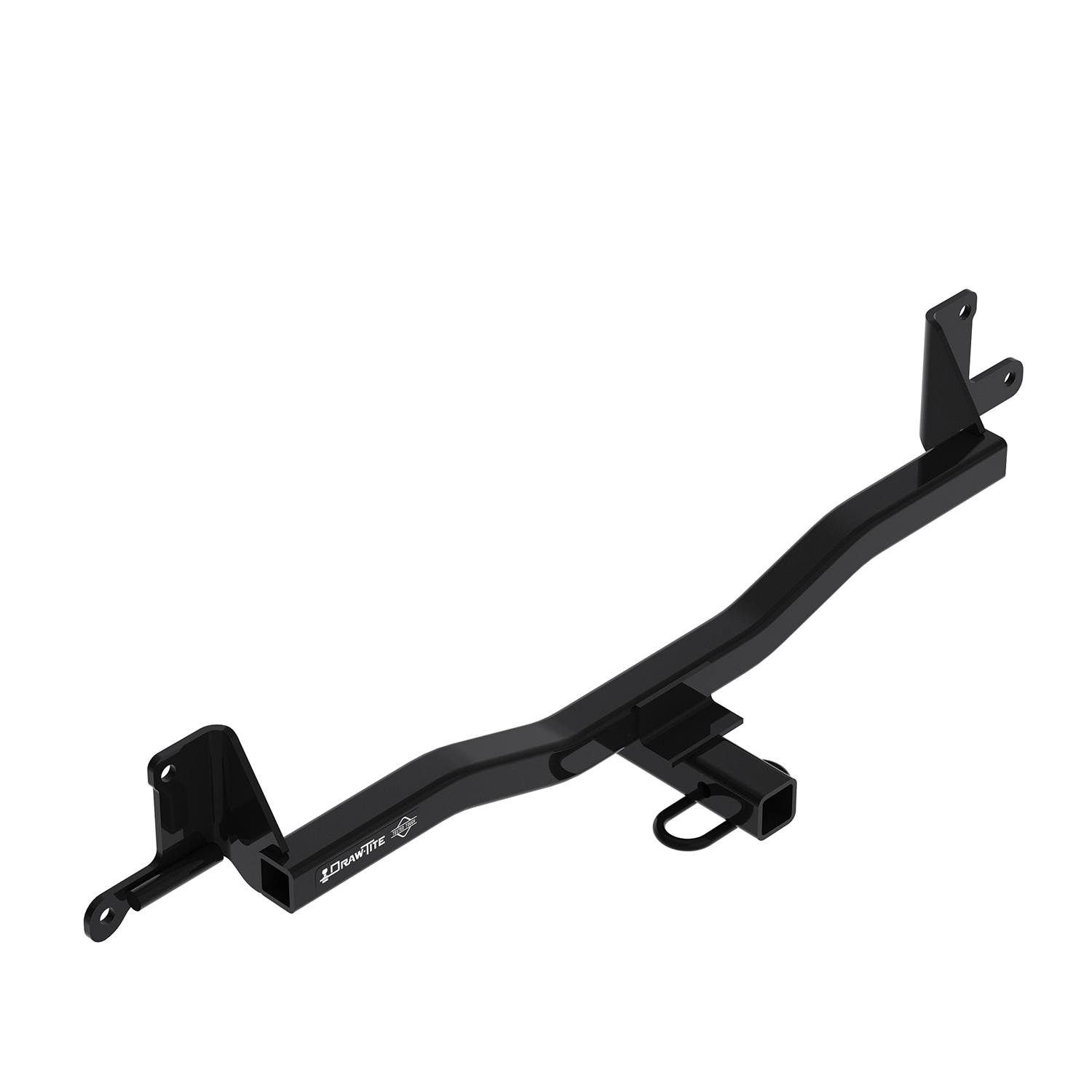

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24971 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 13.55 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2019 | Toyota Prius C | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius C 24971 (Part #DT24971) is designed to fit the 2012-2019 Toyota Prius C.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius C 24971 (Part #DT24971) fits the following vehicles: 2012-2019 Toyota Prius C. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius C 24971 (Part #DT24971) fits 2012-2019 Toyota Prius C models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius C 24971 (Part #DT24971) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24971 is designed for 2012-Current Toyota Prius C models. For the most up-to-date information regarding specific application years and trim levels, visit www.cequentgroup.com.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). However, you must not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need: a flat head screwdriver, 12 mm socket, 13 mm socket, 6 inch socket extension, ratchet, torque wrench, and safety glasses. All fasteners are included in kit 24971F.
Fastener kit 24971F includes (4) M8x1.25x30mm hex bolts CL10.9 and (4) 3/8 inch conical washers (part 01292006). These are the only fasteners needed for installation.
You do not need to remove the entire bumper. You only need to remove (1) lower bolt and (1) inboard bolt from each side of the bumper using a 12 mm socket. The outer bolts must remain attached to the vehicle. Return the 4 removed bolts to the vehicle owner.
Using a flat head screwdriver, remove (2) plastic appearance panels from the driver side (4 push pins per panel, 8 total), (5) push pins from the center appearance panel, and (2) push pins attaching the fascia tabs. Return the center appearance panel and its 5 push pins to the vehicle owner. All other panels and push pins will be reinstalled after hitch installation.
Rotate the passenger side of the hitch over the exhaust and raise it into position. Then install items j (hex bolts) and k (conical washers) on each side. The conical washers must be installed with the teeth side against the hitch.
All 8 mm fasteners must be torqued to 27 ft-lb (37 N·m) using a 13 mm socket and torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
The conical washers (item k) must be installed with the teeth side against the hitch. This ensures proper seating and load distribution.
Yes. After torquing all fasteners, reinstall the (2) driver side appearance panels that were removed in step 1, and reattach the (2) fascia tabs. The center appearance panel and its push pins should have been returned to the vehicle owner and are not reinstalled.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent entry of water and exhaust fumes.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do NOT apply your brakes and do NOT speed up.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
No. Do not cut, weld, or modify this receiver. Modifications will compromise the structural integrity and safety of the hitch.
No. The authorized drawbar kit 3593 is sold separately. If you purchase it, the drawbar must be used in the RISE position only.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Yes, the 24971 is designed for 2012-Current Toyota Prius C models. Check www.cequentgroup.com for the most current application information.
Maximum 2000 lb gross trailer weight and 200 lb tongue weight, but do not exceed your vehicle manufacturer's rating.
Flat head screwdriver, 12 mm and 13 mm sockets, 6 inch socket extension, ratchet, torque wrench, and safety glasses.
No, only remove (1) lower and (1) inboard bolt from each side using a 12 mm socket. Leave the outer bolts attached.
Torque all 8 mm fasteners to 27 ft-lb (37 N·m) using a 13 mm socket.
Install conical washers with the teeth side against the hitch.
Always wear safety glasses during installation.
