Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

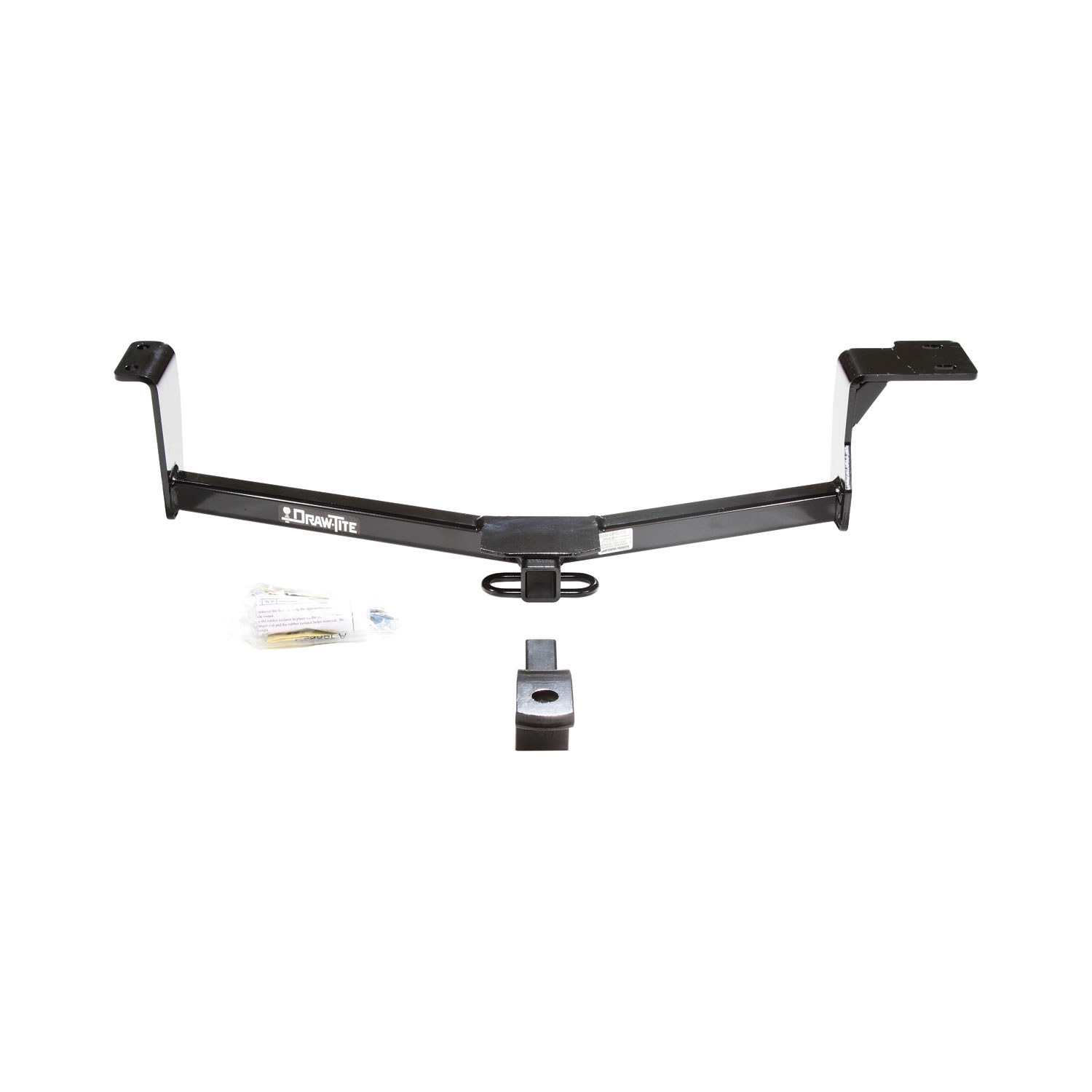

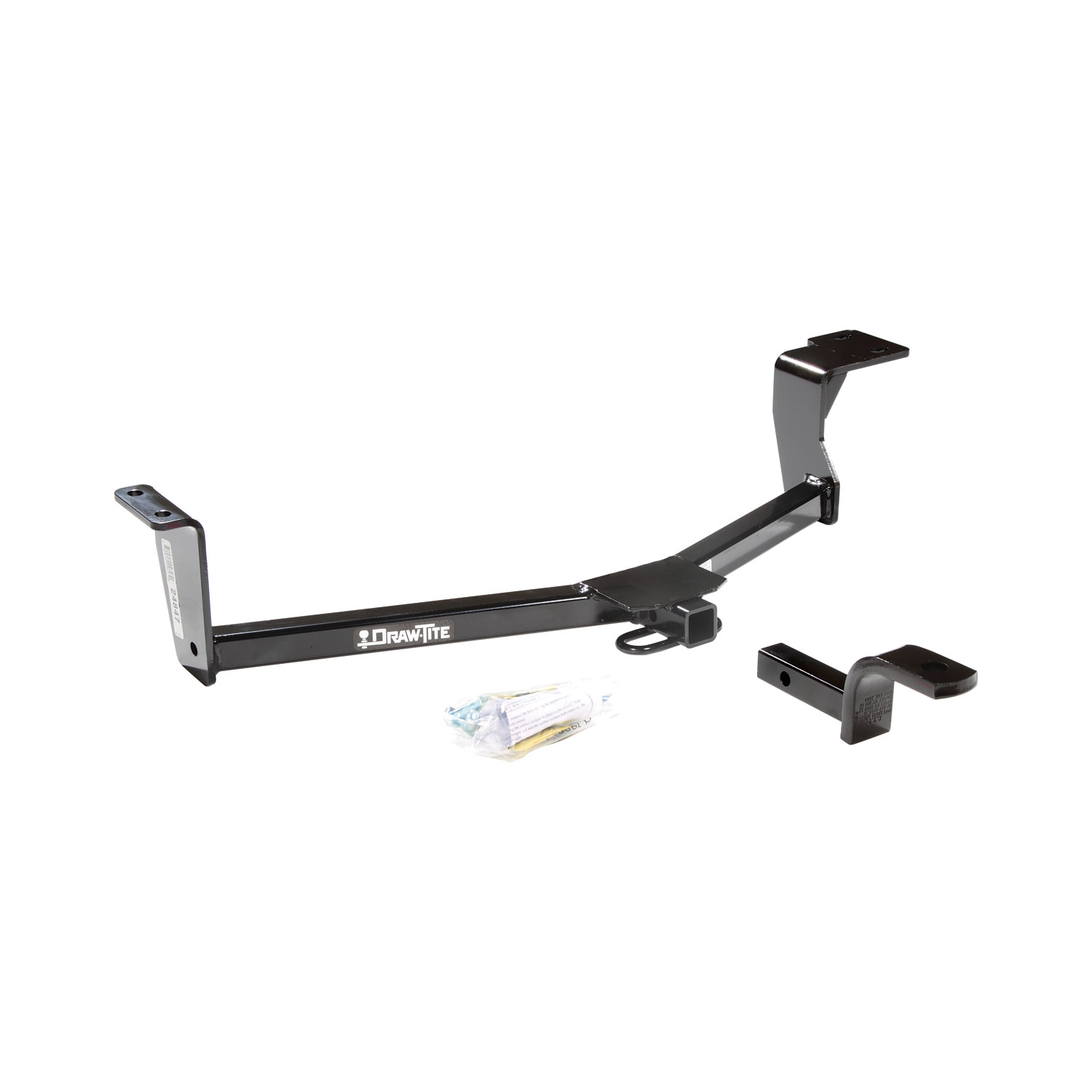

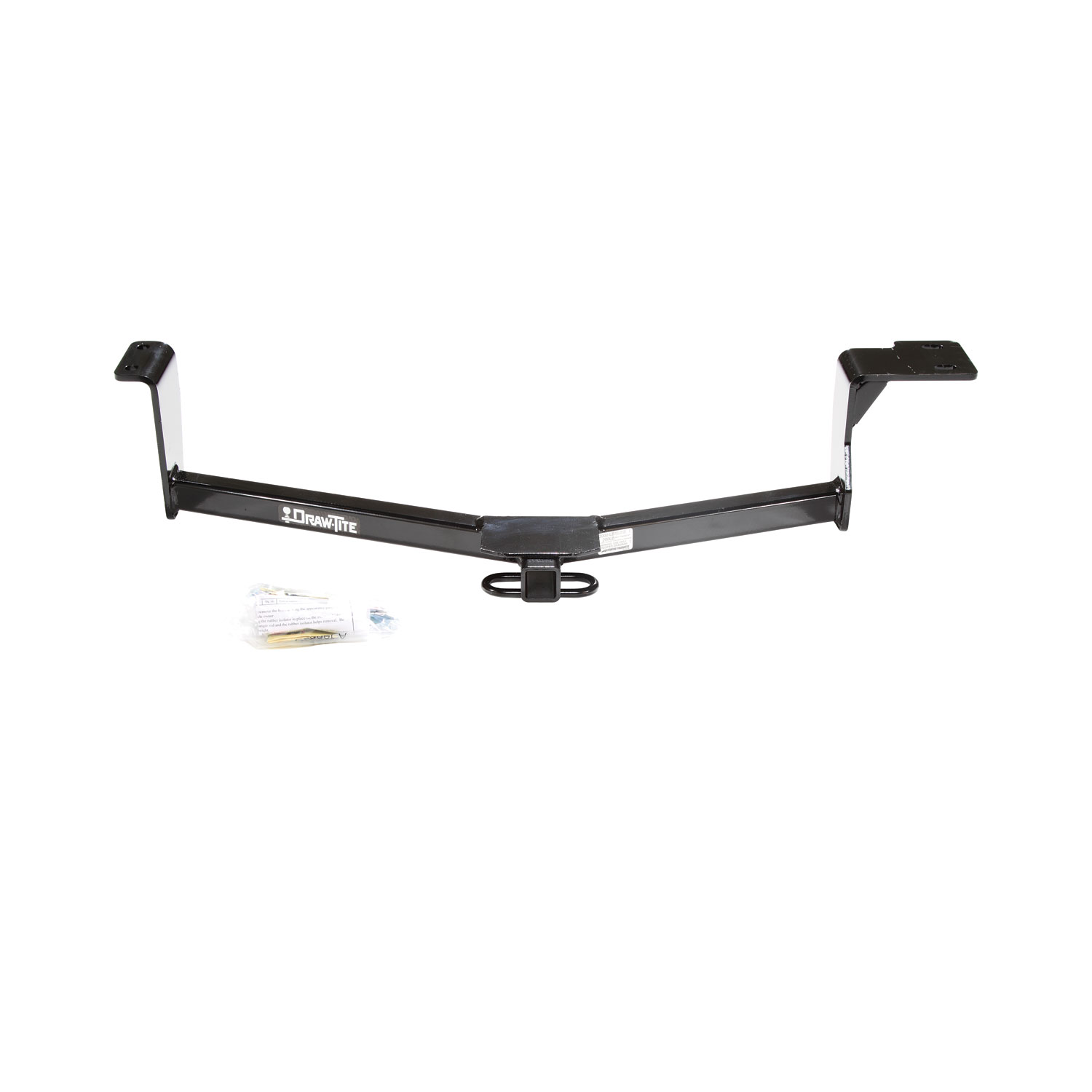

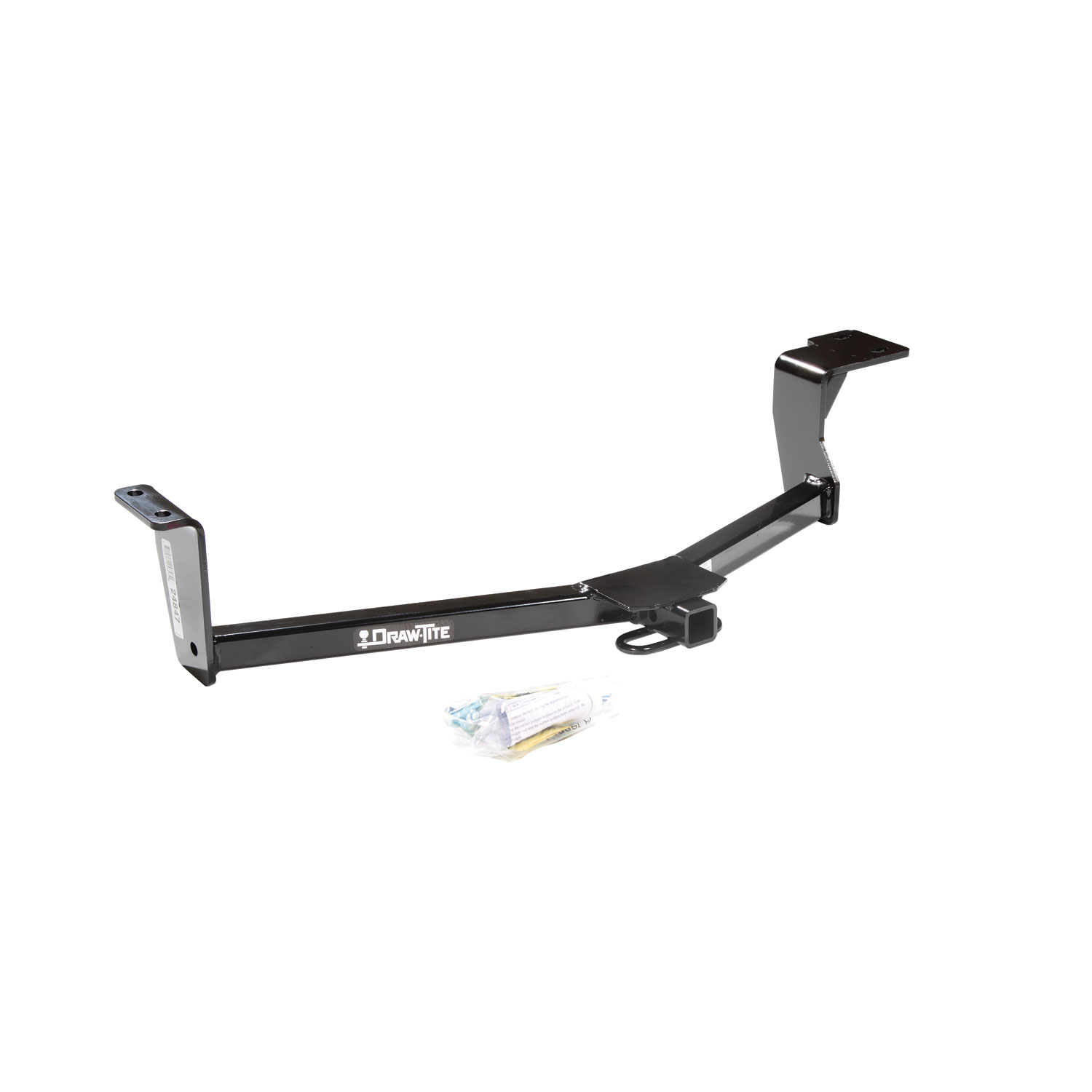

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24847 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 18.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2019 | Toyota Prius | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes Except Plug In Model |
| 2010 - 2015 | Toyota Prius | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes Except Plug: In Model |
| 2012 - 2017 | Toyota Prius V | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius, Toyota Prius V 24847 (Part #DT24847) fits 2010-2019 Toyota Prius models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius, Toyota Prius V 24847 (Part #DT24847) is designed to fit the 2010-2019 Toyota Prius.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius, Toyota Prius V 24847 (Part #DT24847) fits the following vehicles: 2010-2019 Toyota Prius; 2012-2017 Toyota Prius V. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Prius, Toyota Prius V 24847 (Part #DT24847) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 24847 hitch is designed to fit all Toyota Prius models and all Toyota Prius V models.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.

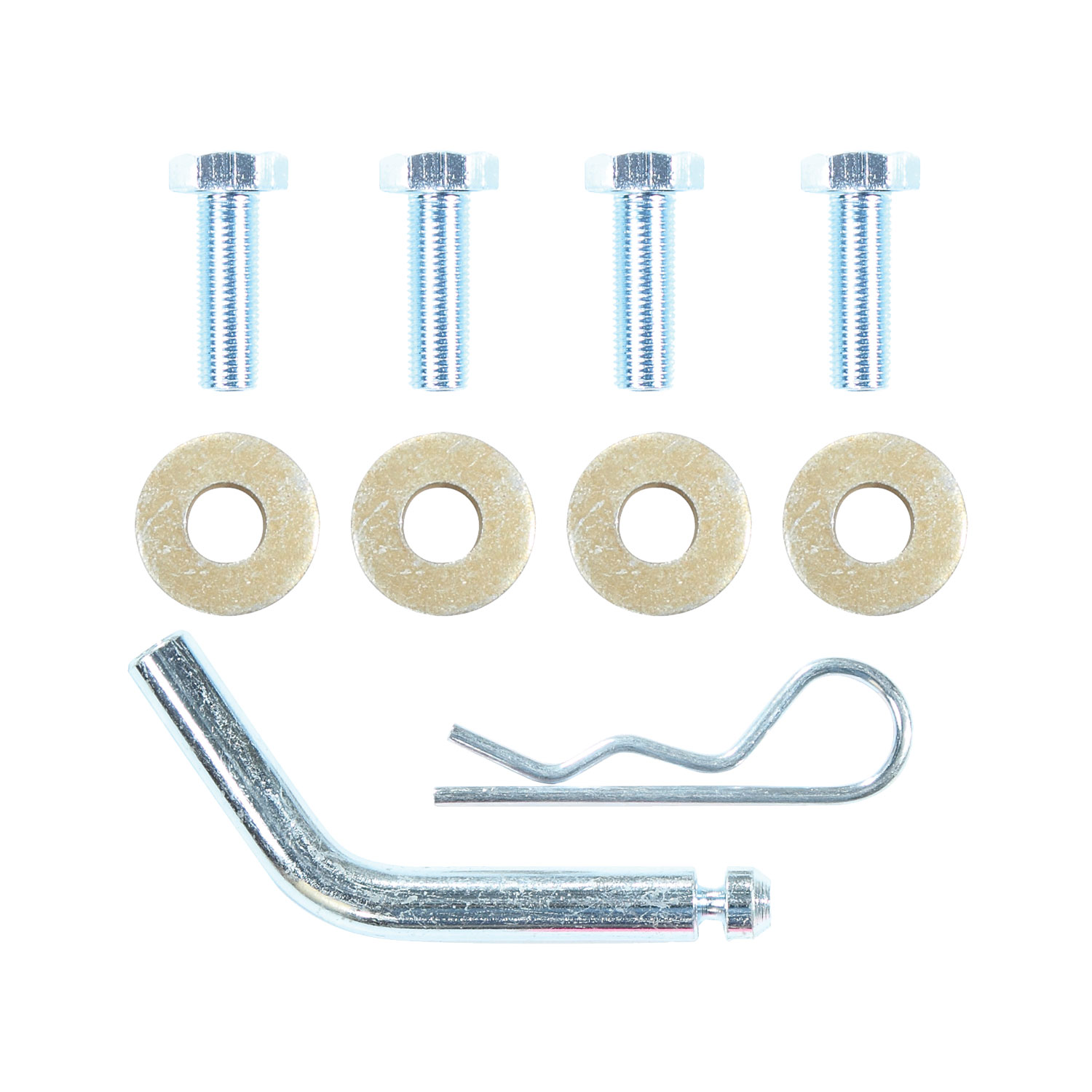

The hitch comes with 4 hex bolts M12 × 1.25 × 35 CL8.8 and 4 conical washers 1/2". These are part of fastener kit 24847F. The manual does not specify whether all fasteners are included or if additional fasteners must be purchased separately.
You will need a 6–8" ratchet extension, 17mm wrench, 19mm wrench, and a torque wrench. A jack, blocks, or second person is also required to support the hitch during installation.
No. The instructions state to remove the bolts from the tie-down hook while leaving the appearance panel in place on Prius models. The appearance panel is not removed during installation; it remains on the vehicle.
The tie-down hook and all fasteners removed from it must be returned to the vehicle owner. Do not discard them.
No, you do not need to remove the entire exhaust system. You must lower the exhaust system at the rubber isolator, leaving the rubber isolator in place on the exhaust. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. Be careful not to allow the muffler to fall under its own weight.
Two fasteners hold the rear muffler hanger. Both must be removed and returned to the vehicle owner.
1. Remove the tie-down hook on the driver's side, leaving the appearance panel in place. 2. Lower the exhaust system at the rubber isolator. 3. Remove the two fasteners holding the rear muffler hanger. 4. Raise the driver's side of the hitch through the tie-down bracket opening and rotate the passenger side through the cut-out. Support the hitch with a jack, blocks, or second person. 5. Raise the passenger side over the tail pipe, sandwiching the bracket between the frame rail and exhaust hanger bracket. Loosely install fasteners. 6. Install remaining fasteners. 7. Tighten all fasteners to 65 Lb.-Ft. (88 N·M). 8. Reinstall the exhaust.
Raise the driver's side of the hitch through the tie-down bracket opening. With the passenger side on the ground, rotate the hitch through the cut-out. The hitch must be supported (with a jack, blocks, or second person) while you raise the passenger side over the tail pipe, sandwiching the bracket between the frame rail and the exhaust hanger bracket.
No. Fasteners should be loosely installed first (step 5), then all fasteners should be tightened together to the required torque specification of 65 Lb.-Ft. (88 N·M) after all fasteners are in place (step 7).
All M12 CL8.8 fasteners must be tightened to 65 Lb.-Ft. (88 N·M) using a torque wrench.
The hitch uses 4 hex bolts with the following specifications: M12 × 1.25 × 35 CL8.8. These must be tightened to 65 Lb.-Ft. (88 N·M).
The hitch uses 4 conical washers with a 1/2" diameter.
No. The drawbar must be used in the Rise position only. Do not use it in any other position.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent the entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair it.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Be careful not to allow the muffler to fall under its own weight when lowering the exhaust system.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. This should be done after installation and periodically during use.
No. The drawbar kit (part number 3598) is sold separately and must be purchased if you need a drawbar.
No. The fascia for Prius and Prius V is sold separately. The appearance panel is not removed during installation on Prius models; it remains in place.
Yes, the 24847 hitch fits all Toyota Prius and Prius V models.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a 6–8" ratchet extension, 17mm and 19mm wrenches, a torque wrench, and support equipment (jack, blocks, or second person).
Check that all fasteners and the ball are properly tightened. Perform this check frequently during use.
