Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

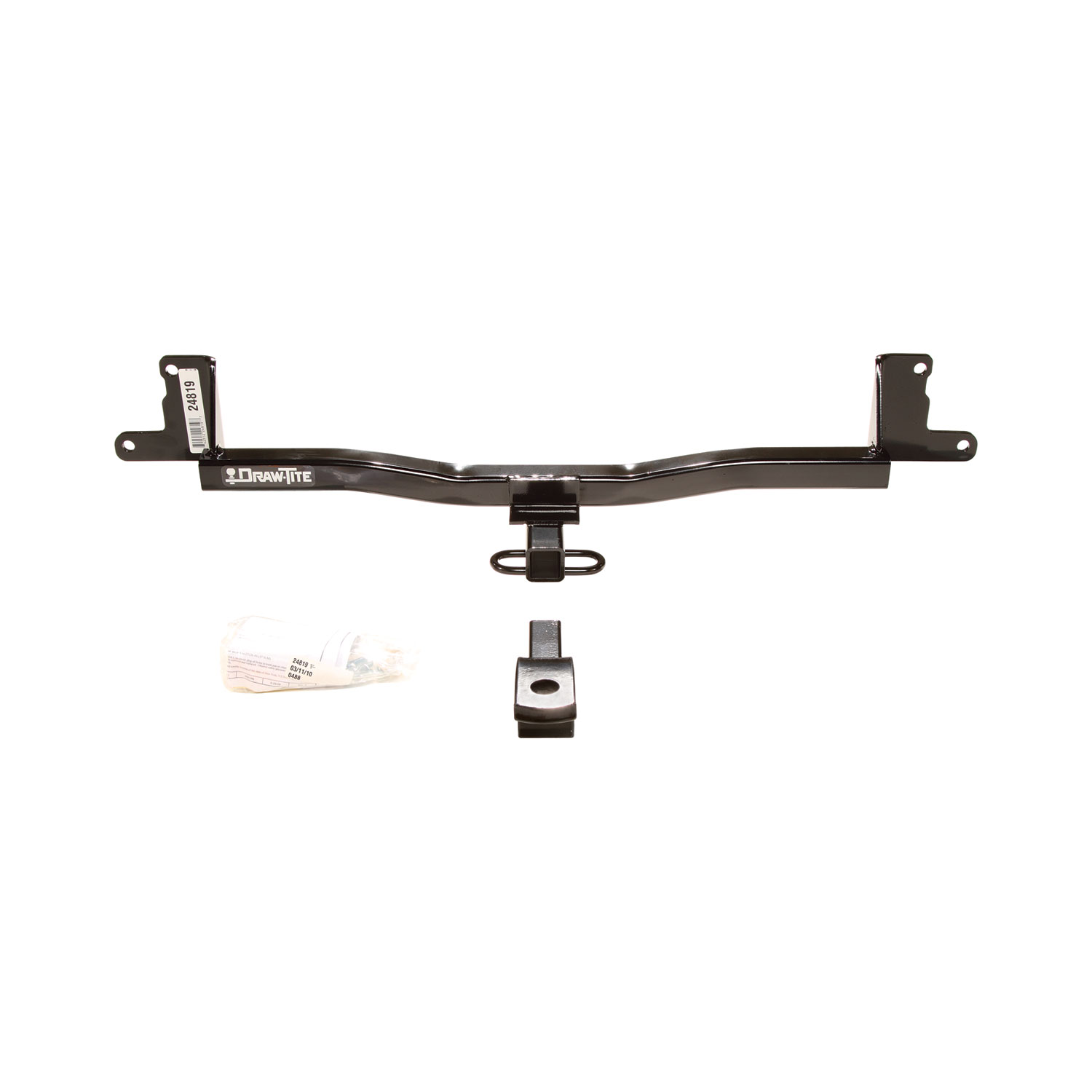

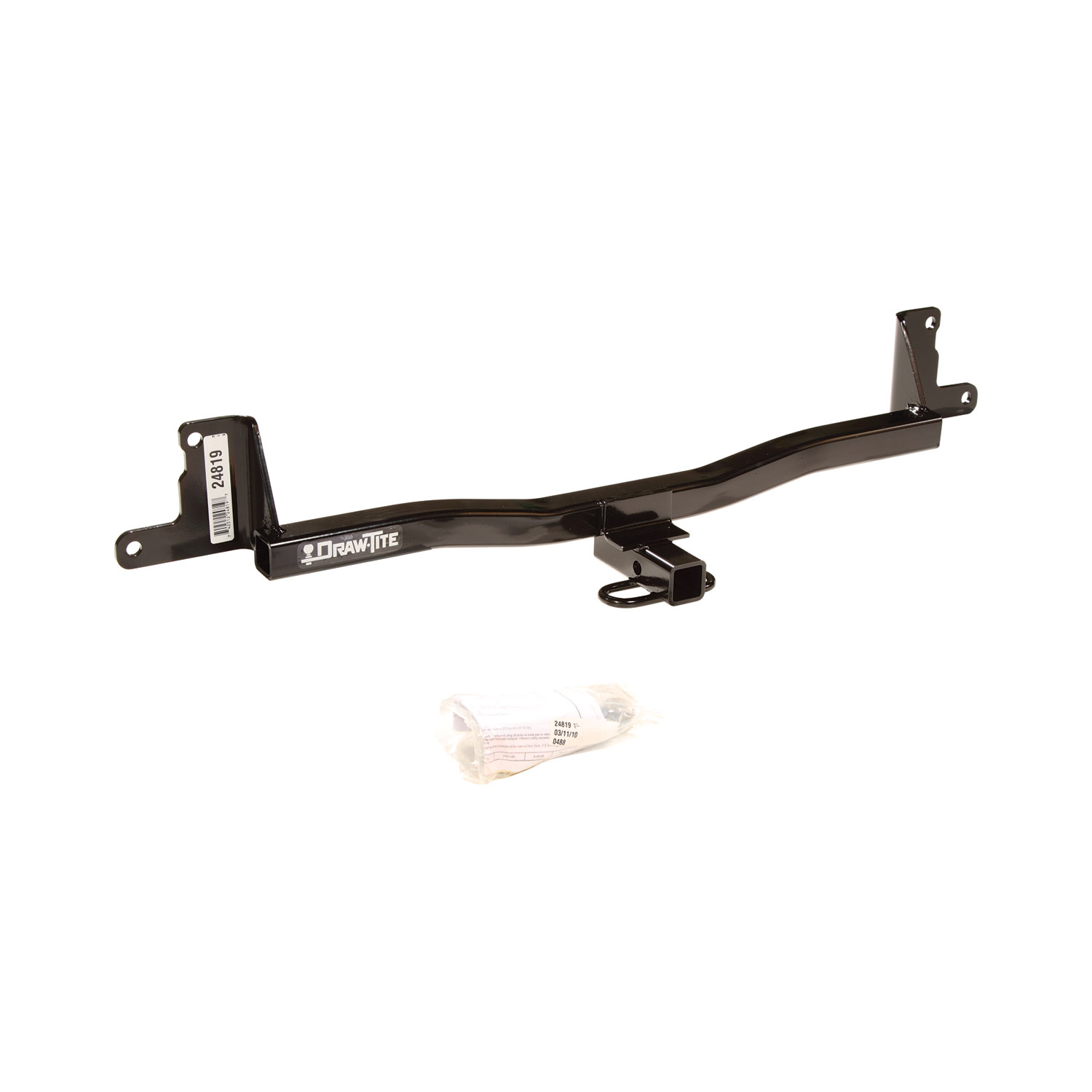

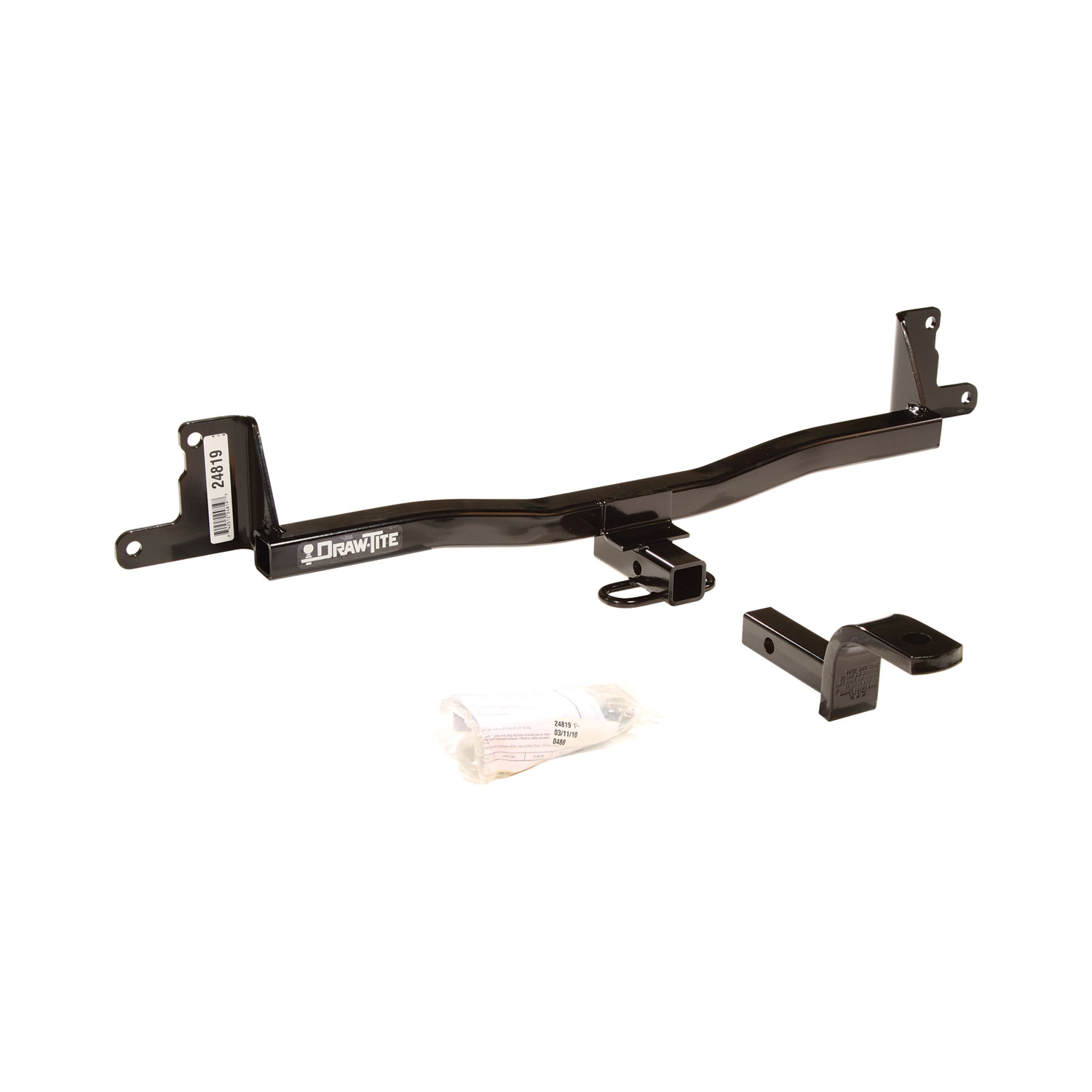

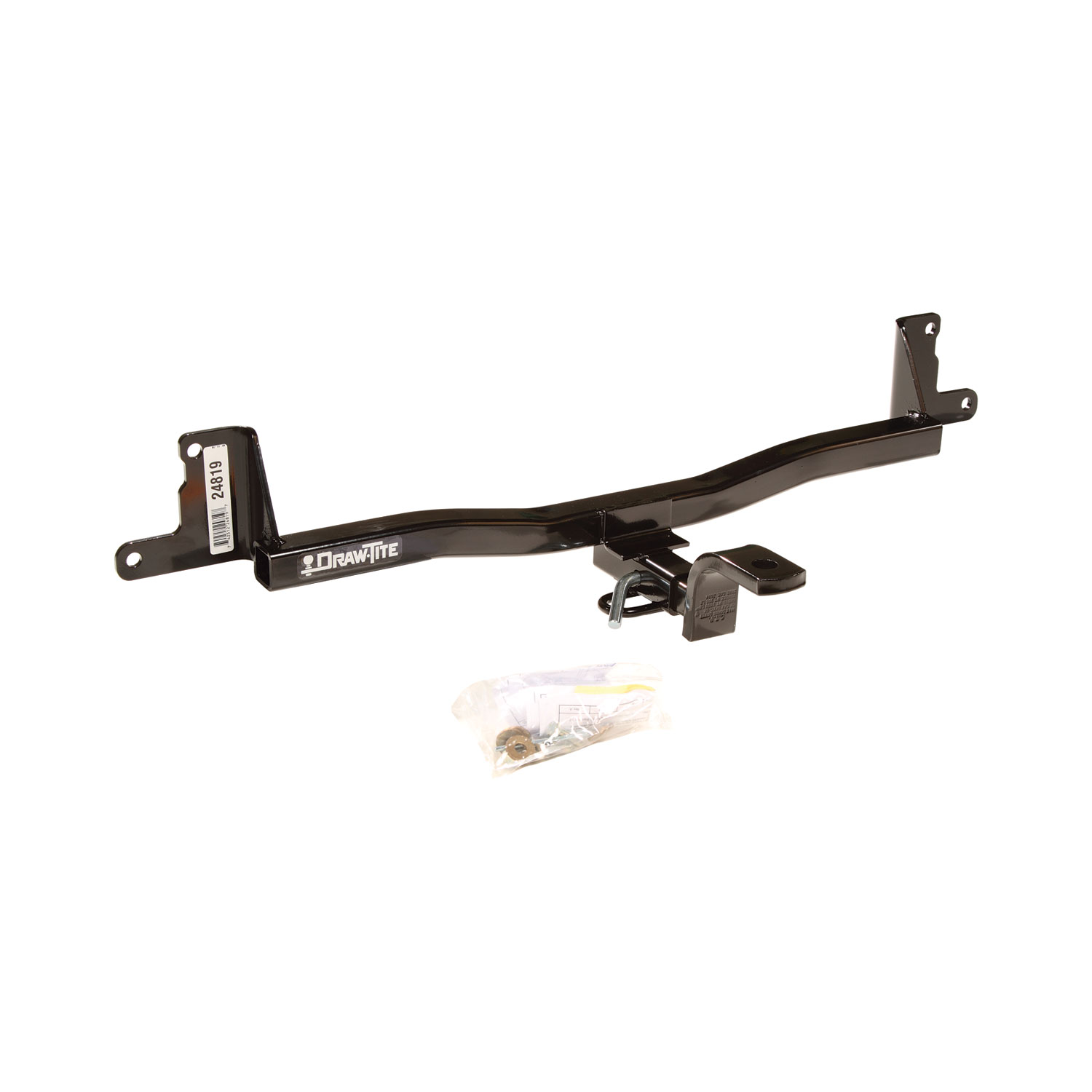

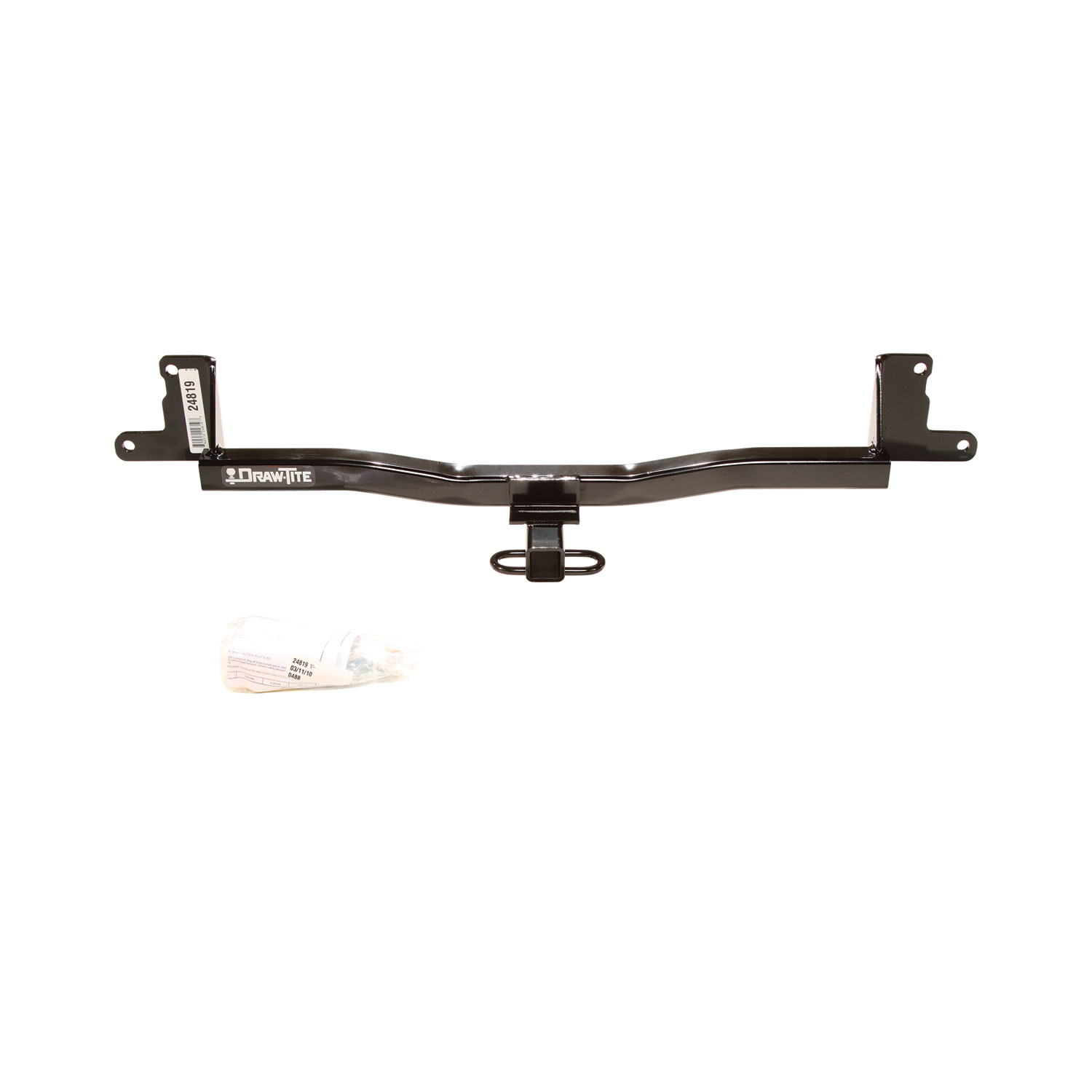

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24819 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 13.6 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2011 | Toyota Yaris | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24819 (Part #DT24819) is designed to fit the 2007-2011 Toyota Yaris.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24819 (Part #DT24819) fits the following vehicles: 2007-2011 Toyota Yaris. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24819 (Part #DT24819) fits 2007-2011 Toyota Yaris models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24819 (Part #DT24819) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 24819 is designed for Toyota Yaris models from 2008, 2010, and 2015. If your vehicle is one of these model years, this hitch is compatible. The manual does not specify whether it fits other Yaris model years or generations, so contact the manufacturer or a fitment specialist if your vehicle year is not listed.
The maximum gross trailer weight is 2000 LB (908 kg), and the maximum tongue weight is 200 LB (90.8 kg). However, you must not exceed the lower of this hitch's rating or your vehicle manufacturer's towing rating. Always check your vehicle's owner manual for its specific towing capacity.
You will need two wrenches: 12mm and 13mm. A torque wrench is also required to tighten the M8 fasteners to the specified 27 Lb.-Ft (37 N-M). No drill bits are needed as no drilling is required for this installation.
No, drilling is not required. The manual lists "Drill Bits: None" under Equipment Required. The hitch uses existing holes in the vehicle's end panels and fascia tabs.

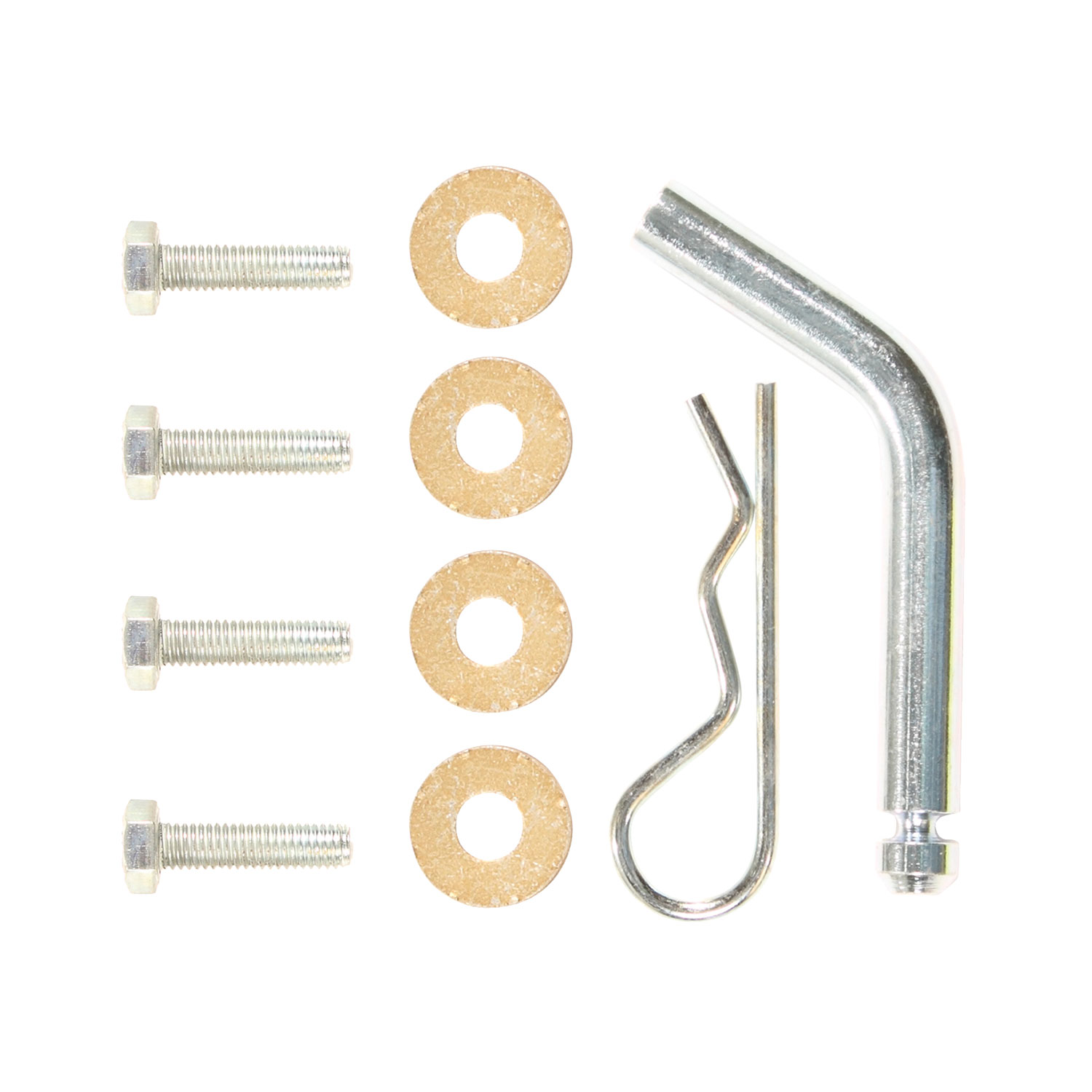

The hitch comes with four M8 x 1.25 x 30mm, CL 10.9 bolts and four conical toothed washers. These fasteners attach the hitch to the vehicle's end panels. A separate Fastener Kit 24819F is available if additional fasteners are needed.
1. Remove the two plastic fascia rivets from the fascia tabs (do not discard). 2. Remove the vehicle inboard bolt and the lower bolt located on each side of the end panel. 3. Raise the hitch into position. 4. Install M8 bolts and conical toothed washers. 5. Re-install the plastic fascia rivets removed in step 1. The manual notes that you can rotate the hitch for ease of installation.
All M8 CL10.9 fasteners must be tightened with a torque wrench to 27 Lb.-Ft (37 N-M).
The drawbar must be used in the RISE position only. The Drawbar Kit 3593 is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes this as an ongoing maintenance requirement, not just a one-time check after installation.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents damage from moisture and gases.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch, as this creates a fire hazard and may damage the vehicle.
The product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, if your vehicle is a 2008, 2010, or 2015 Toyota Yaris. The manual does not list other model years.
You need 12mm and 13mm wrenches, a torque wrench, and no drill bits. No drilling is required.
No. The hitch uses existing holes in the vehicle's end panels and fascia tabs.
Tighten all M8 CL10.9 fasteners to 27 Lb.-Ft (37 N-M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's towing rating.
The drawbar must be used in the RISE position only. The Drawbar Kit 3593 is sold separately.
Check frequently that all fasteners and the ball are properly tightened.
