DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24911 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 18.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24911 (Part #DT24911) fits 2007-2014 Toyota Yaris models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24911 (Part #DT24911) is designed to fit the 2007-2014 Toyota Yaris.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24911 (Part #DT24911) fits the following vehicles: 2007-2014 Toyota Yaris. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24911 (Part #DT24911) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 24911 is designed for 2013 and 2015 Toyota Yaris Hatchback models. If your vehicle is a different model year or body style (such as a sedan), confirm compatibility with the manufacturer before purchasing.
The maximum gross trailer weight is 2000 LB (908 Kg) and the maximum tongue weight is 200 LB (90.8 Kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
No. The drawbar kit (part number 3593) is sold separately and must be purchased if you need a drawbar. The drawbar must be used in the RISE position only.
You will need pliers, a small flat screwdriver, a 9/16" open end wrench, a 11/16" wrench, two 15/16" wrenches, and a torque wrench. No drill bits are required as no drilling is necessary for this installation.
No. The installation instructions specify that no drill bits are required. The hitch attaches to existing vehicle tie-down brackets and does not require any drilling.
1. Locate and bend down the tab at the bottom center of the trunk pan. 2. Remove the two plastic rivets from the fascia tabs using a flat screwdriver; keep them for reinstallation. 3. Raise the hitch into position, passenger side first, sliding it under the fascia tab and over the exhaust. 4. Slide the hitch under the driver's side fascia tab and into location between the vehicle's tie-down brackets. 5. Install the 5/8 bolts and flat washers to the outside of the tie-down brackets on both sides, then attach lock washers and hex nuts (do not tighten yet). 6. Install remaining fasteners on both sides. 7. Tighten all fasteners to the required torque specification. 8. Reinstall the plastic rivets.
All 5/8-11 GR8 fasteners must be tightened with a torque wrench to 212 Lb.-Ft. (287 N·M).
All 3/8-16 GR8 fasteners must be tightened with a torque wrench to 45 Lb.-Ft. (61 N·M).

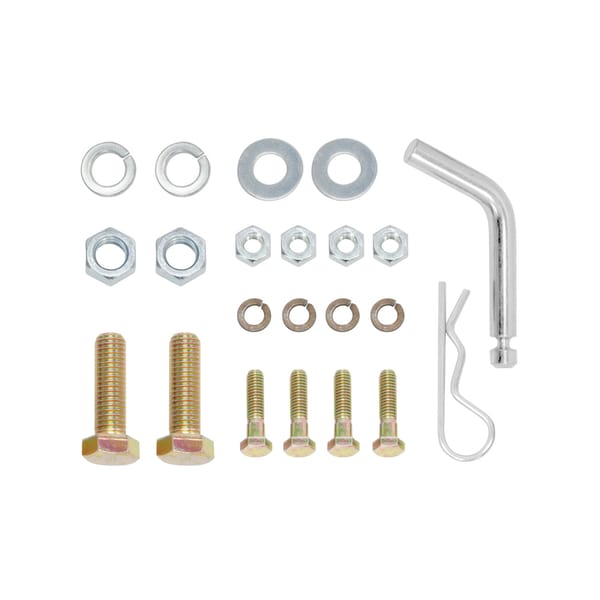

The hitch includes: (2) 5/8-11 X 2.0 GR8 bolts, (2) 5/8" flat washers, (2) 5/8-11 lock washers, (2) 5/8-11 hex nuts, (4) 3/8-16 X 1.50 GR8 bolts, (4) 3/8" lock washers, and (4) 3/8-16 hex nuts. Additional fasteners are available in the Fastener Kit 24911F.
No. When installing the 5/8 bolts and flat washers in step 5, do not tighten them at that time. Install all fasteners first, then tighten all fasteners to the required torque specification in step 7.
Use a small flat screwdriver to remove the center of each plastic rivet. Keep the rivets for reinstallation after the hitch is mounted.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to maintain safe operation.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch or ball.
Raise the hitch into position with the passenger side first. Slide the hitch under the fascia tab and over the top of the exhaust, being careful not to scratch the fascia. Then slide the hitch under the driver's side fascia tab and into location between the vehicle's tie-down brackets.
Yes, the 24911 is designed for 2013 and 2015 Toyota Yaris Hatchback models. Confirm your model year matches before purchasing.
No, no drilling is required. The hitch attaches to existing vehicle tie-down brackets using bolts.
You will need a 9/16" open end wrench, a 11/16" wrench, two 15/16" wrenches, and a torque wrench.
Tighten all 5/8-11 GR8 fasteners to 212 Lb.-Ft. (287 N·M) and all 3/8-16 GR8 fasteners to 45 Lb.-Ft. (61 N·M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 Kg) and maximum tongue weight is 200 LB (90.8 Kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
No, the drawbar kit (part number 3593) is sold separately. The drawbar must be used in the RISE position only.
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not cut holes with a torch. If the hitch is removed, plug all holes to prevent water and exhaust fume entry.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2014 | Toyota Yaris | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
