Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

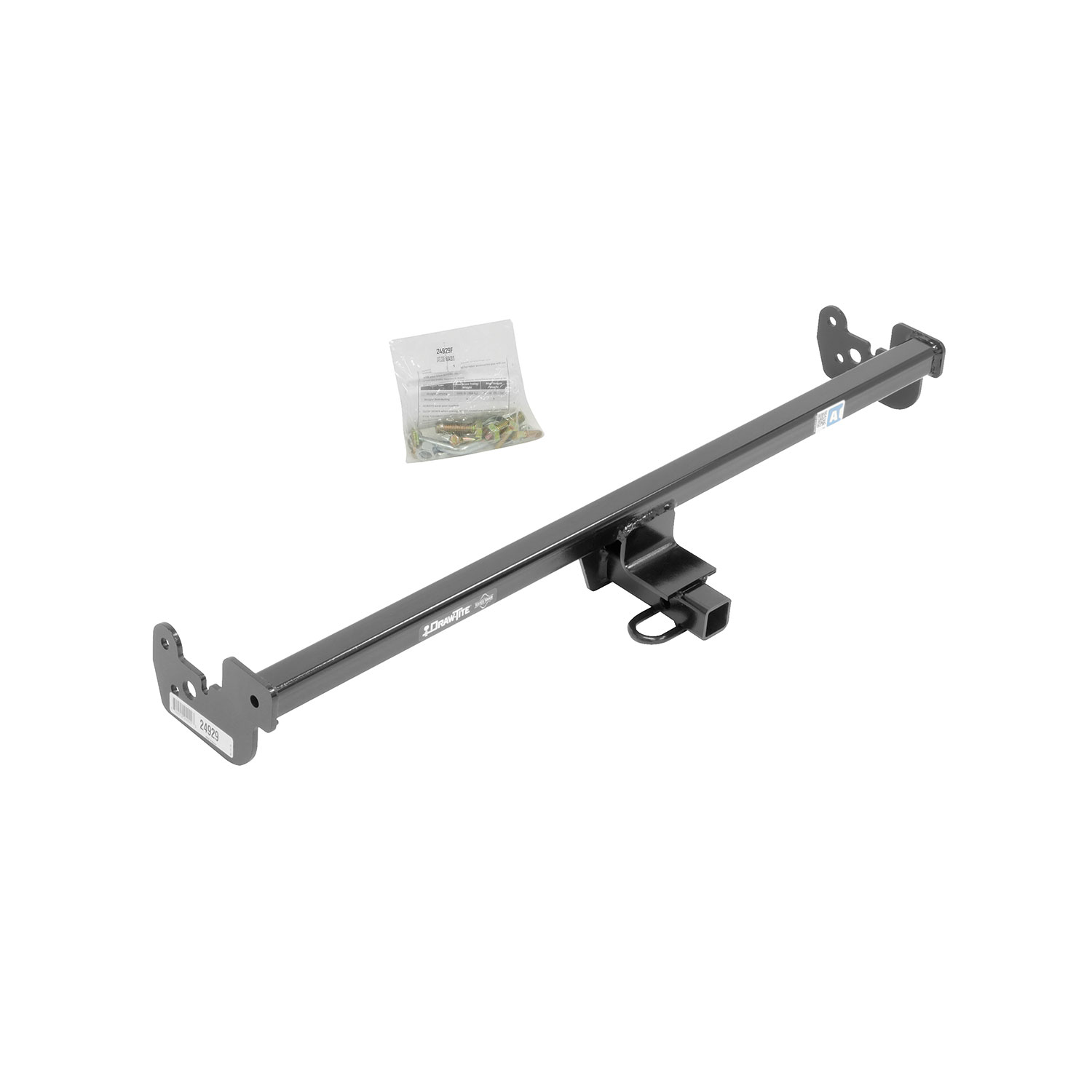

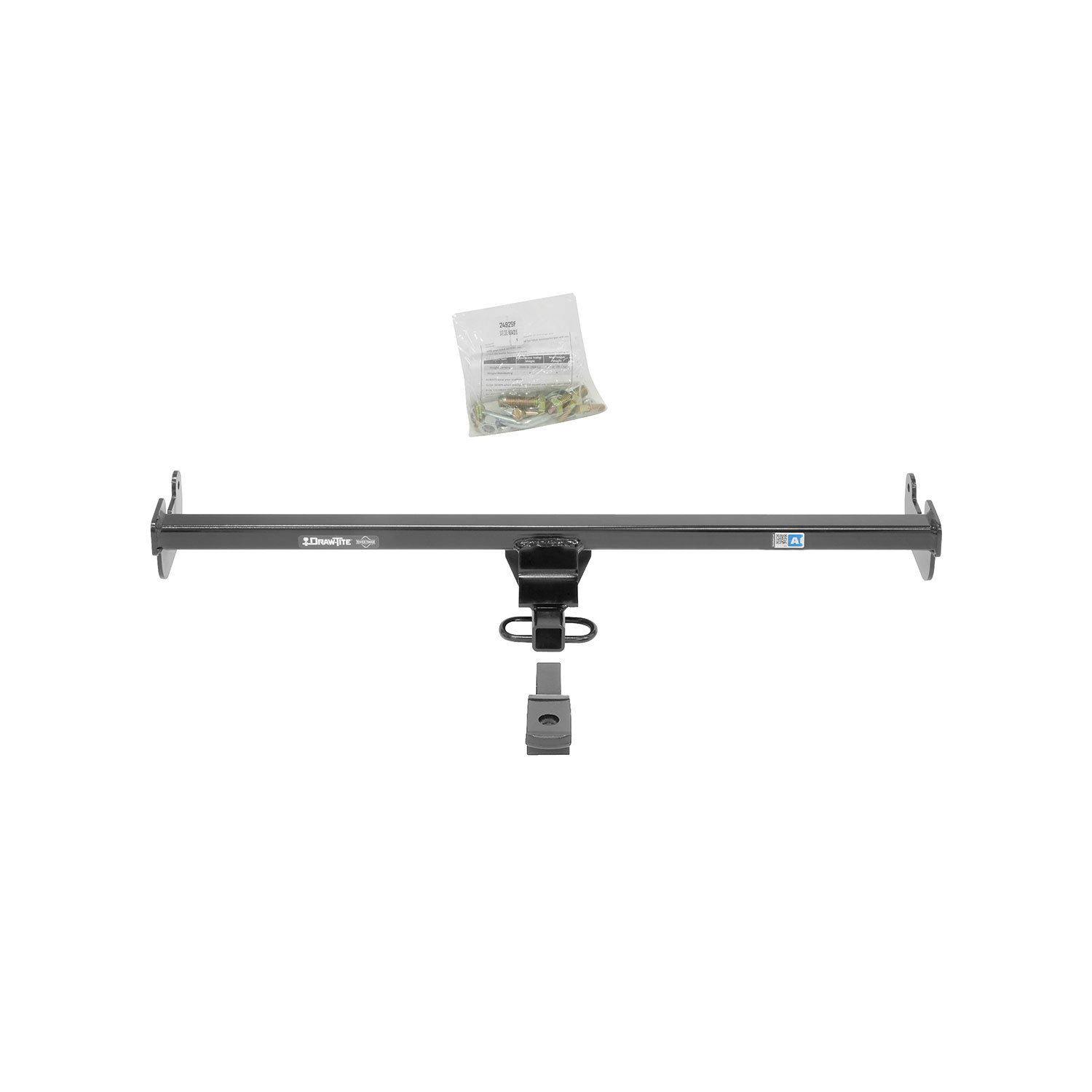

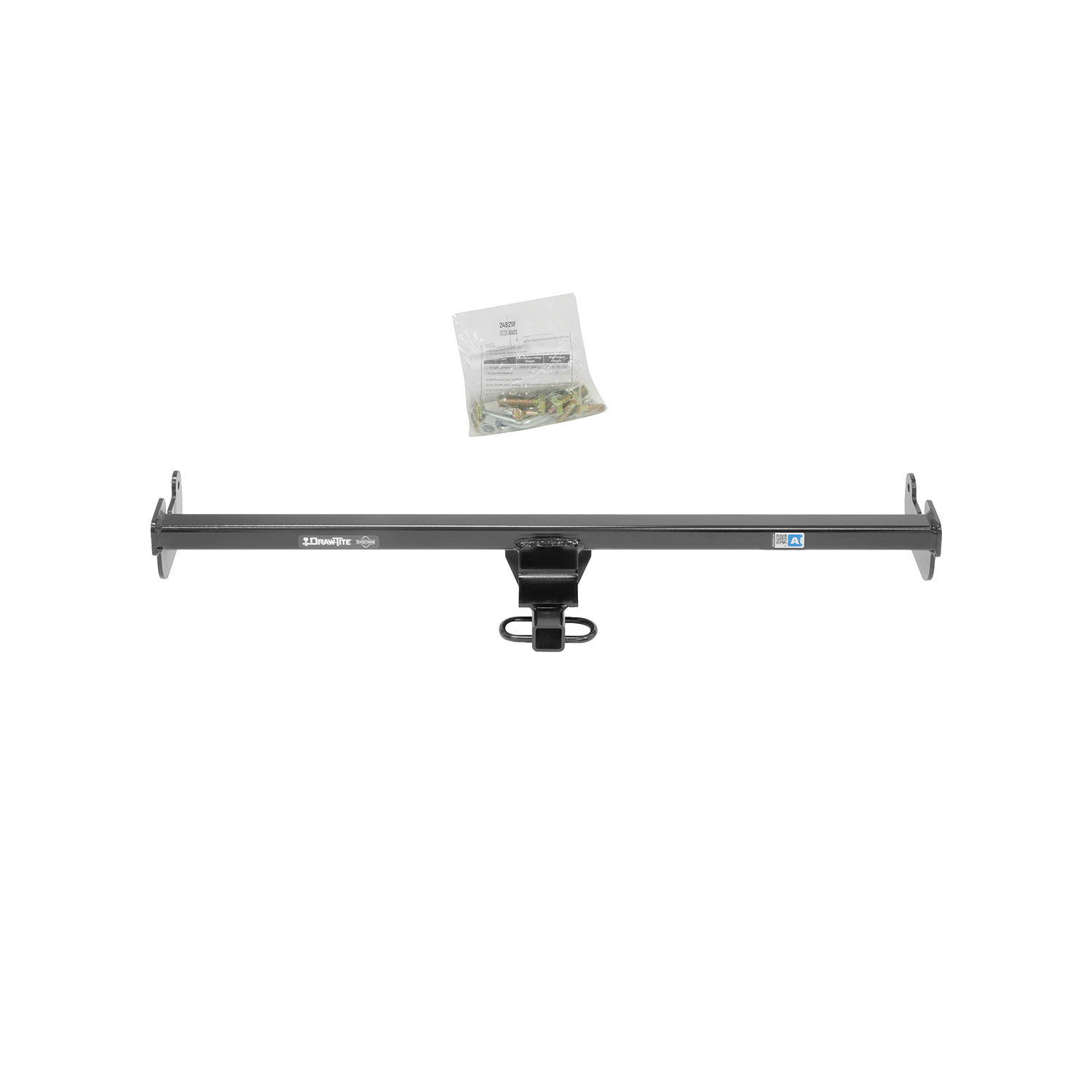

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24929 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 19.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2015 - 2019 | Toyota Yaris | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
| 2020 - 2022 | Toyota Yaris | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24929 (Part #DT24929) fits the following vehicles: 2015-2022 Toyota Yaris. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24929 (Part #DT24929) is designed to fit the 2015-2022 Toyota Yaris.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24929 (Part #DT24929) fits 2015-2022 Toyota Yaris models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Yaris 24929 (Part #DT24929) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 24929, 60367, and 77315 are designed for 2015-Current Toyota Yaris models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, torque wrench, safety glasses, sockets (11/16" and 15/16"), a utility knife, a flat-head screwdriver, and wrenches (9/16" and 15/16").
The manual does not mention disconnecting the battery. No battery disconnection is required for this hitch installation.
No drilling is required. The hitch uses existing vehicle tie-down brackets. However, you must remove three plastic rivets that fasten the fascia tabs to the vehicle and cut out the center fascia tab using a utility knife or suitable cutting tool.
No. The manual explicitly states: "Do not cut access or attachment holes with a torch." Use a utility knife or suitable cutting tool instead.
Raise the hitch into position passenger side first. Slide the hitch over the fascia tab and over the top of the exhaust, being careful not to scratch the fascia. Then slide the hitch over the fascia tab on the driver's side and into location between the vehicle's tie-down brackets.
No. After installing the 5/8" bolts, lock washers, and hex nuts in step 6, the manual states: "Do not tighten at this time." Install all fasteners first, then tighten them all to the required torque specifications in step 8.
Tighten the 5/8-11 Grade 8 bolts to 212 Lb.-Ft. (287 N·M) using a torque wrench.
Tighten the 3/8-16 Grade 8 bolts to 45 Lb.-Ft. (61 N·M) using a torque wrench.

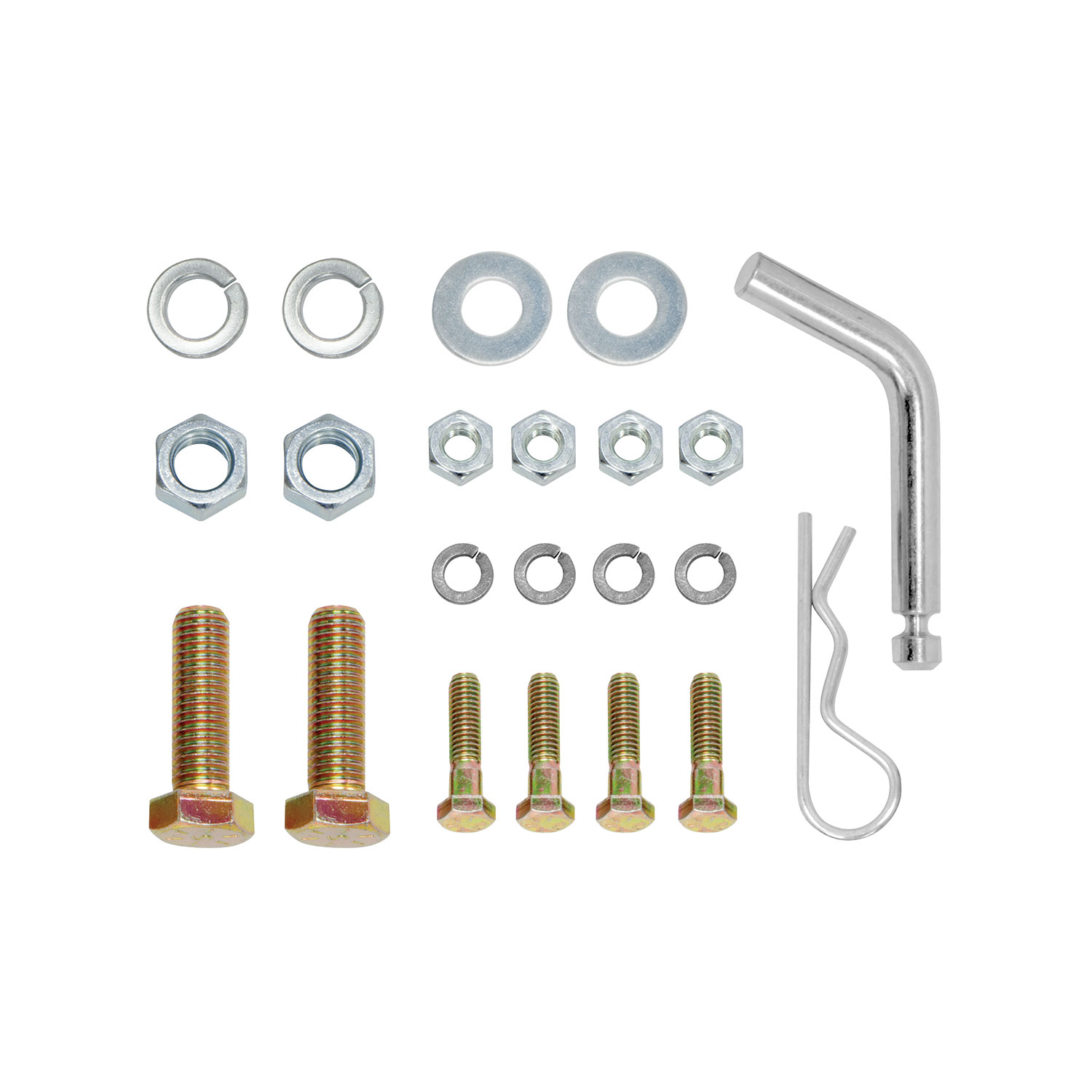

The hitch includes: (2) 5/8-11 x 2.0 Grade 8 bolts, (2) 5/8-11 hex nuts, (2) 5/8" lock washers, (2) 5/8" flat washers, (4) 3/8-16 x 1.50 Grade 8 bolts, (4) 3/8" lock washers, and (4) 3/8-16 hex nuts. A separate fastener kit (24929F) is also available.
You must remove three (3) plastic rivets that fasten the fascia tabs to the vehicle. Remove the center of each rivet with a flat screwdriver. Keep (2) of the rivets for re-installation.
There is a tab at the bottom center of the trunk pan. During installation, locate this tab and bend it down and out of the way to allow clearance for the hitch.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps with stability and control while towing.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes periodic inspection to ensure the hitch remains securely mounted to your vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
No. The manual explicitly states: "Do not cut, weld or modify this receiver." Any modifications will compromise the structural integrity and safety of the hitch.

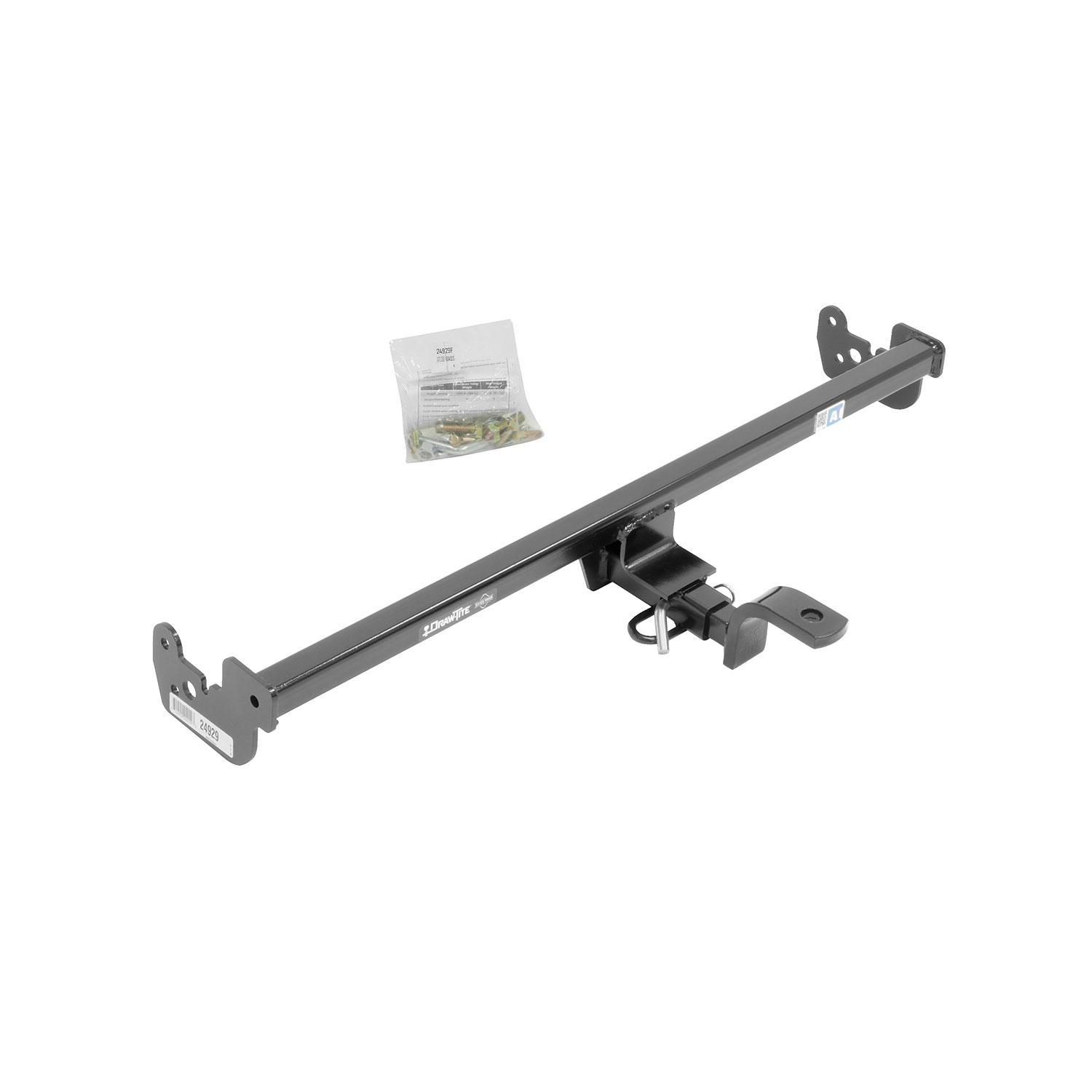

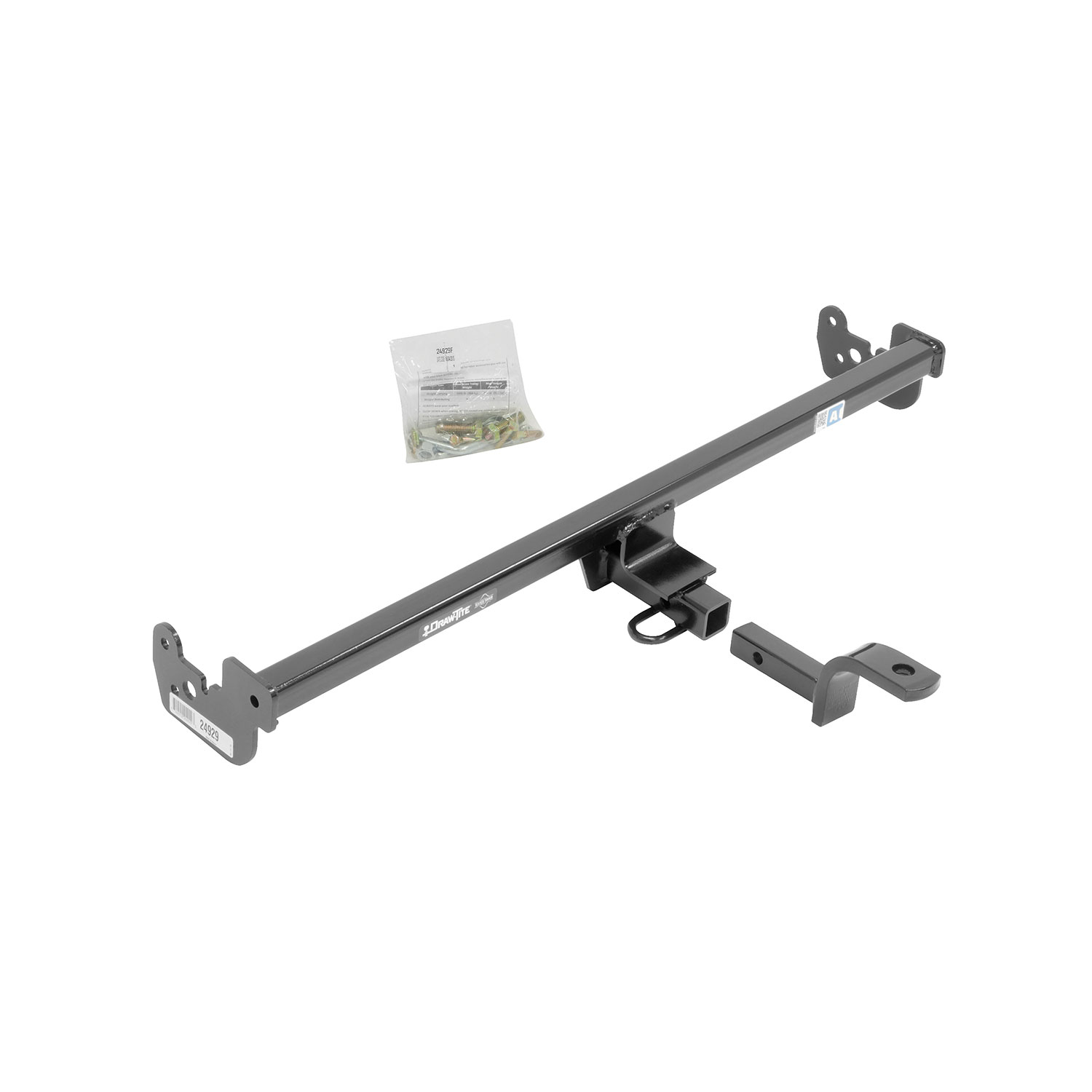

The drawbar kit is part number 3593 and is sold separately. The drawbar must be used in the RISE position only.
Yes, part numbers 24929, 60367, and 77315 fit 2015-Current Toyota Yaris models. Check the manufacturer's website for specific trim levels.
Maximum gross trailer weight is 2000 lb (908 kg) and maximum tongue weight is 200 lb (90.8 kg). Do not exceed your vehicle manufacturer's rating.
No drilling is required. You must remove three plastic rivets and cut out the center fascia tab using a utility knife, but no holes need to be drilled.
Required tools: ratchet, torque wrench, safety glasses, sockets (11/16" and 15/16"), utility knife, flat-head screwdriver, and wrenches (9/16" and 15/16").
5/8-11 Grade 8 bolts: 212 Lb.-Ft. (287 N·M). 3/8-16 Grade 8 bolts: 45 Lb.-Ft. (61 N·M). Use a torque wrench for proper installation.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodic inspection is essential for safe towing.
Check the hitch frequently to ensure all fasteners remain properly tightened. If fasteners have loosened, re-tighten them to the required torque specifications: 5/8-11 Grade 8 bolts to 212 Lb.-Ft. (287 N·M) and 3/8-16 Grade 8 bolts to 45 Lb.-Ft. (61 N·M). Use a torque wrench for accurate tightening.
If the hitch has been removed, holes in the trunk pan or other body panels must be plugged to prevent entry of water and exhaust fumes. If water or fumes are entering after installation, check that all holes have been properly sealed and that the hitch is correctly positioned.
