13-15 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer WiringCURTOriginal price was $113.90. Current price is $111.19.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 | Chevrolet Captiva Sport | — |
The 12-12 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer Wiring (Part #CTW312) fits 2012 Chevrolet Captiva Sport models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 12-12 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer Wiring (Part #CTW312) is designed to fit the 2012 Chevrolet Captiva Sport.
The 12-12 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer Wiring (Part #CTW312) fits the following vehicles: 2012 Chevrolet Captiva Sport. Always verify your specific year, make, and model before ordering.
The 12-12 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer Wiring (Part #CTW312) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

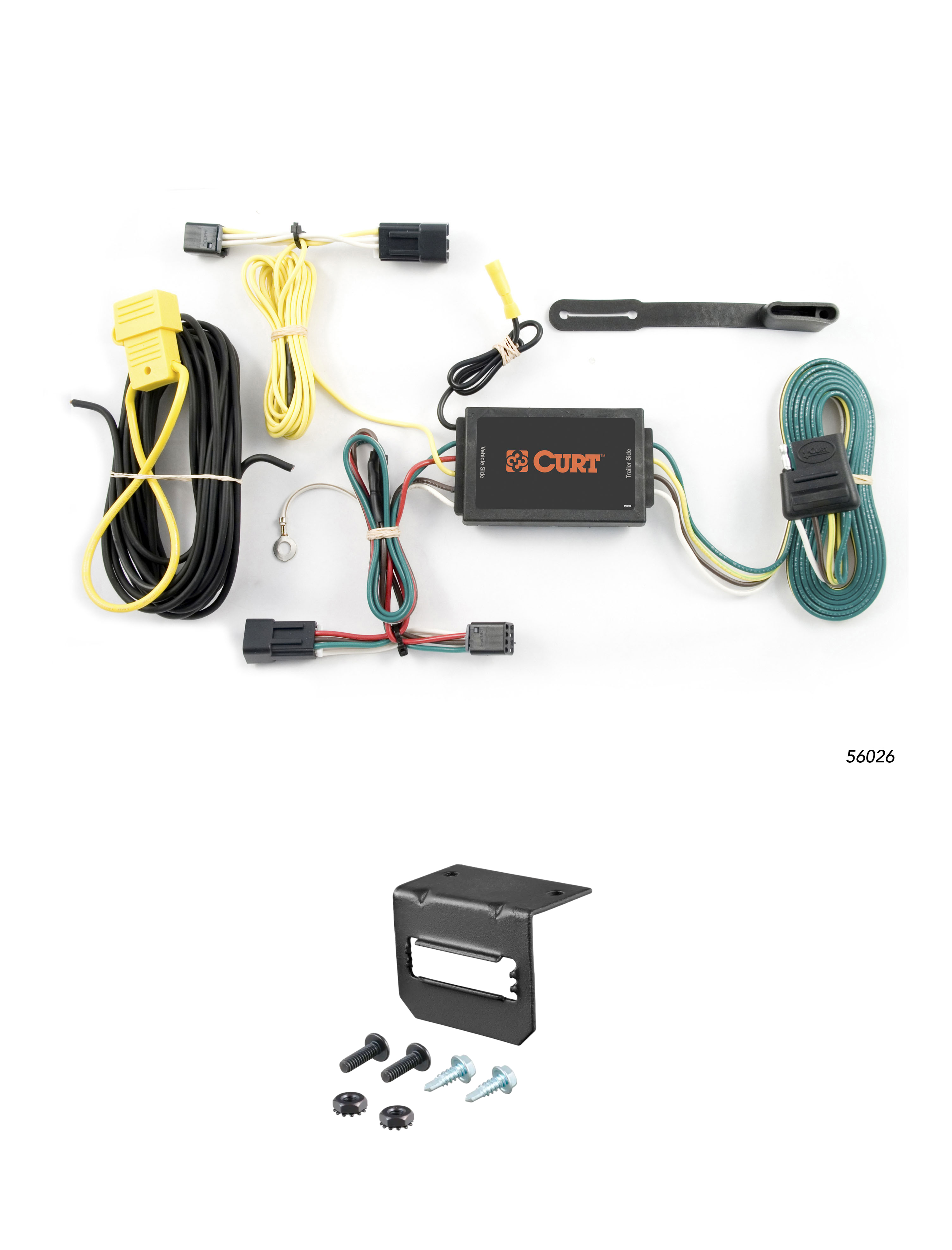

The Curt 56026 is a custom wiring harness designed to provide trailer lighting connections for Chevrolet Captiva and Saturn Vue vehicles. It includes a converter box and a 4-flat connector for trailer use.
Yes, the Curt 56026 is designed for Chevrolet Captiva and Saturn Vue vehicles classified as SUVs, mini and full-sized vans. Confirm your vehicle matches these models before purchasing.
You will need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. These are standard tools; the manual does not specify that professional installation is required.
The harness includes a custom wiring harness with green and yellow wire ends, a black converter box, a white ground wire with ring terminal, a provided screw for grounding, double-sided tape for the converter box, cable ties for securing loose wires, and a 4-flat dust cover.
The manual does not explicitly state whether the battery must be disconnected. However, it does specify that the battery connection must be fuse-protected with a 10-amp max fuse. Refer to the included CME-PCL-INS sheet for battery routing details, or contact the manufacturer for safety guidance on battery disconnection.
Open the vehicle tailgate and remove the scuff panel by pulling out on the bottom and then up. Take care not to damage the alignment tabs on the back. Then remove the floor panels and spare tire tray.
After removing the scuff panel, floor panels, spare tire tray, cargo loops, sliders, and side pockets from both sides of the vehicle, you will locate the vehicle taillight wiring harness connectors under the removed side pockets. The connectors will be similar to those on the custom wiring harness.
Separate the vehicle taillight connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end (green wire on passenger side, yellow wire on driver side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Drilling may be required. In Step 7, you must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you will need to drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
If an existing screw is not available, drill a 3/32" pilot hole for the provided grounding screw.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. The battery connection must be fuse-protected with a 10-amp max fuse. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
The battery connection must be fuse-protected with a 10-amp max fuse. Exceeding this rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
The custom wiring harness has a green wire end for the passenger side, a yellow wire end for the driver side, and a white ground wire. The converter box is black. The power wire from the battery is also black.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route the 4-flat to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Reinstall all items removed during installation, including the scuff panel, floor panels, spare tire tray, cargo loops, sliders, and side pockets. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56026 is designed for Chevrolet Captiva and Saturn Vue vehicles. Confirm your vehicle model matches before purchasing.
Drilling may be required if no existing screw is available for the ground wire. You may need to drill a 3/32" pilot hole.
The battery connection must be fuse-protected with a 10-amp max fuse. Do not exceed this rating.
Signal circuits are 3.0 amps per side; tail and running circuits are 6.0 amps total. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
