12-12 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer WiringCURT$101.76In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2013 - 2015 Chevrolet Captiva Sport
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $113.90. Current price is $111.19.You save $2.71
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 6.0 Amps |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2015 | Chevrolet Captiva Sport | — |
Yes, the 13-15 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer Wiring (Part #CTW311) is designed to fit the 2013-2015 Chevrolet Captiva Sport.
The 13-15 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer Wiring (Part #CTW311) fits 2013-2015 Chevrolet Captiva Sport models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 13-15 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer Wiring (Part #CTW311) fits the following vehicles: 2013-2015 Chevrolet Captiva Sport. Always verify your specific year, make, and model before ordering.
The 13-15 Chevrolet Captiva Sport CURT 4-flat Plug and Play Trailer Wiring (Part #CTW311) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56257 is designed for the Chevrolet Captiva Sport. It is also compatible with SUVs, Mini and Full-Sized Vans in the S-class category. If you have a different vehicle model or year, consult the vehicle manufacturer or Curt Manufacturing to confirm fitment.

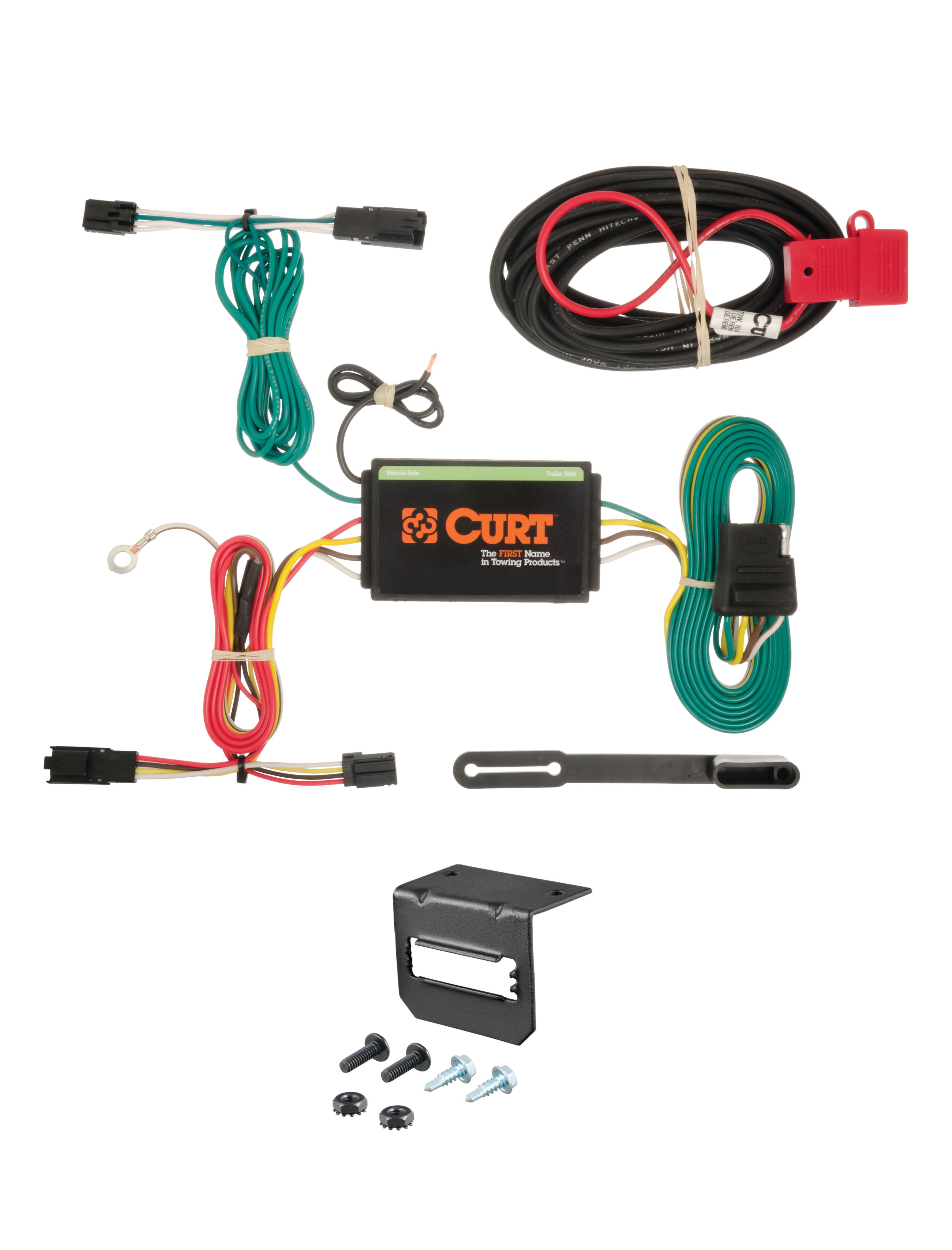

The Curt 56257 is a custom wiring harness designed to provide trailer lighting connections for compatible vehicles. It includes a converter box and a 4-flat connector for trailer hookup. The harness integrates with your vehicle's existing taillight wiring to supply power to trailer lights.
You will need: 10mm socket, 1/4" socket, T-30 Torx bit, T-45 Torx bit, panel trim removal tool, Phillips screwdriver, wire stripper, wire crimper, cutting tool, and ratchet. A drill may also be required if you need to create a ground point.
Yes. The first step of installation is to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal. This must be done before any other work.
The taillight wiring harness connectors are located behind the plastic side storage tray in the trunk area. On the driver side, they are behind the driver side rear access panel (S3); on the passenger side, they are behind the passenger side rear access panel (S4). You must remove the trunk floor covering, center foam tray, scuff panel, and storage trays to access them.
Separate the vehicle's taillight housing connectors from each other, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors on the driver side. Make sure the connectors are fully inserted with locking tabs in place. Repeat on the passenger side using the harness end with the green wire.
Drilling may be required to create a ground point for the white ground wire. If a suitable existing screw with nut is not available in the vehicle frame near the taillight connector, you will need to drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items behind or under any surface to avoid damage and personal injury.
The harness is rated for Signal Circuits at 3.0 amps per side and Tail/Running Circuits at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed this rating. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The converter box should be positioned so that the wiring can be routed cleanly and the box is secure.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
After installation is complete and all items have been reinstalled, test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
Install the provided 4-flat dust cover to help prevent corrosion. This should be done after reconnecting the negative battery terminal and completing all other installation steps.
The custom wiring harness has a yellow wire end for the driver side and a green wire end for the passenger side. Insert the yellow wire end between the separated connectors on the driver side, and the green wire end on the passenger side.
The white wire is the ground wire. It should be secured to a suitable grounding point near the taillight connector using the provided ring terminal and screw. The grounding point should be an existing screw with nut in the vehicle frame, or a 3/32" pilot hole that you drill in a rust-free, clean area.
The black converter box is part of the custom wiring harness system. It should be mounted on a flat spot inside the vehicle near the taillight using the provided double-sided tape. The converter box processes the signal from the vehicle's taillight wiring to provide power to the trailer connector.
Exceeding the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower, can cause loss of warranty, overheating and potential fire. Do not exceed these ratings under any circumstances.
Yes, the Curt 56257 is designed for Chevrolet Captiva Sport and compatible SUVs, Mini and Full-Sized Vans (S-class). For other vehicles, check with the manufacturer.
Yes, disconnect the negative battery terminal before starting installation. Reconnect it after all installation steps are complete.
Drilling may be required to create a ground point if no existing screw with nut is available in the vehicle frame. If needed, drill a 3/32" pilot hole. Always check for hidden items before drilling.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating as it can cause overheating and fire.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or the vehicle's lamp load rating, whichever is lower.
