| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P1,P2 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2014 | Ford Focus | Hatchback, excluding SVT and SAP |
Yes, the 12-14 Ford Focus Hatchback, excluding SVT and SAP CURT 4-flat Plug and Play Trailer Wiring (Part #CTW939) is designed to fit the 2012-2014 Ford Focus.
The 12-14 Ford Focus Hatchback, excluding SVT and SAP CURT 4-flat Plug and Play Trailer Wiring (Part #CTW939) fits 2012-2014 Ford Focus models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The 12-14 Ford Focus Hatchback, excluding SVT and SAP CURT 4-flat Plug and Play Trailer Wiring (Part #CTW939) fits the following vehicles: 2012-2014 Ford Focus. Always verify your specific year, make, and model before ordering.
The 12-14 Ford Focus Hatchback, excluding SVT and SAP CURT 4-flat Plug and Play Trailer Wiring (Part #CTW939) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part 56140 is designed for Ford Focus Hatchback models. The manual does not specify which model years are supported, so contact Curt technical support at 1-877-287-8634 to confirm your vehicle's year and trim before purchasing.

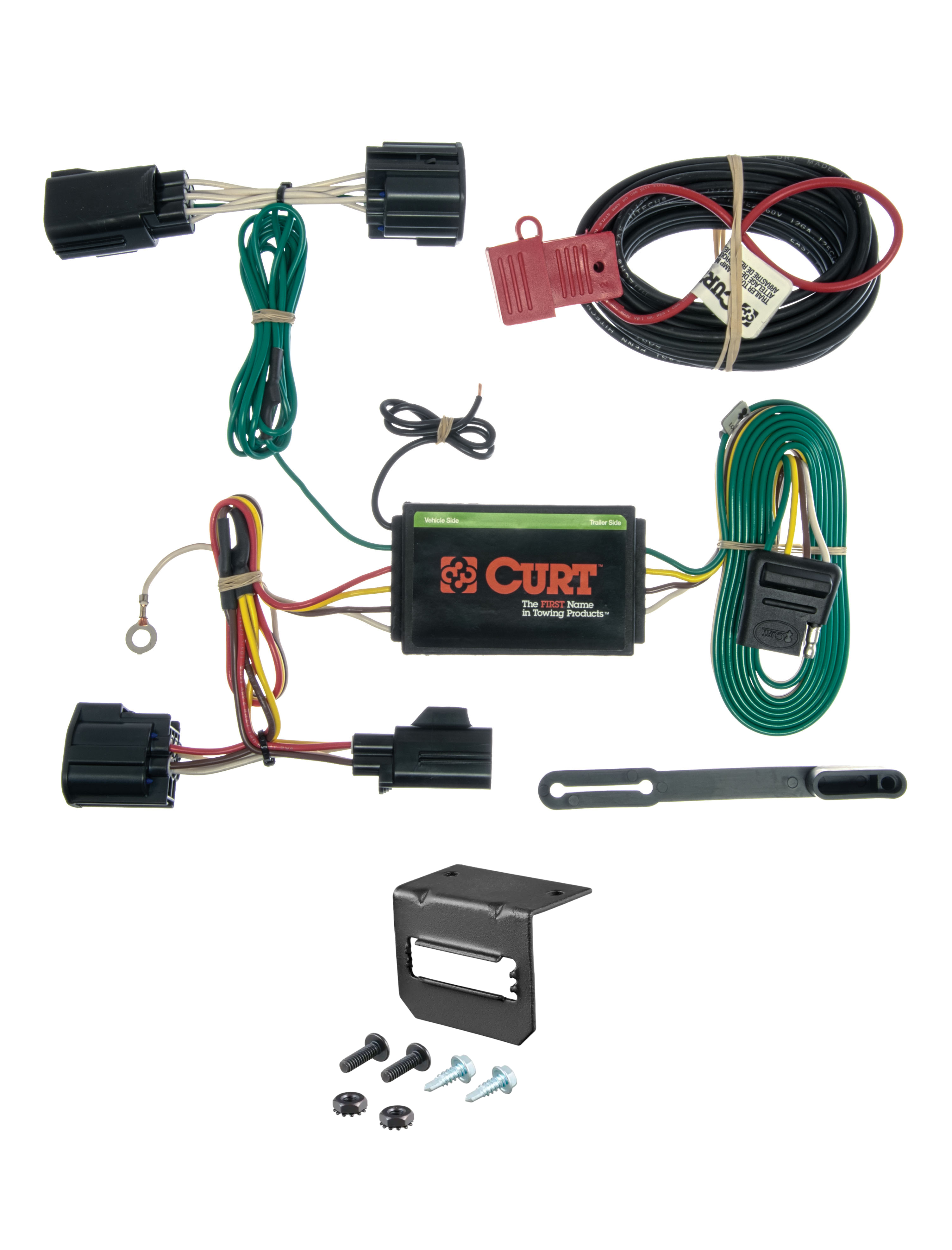

Curt part 56140 is a T-Connector wiring harness for Ford Focus Hatchback vehicles. It provides a connection point for trailer wiring by integrating with the vehicle's existing taillight wiring on both the driver and passenger sides.
You will need a drill with a 3/32" bit (if drilling a new grounding hole), a screwdriver, and basic hand tools. The manual does not specify whether a professional installer or additional equipment is required. Contact Curt technical support at 1-877-287-8634 if you are unsure about your ability to complete the installation.
Open the rear hatch and remove: all floor covers and foam trays in the rear cargo area, the rear scuff panel (held by 4 plastic fasteners), the felt liner behind the taillights, the plastic wing nuts holding the taillights, and the grommets on both sides of the vehicle. Take care not to damage the taillight alignment tabs when removing them.
You may need to drill one 3/32" hole if a suitable existing grounding point (such as an existing screw with nut in the vehicle's frame) is not available near the taillight connector. Before drilling, verify that miscellaneous items hidden behind or under surfaces will not be damaged.
If you need to drill a grounding hole, drill a 3/32" hole in the vehicle's frame near the taillight connector. Secure the white ground wire using the ring terminal and screw provided with the kit.
On the driver side, locate the vehicle's taillight wiring harness connector. Separate the connectors carefully without damaging the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the T-Connector end with the green wire.
The yellow wire connects to the driver side taillight wiring harness, and the green wire connects to the passenger side taillight wiring harness. These connections allow the trailer wiring to integrate with the vehicle's existing taillight circuits.
The white ground wire provides a ground connection for the T-Connector harness. Secure it to a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle's frame, using the ring terminal and screw provided.
Remove the grommet on both sides of the vehicle and make a small slit from the outside towards the center. Route the T-Connector end with the yellow wire through the opening made by the removed driver-side grommet. Route the T-Connector end with the green wire through the opening made by the removed passenger-side grommet. Replace each grommet, routing the wires through the slit made in the removal step.
The black power wire routes from the vehicle's battery to the converter box. The manual references the CME-PCL-INS instruction sheet for detailed routing and connection instructions. Review that sheet for the specific battery connection point and routing path.
Adhere the black converter box behind the felt trunk liner in the vehicle's rear cargo area using the double-sided tape provided with the kit.
When not in use, roll up the 4-flat wire and store it on the driver side in an out-of-the-way location in the rear cargo area. Route it out of the hatch only when the trailer is in use.
After completing all installation steps, reinstall all items that were removed during installation, including floor covers, foam trays, rear scuff panel, taillights, and grommets.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. Drilling into hidden components can cause damage and/or personal injury.
When removing the taillights, pull them out carefully and take care not to damage the alignment tabs. Damaged alignment tabs may prevent proper taillight reinstallation or function.
When separating the vehicle's taillight wiring harness connectors, take care not to damage the locking tabs. Damaged locking tabs may prevent proper connector seating and cause electrical issues.
Curt 56140 is designed for Ford Focus Hatchback models. Confirm your vehicle's year and trim with Curt technical support at 1-877-287-8634 before purchasing.
You may need to drill one 3/32" hole for the ground wire if an existing grounding point is not available. Before drilling, verify that hidden items will not be damaged.
You will need a drill with a 3/32" bit (if drilling), a screwdriver, and basic hand tools. Contact Curt technical support at 1-877-287-8634 if you need guidance on installation difficulty.
Remove rear floor covers, foam trays, rear scuff panel (4 plastic fasteners), felt liner, taillights (plastic wing nuts), and grommets on both sides. Take care not to damage taillight alignment tabs.
Locate the taillight wiring harness connector on each side. Separate the connectors without damaging the locking tabs. Insert the T-Connector end (yellow wire on driver side, green wire on passenger side) between the separated connectors and fully seat with locking tabs in place.
Adhere the black converter box behind the felt trunk liner in the rear cargo area using the provided double-sided tape.
