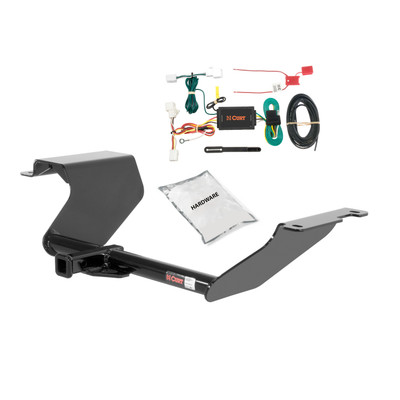

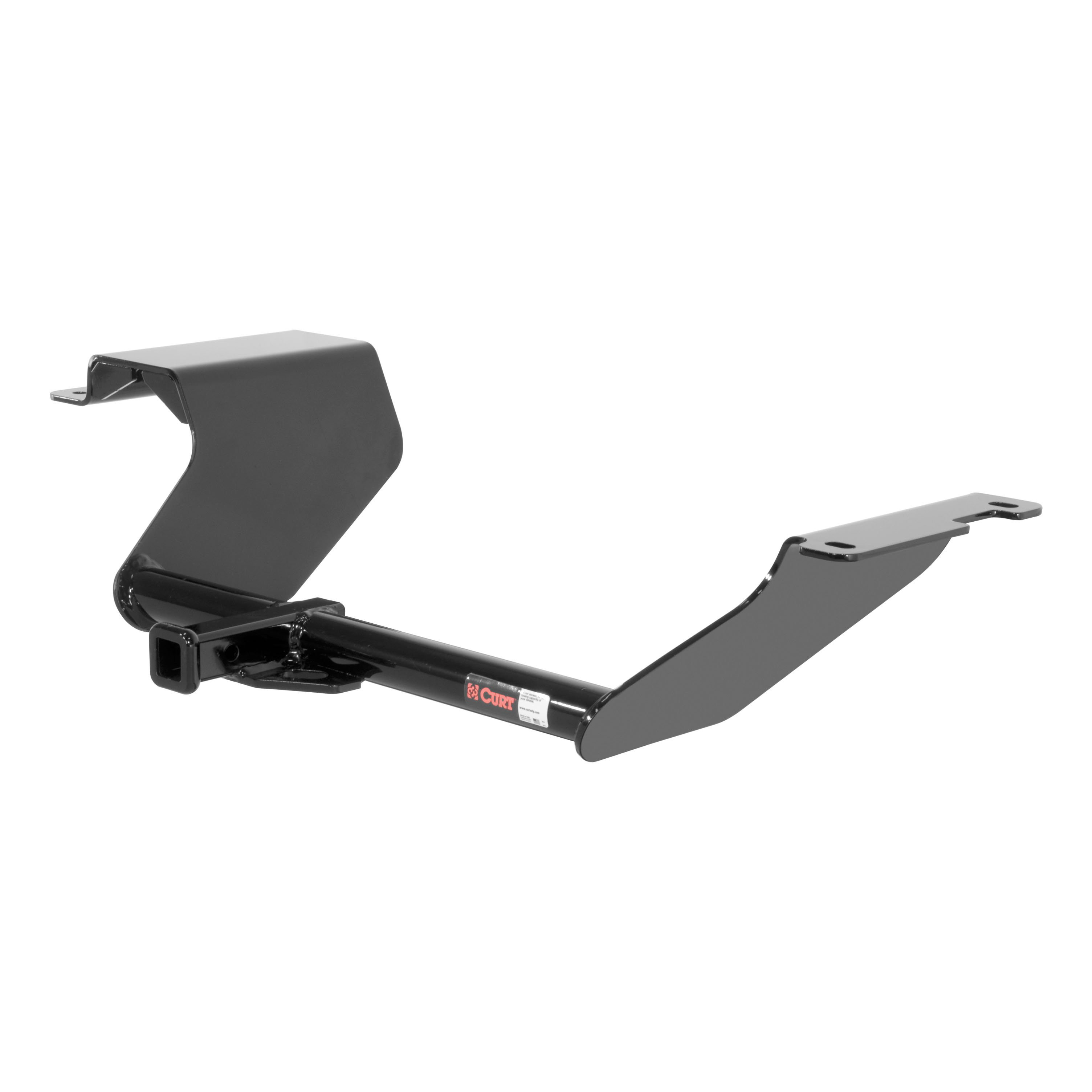

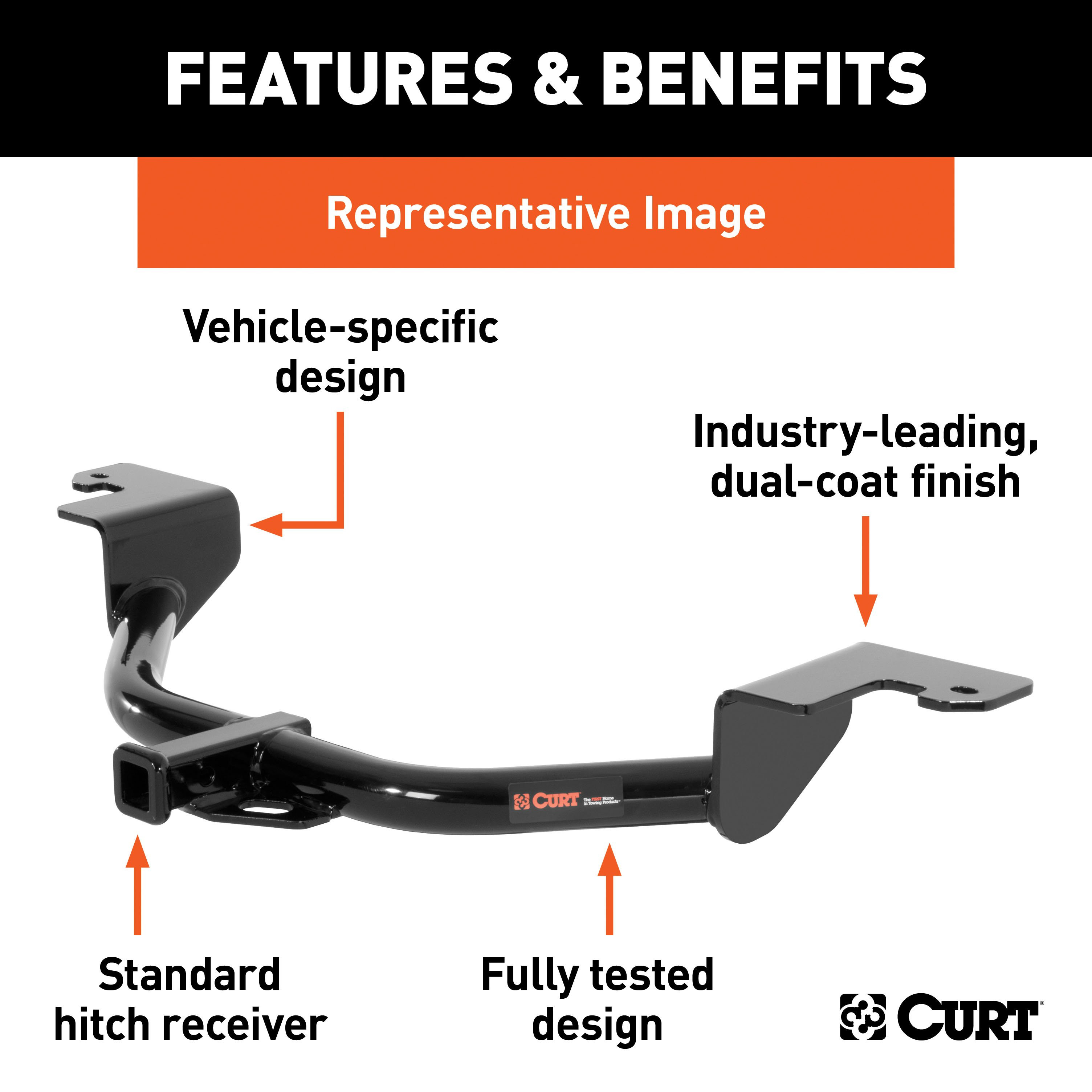

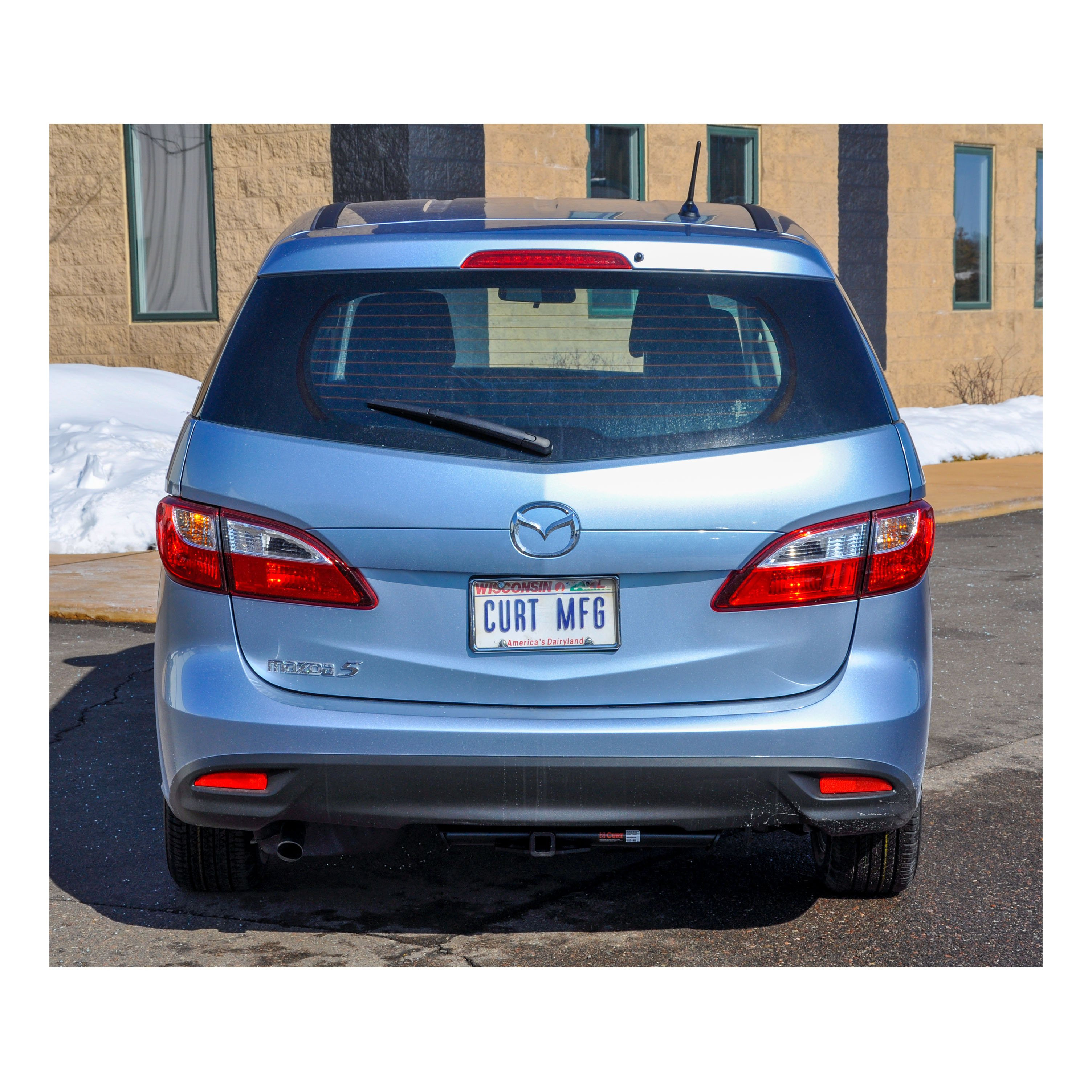

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2012 - 2015 Mazda 5. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

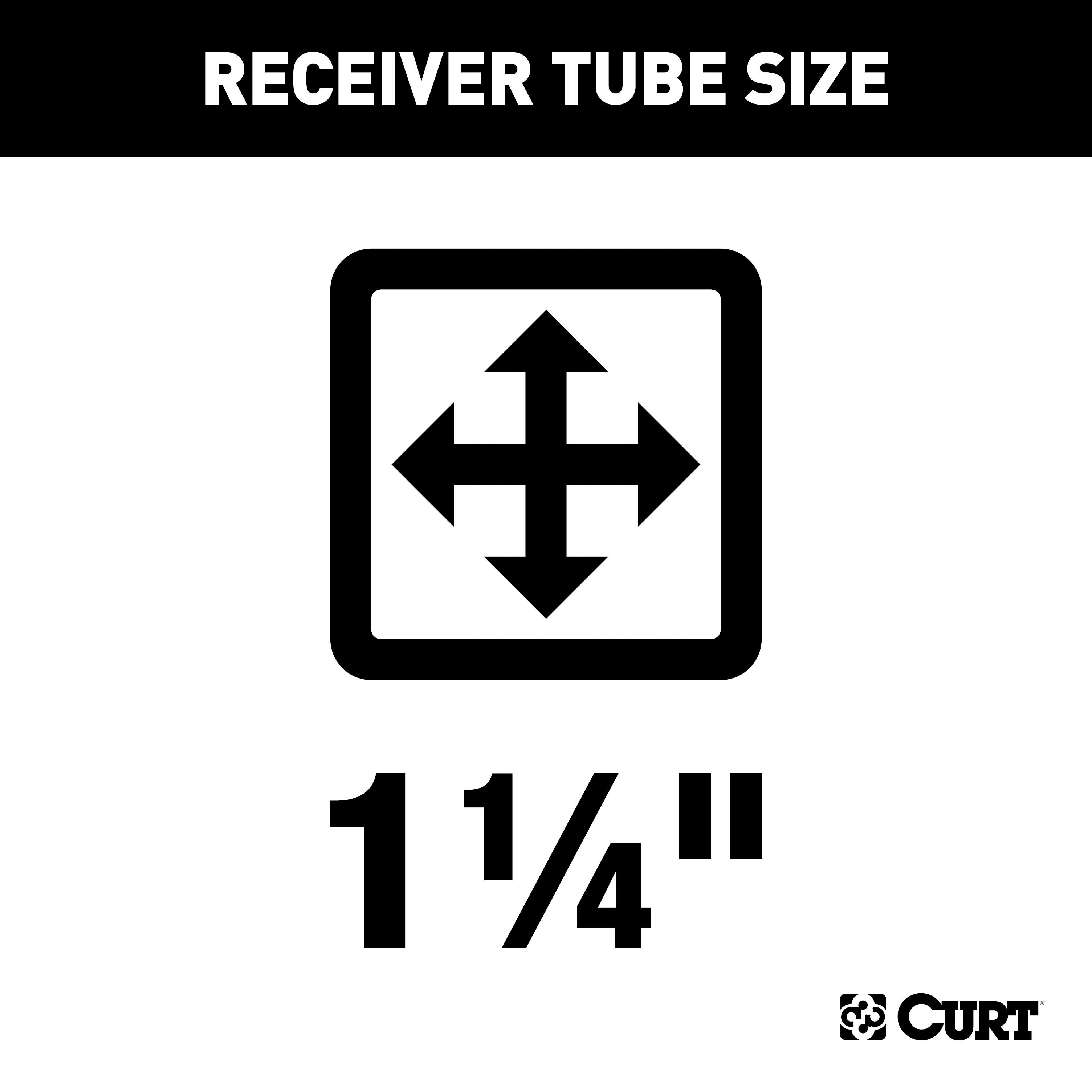

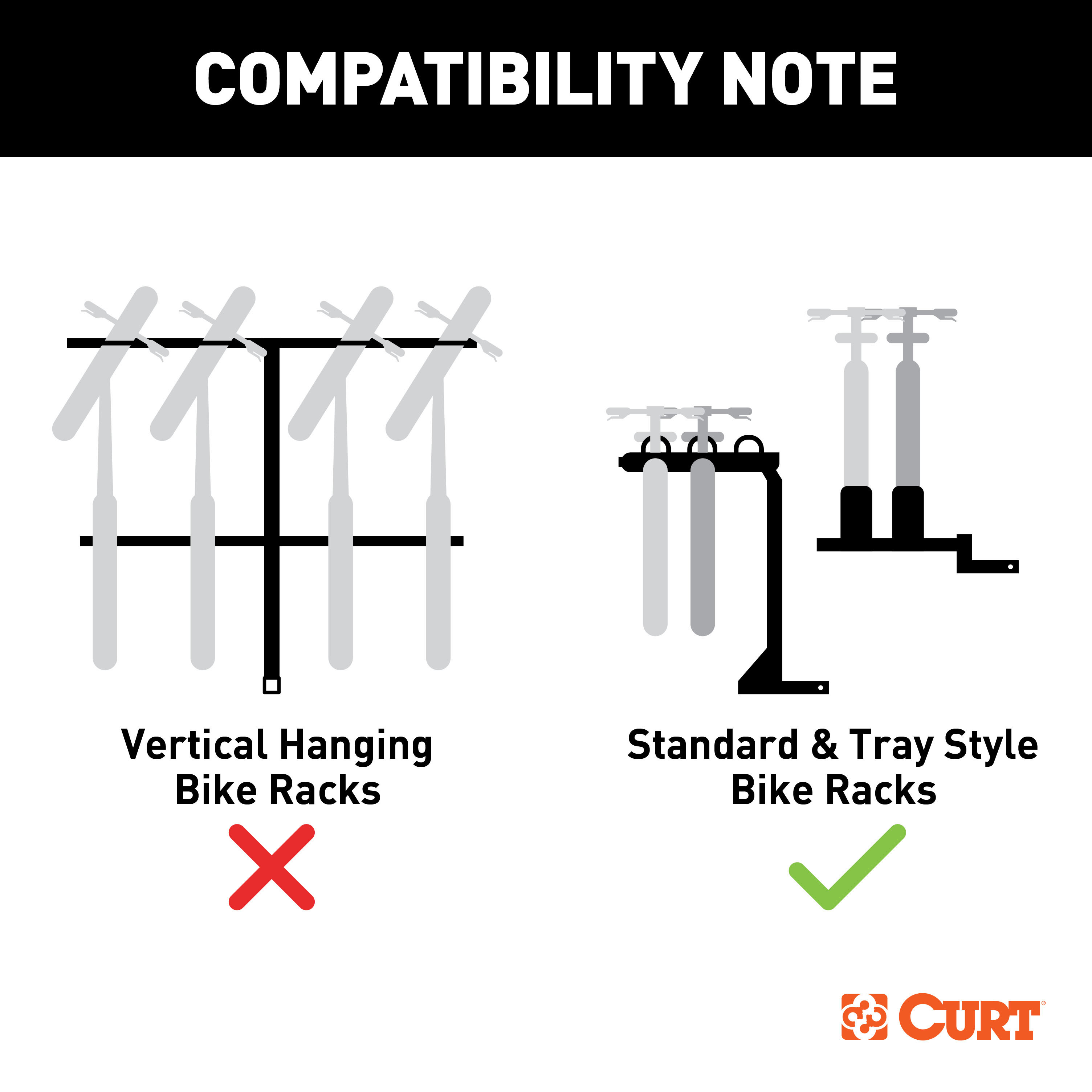

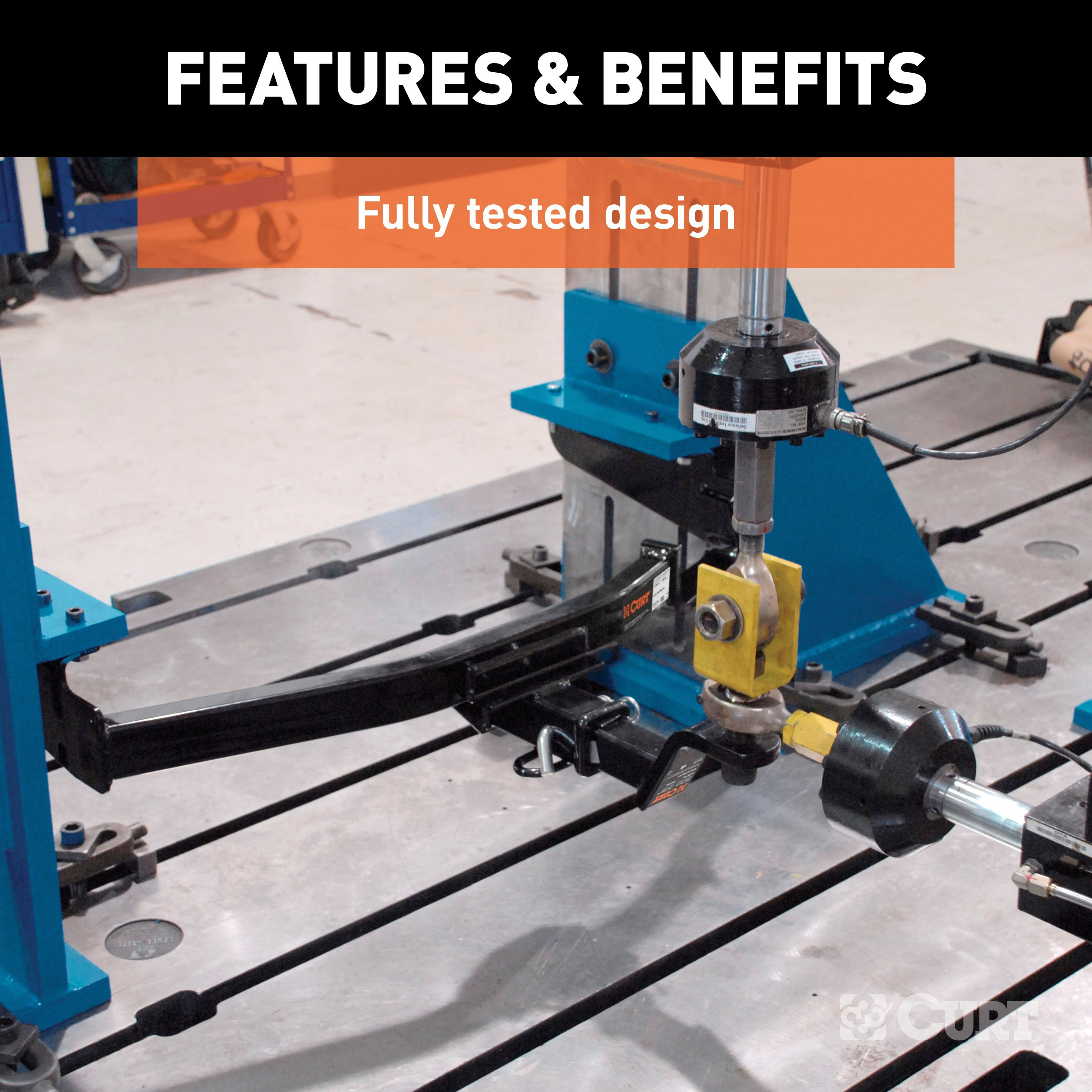

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Mazda 5 (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.

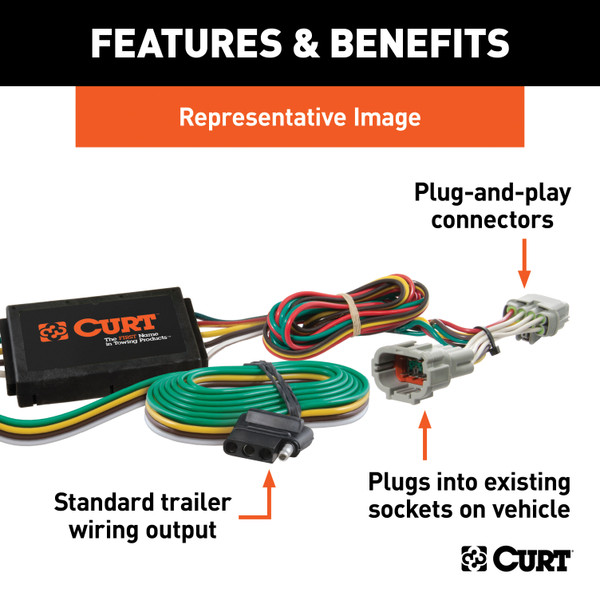

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mazda 2 hatchback, Mazda 5 and Mazda CX9 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.

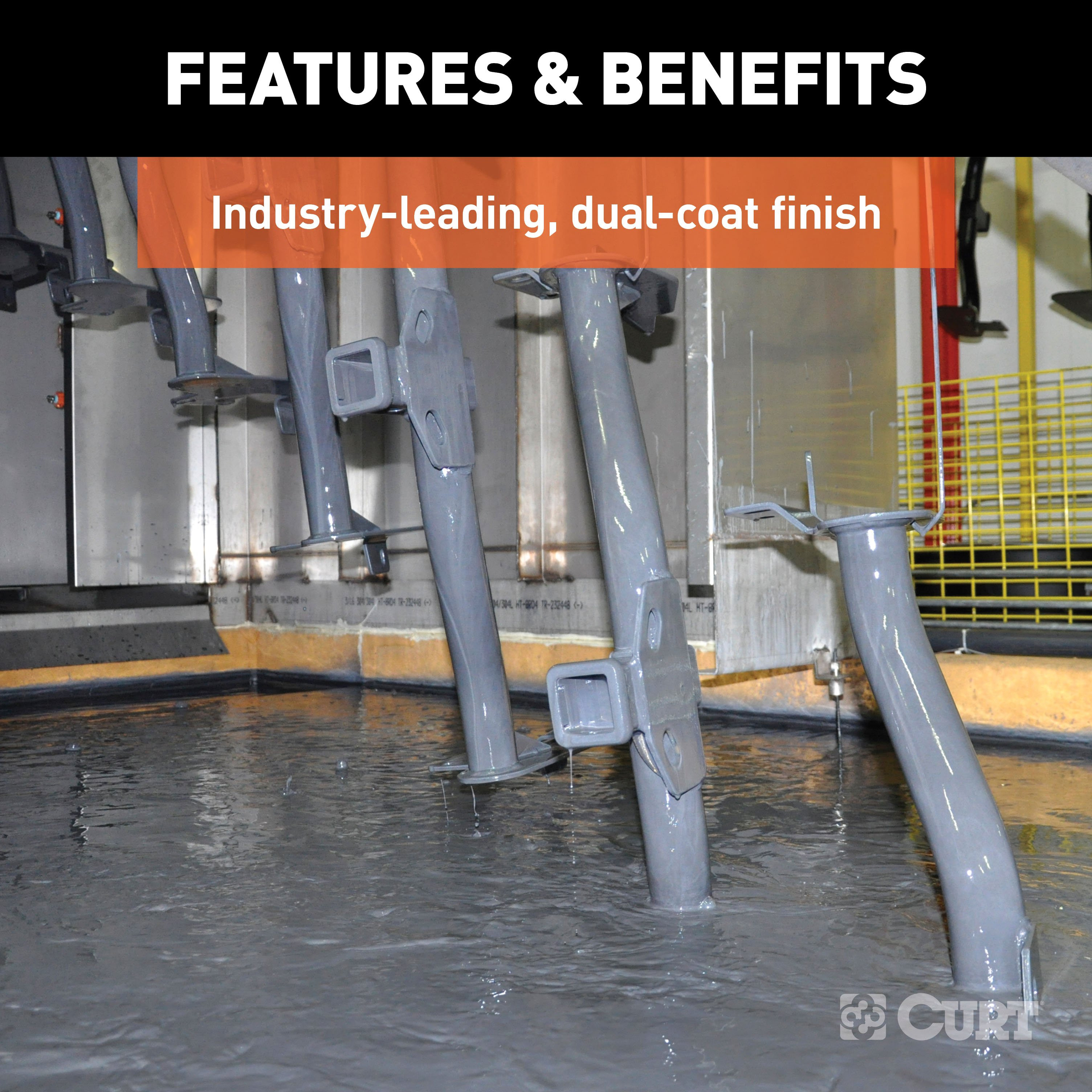

CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2015 | Mazda 5 | — |
The 12 - 15 Mazda 5 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11127 (Part #CHW-2225) fits the following vehicles: 2012-2015 Mazda 5. Always verify your specific year, make, and model before ordering.
Yes, the 12 - 15 Mazda 5 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11127 (Part #CHW-2225) is designed to fit the 2012-2015 Mazda 5.
The 12 - 15 Mazda 5 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11127 (Part #CHW-2225) fits 2012-2015 Mazda 5 models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 12 - 15 Mazda 5 Curt 1-1/4", Class 1 Trailer Tow Hitch + 4-flat Wiring Kit 11127 (Part #CHW-2225) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

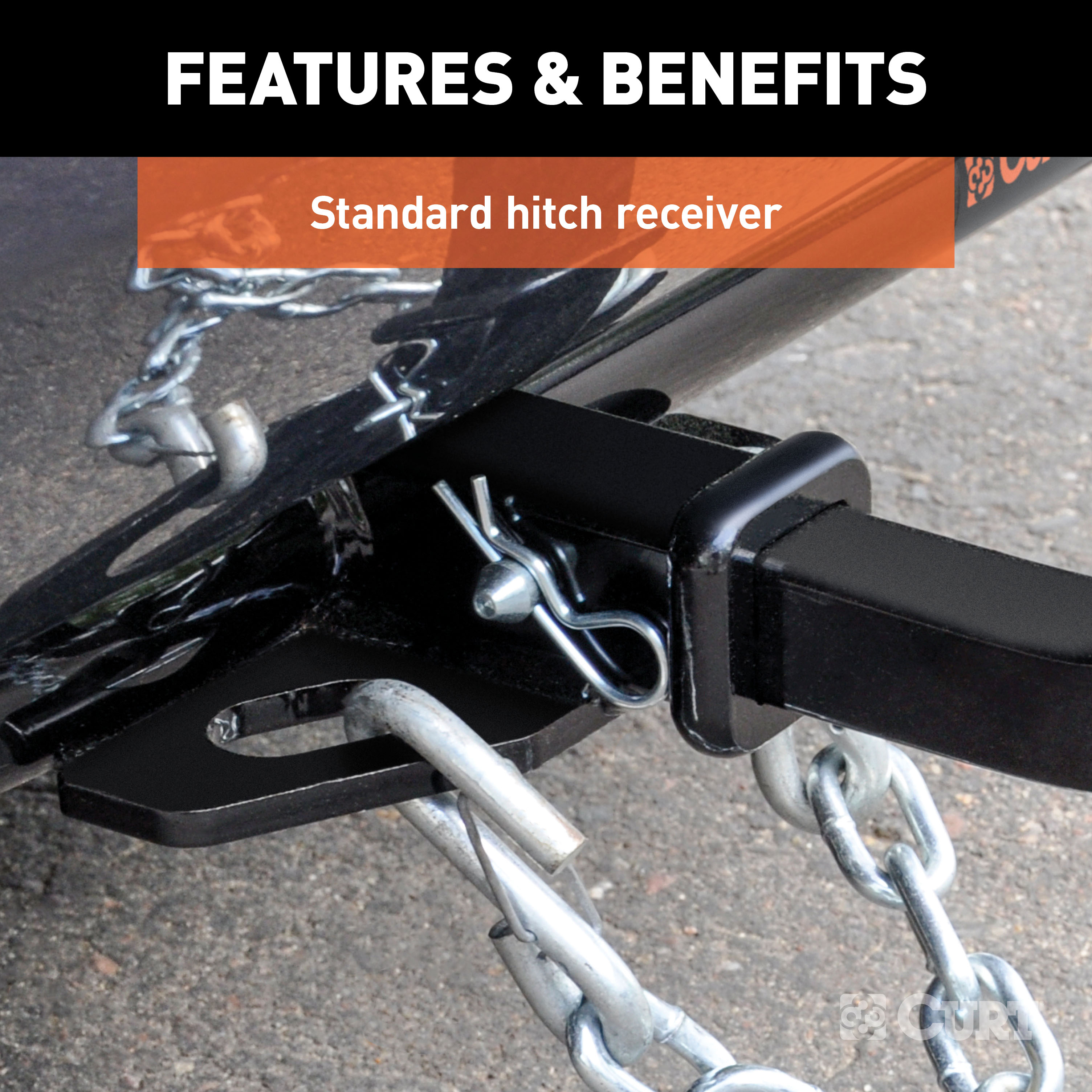

The Curt 11127 is a receiver hitch designed for the Mazda 5. It is designed for use with ball mount D-20 / 45520, with euro mount options available (part numbers 45561 for 1-7/8" ball or 45562 for 2" ball).
Yes, the Curt 11127 is designed for the Mazda 5.
The following tools are required: ratchet, torque wrench, 10mm socket, 11/16" socket, 5" extension, die grinder, and aviation shears.
The kit includes: 4 hex flange nuts (7/16-14), 4 square hole spacers (CM-SP7, .250 x 1.00 x 2.00"), 4 carriage bolts (7/16-14 x 1 1/4), and 2 pieces of 7/16" fishwire.
Yes. The first installation step is to lower the exhaust by removing 3 rubber exhaust hangers. The exhaust is then raised and the hangers are reattached after the hitch is secured.
Yes. The heat shield must be removed by removing 6 fasteners. It is then trimmed and reattached using 4 of the fasteners removed in this step.
Yes. The forward-most access holes in the frame rails must be enlarged to allow 7/16-14 carriage bolts and SP7 spacers to pass through. This is done on both sides. A die grinder is required for this step.
Yes. The heat shield must be trimmed. According to the heat shield trim diagram, trim approximately 10.00 inches from one dimension, 13.00 inches from another, and 1.00 inch from a third. The manual notes that dimensions are approximate and you must confirm fit prior to trimming. Aviation shears are required for this step.
Fishwire is used to thread the 7/16-14 carriage bolts and SP7 spacers through the access holes and out the rear-most holes in the frame rails on both sides. The bolts and spacers are then reversed back through the access holes using the reverse fishwire technique.
Yes. If present, remove any tape covering holes in the frame rails before enlarging the access holes. This is noted in Step 2 of the installation instructions.
All 7/16" hardware must be torqued to 70 ft-lbs.
The manual lists a gross load capacity of 2,000 lbs. trailer weight and 200 lbs. tongue weight when used as a weight-carrying hitch.
All non-trailer loads applied to this product must be supported by 18050 stabilizing straps.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound.
The Curt 11127 is designed for use with ball mount D-20 / 45520. Euro mount options are available: part number 45561 (1-7/8" ball) or 45562 (2" ball).
Yes, the Curt 11127 is designed for the Mazda 5.
Yes. The forward-most access holes must be enlarged using a die grinder, and the heat shield must be trimmed using aviation shears.
You will need a ratchet, torque wrench, 10mm socket, 11/16" socket, 5" extension, die grinder, and aviation shears.
All 7/16" hardware must be torqued to 70 ft-lbs.
The Curt 11127 has a gross load capacity of 2,000 lbs. trailer weight and 200 lbs. tongue weight when used as a weight-carrying hitch.
Yes. All non-trailer loads applied to this product must be supported by 18050 stabilizing straps.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound.
The Curt 56016 is designed for Mazda 2, Mazda 5, and Mazda CX-9 models. Confirm your vehicle model matches one of these applications before purchasing.
The harness is rated for Signal Circuits at 3.0 amps per side and Tail/Running Circuits at 6.0 amps total. Do not exceed these ratings or your vehicle's tow lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need a ratchet, 10mm socket, Phillips screwdriver, and panel trim removal tool. A 3/32" drill bit is also required if you need to drill a pilot hole for the grounding screw.
The harness includes a screw and ring terminal for grounding, double-sided tape for the converter box, cable ties for securing loose wires, and a 4-flat dust cover. A CME-PCL-INS sheet with battery routing information is also included.
The manual does not specify whether the battery must be disconnected before installation. Contact the vehicle manufacturer or Curt Manufacturing for guidance on this safety step.
Open the vehicle tailgate and remove all trunk floor coverings and storage trays. Then remove the scuff panel by pulling out on the bottom and then up, taking care not to damage the alignment tabs on the back.
Locate the vehicle taillight wiring harness connectors behind the trim panel. Separate the connectors from the taillight housing carefully to avoid damaging the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors, ensuring the connectors are fully inserted with locking tabs in place.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Drilling may be required. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you will need to drill a 3/32" pilot hole for the provided grounding screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided grounding screw. The area should be free of rust, dirt and paint before securing the white ground wire using the ring terminal.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.

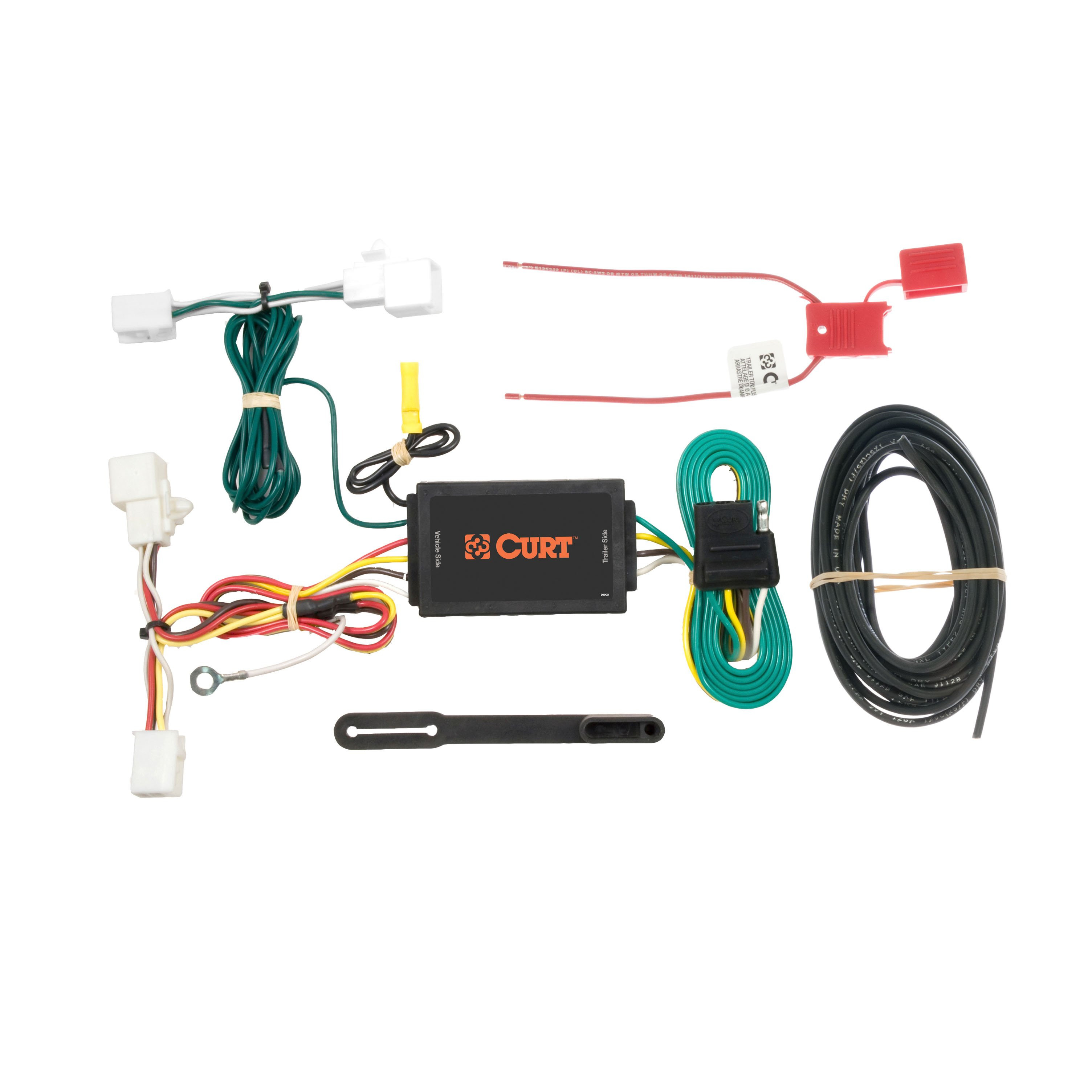

The harness has a yellow wire end for the driver side taillight connection, a green wire end for the passenger side taillight connection, a white wire for grounding, and a black power wire that routes from the vehicle battery. Refer to the included CME-PCL-INS sheet for detailed battery power wire routing.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
Reinstall all items removed during installation, including trunk floor coverings, storage trays, scuff panel, and rear trim panels. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56016 fits Mazda 2, Mazda 5, and Mazda CX-9.
Ratchet, 10mm socket, Phillips screwdriver, panel trim removal tool, and a 3/32" drill bit if drilling is required.
10-amp maximum fuse for the battery connection. Do not exceed this rating or the product's amperage limits (3.0 amps per signal side, 6.0 amps total for tail/running circuits) to avoid warranty loss, overheating and fire.
