| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S1,S2 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2017 | Hyundai Veloster | — |
The 12-17 Hyundai Veloster CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1464) fits the following vehicles: 2012-2017 Hyundai Veloster. Always verify your specific year, make, and model before ordering.
Yes, the 12-17 Hyundai Veloster CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1464) is designed to fit the 2012-2017 Hyundai Veloster.
The 12-17 Hyundai Veloster CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1464) fits 2012-2017 Hyundai Veloster models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 12-17 Hyundai Veloster CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1464) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual specifies that part 56153 is designed for the Hyundai Veloster. However, the manual does not confirm compatibility with all model years or trim levels. Contact Curt Manufacturing technical support at 1-877-287-8634 to verify fitment for your specific vehicle year and configuration.

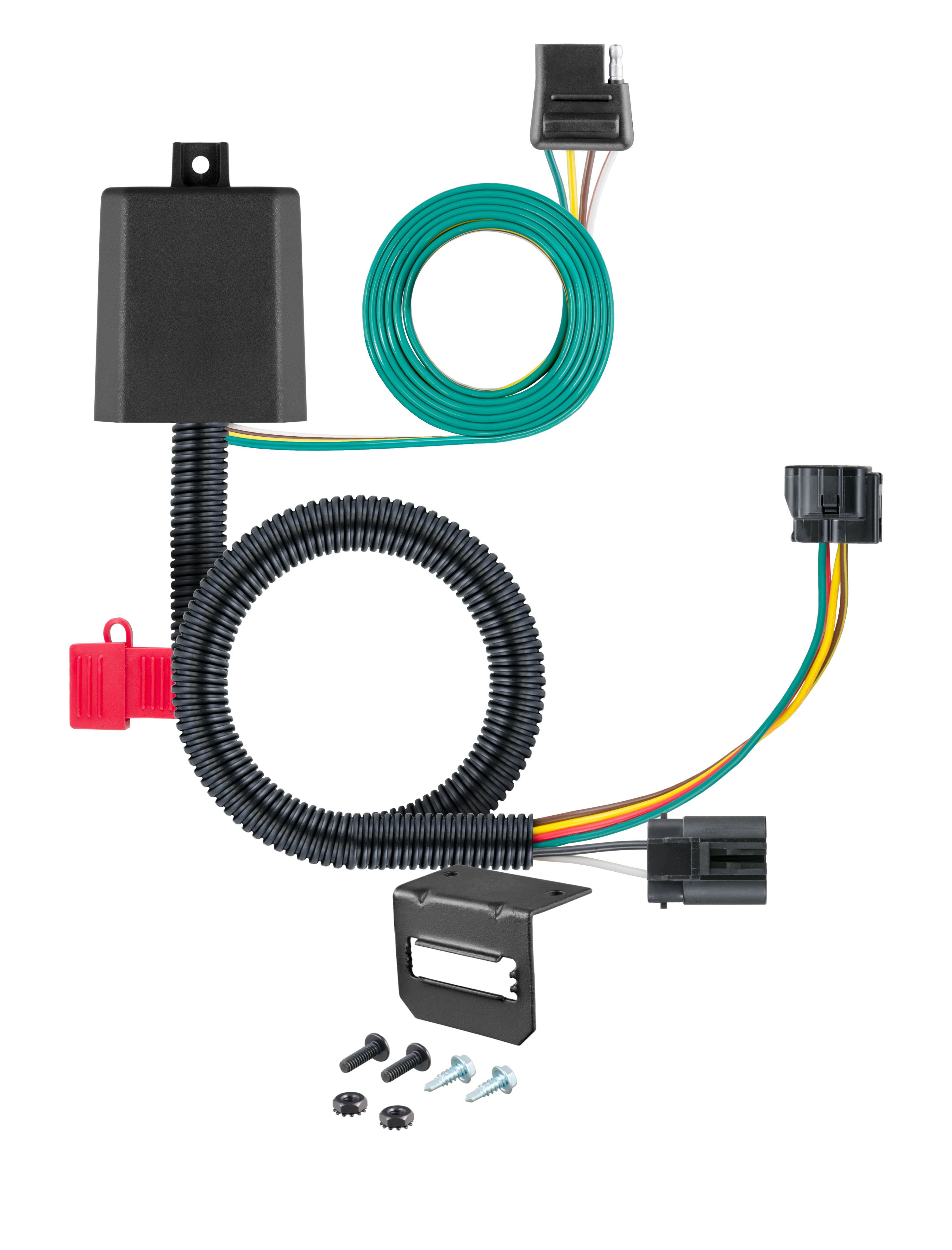

The kit includes a T-Connector harness with yellow and green wire ends, a black converter box, double-sided tape, a white ground wire with ring terminal and screw, a 4-flat connector, and cable ties for securing loose wires.
You will need a Phillips screwdriver to remove the taillight assemblies and a drill with a 3/32" bit to create a grounding hole if a suitable existing screw with nut is not available on the vehicle frame. A basic hand tool set is recommended.
Yes. Step 5 requires you to review the CME-PCL-INS instruction sheet to properly route the black power wire from the battery to the converter. This sheet is referenced as a separate document and must be consulted during installation.
Open the rear hatch and remove both taillight assemblies by removing two Phillips screws holding them in place. Carefully pull out each taillight assembly, taking care not to damage the alignment tabs.
Locate the vehicle's taillight wiring harness connector on the driver side. Separate the connector carefully without damaging the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the T-Connector end with the green wire.
Drilling is required only if a suitable grounding point is not available. If an existing screw with nut is not found on the vehicle frame near the connector, you must drill a 3/32" hole to secure the white ground wire using the ring terminal and screw provided.
Drill a 3/32" hole to secure the white ground wire using the ring terminal and screw provided in the kit.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. Drilling without checking can cause damage to hidden components and/or personal injury.
Route the 4-flat and the T-Connector end with the green wire down under the vehicle through the opening under the driver side taillight. Route the green wire across to the passenger side along the backside of the bumper and up through the opening under the passenger side taillight. Route the 4-flat wire to the center of the vehicle and secure it in a convenient out-of-the-way location. Secure any loose wires with the cable ties provided.
Adhere the black converter box behind the removed taillight housing of the vehicle using the double-sided tape provided in the kit.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If one is not available, drill a 3/32" hole and secure the white ground wire using the ring terminal and screw provided in the kit.
Reinstall all items removed during installation, including the taillight assemblies and any other components that were removed to access the wiring harness.
The Curt 56153 is designed for the Hyundai Veloster. Verify your specific model year and trim with Curt technical support at 1-877-287-8634 before purchasing.
You need a Phillips screwdriver and a drill with a 3/32" bit (if drilling is required for the ground wire). A basic hand tool set is recommended.
Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
Yes, you must review the CME-PCL-INS converter instruction sheet to properly route the black power wire from the battery to the converter.
