| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P3,P4 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2017 | Hyundai Accent | Sedan |
The 12-17 Hyundai Accent Sedan CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1399) fits the following vehicles: 2012-2017 Hyundai Accent. Always verify your specific year, make, and model before ordering.
The 12-17 Hyundai Accent Sedan CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1399) fits 2012-2017 Hyundai Accent models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 12-17 Hyundai Accent Sedan CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1399) is designed to fit the 2012-2017 Hyundai Accent.
The 12-17 Hyundai Accent Sedan CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1399) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part 56149 is designed for the Hyundai Accent. The manual does not specify model years, so contact Curt technical support at 1-877-287-8634 to confirm your vehicle's year is supported.
Open the trunk and remove: all trunk floor covers, the rear scuff panel (by pulling up on the top), and the plastic fasteners holding the felt trunk liner in place on both sides. These items are reinstalled after installation.
On the driver's side, pull back the felt trunk liner to locate the vehicle's taillight wiring harness connectors. Separate the connectors carefully, taking care not to damage the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors, then push both connectors fully together until the locking tabs are in place.
The yellow wire end of the T-Connector is inserted between the driver's side taillight wiring connectors. The manual does not specify the function of individual wires; contact Curt technical support at 1-877-287-8634 for details.
The green wire end of the T-Connector is routed to the passenger side and inserted between the passenger side taillight wiring connectors, following the same procedure as the driver's side. The manual does not specify the function of individual wires; contact Curt technical support at 1-877-287-8634 for details.
Drilling is optional. The ground wire has an eyelet that must be secured. You can use an existing screw with nut in the vehicle's frame, or drill a 3/32" hole and secure the eyelet using the screw provided with the kit.
If you choose to drill, the hole size is 3/32". A screw is provided to secure the white ground wire eyelet in this hole.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. This precaution avoids damage to the vehicle and personal injury.
Adhere the black converter box to the inside body panel of the vehicle behind the felt trunk liner near the connector using the double-sided tape provided. Choose a flat spot for secure adhesion.
Route the T-Connector end with the green wire across to the passenger side behind the removed scuff panel. Use the cable ties provided to secure wires to an existing wiring harness. The 4-flat connector is routed from under the felt trunk liner to the center of the vehicle and out of the trunk when in use.
Roll up and store the 4-flat connector in an out-of-the-way location when not in use.

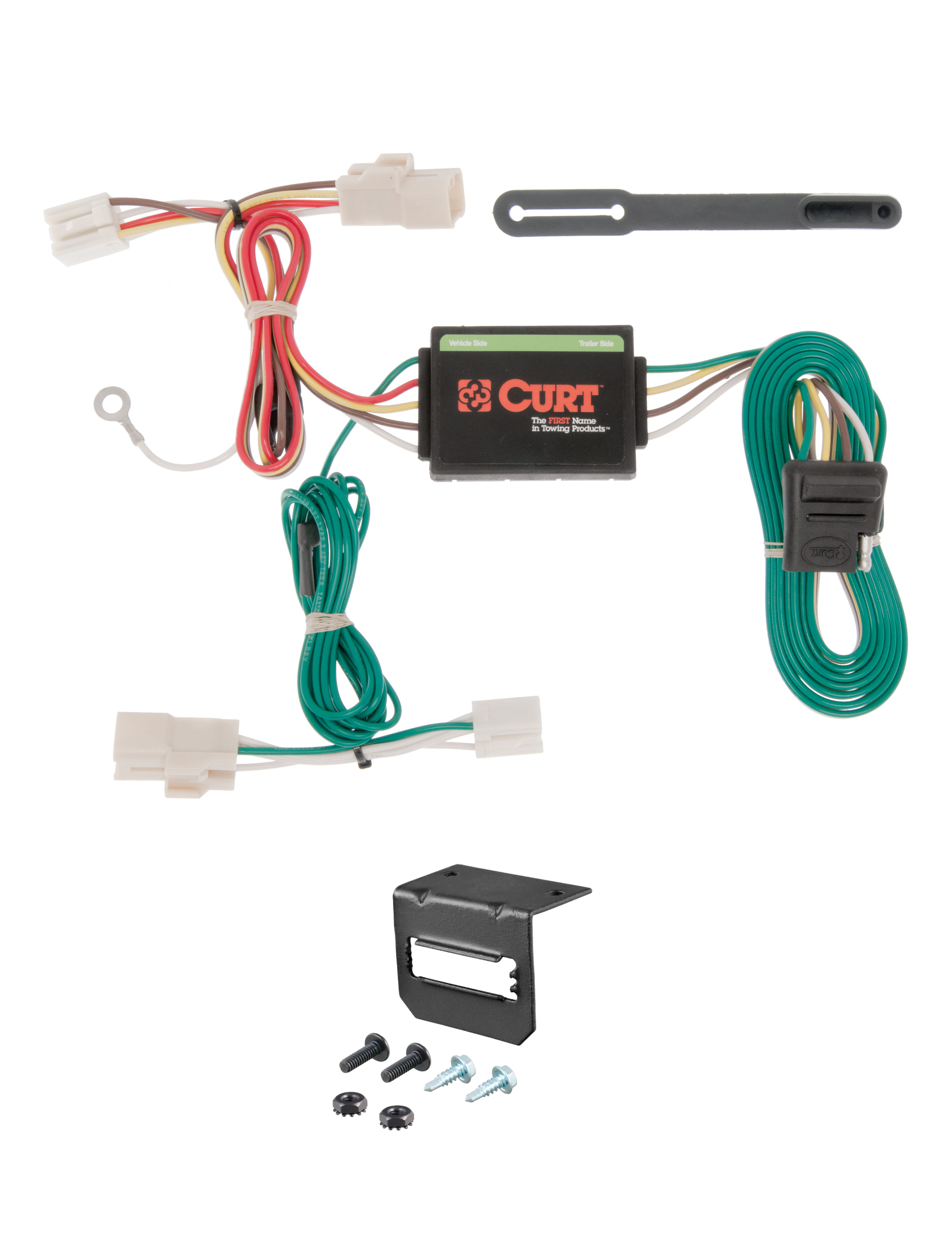

The kit includes a T-Connector harness with yellow and green wire ends, a white ground wire with eyelet, a black converter box, double-sided tape, a screw for the ground wire, cable ties, and a 4-flat connector. The manual does not provide a complete parts list; contact Curt technical support at 1-877-287-8634 for details.
No. You must pull back the felt trunk liner on the driver's side to access the taillight wiring connectors, and on the passenger side to route the green wire connector. The plastic fasteners holding the liner in place must be removed.
Yes, the Curt 56149 is designed for the Hyundai Accent. Confirm your vehicle's model year with Curt technical support at 1-877-287-8634.
No. Drilling is optional. You can secure the ground wire to an existing screw with nut in the vehicle's frame, or drill a 3/32" hole if no suitable existing fastener is available.
Remove the trunk floor covers, rear scuff panel, and plastic fasteners holding the felt trunk liner. All items are reinstalled after installation.
The kit includes a T-Connector harness, white ground wire with eyelet, black converter box, double-sided tape, screw, cable ties, and a 4-flat connector. Contact Curt technical support at 1-877-287-8634 for a complete parts list.
