14-17 Hyundai Elantra GT CURT 4-flat Plug and Play Trailer WiringCURTOriginal price was $107.90. Current price is $106.47.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P3,P4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494The 14-17 Hyundai Elantra GT Base, single exhaust only CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1414) fits 2014-2017 Hyundai Elantra GT models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 14-17 Hyundai Elantra GT Base, single exhaust only CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1414) fits the following vehicles: 2014-2017 Hyundai Elantra GT. Always verify your specific year, make, and model before ordering.
Yes, the 14-17 Hyundai Elantra GT Base, single exhaust only CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1414) is designed to fit the 2014-2017 Hyundai Elantra GT.
The 14-17 Hyundai Elantra GT Base, single exhaust only CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1414) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 56233 custom wiring harness fits Hyundai Elantra GT and Hyundai Elantra sedan models, excluding the limited trim. Check your vehicle's trim level and model year against these applications before purchasing.
The Curt 56233 has a signal circuit rating of 3.0 amps per side and a tail/running circuit rating of 6.0 amps total. Do not exceed these ratings or your tow vehicle's lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
You will need a 10mm socket, ratchet, panel trim removal tool, and Phillips screwdriver. These are the only tools specified in the installation instructions.
Yes. You must disconnect the negative battery terminal before beginning installation. This is a required safety step performed in Step 2 of the installation process.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
The vehicle wiring harness connectors are located inside the trunk behind the taillight housings. The driver side connector is at position P3 (behind driver side taillight) and the passenger side connector is at position P4 (behind passenger side taillight). You will need to remove trunk floor coverings, storage trays, the rear scuff panel and trim panels to access them.
Separate the vehicle taillight wiring harness connectors from the taillight housing, taking care not to damage the locking tabs. Insert the T-connector end with the yellow wire between the separated connectors on the driver side. Make sure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the T-connector end with the green wire.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. Before drilling, check for miscellaneous items hidden behind or under surfaces to avoid damage and personal injury.
Drilling may be required for the ground wire connection. If a suitable existing screw with nut is not available in the vehicle frame near the connector, you must drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items hidden behind or under surfaces to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the double-sided tape provided. The converter box should be mounted in a location where it will not interfere with vehicle operation or occupant safety.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties to prevent tangling and damage.
After installation, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly before relying on it for towing.

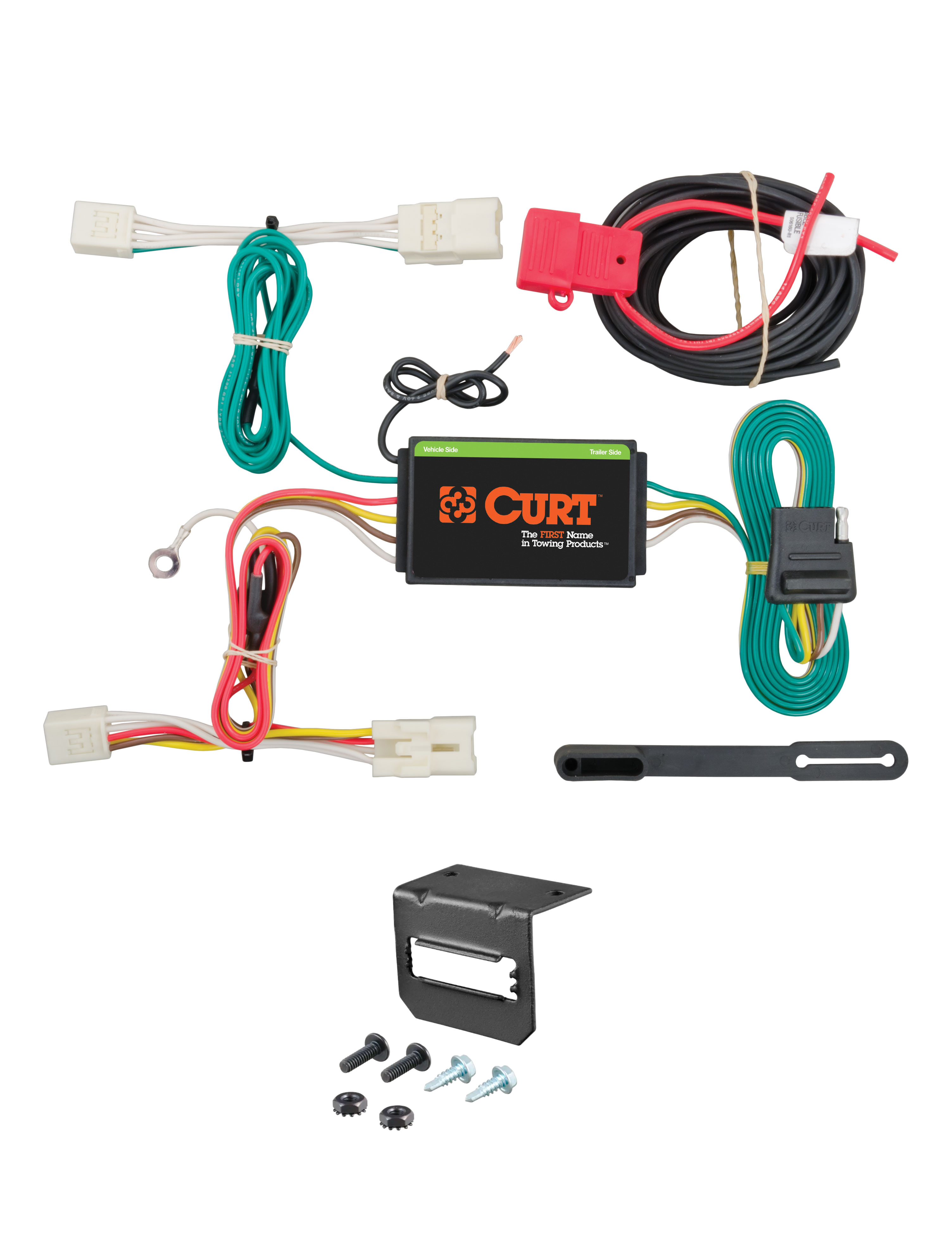

The Curt 56233 includes a custom wiring harness with T-connectors (yellow and green wire ends), a white ground wire with ring terminal, a black converter box, double-sided tape for mounting the converter box, a provided screw for grounding, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
The Curt 56233 fits Hyundai Elantra GT and Hyundai Elantra sedan (excluding limited trim).
You need a 10mm socket, ratchet, panel trim removal tool, and Phillips screwdriver.
Yes, disconnect the negative battery terminal before starting installation.
The battery connection must use a 10-amp maximum fuse. Exceeding this can cause loss of warranty, overheating and potential fire.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2017 | Hyundai Elantra GT | Base, single exhaust only |
