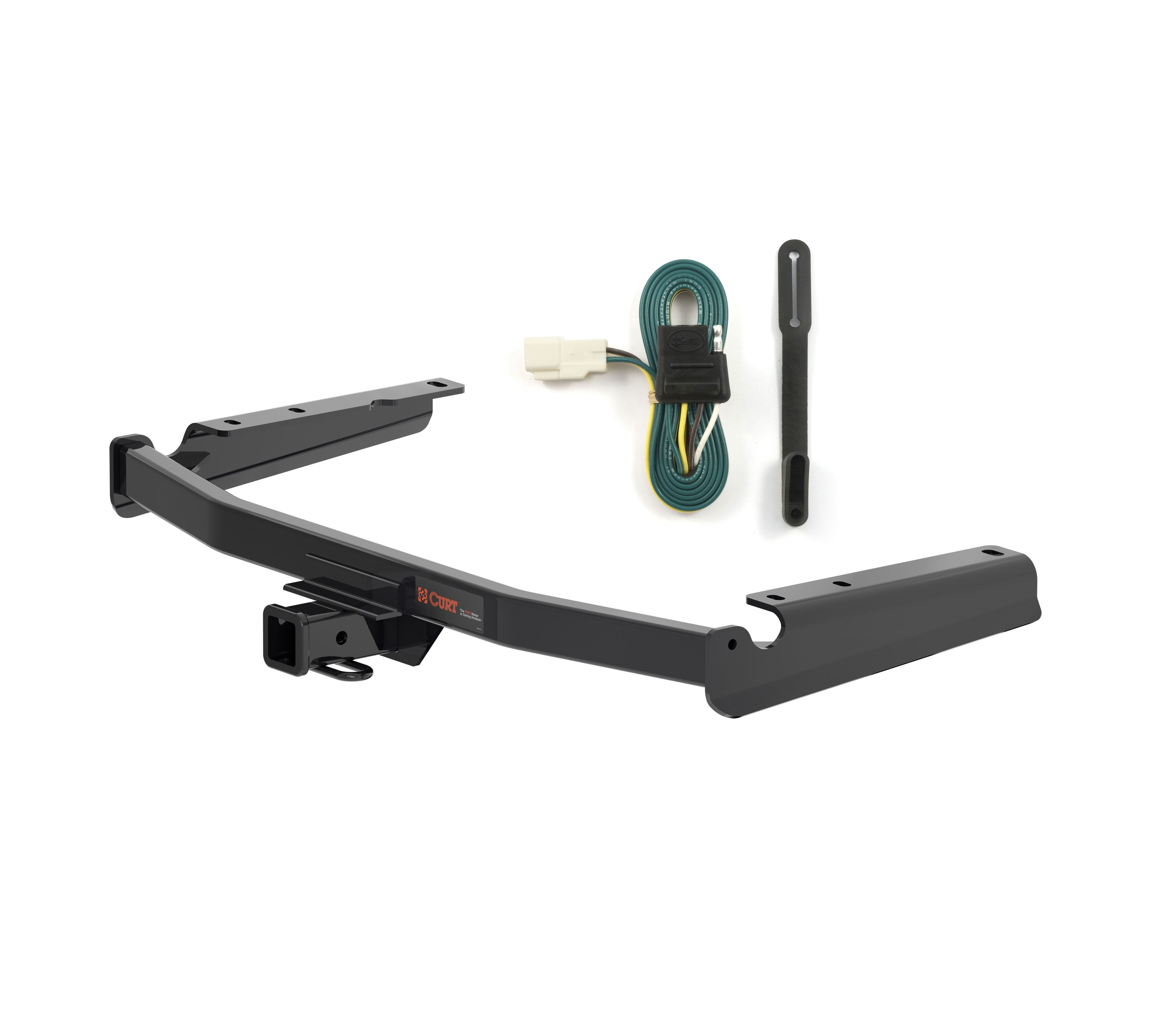

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2014 - 2019 Toyota Highlander. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Lexus RX350L and Toyota Highlander (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

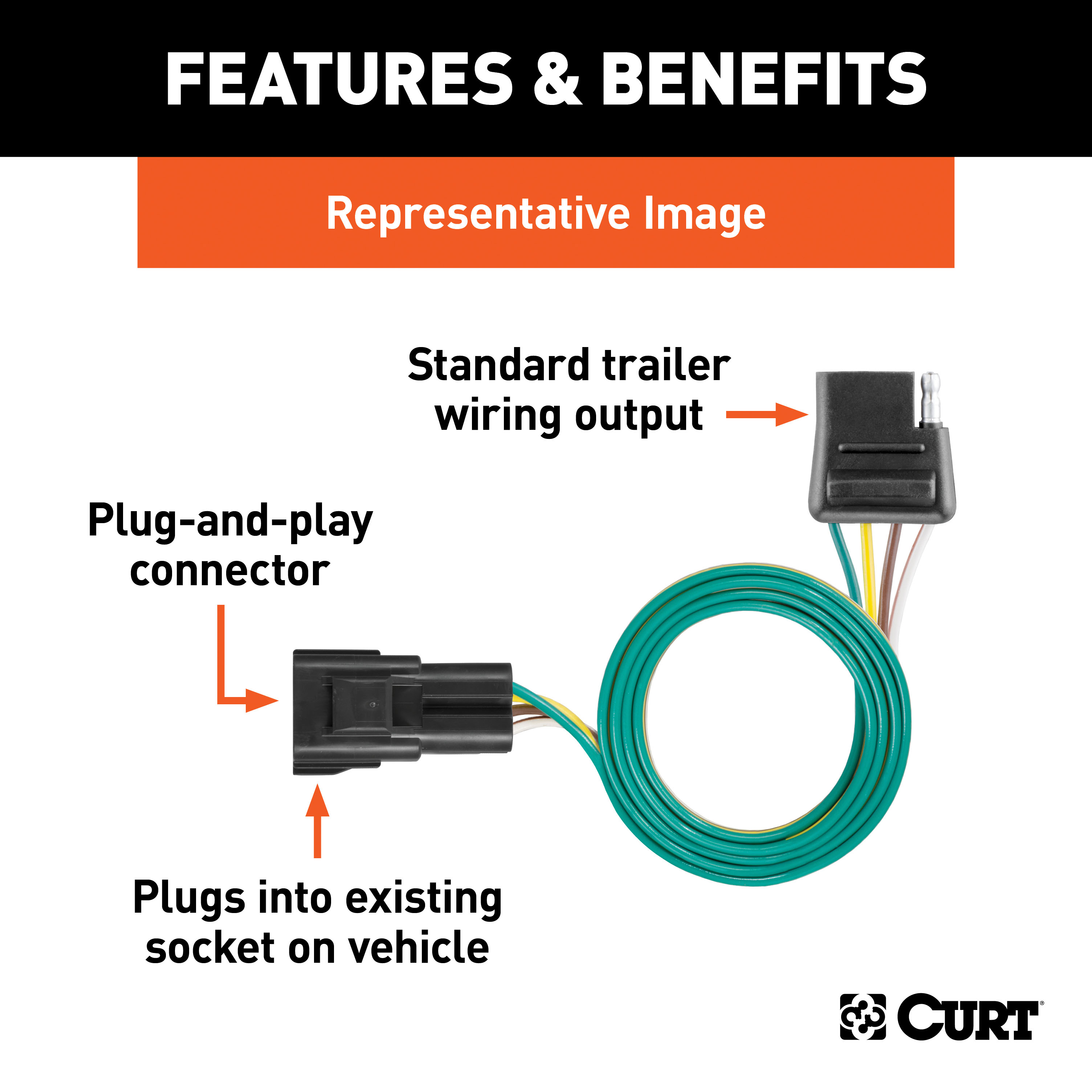

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Toyota Highlander (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2019 | Toyota Highlander | — |
Yes, the 14 - 19 Toyota Highlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13394-8 (Part #CHW-2888) is designed to fit the 2014-2019 Toyota Highlander.
The 14 - 19 Toyota Highlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13394-8 (Part #CHW-2888) fits 2014-2019 Toyota Highlander models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The 14 - 19 Toyota Highlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13394-8 (Part #CHW-2888) fits the following vehicles: 2014-2019 Toyota Highlander. Always verify your specific year, make, and model before ordering.
The 14 - 19 Toyota Highlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13394-8 (Part #CHW-2888) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
CURT part number 13394 fits 2014–2018 Toyota Highlander and 2018–present Lexus RX350L models. Confirm your vehicle year and model match these applications before purchase.
This hitch is rated for a maximum trailer weight of 5,000 lbs and tongue weight of 500 lbs when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
Required tools are: ratchet, torque wrench, 10mm socket, 17mm socket, 19mm socket, 1/2" socket, 6" socket extension, screwdriver, and safety glasses. A rotary tool is optional. Proper tools will greatly improve installation quality and reduce installation time.
The hitch includes 6 M12×1.25 hex cap screws (part 10-10419) and 6 1/2" conical toothed washers (part 30-00149). These are used to secure the hitch to the frame weldnuts.
No, drilling is not required. The hitch aligns with existing weldnuts in the frame and uses existing threaded plastic inserts.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Two trimming tasks are required: (1) Mark and trim the lower fascia exhaust air deflector 4 inches from the hinge to allow room for the hitch. (2) Trim plastic fascia tabs by removing lower fascia push pins to make room for the hitch to be raised into position. (3) Mark and trim the underbody panel using the trim diagram provided; dimensions are approximate, so confirm fit prior to trimming and use ribs of the underbody panel as cutting guides.
All M12 hardware (the supplied hex bolts and washers) must be torqued to 86 ft-lbs.
1. Remove 7 fasteners securing the driver side underbody panel and lower it. 2. Remove 4 rubber plugs from frame rails and unscrew 3 threaded plastic inserts from driver side frame rail. 3. Mark and trim the lower fascia exhaust air deflector 4 inches from the hinge. 4. Remove lower fascia push pins and trim plastic fascia tabs. 5. Remove 3 M12 bolts securing the metal fascia tab and tow loop from the passenger side frame rail. 6. Raise the hitch over the exhaust, align holes with frame weldnuts, and secure using supplied M12-1.25 hex bolts and 1/2" washers; torque to 86 ft-lbs. 7. Mark and trim underbody panel and reattach using fasteners from Step 1.
The following factory components are removed and returned to the owner: (1) 7 fasteners and underbody panel (which may be trimmed and reinstalled), (2) 4 rubber plugs from frame rails, (3) 3 threaded plastic inserts from driver side frame rail, (4) lower fascia push pins, (5) 3 M12 bolts, metal fascia tab, and tow loop from passenger side frame rail.
Safety glasses must be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Periodically check this receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing maintenance is essential for safe operation.
The installation difficulty is rated as moderate. Professional installation time is approximately 60 minutes; novice (DIY) installation time is approximately 120 minutes.
No, CURT hitch 13394 does not require drilling. Installation involves part removal, trimming of the underbody panel, and trimming of the fascia only.
CURT 13394 fits 2014–2018 Toyota Highlander and 2018–present Lexus RX350L.
Maximum trailer weight 5,000 lbs, tongue weight 500 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling required. Installation involves part removal and trimming of underbody panel and fascia only.
All M12 hardware must be torqued to 86 ft-lbs.
Professional installation: approximately 60 minutes. Novice (DIY) installation: approximately 120 minutes.
Safety glasses must be worn at all times during installation.
The Curt 56042 custom wiring connector is designed for Toyota Highlander models equipped with a towing prep package. Your vehicle must have the towing prep package to be compatible. Check your vehicle owner's manual or contact the vehicle manufacturer to confirm whether your specific Highlander has the towing prep package installed.
No. The Curt 56042 is designed specifically for Toyota Highlander models with a towing prep package. If your vehicle does not have the towing prep package, this connector will not be compatible. Contact the vehicle manufacturer or check your owner's manual to verify whether your Highlander has the towing prep package.

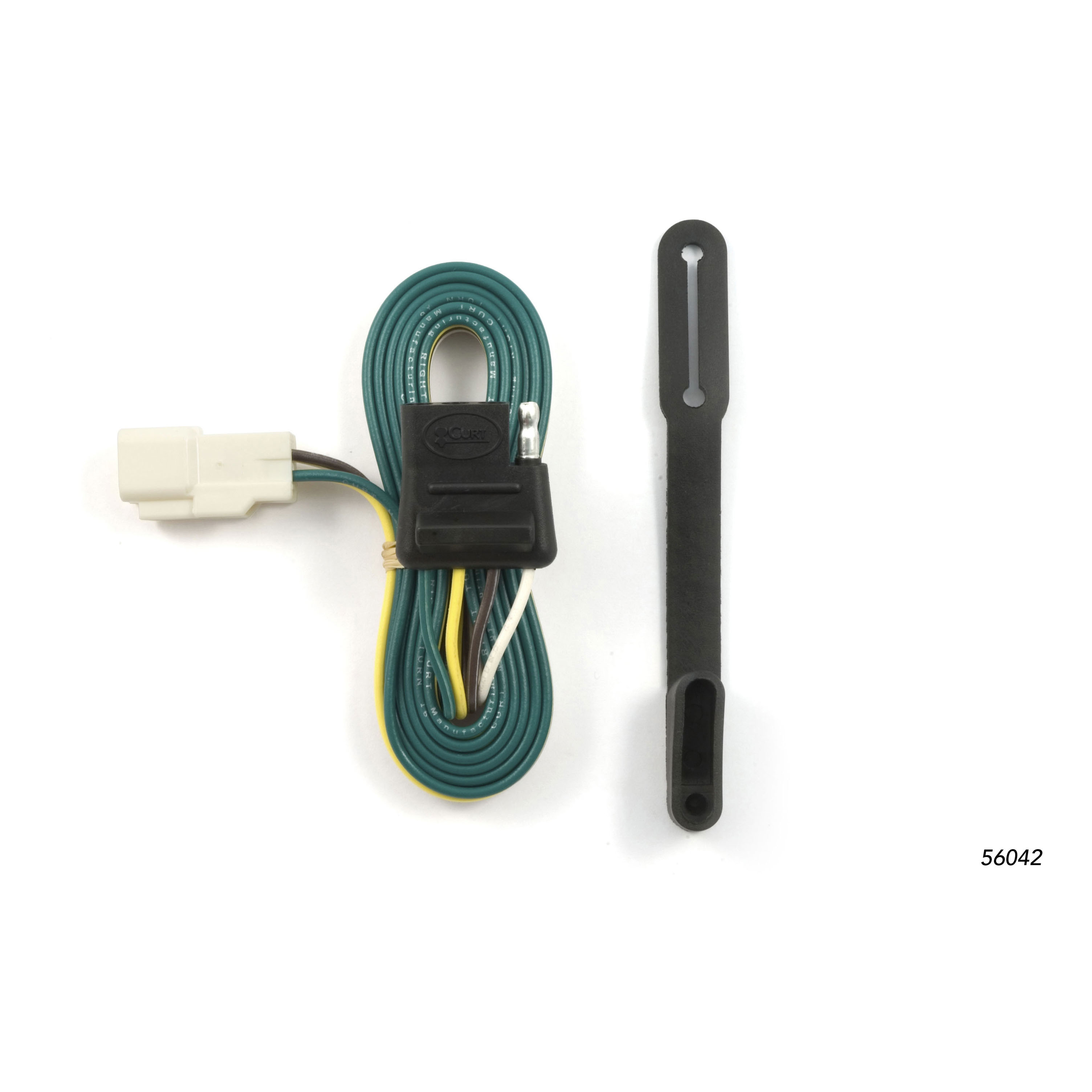

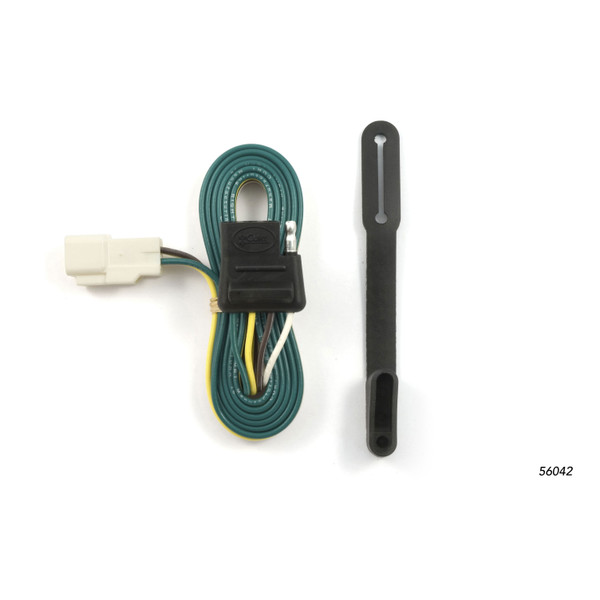

The Curt 56042 is a custom wiring connector that provides a 4-flat connector interface for trailer lighting on compatible vehicles. It connects to your vehicle's 4-pin taillight wiring harness, allowing you to safely connect a trailer with standard 4-flat lighting connectors.
No special tools are required for installation of the Curt 56042 connector. The installation involves removing interior access panels and connecting the wiring harness by hand.
The manual does not specify whether the battery must be disconnected. For safety, consult your vehicle owner's manual or contact the vehicle manufacturer before beginning installation.
On the Toyota Highlander with towing prep package, the 4-pin taillight wiring harness connector is located behind the driver side rear access panel. You will need to open the tailgate and remove the driver side access panels, threshold, trunk floor panels and trays to access it.
Locate the vehicle's 4-pin taillight wiring harness connector on the driver side behind the rear access panel. Insert the custom wiring connector into the vehicle connector, ensuring the connectors are fully inserted with locking tabs in place. The connectors will be similar in design to each other.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties to prevent tangling and damage.
Yes. A 4-flat dust cover is provided with the Curt 56042 connector. Install it after completing the wiring connection to help prevent corrosion.
Yes. Cable ties are provided with the Curt 56042 connector. Use them to secure any loose wires during installation.
The manual states that you must not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. However, the specific product rating is not provided in the installation manual. Contact Curt Manufacturing or check the product documentation for the exact amperage or wattage rating.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
After installation, test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
Yes. You must open the vehicle tailgate to access the driver side rear access panels, threshold, trunk floor panels and trays that need to be removed to reach the 4-pin taillight wiring harness connector.
Yes, if your Highlander has a towing prep package. Verify this in your owner's manual or contact Toyota.
No special tools are required. Installation involves removing interior panels and hand-connecting the wiring harness.
Yes, a 4-flat dust cover is provided to help prevent corrosion.
The manual does not specify the product rating. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower, to avoid warranty loss, overheating and fire.
Test for proper function using a test light or by connecting a properly wired trailer.
