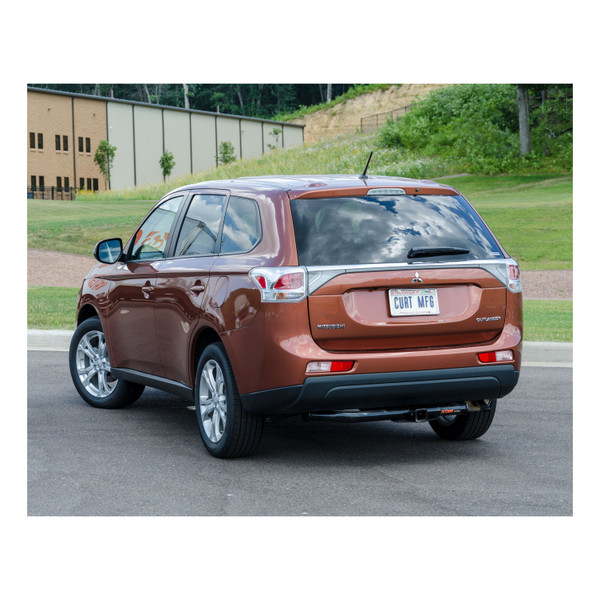

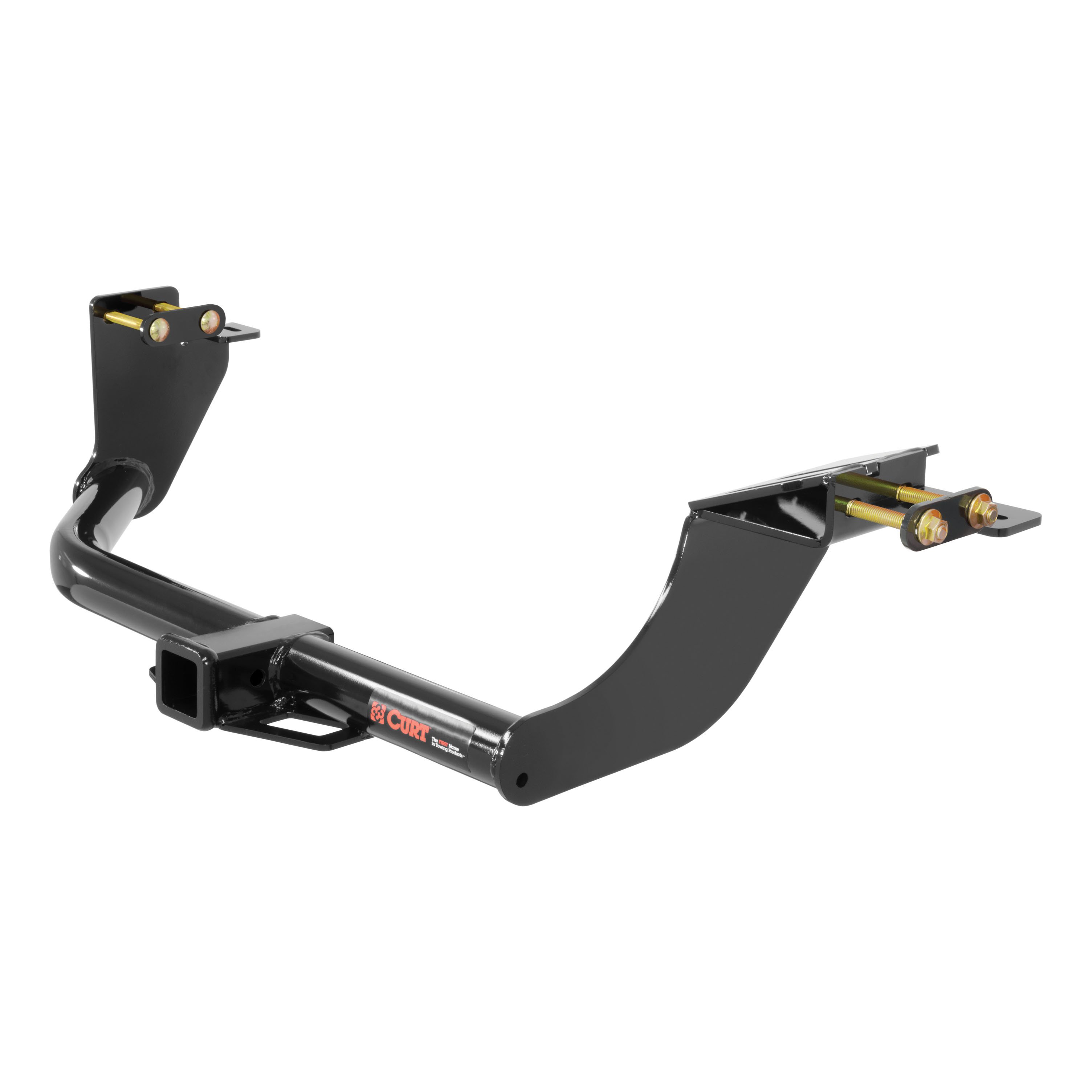

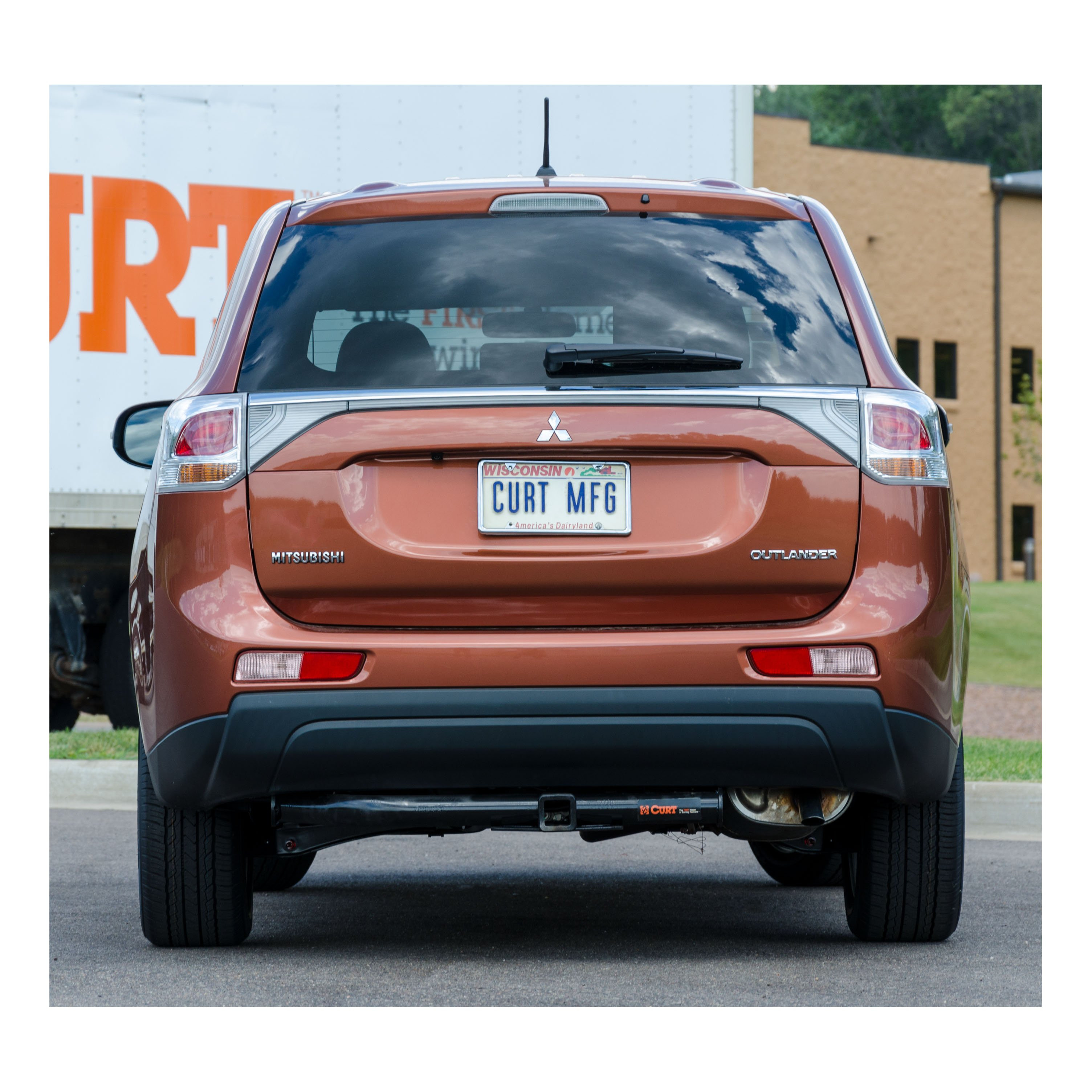

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2014 - 2020 Mitsubishi Outlander. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Mitsubishi Outlander (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mitsubishi Outlander (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2020 | Mitsubishi Outlander | — |
The 14 - 20 Mitsubishi Outlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13163 (Part #CHW-2470) fits 2014-2020 Mitsubishi Outlander models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 14 - 20 Mitsubishi Outlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13163 (Part #CHW-2470) is designed to fit the 2014-2020 Mitsubishi Outlander.
The 14 - 20 Mitsubishi Outlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13163 (Part #CHW-2470) fits the following vehicles: 2014-2020 Mitsubishi Outlander. Always verify your specific year, make, and model before ordering.
The 14 - 20 Mitsubishi Outlander Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13163 (Part #CHW-2470) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13163 is designed for 2014-current Mitsubishi Outlander SUVs. Verify your vehicle matches this year range and model before purchasing.
When used as a weight carrying hitch, the CURT 13163 supports 4,000 lbs trailer weight and 600 lbs tongue weight. When used as a weight distribution hitch, it also supports 4,000 lbs trailer weight and 600 lbs tongue weight. You must not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 30 lbs.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Required tools are: ratchet, torque wrench, socket extension, 12mm socket, 14mm socket, 17mm socket, 3/4" socket, and screwdriver. Safety glasses must be worn at all times during installation.
No, drilling is not required. The installation uses fishwire hardware and existing frame rail attachment points.
Yes. Step 1 requires removing 3 bolts and the tow loop from the driver side frame rail. The bolts and tow loop should be returned to the vehicle owner.
Yes. Step 2 requires lowering the exhaust by removing 3 rubber isolators. You must support the exhaust as needed to prevent damage. After completing the hitch installation, the exhaust is raised back into position in Step 7.
Fishwire hardware consists of carriage bolts and spacers that are threaded through existing frame rail holes without requiring drilling. The installation includes 1/2" fishwire and 7/16" fishwire. If weldnuts do not exist in the frame rails, 7/16" carriage bolts and spacers are fishwired into the frame rails as shown in the installation diagram (Step 3). On the passenger side, 1/2-13 x 4-1/2" carriage bolts are fishwired through the passenger side plate and out the frame rail (Step 5).
On the passenger side frame rail, you may need to back out the inner bumper bolt to allow the hitch to be fully raised in Step 3. If you back out this bolt, you must tighten and torque it to 25 ft-lbs in Step 5.
You may need to lower or pull down on the spare tire to allow the carriage bolts to slide through the frame rail on the driver side (Step 4).
Torque all 10mm hardware to 48 ft-lbs. Torque all 1/2" hardware to 110 ft-lbs. Torque all 7/16" hardware to 59 ft-lbs. If the inner bumper bolt was backed out during installation, torque it to 25 ft-lbs.
The kit includes: 2x 7/16-14 UNC 1-1/2" grade 8 bolts (part 10-10282), 4x 1/2-13 UNC 4-1/2" grade 8 bolts (part 10-10297), 2x M10x1.25 35mm hex bolts (part 10-10298), 4x 1/2-13 UNC flange nuts (part 20-00062), 2x 7/16-14 UNC flange nuts (part 20-00103), 2x 7/16" conical toothed washers (part 30-00163), 2x 0.250 x 0.88 x 2.25" square hole spacers (part CM-SP2), 2x 1/2" fishwire, 2x 7/16" fishwire, and 2x 0.250" spacer plates (part 13163-SP).
1. Remove 3 bolts and tow loop from driver side frame rail. 2. Lower exhaust by removing 3 rubber isolators and support it. 3. Raise hitch into position, align bottom tabs with center weldnuts, and loosely secure with M10 hex bolts and 7/16" washers (back out inner bumper bolt on passenger side if needed). 4. On driver side, insert 1/2-13 x 4-1/2" carriage bolts and spacer through frame rail, secure with flange nuts (lower spare tire if needed). 5. On passenger side, fishwire 1/2-13 x 4-1/2" carriage bolts through plate and out frame rail, secure with spacer and flange nuts (torque inner bumper bolt to 25 ft-lbs if backed out). 6. Torque all 10mm hardware to 48 ft-lbs, all 1/2" hardware to 110 ft-lbs, and all 7/16" hardware to 59 ft-lbs. 7. Raise exhaust back into position.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is critical for safe towing operation.
Never exceed your vehicle manufacturer's recommended towing capacity. Although the CURT 13163 supports 4,000 lbs trailer weight and 600 lbs tongue weight, your Mitsubishi Outlander may have a lower manufacturer-specified limit. Verify your vehicle's towing capacity in your owner's manual before towing.
Professional installation time is approximately 60 minutes. Novice (DIY) installation time is approximately 41 minutes. Actual time may vary depending on your experience level and vehicle condition.
Yes, the CURT 13163 is designed for 2014-current Mitsubishi Outlander SUVs.
The CURT 13163 supports 4,000 lbs trailer weight and 600 lbs tongue weight as both a weight carrying and weight distribution hitch. Never exceed your vehicle manufacturer's recommended towing capacity.
No, drilling is not required. The installation uses fishwire hardware and existing frame rail attachment points.
You need a ratchet, torque wrench, socket extension, 12mm, 14mm, 17mm, and 3/4" sockets, screwdriver, and safety glasses.
Yes, you must remove the factory tow loop and 3 bolts from the driver side frame rail, and lower the exhaust by removing 3 rubber isolators. Both are restored after hitch installation.
Torque all 10mm hardware to 48 ft-lbs, all 1/2" hardware to 110 ft-lbs, and all 7/16" hardware to 59 ft-lbs. If the inner bumper bolt was backed out, torque it to 25 ft-lbs.
Two people may be required to ease installation. If hesitant, contact an authorized CURT installer.
Periodically check that all fasteners are tight and all structural components are sound.
The Curt 56189 fits Mitsubishi Outlander models, excluding the Sport variant. It is designed for SUVs, Mini and Full-Sized Vans (S category). If you have an Outlander Sport, this harness is not compatible. Check your vehicle's specific trim level before purchasing.
The Curt 56189 has a maximum amperage rating of 3.0 amps per side for signal circuits and 6.0 amps total for tail/running circuits. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
You will need a Phillips screwdriver, a flat blade screwdriver, and a panel trim removal tool. These are the only tools specified in the installation instructions.
The installation instructions do not specify whether the battery must be disconnected before beginning installation. Contact Curt Manufacturing or your vehicle manufacturer for this safety requirement before starting work.
Drilling may be required. Step 5 instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw if no existing point is available. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
The custom wiring harness end with the yellow wire is inserted between the separated taillight connectors on the driver side. The connectors must be fully inserted with locking tabs in place. This is done after removing the plastic side wall panels to access the vehicle's taillight wiring harness connectors.
The custom wiring harness end with the green wire is routed to the passenger side behind the removed scuff panels and inserted between the separated taillight connectors on the passenger side, following the same procedure as the yellow wire on the driver side (Steps 3-4).
The black converter box must be adhered using the provided double-sided tape to a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly. Testing confirms that the connections are secure and the harness is operating correctly.
The Curt 56189 includes a custom wiring harness with yellow and green wire ends, a black converter box, a white ground wire with ring terminal and provided screw, double-sided tape for mounting the converter box, a 4-flat dust cover, and cable ties for securing loose wires.
The ground wire is white. It is secured using the ring terminal and provided screw to a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or to a 3/32" pilot hole drilled in the frame if no existing point is available.
If no existing screw with nut is available in the vehicle frame, drill a 3/32" pilot hole for the provided ground screw. The area should be free of rust, dirt, and paint before securing the white ground wire.
You must remove the tailgate floor and cloth roll cover, the plastic floor liner, the scuff panel, and the plastic side panels (three Phillips screws per side). On the passenger side, also remove the inspection cover from the side panel. These removals provide access to the taillight wiring harness connectors.
There are three Phillips screws securing the plastic side panels on each side (driver and passenger) of the hatch. Take care not to damage the alignment tabs on the back of the scuff panel when removing it.
Yes, the Curt 56189 fits Mitsubishi Outlander models excluding the Sport variant. Verify your trim level before purchasing.
You need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. Drilling a 3/32" pilot hole may be required for the ground wire screw.
The battery connection must use a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating, and potential fire.
Drilling may be required. If no existing screw with nut is available in the vehicle frame for grounding, you must drill a 3/32" pilot hole. Check for hidden items before drilling.
The converter box is adhered using provided double-sided tape to a flat, clean, protected surface away from wheel spray and road debris. Improper mounting can cause product failure and fire.
Test using a test light or by connecting a properly wired trailer to verify proper function.
