15-18 Volvo V60 CURT 4-flat Plug and Play Trailer WiringCURTOriginal price was $107.90. Current price is $106.47.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2018 Volvo V60 Cross Country
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2018 | Volvo V60 Cross Country | — |
The 15-18 Volvo V60 Cross Country CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2552) fits the following vehicles: 2015-2018 Volvo V60 Cross Country. Always verify your specific year, make, and model before ordering.
The 15-18 Volvo V60 Cross Country CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2552) fits 2015-2018 Volvo V60 Cross Country models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 15-18 Volvo V60 Cross Country CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2552) is designed to fit the 2015-2018 Volvo V60 Cross Country.
The 15-18 Volvo V60 Cross Country CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2552) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 56287 is a custom wiring harness that integrates trailer lighting circuits with your vehicle's electrical system. It includes a converter box and a 4-flat connector for trailer use. The harness handles signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total).
Yes, the Curt 56287 is designed for the Volvo V60 T5. It is classified as a wiring harness for SUVs, Mini & Full-Sized Vans (category S) and is specifically listed for this application.
You will need: ratchet, 10mm socket, 8mm socket, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool. A drill may also be needed if you do not have an existing screw with nut for the ground connection.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning installation.
Open the vehicle trunk and remove all trunk floor coverings. Then remove the fasteners securing the rear scuff panel and pull out the scuff panel by pulling out on the bottom and then up. Take care not to damage the alignment tabs on the back.
First, remove the bolt from the cargo tie down on the driver side. Pull back the felt liner to locate the vehicle taillight wiring harness connectors. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors, ensuring they are fully inserted with locking tabs in place. Repeat on the passenger side with the harness end with the green wire.
Drilling may be required for the ground connection. You should locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint before securing the white ground wire using the ring terminal and provided screw.
Drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
The custom wiring harness has a yellow wire end for the driver side taillight connection and a green wire end for the passenger side taillight connection. There is also a white ground wire that must be secured to a grounding point using the provided ring terminal and screw.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties. Install the provided 4-flat dust cover to help prevent corrosion.

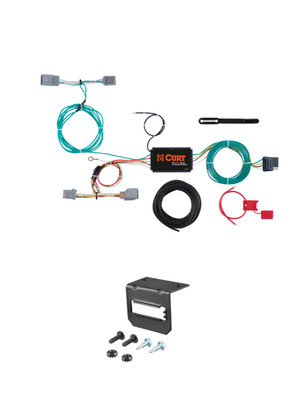

The harness includes the custom wiring harness with yellow and green wire ends, a black converter box, a white ground wire with ring terminal and provided screw, a 4-flat connector with dust cover, double-sided tape for the converter box, and cable ties for wire management.
All steps must be followed to ensure the wiring harness will function properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Reinstall all items removed during installation, including the scuff panel and trunk floor coverings. Reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.
Yes, the Curt 56287 is designed specifically for the Volvo V60 T5.
You will need a ratchet, 10mm and 8mm sockets, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool. A drill may be needed if you do not have an existing screw for the ground connection.
Yes, you must disconnect the negative battery terminal before beginning installation.
Drilling may be required for the ground connection if no existing screw with nut is available in the vehicle frame. If needed, drill a 3/32" pilot hole.
The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this can cause loss of warranty, overheating and potential fire.
Signal circuits are 3.0 amps per side; tail and running circuits are 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer.
