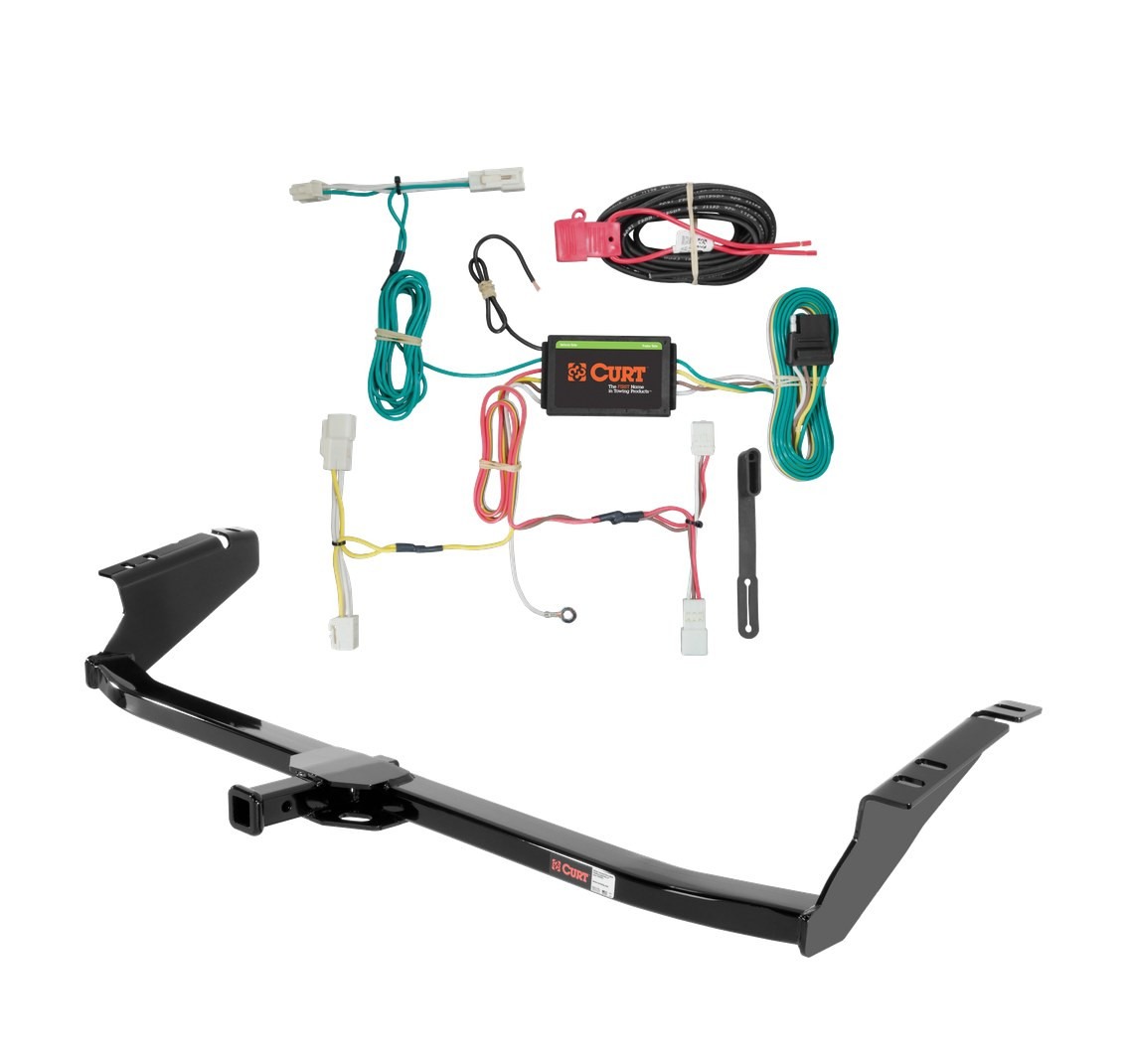

Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2015 - 2020 Toyota Sienna. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Toyota Sienna (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Sienna (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2020 | Toyota Sienna | — |
The 15 - 20 Toyota Sienna Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12065 (Part #CHW-2938) fits the following vehicles: 2015-2020 Toyota Sienna. Always verify your specific year, make, and model before ordering.
The 15 - 20 Toyota Sienna Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12065 (Part #CHW-2938) fits 2015-2020 Toyota Sienna models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 15 - 20 Toyota Sienna Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12065 (Part #CHW-2938) is designed to fit the 2015-2020 Toyota Sienna.
The 15 - 20 Toyota Sienna Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12065 (Part #CHW-2938) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 12065 is designed for the Toyota Sienna. This is a receiver hitch that uses existing weldnuts in the frame rails, so no drilling is required. Trimming of the underbody panel may be necessary depending on your vehicle's configuration.
Curt hitch 12065 is designed for use with ball mount D-224 / 45016. Euro mount options are also available: #45571 (1-7/8" ball) and #45562 (2" ball).
The manual specifies a gross load capacity when used as a weight-carrying hitch, but the specific trailer weight and tongue weight values are not filled in on this copy of the manual. Contact Curt Manufacturing technical support at 1-877-287-8634 for the exact capacity specifications for your vehicle.
The manual does not provide a filled-in tongue weight specification. Contact Curt Manufacturing technical support at 1-877-287-8634 for the exact tongue weight rating.
The hitch includes 6 M12x1.25 hex cap screws (HHCS) grade 10.9 (part 10-10277) and 6 conical toothed washers (part 30-00149). These fasteners are used to secure the hitch to the existing weldnuts in the frame rails.
Required tools are: ratchet, torque wrench, 6" extension, 19mm socket, screwdriver, and aviation shears. The aviation shears are needed for trimming the underbody panel if present.
The underbody panel should be removed if present to allow access for installation. The hitch plate will be slid through a slot trimmed in the underbody panel, and the panel will then be sandwiched between the hitch and the trunk pan during final assembly.
Yes. Step 2 of the installation requires lowering the exhaust assembly for ease of installation. After the hitch is secured, the exhaust must be raised back into position in step 9.
No drilling is required. The hitch uses existing weldnuts in the frame rails. However, trimming of the underbody panel may be necessary. The manual specifies trimming dimensions of 12.50 in. by 2.75 in. Some models may have a lip that protrudes down, which will also need to be trimmed.
According to Underbody Trim Diagram 1, the trimming dimensions are 12.50 in. by 2.75 in. The manual also notes that some models may have a lip that protrudes down, which will need to be trimmed as well (see Underbody Trim Diagram 2). You should mark the panel for trimming and confirm fit prior to trimming.
All M12 fasteners must be torqued to 86 ft-lbs.
Slide the driver side plate through the slot trimmed in the underbody panel. Raise the hitch and underbody panel into position, aligning the holes with the existing weldnuts in the frame rails. The underbody panel will be sandwiched between the hitch and the trunk pan.
Use the M12 hex cap screws (HHCS) and conical toothed washers provided in the parts list. Secure the hitch with these fasteners through the holes aligned with the existing weldnuts in both the driver side and passenger side frame rails.
All non-trailer loads applied to this hitch must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Do not exceed your vehicle manufacturer's recommended towing capacity. While this hitch has a gross load capacity specification, you must always follow the limits set by Toyota for your Sienna.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This is important for safe operation and to maintain warranty coverage.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Yes, Curt 12065 is designed for the Toyota Sienna and uses existing frame rail weldnuts—no drilling required.
No drilling is required. Trimming of the underbody panel may be necessary (12.50 in. by 2.75 in. per the diagram).
Ratchet, torque wrench, 6" extension, 19mm socket, screwdriver, and aviation shears for trimming the underbody panel.
Torque all M12 fasteners to 86 ft-lbs.
Do not exceed your vehicle manufacturer's recommended towing capacity. Non-trailer loads must be supported by 18050 stabilizing straps.
The Curt 56261 Custom Wiring Harness is designed for Toyota Sienna models, excluding the SE trim. If you have a Sienna SE or a different model, this harness is not compatible. Verify your vehicle model and trim before purchasing.

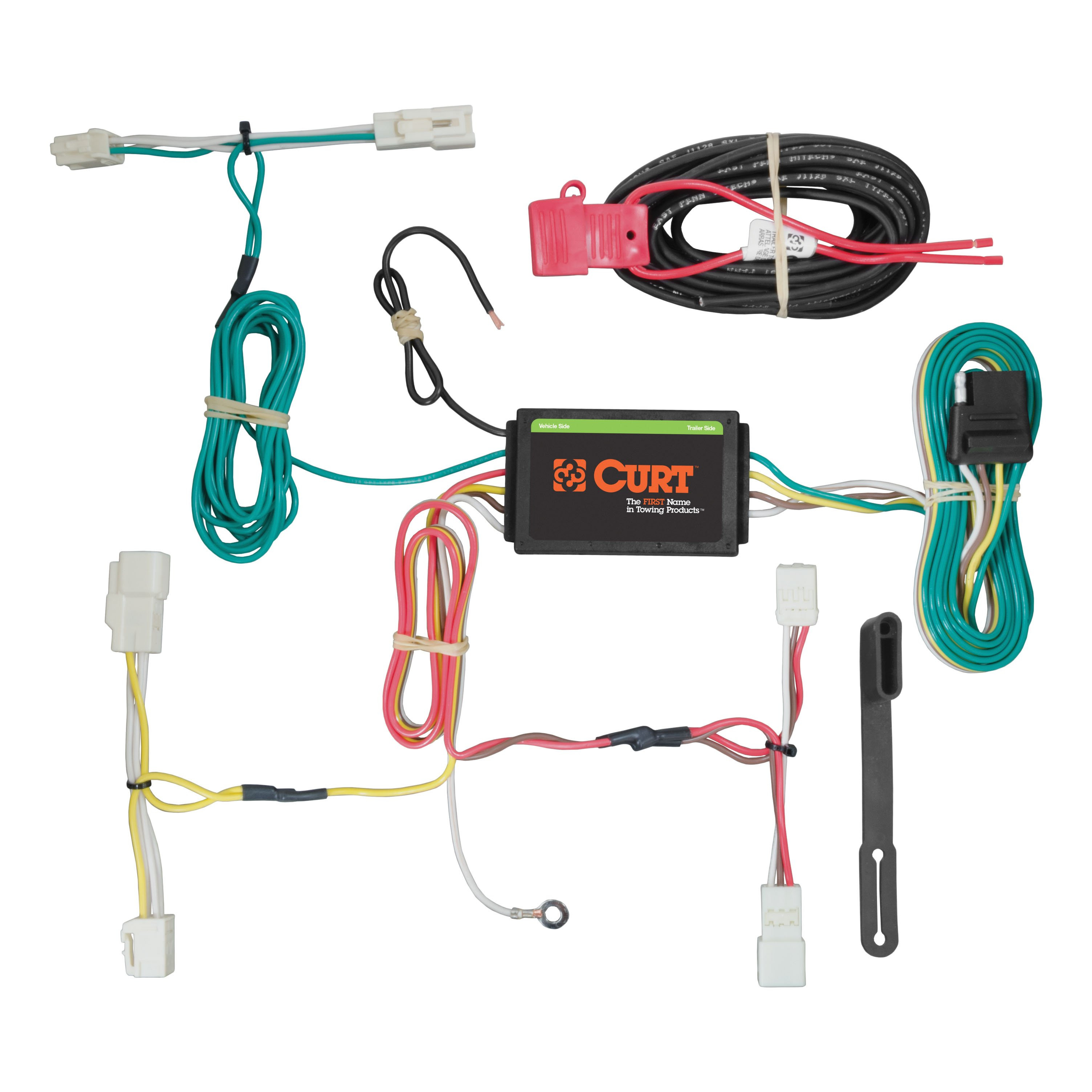

The Curt 56261 is a Custom Wiring Harness designed to provide trailer lighting connections for your vehicle. It includes signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total), allowing you to connect a trailer with a 4-flat connector. The harness integrates with your vehicle's existing taillight wiring.
You will need: a ratchet, 10mm socket, crimping tool, side cutter, wire stripper, and panel trim removal tool. These tools are required to disconnect the battery, remove fasteners, access the taillight assemblies, and prepare the wiring connections.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step and is essential for safety when working with the vehicle's electrical system.
Follow these steps in order: (1) Disconnect the negative battery terminal. (2) Remove trunk floor coverings and storage trays. (3) Remove the rear scuff panel by removing three cargo hooks. (4) Remove the two 10mm bolts from the driver-side taillight assembly. (5) Separate the taillight wiring connectors. (6) Route the custom harness yellow and red wires through the opening and insert between the separated connectors. (7) Secure the ground wire to a suitable grounding point. (8) Adhere the converter box inside the vehicle. (9) Repeat steps 4–7 on the passenger side with the green wire. (10) Route the black power wire from the battery. (11) Route and secure the 4-flat connector. (12) Reinstall removed items and reconnect the battery.
Locate the vehicle's taillight wiring harness connectors behind the taillight. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Route the custom harness ends (yellow and red wires for driver side, green wire for passenger side) out through the opening in the rear trim panel and insert them between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place.
Drilling is required only if a suitable grounding point is not available near the taillight connector. If you need to drill, create a 3/32" pilot hole in a flat area of the vehicle's frame. The area must be free of rust, dirt and paint. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
The taillight assembly is secured by two 10mm bolts on each side (driver and passenger). These bolts must be removed to access the taillight wiring connectors during installation.
The harness includes colour-coded wires for different functions: yellow and red wires connect to the driver-side taillight, green wire connects to the passenger-side taillight, white wire is the ground connection, and black wire connects to the vehicle battery. The 4-flat connector (when not in use) should be rolled up and stored in the trunk.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and the provided screw.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as this can cause loss of warranty, overheating and potential fire.
After installation is complete, test for proper function using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly. Verify that all lights operate correctly before towing.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. This should be done after the taillight connectors are connected.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties to prevent tangling and damage.
Remove the three cargo hooks securing the rear scuff panel and pull the panel out at the bottom, then up. Take care not to damage the alignment tabs on the back. After routing the wiring harness, reinstall the scuff panel by reversing this process.
Remove all trunk floor coverings and storage trays to access the rear scuff panel and taillight wiring. These items must be removed to complete the installation.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The grounding area should be free of rust, dirt and paint before securing the ground wire.
After removing the two 10mm bolts and loosening the taillight by gently pulling it rearward and out, set the taillight aside. Keep it in a safe location during installation. After connecting the wiring harness, reinstall the taillight assembly by reversing the removal process.
Yes. After completing steps 4–7 on the driver side with the yellow and red wires, repeat the same steps on the passenger side using the harness end with the green wire. Both sides must be connected for the wiring harness to function properly.
Yes, the Curt 56261 fits Toyota Sienna models excluding the SE trim. Verify your trim level before purchasing.
You need a ratchet, 10mm socket, crimping tool, side cutter, wire stripper, and panel trim removal tool.
Yes, disconnect the negative battery terminal before starting installation. Reconnect it after all steps are complete.
Drilling is required only if a suitable grounding point is not available. If needed, drill a 3/32" pilot hole. Check for hidden items before drilling.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating or the tow vehicle lamp load rating.
Test for proper function using a test light or by connecting a properly wired trailer. Verify all lights operate correctly before towing.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating.
