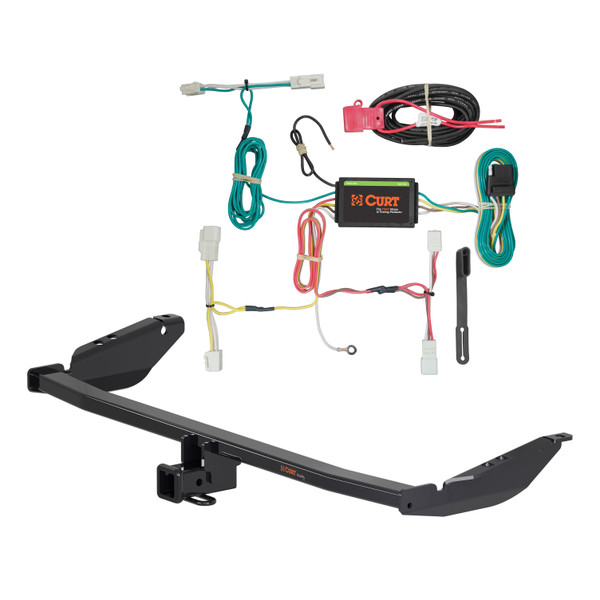

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2015 - 2020 Toyota Sienna. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota Sienna (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Sienna (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2020 | Toyota Sienna | — |
The 15 - 20 Toyota Sienna Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13343 (Part #CHW-2943) fits the following vehicles: 2015-2020 Toyota Sienna. Always verify your specific year, make, and model before ordering.
Yes, the 15 - 20 Toyota Sienna Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13343 (Part #CHW-2943) is designed to fit the 2015-2020 Toyota Sienna.
The 15 - 20 Toyota Sienna Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13343 (Part #CHW-2943) fits 2015-2020 Toyota Sienna models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 15 - 20 Toyota Sienna Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13343 (Part #CHW-2943) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

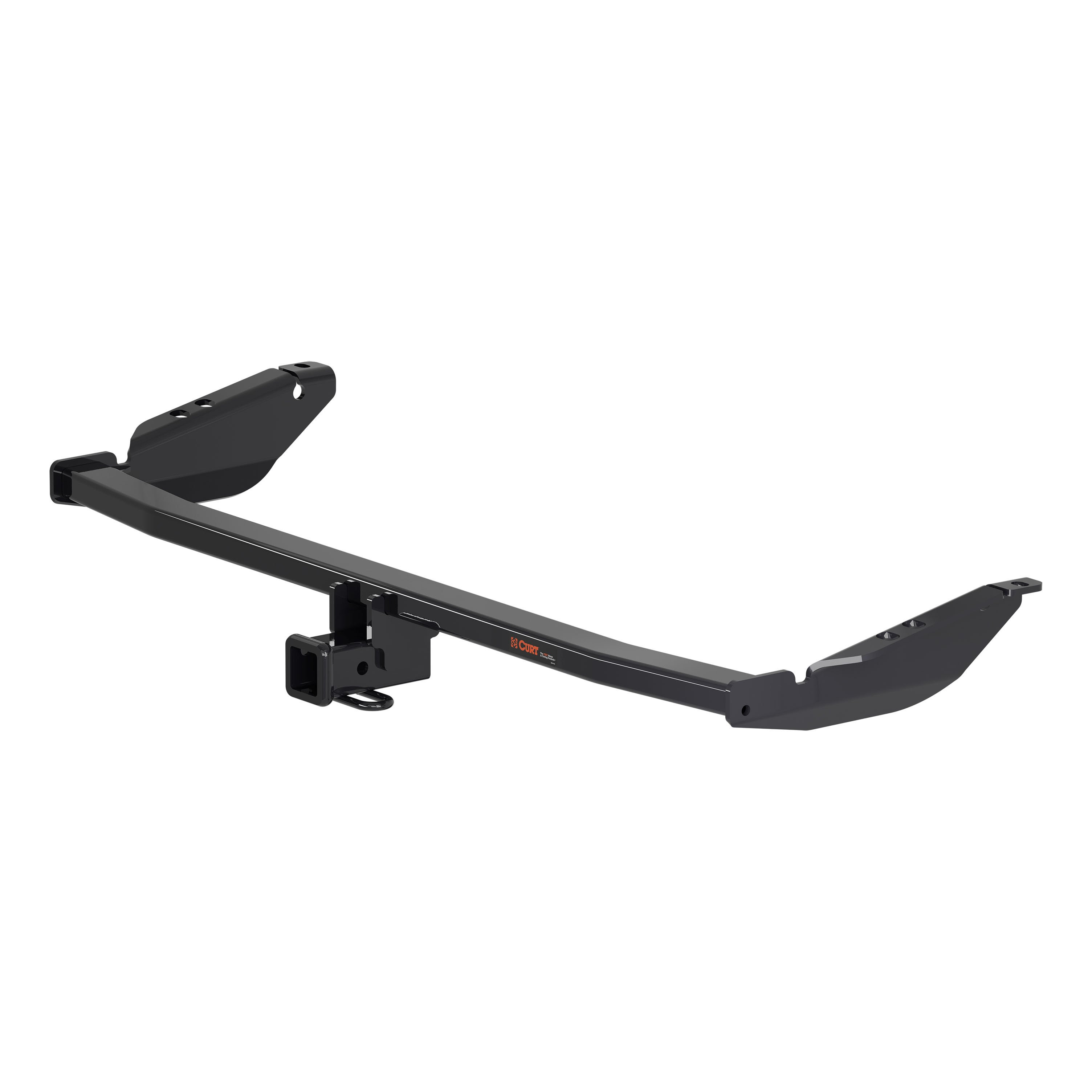

Yes, CURT part number 13343 is designed for 2011-Present Toyota Sienna vans. This is a weight-carrying hitch with a maximum trailer weight capacity of 3,500 lbs and tongue weight capacity of 525 lbs.
The CURT 13343 is rated for a maximum trailer weight of 3,500 lbs and tongue weight of 525 lbs when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
Required tools are: ratchet, 10mm and 19mm sockets, 6-inch socket extension, torque wrench, flat-head screwdriver, Phillips-head screwdriver, rotary tool, tape measure, masking tape or marker, and safety glasses. No drilling is required.
Yes. You must temporarily remove the underbody panel (by removing 5 screws with a 10mm socket, 4 plastic screws with a Phillips-head screwdriver, and 8 plastic push pins with a flat-head screwdriver), lower the exhaust by disconnecting 1 rubber isolator, and temporarily remove the rear fascia (which requires removing 1 plastic rivet and 2 screws per side from the hatch area, 1 screw per side from inside the rear wheel well, 2 plastic clips on the passenger side and 1 on the driver side, and disconnecting backup sensor connectors as needed).
Two people may be required to ease installation. The manual rates this as a moderate to challenging difficulty level, with professional installation taking 120 minutes and novice DIY installation taking 60 minutes.
No, drilling is not required. However, trimming of the underbody panel is required. The panel must be marked and trimmed according to the trim diagram (4 inches and 7 inches as shown) before reinstallation.
The M12 bolts must be torqued to 86 lb-ft. These bolts are installed with 1/2-inch conical toothed washers and connect the hitch to the existing weldnuts on both sides of the vehicle frame rails.
The hitch includes 6 M12x1.25x40 Class 10.9 zinc-plated hex head cap screws (part number 10-10277) and 6 1/2-inch stainless steel conical toothed washers (part number 30-00149). These fasteners connect the hitch to the vehicle's existing weldnuts.
Safety glasses must be worn at all times during installation. Before beginning, read all instructions thoroughly. If you are hesitant to undertake this task, contact an authorized CURT installer for assistance. Technical support is available at 877-287-8634.
After installation, periodically check that all fasteners are tight and all structural components are sound. This ongoing maintenance is essential to ensure safe operation of the hitch.
Non-trailer loads can be applied to this hitch, but they must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
The CURT 13343 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York V.E.S.C. Regulation V-5 and SAE J684.
Yes. The CURT 13343 is designed for 2011-Present Toyota Sienna vans with a 3,500 lb trailer weight and 525 lb tongue weight capacity.
No drilling is required. Trimming of the underbody panel is required using a rotary tool according to the provided trim diagram.
Torque the M12 bolts to 86 lb-ft using a torque wrench. Use 1/2-inch conical toothed washers under each bolt.
Essential tools: ratchet, 10mm and 19mm sockets, 6-inch socket extension, torque wrench, Phillips and flat-head screwdrivers, rotary tool, tape measure, masking tape, marker, and safety glasses.
Yes. You must temporarily lower the exhaust by disconnecting one rubber isolator, then raise it back into position after installing the hitch.
Maximum trailer weight is 3,500 lbs and tongue weight is 525 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodically check that all fasteners are tight and all structural components are sound to ensure safe operation.
The Curt 56261 Custom Wiring Harness is designed for Toyota Sienna models, excluding the SE trim. If you have a Sienna SE or a different model, this harness is not compatible. Verify your vehicle model and trim before purchasing.

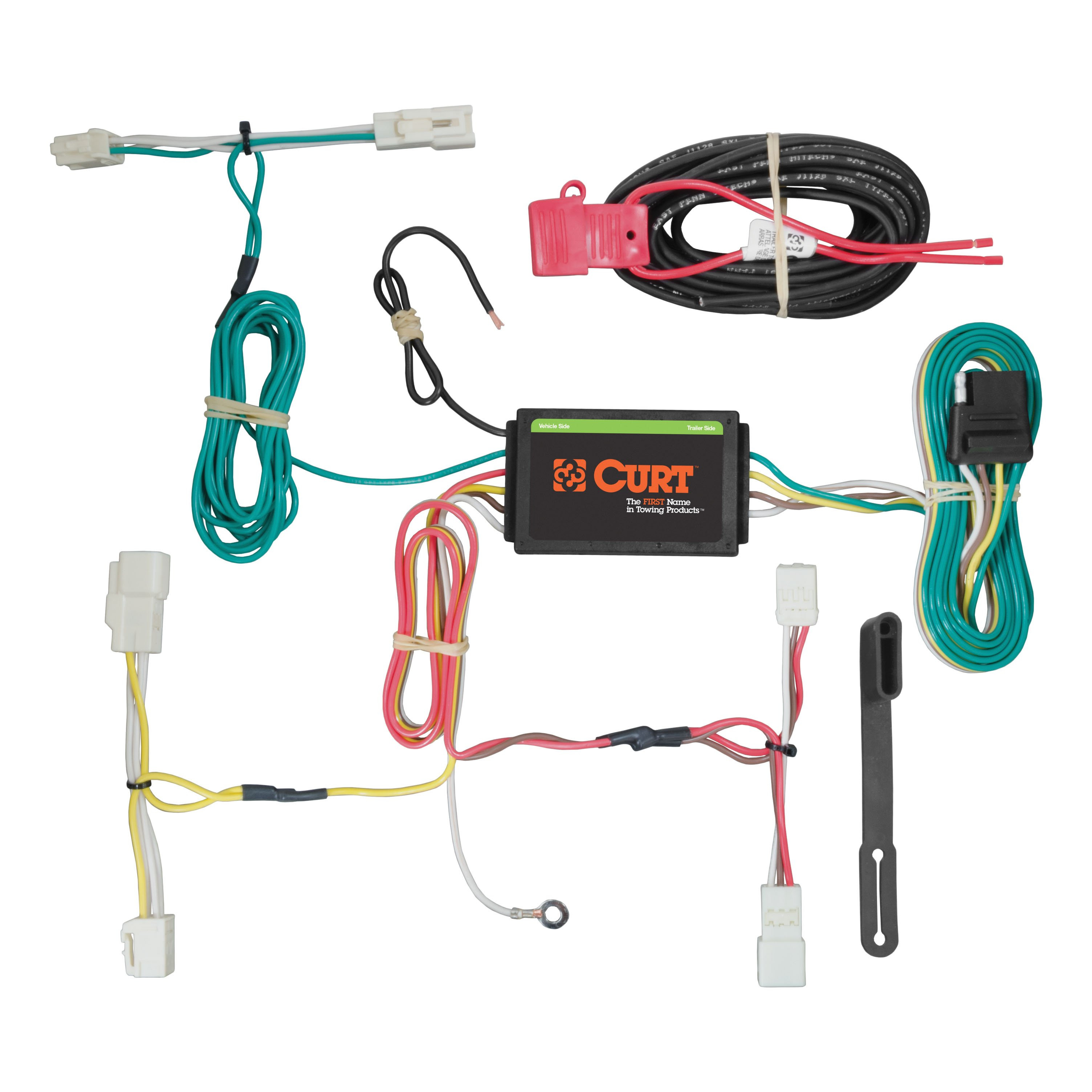

The Curt 56261 is a Custom Wiring Harness designed to provide trailer lighting connections for your vehicle. It includes signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total), allowing you to connect a trailer with a 4-flat connector. The harness integrates with your vehicle's existing taillight wiring.
You will need: a ratchet, 10mm socket, crimping tool, side cutter, wire stripper, and panel trim removal tool. These tools are required to disconnect the battery, remove fasteners, access the taillight assemblies, and prepare the wiring connections.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step and is essential for safety when working with the vehicle's electrical system.
Follow these steps in order: (1) Disconnect the negative battery terminal. (2) Remove trunk floor coverings and storage trays. (3) Remove the rear scuff panel by removing three cargo hooks. (4) Remove the two 10mm bolts from the driver-side taillight assembly. (5) Separate the taillight wiring connectors. (6) Route the custom harness yellow and red wires through the opening and insert between the separated connectors. (7) Secure the ground wire to a suitable grounding point. (8) Adhere the converter box inside the vehicle. (9) Repeat steps 4–7 on the passenger side with the green wire. (10) Route the black power wire from the battery. (11) Route and secure the 4-flat connector. (12) Reinstall removed items and reconnect the battery.
Locate the vehicle's taillight wiring harness connectors behind the taillight. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Route the custom harness ends (yellow and red wires for driver side, green wire for passenger side) out through the opening in the rear trim panel and insert them between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place.
Drilling is required only if a suitable grounding point is not available near the taillight connector. If you need to drill, create a 3/32" pilot hole in a flat area of the vehicle's frame. The area must be free of rust, dirt and paint. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
The taillight assembly is secured by two 10mm bolts on each side (driver and passenger). These bolts must be removed to access the taillight wiring connectors during installation.
The harness includes colour-coded wires for different functions: yellow and red wires connect to the driver-side taillight, green wire connects to the passenger-side taillight, white wire is the ground connection, and black wire connects to the vehicle battery. The 4-flat connector (when not in use) should be rolled up and stored in the trunk.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and the provided screw.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as this can cause loss of warranty, overheating and potential fire.
After installation is complete, test for proper function using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly. Verify that all lights operate correctly before towing.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. This should be done after the taillight connectors are connected.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties to prevent tangling and damage.
Remove the three cargo hooks securing the rear scuff panel and pull the panel out at the bottom, then up. Take care not to damage the alignment tabs on the back. After routing the wiring harness, reinstall the scuff panel by reversing this process.
Remove all trunk floor coverings and storage trays to access the rear scuff panel and taillight wiring. These items must be removed to complete the installation.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The grounding area should be free of rust, dirt and paint before securing the ground wire.
After removing the two 10mm bolts and loosening the taillight by gently pulling it rearward and out, set the taillight aside. Keep it in a safe location during installation. After connecting the wiring harness, reinstall the taillight assembly by reversing the removal process.
Yes. After completing steps 4–7 on the driver side with the yellow and red wires, repeat the same steps on the passenger side using the harness end with the green wire. Both sides must be connected for the wiring harness to function properly.
Yes, the Curt 56261 fits Toyota Sienna models excluding the SE trim. Verify your trim level before purchasing.
You need a ratchet, 10mm socket, crimping tool, side cutter, wire stripper, and panel trim removal tool.
Yes, disconnect the negative battery terminal before starting installation. Reconnect it after all steps are complete.
Drilling is required only if a suitable grounding point is not available. If needed, drill a 3/32" pilot hole. Check for hidden items before drilling.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating or the tow vehicle lamp load rating.
Test for proper function using a test light or by connecting a properly wired trailer. Verify all lights operate correctly before towing.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating.
